High Density MT Cable Assemblies86275 High-Density MT Ferrule Optical Cable Assemblies Extend Space and Cost Savings Up to 72 Fibers With the addition of the High Density MT (HDMT) ferrule optical cable assembly line, Molex further strengthens its position as a leader in optical backplane and front panel interconnect solutions. These cable assemblies offer multiple space-saving options on the front panel by using the 72-fiber MT ferrule in the industry standard MTP* connector, as well as high-density panel-mount Array connectors. In addition, by incorporating the HDMT ferrule in the HBMT™ backplane interconnect, customers can benefit from the highest-density blind-mate interface in the industry.These HDMT ferrules extend the capabilities of traditional MT-style connectors beyond 12 and 24 fibers, making configurations up to 72 fibers possible. Molex has developed termination and polishing capabilities achieving insertion-loss levels that are comparable to those of 24-fiber terminations. This significant increase in fibers in a single connector offers considerable space savings, along with reduced installation time and cost. Molex is developing flexible ruggedized trunk cabling solutions that utilize the HDMT ferrules, which are designed to reduce fiber installation costs in central offices and data center applications. Low profile, high fiber count trunk cables streamline the routing of the trunk cables and reduce the number of fiber pulls.

Reference Information

Packaging: Custom per assemblyMates with: MPO/MTP connectors and MPO transceiver interfaces

Optical

Insertion Loss (IL):Multimode 50/125µm 0.35dB Typ, <1.0dB MaxMultimode 62.5/125µm 0.40dB Typ, <1.0dB MaxSinglemode is not available

Mechanical

Durability: <0.3dB over 200 cycles

Physical

Connector Housing: PBT (V0)Spring Push: PEI (V0)Pin Holder: SS 400 Spring: SS 304Crimp Ring: BrassBoot: TPE (V0)Dust Cap: TPE (V0)Ferrule: MM is ThermosetOperating Temperature: -40°C to +85°C

High Density MT Interface Details

SPECIFICATIONS Features and Benefits

■

Up to 72 fibers in the traditional MT Ferrule footprint increases density without increasing front panel real-estate

■

Standard MPO/MTP connector interface ensures industry compatibility

■

Optical Insertion Loss below 1.0dB across all 72 channels meets industry expectations

■

Bare ribbon breakouts ensure smooth transition from 12-fiber transceivers to 72-fiber MTP on the front panel

■

Jacketed 72-fiber cable assemblies are capable of rugged chassis-to-chassis interconnects High Density MT Connector Comparison

Connector TypeMaximum No. of FibersNo. of PortsDensity Per Connector

MTP72172HBMT364144Array368288*MTP is a registered trademark of US Conec Ltd.元器件交易网www.cecb2b.com APPLICATIONS ■ Parallel optic transceiver interconnection including Xanoptix* transceivers ■ High Density interconnects for:- OE modules- PC cards and patch panels- Optical backplanes- Optical switch and routers- Data communication centers

ORDERING INFORMATION

Notes:Only sold as terminated jumpers or pigtailsThe cable construction will be customer and system specificAll new opportunities should be reviewed with the product manager; contact Molex for details*Xanoptix is a trademark of Xanoptix, Inc. Order No.DescriptionDescription

86275-0008Generic Drawing of 72-Fiber Bare Ribbon Cable Assembly50/125 or 62.5/125µm86275-0009Generic Drawing of 72-Fiber Jacketed Cable Assembly50/125 or 62.5/125µm

Americas Headquarters

Lisle, Illinois 60532 U.S.A.1-800-78MOLEXamerinfo@molex.com

Far East North Headquarters

Yamato, Kanagawa, Japan81-462-65-2324feninfo@molex.com

Far East South Headquarters

Jurong, Singapore65-6-268-6868fesinfo@molex.com

European Headquarters

Munich, Germany49-89-413092-0eurinfo@molex.com

Corporate Headquarters

2222 Wellington Ct.Lisle, IL 60532 U.S.A.630-969-4550 Fax:630-969-1352

Visit our Web site at www.molex.com/fiber

Order No. USA-192 Rev. 1

Printed in USA/?/JI/JI/2004.05

©

2004, Molex High Density MT Cable Assemblies86275High Density MTcable assemblypanel-mounted with6 by 12-fiberribbons to sixoptical transceiversThe 72-fiber MT ferrule offers the highest density front-panel interface in the industry元器件交易网www.cecb2b.com

合集下载

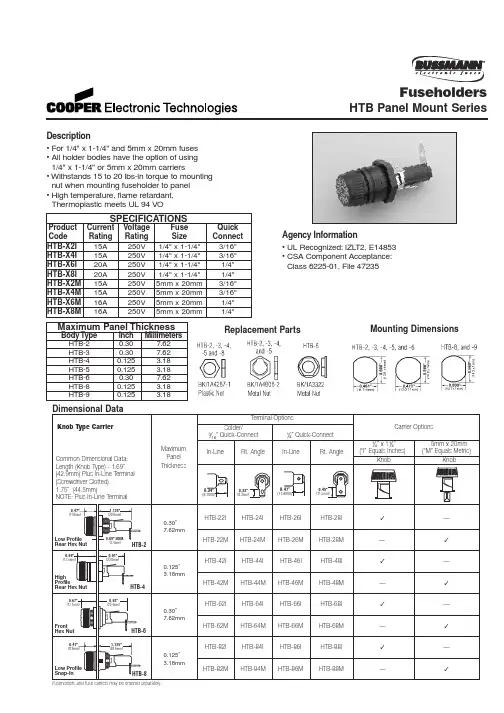

BKHTB-86M8中文资料

BKHTB-86M8中文资料

Description

• For 1/4" x 1-1/4" and 5mm x 20mm fuses

• All holder bodies have the option of using

1/4" x 1-1/4" or 5mm x 20mm carriers

• Withstands 15 to 20 lbs-in torque to mounting

nut when mounting fuseholder to panel

• High temperature, flame retardant,

Thermoplastic meets UL 94 VO

Agency Information

• UL Recognized:IZLT2, E14853

• CSA Component Acceptance:

Class 6225-01, File 47235

Fuseholders

HTB Panel Mount Series

Replacement PartsMaximum Panel Thickness

Body TypeInchMillimeters

HTB-20.307.62

HTB-30.307.62

HTB-40.1253.18

HTB-50.1253.18

HTB-60.307.62

HTB-80.1253.18

HTB-90.1253.18SPECIFICATIONS

ProductCurrentVoltageFuseQuick

CodeRatingRatingSizeConnect

HTB-X2I15A250V1/4" x 1-1/4"3/16"

HTB-X4I15A250V1/4" x 1-1/4"3/16"

HTB-X6I20A250V1/4" x 1-1/4"1/4"

HTB-X8I20A250V1/4" x 1-1/4"1/4"

HTB-X2M15A250V5mm x 20mm3/16"

HTB-X4M15A250V5mm x 20mm3/16"

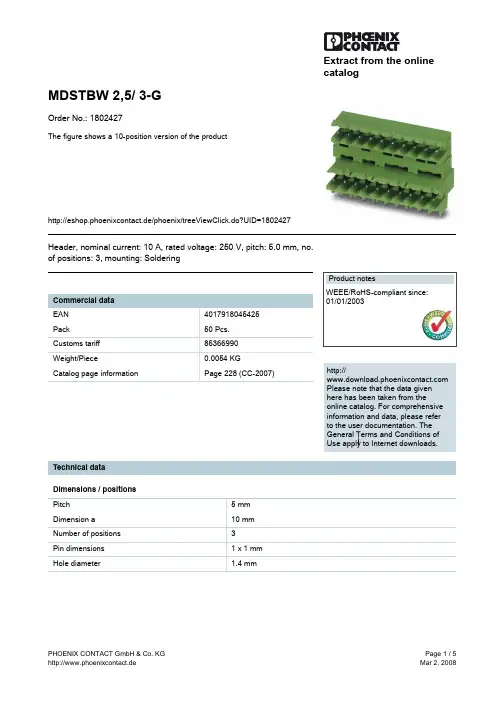

1802427资料

1802427资料

PHOENIX CONTACT GmbH & Co. KGPage 1 / 5http://www.phoenixcontact.de

Mar 2, 2008Extract from the onlinecatalog MDSTBW 2,5/ 3-GOrder No.: 1802427The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1802427 Header, nominal current: 10 A, rated voltage: 250 V, pitch: 5.0 mm, no.of positions: 3, mounting: Soldering Commercial dataEAN4017918045425Pack50 Pcs.Customs tariff85366990Weight/Piece0.0054 KGCatalog page informationPage 228 (CC-2007)Product notesWEEE/RoHS-compliant since:01/01/2003Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads.Technical dataDimensions / positionsPitch5 mmDimension a10 mmNumber of positions3Pin dimensions1 x 1 mmHole diameter1.4 mm元器件交易网MDSTBW 2,5/ 3-GOrder No.: 1802427http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1802427

1786527中文资料

1786527中文资料

PHOENIX CONTACT GmbH & Co. KGPage 1 / 5http://www.phoenixcontact.de

Mar 1, 2008Extract from the onlinecatalog IC 2,5/14-G-5,08Order No.: 1786527The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786527 Header, nominal current: 12 A, rated voltage: 320 V, pitch: 5.08 mm,number of positions: 14, mounting type: soldering Commercial dataEAN4017918042677Pack50 Pcs.Customs tariff85366990Weight/Piece0.012996 KGCatalog page informationPage 232 (CC-2007)Product notesWEEE/RoHS-compliant since:01/01/2003Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads.Technical dataDimensions / positionsPitch5.08 mmDimension a66.04 mmNumber of positions14Pin dimensions1,3 x 0,7 mmHole diameter1.4 mm元器件交易网IC 2,5/14-G-5,08Order No.: 1786527http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786527

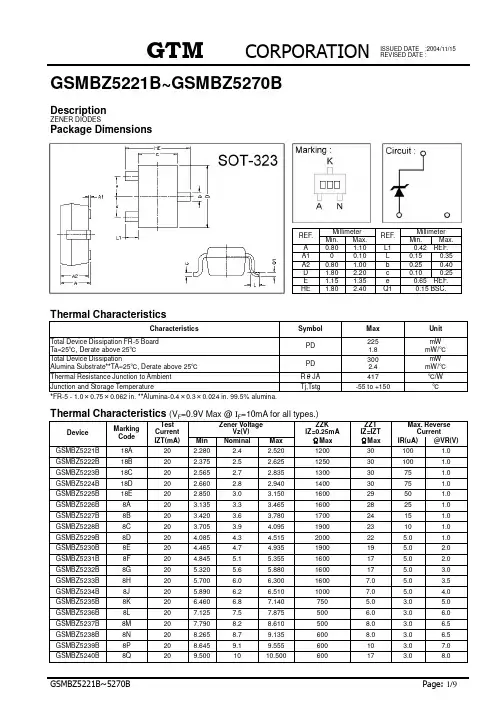

GSMBZ5273B中文资料
