un38.3判定标准

- 43 - SECTION 38 38.3 Amend to read as follows: "38.3 Lithium metal and lithium ion batteries 38.3.1 Purpose This section presents the procedures to be followed for the classification of lithium metal and lithium ion cells and batteries (see UN Nos. 3090, 3091, 3480 and 3481, and the applicable special provisions of Chapter 3.3 of the Model Regulations). 38.3.2 Scope 38.3.2.1 All cell types shall be subjected to tests T.1 to T.6 and T.8. All non-rechargeable battery types, including those composed of previously tested cells, shall be subjected to tests T.1 to T.5. All rechargeable battery types, including those composed of previously tested cells, shall be subjected to tests T.1 to T.5 and T.7. In addition, rechargeable single cell batteries with overcharge protection shall be subjected to test T.7. A component cell that is not transported separately from the battery it is part of needs only to be tested according to tests T.6 and T.8. A component cell that is transported separately from the battery shall be tested as a cell. 38.3.2.2 Lithium metal and lithium ion cells and batteries shall be subjected to the tests, as required by special provisions 188 and 230 of Chapter 3.3 of the Model Regulations prior to the transport of a particular cell or battery type. Cells or batteries which differ from a tested type by: (a) For primary cells and batteries, a change of more than 0.1 g or 20% by mass, whichever is greater, to the cathode, to the anode, or to the electrolyte; (b) For rechargeable cells and batteries, a change in nominal energy in Watt-hours of more than 20% or an increase in nominal voltage of more than 20%; or (c) A change that would lead to failure of any of the tests, shall be considered a new type and shall be subjected to the required tests. NOTE: The type of change that might be considered to differ from a tested type, such that it might lead to failure of any of the test results, may include, but is not limited to: (a) A change in the material of the anode, the cathode, the separator or the electrolyte; (b) A change of protective devices, including hardware and software; (c) A change of safety design in cells or batteries, such as a venting valve; (d) A change in the number of component cells; and (e) A change in connecting mode of component cells. In the event that a cell or battery type does not meet one or more of the test requirements, steps shall be taken to correct the deficiency or deficiencies that caused the failure before such cell or battery type is retested. 38.3.2.3 For the purposes of classification, the following definitions apply: Aggregate lithium content means the sum of the grams of lithium content contained by the cells comprising a battery.

UN认证范围主要包括以下几类产品：

1. 各种动力锂二次电池，如动力车用电池、电动道路车车用电池、电动工具用电池、混合动力车用电池等。

2. 各种手机电池，如锂离子电池、锂聚合物电池等。

3. 各种小型二次电池，如笔记本电脑电池、数码相机电池、摄像机电池、各种圆柱型电池、无线通讯电池、便携式DVD电池、CD和MP3播放器电池等。

对于以上产品，如果想要进行UN认证，需要满足一些前提条件，比如对于锂电池及锂电池组，如果想要进行UN38.3认证，需要满足对锂含量的约束，即对于金属锂或锂合金原电池，锂含量不得超越1g；对于锂离子原电池其额定瓦特小时不超越20Wh。同时，每个类型的原电池及电池，经测验证明其契合《联合国危险物品运送实验和标准手册》第3部分38.3款的所有要求。

以上信息仅供参考，具体认证范围可能会因具体产品的不同而有所差异。如需了解更多信息，建议咨询相关认证机构。

航空货物运输条件鉴定

当货物在进行航空运输、水上运输、公路运输、铁道运输时，为了保证运输的安全，必须了解货物的运输危险性。货物运输条件鉴定就是依据国内外有关危险货物运输的法规、标准，对货物的运输安全性作出鉴定和建议。

《货物运输条件鉴定书》共包含海运、空运、公路、铁路四种运输方式，因各种运输方式的判定标准不同，每份报告只显示一种运输方式判定结果。每份报告使用周期为当年。次年不可使用。

送检流程：

填写申请表、快递样品——签订合同——付款开案——出具《货物运输条件鉴定书》

按照联合国《关于危险货物运输的建议书》的规定，危险品分为以下九大类：

第1类：爆炸品

第2类：气

第3类：易燃液体

第4类：易燃固体；易于自燃的物质；遇水放出易燃气体的物质

第5类：氧化性物质和有机过氧化物

第6类：毒性物质和感染性物质

第7类：放射性物质

第8类：腐蚀性物质

第9类：杂项危险品

依据联合国《关于危险货物运输的建议书》、民航组织《危险物品航空安全运输技术导则》（ICAOTI导则）、航空运输协会《危险品规则》（IATA DGR）、海事组织《海运危险货物规则》(IMDGCode)、联合国《化学品分类及标记协调制度》(GHS)等相关规章对运输的货物进行危险性分类检测。如果筛分结果表明该货物不属于九类危险品的范畴，将出具适合于空运、海运、铁路、公路、邮政以及快件的中英文对照的《货物运输条件鉴定书》，并注明该货物为普通化工品，以期为空运、海运等相关部门的进出口业务的高效开展提供的技术支持。如货物属于危险品，将对运输的货物进行危险性分类检测，并出具适合于空运、海运、铁路、公路、邮政以及快件的中英文对照的《货物运输条件鉴定书》

关于磁性货物，根据IATA902国际航空运输协议要求，距被测物品表面2.1m处的任意磁场强度应小于0.159A/m(200nT)才可作普货运输（出普货鉴定）。凡是物品中含有磁性材料的货物均会在空间产生磁场，需进行磁性货物的安全检测，以保证飞行安全。需要进行磁性安全检测的货物物品。由于产品制造材料和工艺的不同，是否符合航空运输协议要求，以实验测量结果为准。

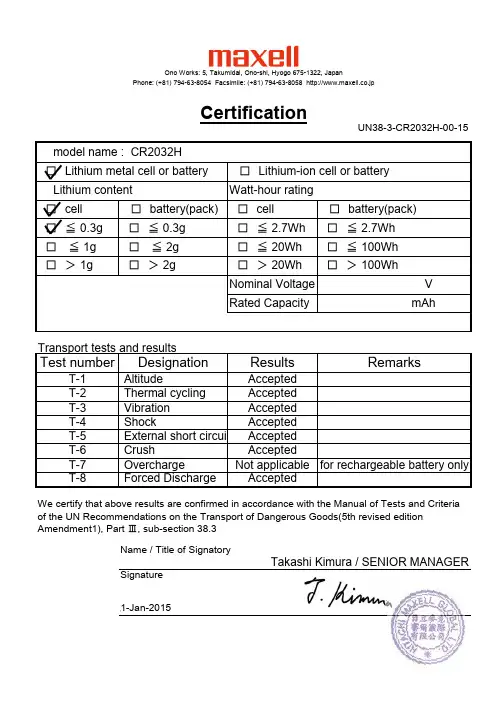

C140101-9

model name : CR2032H

　□　Lithium metal cell or battery □　Lithium-ion cell or battery

Lithium contentWatt-hour rating

　□　cell □　battery(pack)　□　cell □　battery(pack)

　□　≦ 0.3g　□　≦ 0.3g　□　≦ 2.7Wh　□　≦ 2.7Wh

　□ ≦ 1g　□ ≦ 2g　□　≦ 20Wh　□　≦ 100Wh

　□　＞ 1g　□　＞ 2g　□　＞ 20Wh　□　＞ 100Wh

Nominal Voltage V

Rated Capacity mAh

Transport tests and resultsTest numberDesignationResultsRemarks

T-1 AltitudeAcceptedT-2 Thermal cyclingAcceptedT-3 VibrationAcceptedT-4 ShockAcceptedT-5 External short circuitAcceptedT-6 CrushAcceptedT-7 OverchargeNot applicablefor rechargeable battery onlyT-8 Forced DischargeAccepted

Name / Title of SignatoryTakashi Kimura / SENIOR MANAGERSignature

Jan. 1st, 2014Ono Works: 5, Takumidai, Ono-shi, Hyogo 675-1322, JapanPhone: (+81) 794-63-8054 Facsimile: (+81) 794-63-8058 http://www.maxell.co.jp

Certification
