板式橡胶支座70年代中期，由铁道部科学研究院主持，常熟橡胶厂参加了板式橡胶支座的研制生产，并把我厂小批量试制的产品，进行一系列的试验和实地试用，为我国铁路、公路桥梁应用橡胶支座积累了大量科学数据和实践经验。
1982年，铁道部在全国首家对我厂板式橡胶支座进行了唯一的部级的技术鉴定。
从此开始，板式橡胶支座的应用和生产如雨后春笋，应用面之广、品种开发之快前所未有，至目前板式橡胶支座产品品种，按支座形状划分有矩形板式橡胶支座（GJZ、GJZF4）、圆形板式橡胶支座（GYZ、GYZF4）；球冠圆板橡胶支座（TCYB）；坡形橡胶支座。
按橡胶种类划分的氯丁橡胶支座（CR）、天然橡胶支座（NR）、三元乙丙橡胶支座（EPDM）。
按结构型式分有普通橡胶支座、聚四氟乙烯滑板橡胶支座。
我厂生产的“永恒”牌橡胶支座，先后在国内著名的桥梁上被采用，如唐山滦河大桥、柳州二桥、郑州黄河大桥、东营黄河大桥、九江长江大桥、重庆长江大桥、嘉陵江大桥、哈尔滨松花江大桥、广东南海西樵大桥、南昌新八一桥等等。
随着城市市政建设的加快，在全国众多大城市的城市立交桥、高架桥也纷纷使用“永恒”产品，其中著名的北京多座立交桥、天津多座立交桥、上海南浦、杨浦大桥和高架道路、广州六二三高架道路、南京长江大桥立交等。
还使用于全国首条沪嘉高速公路的配套工程，沈大、成渝、杭甬、沪宁高速公路的桥梁、立交桥上使用了数以万计的“永恒”橡胶支座。
从85年起，还被选用于出口配套孟加拉国、伊拉克、也门、坦桑尼亚等援外桥梁工程，91~93年经香港费雷雪纳德公司（FREYSSINET）检测中心检测质量符合英国BS5400标准，配套使用于澳门新澳凼大桥的工程。
我厂是铁道部、交通部首批认可的生产部标系列产品的专业厂，产品严格按中华人民共和国铁道部TB1893-1987《铁路桥梁板式橡胶支座》和中华人民共和国交通部标准JT/T4-1993《公路桥梁板式橡胶支座》组织生产。
并能提供聚四氟乙烯滑板橡胶支座的全套附件。

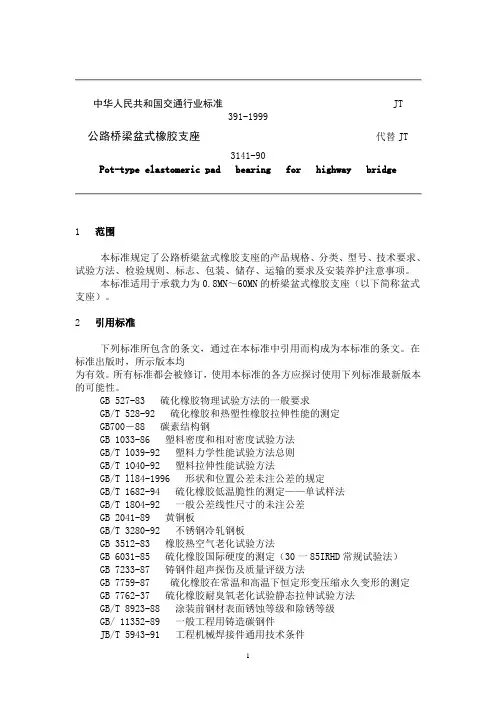

中华人民共和国交通行业标准 JT391-1999公路桥梁盆式橡胶支座代替JT3141-90Pot-type elastomeric pad bearing for highway bridge1 范围本标准规定了公路桥梁盆式橡胶支座的产品规格、分类、型号、技术要求、试验方法、检验规则、标志、包装、储存、运输的要求及安装养护注意事项。
本标准适用于承载力为0.8MN～60MN的桥梁盆式橡胶支座（以下简称盆式支座）。
2 引用标准下列标准所包含的条文，通过在本标准中引用而构成为本标准的条文。
在标准出版时，所示版本均为有效。
所有标准都会被修订，使用本标准的各方应探讨使用下列标准最新版本的可能性。
GB 527-83 硫化橡胶物理试验方法的一般要求GB/T 528-92 硫化橡胶和热塑性橡胶拉伸性能的测定GB700－88 碳素结构钢GB 1033-86 塑料密度和相对密度试验方法GB/T l039-92 塑料力学性能试验方法总则GB/T 1O40-92 塑料拉伸性能试验方法GB/T ll84-1996 形状和位置公差未注公差的规定GB/T 1682-94 硫化橡胶低温脆性的测定——单试样法GB/T 18O4-92 一般公差线性尺寸的未注公差GB 2041-89 黄铜板GB/T 3280-92 不锈钢冷轧钢板GB 3512-83 橡胶热空气老化试验方法GB 6031-85 硫化橡胶国际硬度的测定（30一85IRHD常规试验法）GB 7233-87 铸钢件超声探伤及质量评级方法GB 7759-87 硫化橡胶在常温和高温下恒定形变压缩永久变形的测定GB 7762-37 硫化橡胶耐臭氧老化试验静态拉伸试验方法GB/T 8923-88 涂装前钢材表面锈蚀等级和除锈等级GB/ 11352-89 一般工程用铸造碳钢件JB/T 5943-91 工程机械焊接件通用技术条件HG/T 2502-93 5201 硅脂3 分类、型号及规格3.1 分类3.1.1 按使用性能分类（1）双向活动支座（多向活动支座）：具有竖向承载、竖向转动和多向滑移性能，代号为SX。
板式橡胶支座一、公路桥梁板式橡胶支座规格系列1、范围本标准规定了板式橡胶支座的要求、规格系列及选用。
本标准适用于承载力小于5000kN 的公路桥梁用矩形、圆形平板式橡胶支座。
2、规范性引用文件下列文中的条款通过本标准的引用而成为本标准的条款。
凡是注日期的引用文件，其随后所有的修改（不包括勘误的内容）或修订版均不适用于本标准，然而，鼓励根据本标准达成协议的各方研究是否可使用这些文件的最新版本。
凡是不注日期的引用文件，其最新版本适用于本标准。
JT/T4 一2004 公路桥梁板式橡胶支座JTG D60 一2004 公路桥涵设计通用规范JTG D62 一2004 公路钢筋混凝土及预应力混凝土桥涵设计规范3、支座要求3 . 1支座产品分类、代号、结构、技术要求、试验方法、检验规则及标志、包装、贮存、运输、安装和养护均应满足JT/T4 一2004的要求.3． 2 支座使用阶段平均压应力бC＝10M Pa ( S ＜7时бC＝8M Pa)；橡胶硬度60 ( IRHD ）时，其常温下剪变模量G = 。
剪变模量随温度下降而递增，当累年最冷月平均温度的平均值O ~-10℃时为寒冷地区，G = 1 . 2MPa ；当低于-10 ℃ 时为严寒地区，G = ；当低于-25 ℃ 时，G = 2 . 0 MPa 。
全国气温分区图见JTG D60 一2004附录B。
支座橡胶弹性体体积模量Eb= 2000 MPa。
支座与混凝土接触时，摩擦系数μ= 0 . 3 ，与钢板接触时，摩擦系数μ＝0 . 2 。
聚四氟乙烯板与不锈钢板接触（加硅脂）时，μf＝0 . 06 ，当温度低于-25 ℃ 时，μf值增大30 % ，当不加硅脂时，μf 应加倍。
若有实测资料时，也可按实测资料采用。
橡胶支座剪切角α 正切值，当不计制动力时，tan α不大于0 .5 ，当计入制动力时，tan α不大于0 .7.橡胶支座的计算和验算均应满足JTG D62 一2004的要求。
GPZ(Ⅱ)型盆式橡胶支座尺寸厚度，GPZ(Ⅱ)型盆式橡胶支座规格参数表GPZ（Ⅱ）GD固定型盆式橡胶支座主要规格尺寸重量参数表规格（MN）主要尺寸（mm）重量㎏地脚螺栓底柱直径×长度A(B)A¹（B¹）C（D）C¹（D¹）HGPZ(Ⅱ)0.8GD2502102502107525.3Φ40×250 GPZ(Ⅱ)1.0GD2802352802358033.7Φ40×250 GPZ(Ⅱ)1.25GD3102603102608544.6Φ40×250 GPZ(Ⅱ)1.5GD3402903402909056.6Φ40×250 GPZ(Ⅱ)2GD3903303903309578.9Φ40×250 GPZ(Ⅱ)2.5GD435370435370100104.4Φ40×250 GPZ(Ⅱ)3GD475400475400105131.0Φ40×250 GPZ(Ⅱ)3.5GD510430510430110157.5Φ40×250 GPZ(Ⅱ)4GD545460545460115187.3Φ40×250 GPZ(Ⅱ)5GD610520610520130265.4Φ40×300GPZ(Ⅱ)6GD670570670570140347.5Φ40×300 GPZ(Ⅱ)7GD720610720610150428.0Φ40×300 GPZ(Ⅱ) 8GD770650770650155508.7Φ40×300 GPZ(Ⅱ)9GD815690815690160592.1Φ40×300 GPZ(Ⅱ)10GD860730860730170697.0Φ40×300 GPZ(Ⅱ)12.5GD960810960810185946.6Φ40×350 GPZ(Ⅱ)15GD105089010508902001226.9Φ40×350 GPZ(Ⅱ)17.5GD113596011359602101496.6Φ40×350 GPZ(Ⅱ)20GD12201040122010402301896.0Φ40×350GPZ（Ⅱ）DX单向活动型盆式橡胶支座主要规格尺寸重量参数表规格(MN)纵向位移(mm)主要尺寸(mm)地脚螺栓底柱直径×长度重量㎏A A¹B B¹C(D)C¹D¹H注：1、横向位移±3mm。

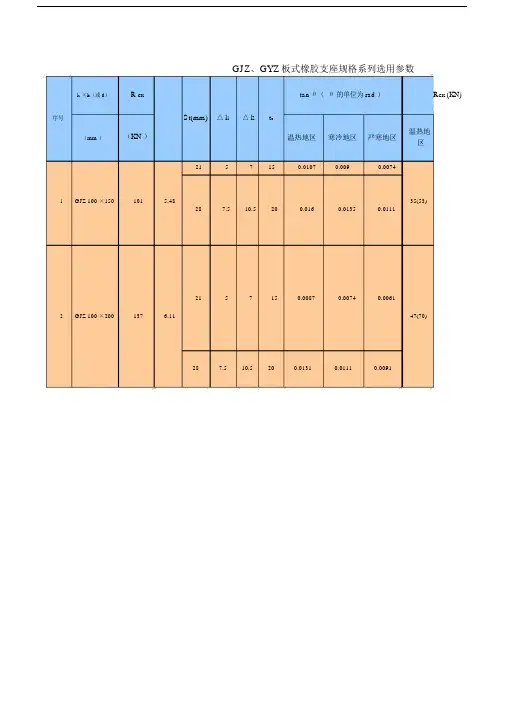

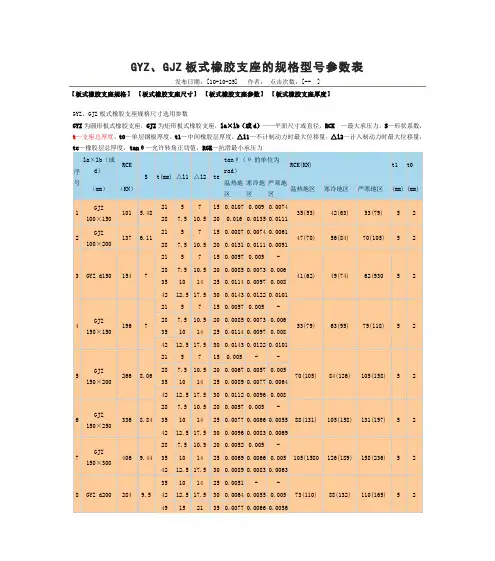

GJZ、GYZ板式橡胶支座规格系列选用参数l a×l b（或 d）R CK tan θ（θ的单位为 rad ）R CK (KN)序号St(mm)△ l1△ l2t e（mm ）（KN ）温热地区寒冷地区严寒地区温热地区2157150.01070.0090.00741GJZ 100 ×150101 5.4835(53)287.510.5200.0160.01350.01112157150.00870.00740.00612GJZ 100 ×200137 6.1147(70)287.510.5200.01310.01110.00912157150.00570.005-3GYZ d150154741(62)287.510.5200.00850.00730.006351014250.01140.00970.0084212.517.5300.01430.01220.01012157150.00570.005-287.510.5200.00850.00730.006351014250.01140.00970.0084GJZ 150 ×150196753(79)4212.517.5300.01430.01220.01012157150.005--287.510.5200.00670.00570.0055GJZ 150 ×2002668.0670(105)5GJZ 150 ×2002668.0670(105)351014250.00890.00770.00644212.517.5300.01120.00960.008287.510.5200.00570.005-6GJZ 150 ×2503368.8488(131)351014250.00770.00660.00554212.517.5300.00960.00830.0069287.510.5200.00520.005-351014250.00690.00660.0057GJZ 150 ×3004069.44105(15804212.517.5300.00890.00830.0063351014250.0051--8GYZ d2002849.54212.517.5300.00640.00550.00573(110)491521350.00770.00660.00565617.524.5400.00890.00770.0065351014250.0051--4212.517.5300.00640.00550.0059GJZ 200 ×2003619.593(140)491521350.00770.00660.00565617.524.5400.00890.00770.00654212.517.5300.00540.005-10GJZ 200 ×25045610.6491521350.00640.00560.005117(175)5617.524.5400.00750.00660.005630811.2210.00660.00560.00511GJZ 200 ×3005517.17411216.8290.00980.00840.007140(210)521622.4370.01310.01120.009330811.2210.00590.0051-12GJZ 200 ×3506467.62411216.8290.00890.00760.0063163(245)12GJZ 200 ×3506467.62163(245)521622.4370.01180.01010.008430811.2210.00550.005-13GJZ 200 ×4007417.98411216.8290.00820.0070.0059187(280)521622.4370.01090.00930.0078411216.8290.00730.00620.005214GYZ d2504527.5521622.4370.00970.00830.0069115(172) 632028450.01210.01040.0086742433.6530.01460.01240.0103411216.8290.00730.00620.005215GJZ 250 ×2505767.5521622.4370.00970.00830.0069146(219) 632028450.01210.01040.0086742433.6530.01460.01240.0103411216.8290.00620.00540.00516GJZ 250 ×3006968.21521622.4370.00830.00710.006175(263) 632028450.01410.00890.0075742433.6530.01250.01070.009411216.8290.00560.005-17GJZ 250 ×3508168.79521622.4370.00740.00640.0054204(306) 632028450.00930.0080.0067742433.6530.01110.00960.0081411216.8290.0051--18GJZ 250 ×4009369.29521622.4370.00680.00590.005233(350) 632028450.00850.00730.0062742433.6530.01020.00880.0074411216.8290.005--19GJZ 250 ×45010569.71521622.4370.00630.00550.005263(394) 632028450.00790.00680.0062742433.6530.00950.00820.0074411216.8290.005--20GJZ 250 ×500117610.07521622.4370.0060.0052-292(438) 632028450.00740.00650.0055742433.6530.00890.00780.0066521622.4370.00590.0051-21GYZ d3006619.0663*******.00740.00630.0053165(247) 742433.6530.00880.00760.0064852839.2610.01030.00890.0075521622.4370.00590.0051-22GJZ 300 ×3008419.0663*******.00740.00630.0053210(315) 742433.6530.00880.00760.0064852839.2610.01030.00890.0075521622.4370.00520.005-23GJZ 300 ×3509869.78632028450.00650.00560.005245(368) 742433.6530.00780.00680.0057852839.2610.00910.00790.0067521622.4370.005--24GJZ 300 ×400113110.4632028450.00590.0051-280(420) 742433.6530.00710.00620.00325GJZ 300 ×450127610.92 26GJZ 300 ×50014218.28 27GJZ 300 ×55015668.58 28GJZ 300 ×60017118.64 29GYZ d3*******.63 30GJZ 350 ×350115610.63 31GJZ 350 ×40013268.26 32GJZ 350 ×45014968.72 33GJZ 350 ×50016669.12 34GJZ 350 ×55018369.48 35GJZ 350 ×60020069.8 36GYZ d4*******.86 37GJZ 400 ×40015218.86852839.2610.00830.00720.0061 632028450.00550.005-742433.6530.00660.00570.005315(473)852839.2610.00770.00670.00575416.523.1380.0070.00610.0051692230.8490.00940.00810.0068350(525) 8427.538.5600.01170.01010.00845416.523.1380.00660.00570.005692230.8490.00880.00760.0064385(578) 8427.538.5600.0110.00950.00845416.523.1380.00630.00540.005692230.8490.00840.00730.0061420(630)8427.538.5600.01050.00910.0076632028450.005--742433.6530.00590.0051-224(337) 852839.2610.00680.0060.0051963244.8690.00780.00680.0058632028450.005--742433.6530.00590.0051-286(429) 852839.2610.00680.0060.0051963244.8690.00780.00680.00585416.523.1380.00610.0052-692230.8490.00810.00690.0058327(490) 8427.538.5600.01010.00870.0073993346.2710.02010.01040.00875416.523.1380.00550.005-692230.8490.00740.00640.0053368(551) 8427.538.5600.00920.00790.0067993346.2710.01110.00950.0085416.523.1380.0051--692230.8490.00690.00590.005408(613) 8427.538.5600.00860.00740.0062993346.2710.01030.00890.00755416.523.1380.005--692230.8490.00640.00560.005449(674) 8427.538.5600.00810.0070.0059993346.2710.00970.00840.00715416.523.1380.005--692230.8490.00610.00530.005490(735) 8427.538.5600.00760.00660.0056993346.2710.00920.00790.00675416.523.1380.005--692230.8490.00630.00540.005293(440) 8427.538.5600.00790.00680.0057993346.2710.00940.00810.00685416.523.1380.005--692230.8490.00630.00540.005373(560)37GJZ 400 ×40015218.868427.538.5600.00790.00680.0057373(560)993346.2710.00940.00810.0068692230.8490.00570.005-38GJZ 400 ×45017169.48427.538.5600.00710.00620.0052420(630) 993346.2710.00860.00740.006311438.553.9820.010.00860.0073692230.8490.00530.005-39GJZ 400 ×50019119.878427.538.5600.00660.00570.005467(700) 993346.2710.00790.00690.005811438.553.9820.00920.0080.0068692230.8490.005--40GJZ 400 ×550210610.298427.538.5600.00620.00540.005513(770)993346.2710.00740.00650.0065692230.8490.005--41GJZ 400 ×600230110.678427.538.5600.00580.0051-560(840)993346.2710.0070.00610.0052692230.8490.005--42GJZ 400 ×650249011.028427.538.5600.00560.005-607(910)993346.2710.00670.00580.005692230.8490.005--43GYZ d4501521108427.538.5600.00570.005-371(557) 993346.2710.00690.0060.005111438.553.9820.0080.0070.0059692230.8490.005--44GJZ 450 ×4501936108427.538.5600.00570.005-473(709) 993346.2710.00690.0060.005111438.553.9820.0080.0070.00598427.538.5600.00530.005-45GJZ 450 ×500215610.54993346.2710.00640.00550.005525(788)11438.553.9820.00740.00650.00558427.538.5600.005--46GJZ 450 ×550237611.02993346.2710.00590.0052-578(866)11438.553.9820.00690.00610.00527022.531.5500.00620.00540.00547GJZ 450 ×60025968.4903042650.00830.00720.006630(945)11037.552.5800.01040.0090.00757022.531.5500.00590.0051-48GJZ 450 ×65028168.69903042650.00790.00680.0057683(1024)11037.552.5800.00980.00850.0071 7022.531.5500.00590.0051-49GYZ d5*******.17903042650.00790.00670.0056458(687) 11037.552.5800.00980.00840.007 1304563950.01180.01010.00857022.531.5500.00590.0051-50GJZ 500 ×50024018.17903042650.00790.00670.0056583(875) 11037.552.5800.00980.00840.007 1304563950.01180.01010.00857022.531.5500.00540.005-51GJZ 500 ×55026468.56903042650.00730.00630.005211037.552.5800.00910.00780.00661304563950.01090.00940.00797022.531.5500.0051--52GJZ 500 ×60028918.92903042650.00680.00590.005 11037.552.5800.00850.00730.0062 1304563950.01020.00880.0077 7022.531.5500.005--53GJZ 500 ×65031369.25903042650.00640.00550.00511037.552.5800.0080.00690.00581304563950.00960.00830.0077022.531.5500.005--54GJZ 500 ×70033819.55903042650.00610.0053-11037.552.5800.00760.00660.00561304563950.00910.00790.0067903042650.00610.0052-55GYZ d5*******11037.552.5800.00760.00660.00551304563950.00910.00790.006615052.573.51100.01060.00920.0077903042650.00610.0052-56GJZ 550 ×5502916911037.552.5800.00760.00660.00551304563950.00910.00790.006615052.573.51100.01060.00920.0077903042650.00570.005-57GJZ 550 ×60031869.411037.552.5800.00710.00610.00521304563950.00850.00730.006215052.573.51100.01090.00860.0072903042650.00530.005-58GJZ 550 ×65034569.7611037.552.5800.00670.00590.0051304563950.0080.00690.005915052.573.51100.00930.00810.0069903042650.005--59GYZ d6*******.8311037.552.5800.0060.0052-1304563950.00720.00630.005315052.573.51100.00850.00730.0062903042650.005--60GJZ 600 ×60034819.8311037.552.5800.0060.0052-1304563950.00720.00630.005315052.573.51100.00850.00730.0062903042650.005--61GJZ 600 ×650377610.2311037.552.5800.00570.006-1304563950.00680.00590.00515052.573.51100.00790.00690.005911037.552.5800.00540.005-62GJZ 600 ×700407110.61304563950.00640.00560.00515052.573.51100.00750.00660.0056642(963)700(1050)758(1138)817(1225) 554(832)706(1059)770(1155)834(1251) 660(990)840(1260)910(1365)980(1470)11037.552.5800.00510.005-63GJZ 600 ×750436610.941304563950.00610.00540.00515052.573.51100.00720.00630.005411037.552.5800.005--64GYZ d650321710.671304563950.00590.0051-15052.573.51100.00690.0060.005117060841250.00780.00680.005911037.552.5800.005--65GJZ 650 ×650409610.671304563950.00590.0051-15052.573.51100.00690.0060.005117060841250.00790.00680.00691023650.4770.0060.0052-66GJZ 650 ×70044169.21254563950.00740.00640.00541485475.61130.00890.00770.00651716388.21310.01040.0090.00761023650.4770.00560.005-67GJZ 650 ×75047369.531254563950.0070.00610.0051485475.61130.00840.00730.00571716388.21310.00990.00850.00661023650.4770.00520.005-68GYZ d7*******.581254563950.00650.00560.0051485475.61130.00780.00670.00571716388.21310.00910.00790.00661023650.4770.00520.005-69GJZ 700 ×70047619.581254563950.00650.00560.0051485475.61130.00780.00670.00571716388.21310.00910.00790.00661254563950.00540.005-70GYZ d750430110.281485475.61130.00650.00560.0051716388.21310.00760.00660.005619472100.81490.00860.00750.00641254563950.005--71GYZ d800490210.971485475.61130.00550.005-1716388.21310.00640.00560.00519472100.81490.00730.00640.00551050(1575)774(1161)986(1479)1062(1593)1138(1706)898(1347)1143(1715)1031(1546)1173(1759)注 1:抗滑最小承载力拦中,括号外数字为支座与混凝土接触时的采用值,括号内数字为支座与钢接触时的采用值;其值均为计汽车制动力的情况.当计入汽车制动力时,应自行计算 .注 2: 允许转角正切值是沿支座短边方向转动时计算值,若沿长边方向转动应自行计算.GYZF4、GJZF4四氟滑板式橡胶支座规格系列选用参数l a×l b R ck△ l3△ l4t etan θ (的θ单位为rad)t(mm)序号(mm)S( 或 d)顺桥横桥顺桥横桥向(mm)温热寒冷(mm)(KN)(mm)向向地区地区向GJZF 4 100×1150GJZF 4 100 ×22003GYZF 4 d150101 5.4823±20±30±3±3030137 6.1123±20±30±3±303023154730±20±30±3±30374423150.001070.009200.0160.0135150.00870.0074200.01310.0111150.00570.005200.00850.0073250.01140.0097300.01430.0122150.00570.0054 5GJZF 4 150 ×150GJZF 4 150 ×200301967±30±20±30±3374423302668.06±30±20±30±3374430200.00850.0073250.01140.0097300.01430.0122150.005-200.00670.0057250.00890.0077300.01120.0096200.00570.005 GJZF 4 150 ×6250GJZF 4 150 ×73008GYZF 4 d200GJZF 4 200 ×93368.8437±30±20±30±344304069.4437±30±20±30±344372849.544±30±20±30±35158373619.544±30±20±30±3250.00770.0066300.00960.0083200.00520.005250.00690.0066300.00860.0083250.0051-300.00640.0055350.00770.0066400.00890.0077250.0051-300.00640.005510 11 12200GJZF 4 200 ×250GJZF 4 200×300GJZF 4 200 ×350GJZF 4 200 ×51584445610.651±30±20±30±358325517.1743±30±20±30±354326467.6243±30±20±30±35432350.00770.0066400.00890.0077300.00540.005350.00640.0056400.00750.0066210.00660.0056290.00980.0084370.01310.0112210.00590.0051290.00890.0076370.01180.0101210.00550.005134007417.9843±30±20±30±354290.00820.007 370.01090.00934314GYZF 4d2504527.554±60±30±60±3 65764315GJZF 4250 ×5767.554±50±20±50±3 25065764316GJZF4250 ×6968.2154±50±20±50±3 30065764317GJZF4250 ×8168.7954±50±20±50±3 35065764318GJZF4250 ×9369.2954±50±20±50±3 40065764319GJZF4250×10569.7154±50±20±50±3 45065764320GJZF4250 ×117610.0754±50±20±50±3 50065765421GYZF 4d3006619.0665±60±30±60±3 76875422GJZF4300 ×8419.0665±70±30±70±3 30076875423GJZF4300 ×9869.7865±70±30±70±3 35076875424GJZF4300 ×113110.465±70±30±70±3 4007687GJZF300 ×65254127610.9276±70±30±70±3 45087290.00730.0062 370.00970.0083 450.01210.0104 530.01460.0124 290.00730.0062 370.00970.0083 450.01210.0104 530.01460.0124 290.00620.0054 370.00830.0071 450.01040.0089 530.01250.0107 290.00560.005 370.00740.0064 450.00930.008 530.01110.0096 290.0051-370.00680.0059 450.00850.0073 530.01020.0088 290.005-370.00630.0055 450.00970.0068 530.00950.0082 290.005-370.0060.0052 450.00740.0065 530.00890.0078 370.00590.0051 450.00740.0063 530.00880.0076 610.01030.0089 370.00590.0051 450.00740.0063 530.00880.0076 610.01030.0089 370.00520.005 450.00650.0056 530.00780.0068 610.00910.0079 370.005-450.00590.0051 530.00710.0062 610.00830.0072 450.00550.005 530.00660.0057 610.00770.006726 27GJZF 4 300 ×500GJZF 4 300 ×55056380.0070.0061 14218.2871±70±30±70±3490.00940.008186600.01170.010157380.00660.0057 15668.5872±70±30±70±3490.00880.007687600.0110.009557380.00630.0054 GJZF 4 300 ×2860029GYZF 4 d350GJZF 4 350 ×30350GJZF 4 350 ×3117118.8472±70±30±70±3490.00840.0073 87600.01050.009165450.005-90810.6376±90±40±90±3530.00590.0051 87610.00680.00698690.00780.006865450.005-115610.6376±90±40±90±3530.00590.0051 87610.00680.00698690.00780.006856380.00610.0052 13268.2671±90±40±90±3490.00810.006932 33 34400GJZF 4 350 ×450GJZF 4 350 ×500GJZF 4 350 ×55086600.01010.0087101710.01210.010456380.00550.005 149671±90±40±90490.00740.00648.72±386600.00920.0079101710.01110.009556380.0051-71490.00690.0059 16669.12±90±40±90±386600.00860.0074101710.01030.008957380.005-72490.00640.0056 18369.48±90±40±90±30.00810.0078760102710.00970.008457380.005-GJZF 4 350 ×3560036GYZF 4 d400GJZF 4 400 ×37200672±90±40±90490.00610.00539.8±387600.00760.0066102710.00920.007956380.005-119571±90±40±90490.00630.00548.86±386600.00790.0068101710.00940.008156380.005-152171±90±40±90490.00630.00548.86±338400GJZF 4 400 ×86600.00790.0068101710.00940.008171490.00570.005 171686±90±40±90600.00710.00629.4±345038GJZF4400 ×17169.4±90±40±90±3 4501011167139GJZF4400×19119.8786±90±40±90±3 5001011167240GJZF4400 ×210610.2987±90±40±90±3 550102GJZF400 ×72414230110.6787±90±40±90±3 600102GJZF400 ×72424249011.0287±90±40±90±3 6501027143GYZF 4d45015211086±110±40±110±3 1011167144GJZF4450 ×19361086±110±40±110±3 650101116GJZF 4450 ×8645215610.54101±110±40±110±3 5001168746GJZF4450 ×237611.02102±110±40±110±3 5501177347GJZF4450 ×25968.493±110±40±110±3 6001137348GJZF4450×28168.6993±110±40±110±3 6501137249GYZF 4d50018868.1792±110±40±110±3 1121327250GJZF4500 ×24018.1792±130±40±130±3 5001121327351GJZF4500 ×26468.5693±130±40±130±3550113710.00860.0074820.010.0086490.00530.005600.00660.0057710.00790.0069820.00920.008490.005-600.00620.0054710.00740.00650.005490.005-600.00580.0051710.0070.0061490.005-600.00560.005710.00670.0058490.005-600.00570.005710.00690.006820.0080.007490.005-600.00570.005710.00690.006820.0080.007600.00530.005710.00640.0055820.00740.0065600.005-710.00590.0052820.00690.0061500.00620.0054650.00830.0072800.01040.009500.00590.0051650.00790.0068800.00980.0085500.00590.0051650.00790.0067800.00980.0084950.01180.0101500.00590.0051650.00790.0067800.00980.0084950.01180.0101500.00540.005650.00730.0063800.00910.007852 53 54 55 56 57 58 59 60 61 62 634500 ×550GJZF 4 500 ×600GJZF 4 500 ×650GJZF 4 500 ×700GYZF 4 d550GJZF 4 550 ×550GJZF 4 550 ×600GJZF 4 550 ×650GYZF 4 d600GJZF 4 600 ×600GJZF 4 600 ×650GJZF 4 600 ×700GJZF 4 600 ×7501337328918.9293±130±40±130±31131337331369.2593±130±40±130±31131337333819.5593±130±40±130±31131339322909113±130±40±130±31331539329169113±130±40±130±31331539331869.4113±130±40±130±31331539334569.76113±130±40±130±31331539327349.83113±130±40±130±31331539334819.83113±130±40±130±313315393377610.23113±130±40±130±3133153113407110.5133±150±40±150±3153113436810.94133±150±40±150±3153950.01090.0094500.0051-650.00680.0059800.00850.0073950.01020.0088500.005-650.00640.0055800.0080.0069950.00960.0083500.005-650.00610.0053800.00760.0066950.00910.0079650.00610.0052800.00760.0066950.00910.00791100.01060.0092650.00610.0052800.00760.0066950.00910.00791100.01060.0092650.00570.005800.00710.0061950.00850.00731100.01090.0086650.00530.005800.00670.0058950.0080.00691100.00930.0081650.005-800.0060.0052950.00720.00631100.00850.0073650.005-800.0060.0052950.00720.00631100.00850.0073650.005-800.00570.005950.00680.00591100.00790.0069800.00540.005950.00640.00561100.00750.0066800.00510.005950.00610.00541100.00720.0063113800.005-GYZF 4d650133950.00590.005164321710.67±150±40±150±30.00690.0061531101731250.00780.0068113800.005-65GJZF 4650 ×409610.67133±40±150950.00590.0051 650±150±31531100.00690.0061731250.00780.0068105770.0060.005266GJZF 4650 ×44169.2128±40±150950.00740.0064 700±150±31511130.00890.00771741310.01040.009105770.00560.00567GJZF 4650 ×47369.53128±150950.0070.0061 750±150±31511130.00840.00731741310.00990.0085105770.00520.005128950.00650.005668GYZF 4d70037399.58±150±40±150±31511130.00780.00671741310.00910.0079105770.00520.00569GJZF 4700 ×47619.58128±40±150950.00650.0056 700±150±31511130.00780.00671741310.00910.0079128950.00540.005 GYZF 4d7501511130.00650.005670430110.26±180±40±180±30.00760.00661741311971490.00860.0075128950.005-GYZF 4d8001511130.00550.00571490210.97±180±40±180±31741310.00640.00561971490.00730.0064注 1: 抗滑最小承载力拦中的数字为支座与钢材接角时的采用数值;其均值为不计汽车制动力的情况当记入汽车制动力注 2: 允许转角正切值是沿支座短边方向转动时计算值,若沿长边转动应自行计算 .R CK (KN)t1t0寒冷地严寒地(mm) (mm)区区42(63)53(79)5256(84)70(105)52板式橡胶支座一、公路桥梁板式橡胶支座规格系列1、范围本标准规定了板式橡胶支座的要求、规格系列及选用。

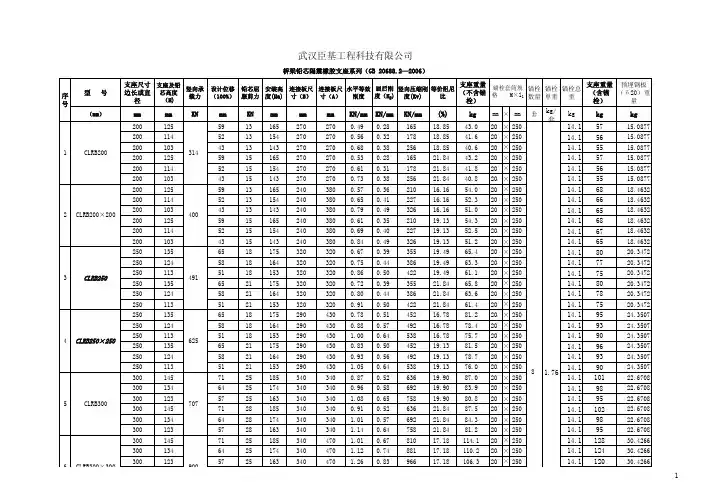

GPZ(KZ)型系列公路桥梁抗震盆式橡胶支座（DX单向，SX双向，GD固定）主要尺寸表GPZ(KZ)公路桥梁抗震盆式橡胶支座GPZ(KZ)系列抗震盆式橡胶支座是依据中华人民共和国交通行业标准《公路桥梁盆式橡胶支座》(标准号JT391-1999)及公路工程抗震设计规范(JTJ004-89)，在盆式橡胶支座的基础上增加了消能和阻尼措施。
GPZ(KZ)系列抗震盆式橡胶支座包括固定支座和单向活动支座两种型式，和与之配套使用的还有双向活动支座。
支座规格按JT391-1999要求分为31级。
支座竖向设计承载力、支座转角、支座摩擦系数及位移均按标准要求设计。
仅固定支座各方向和单向活动支座非滑移方向的水平力由原支座设计承载力的10%提高至20%。
现在．国内外采取的是刚性抗震法和柔性减震法两种抗震方法，刚性抗震需增大结构(包括基础结构和抗震支座结构)尺寸,柔性减震的特点是：减震性能好而刚度较小，在较大地震波的情况下有被破坏的可能。
该系列支座采取了刚、柔结合等有效抗震措施，增大了支座的耗能能力，极大的改善了支座的抗震性能，因此地震发生时可提高桥梁的抗震能力，最大限度的限制了桥梁上下部结构之间的相对位移，减小了地震力的放大系数。
非地震时等同一般盆式橡胶支座使用。
由于GPZ(KZ)系列抗震盆式橡胶支座设计有固定支座和单向活动支座，两种型式支座配合使用比仅在桥梁固定墩上设置抗震支座对提高全桥结构的抗震能力是不言而喻的。
GPZ(KZ)盆式橡胶支座结构形式GPZ(KZ)GD(固定抗震盆式橡胶支座)，主要由上座板、消能板、密封圈、橡胶板、底盆和阻尼胶圈等组成。
GPZ(KZ)DX(单向活动抗震盆式橡胶支座)还有中间钢板、四氟滑板、不锈钢滑板及侧向滑移装置等。
减震原理主要是当支座水平力大于支座设计竖向承载力的20%后，消能板开始滑移，起到第一道隔震效果；然后阻尼圈发挥第二道阻尼效果，支座起到抗震作用；当地震冲击波超过一定极限时，该系列的刚性抗震起到了第三道抗震效果。
GPZ(II)系列盆式橡胶支座固定支座(GD)型主要尺寸表规格(MN)主要尺寸(mm)重量kg预埋底柱A(B)、C（D）A'(B')、C'(D')H d×LGPZ(Ⅱ)0.8GD2502107525Φ40×250 GPZ(Ⅱ)1.0GD2802358034Φ40×250 GPZ(Ⅱ)1.25GD3102608545Φ40×250 GPZ(Ⅱ)1.5GD3402909057Φ40×250 GPZ(Ⅱ)2.0GD3903309579Φ40×250 GPZ(Ⅱ)2.5GD435370100104Φ40×250 GPZ(Ⅱ)3GD475400105131Φ40×250 GPZ(Ⅱ)3.5GD510430110158Φ40×250GPZ(Ⅱ)4GD545460115187Φ40×250 GPZ(Ⅱ)5GD610520130265Φ50×300 GPZ(Ⅱ)6GD670570145348Φ50×300 GPZ(Ⅱ)7GD720610150428Φ50×300 GPZ(Ⅱ)8GD770650155509Φ60×300 GPZ(Ⅱ)9GD815690160592Φ60×300 GPZ(Ⅱ)10GD860730170697Φ60×300 GPZ(Ⅱ)12.5GD960810185947Φ70×350 GPZ(Ⅱ)15GD10508902001227Φ70×350 GPZ(Ⅱ)17.5GD11359602101497Φ70×350 GPZ(Ⅱ)20GD122010402301896Φ80×350 GPZ(Ⅱ)22.5GD129011002402217Φ80×350 GPZ(Ⅱ)25GD136011502502566Φ90×400 GPZ(Ⅱ)27.5GD143012202602930Φ90×400 GPZ(Ⅱ)30GD149012702703295Φ90×400 GPZ(Ⅱ)32.5GD155013202803709Φ100×400 GPZ(Ⅱ)35GD161013702904154Φ100×400 GPZ(Ⅱ)37.5GD167014203004610Φ100×400 GPZ(Ⅱ)40GD172014603105050Φ100×400 GPZ(Ⅱ)45GD183015603205856Φ110×450 GPZ(Ⅱ)50GD192016303356744Φ110×450 GPZ(Ⅱ)55GD202017203507872Φ120×450 GPZ(Ⅱ)60GD210017903658817Φ120×450注:表中数据规格除"MN"计及注明者外,均以毫米为单位.GPZ(II)系列盆式橡胶支座单向活动支座（DX)型主要尺寸表规格(MN)纵向位移(mm)横向主要尺寸（mm）重量kg预埋底柱位移A A'B B'C(D)C'D'H d×LGPZ(Ⅱ)0.8DX±50±100±150±33204205202803804803152202652301807534.238.843.1Φ40×250GPZ(Ⅱ)1.0DX±50±100±150±33404403004003402452902502008042.647.853.1Φ40×250540500GPZ(Ⅱ)1.25DX±50±100±150±33604605603204205203702753202802308552.558.361.0Φ40×250GPZ(Ⅱ)1.5DX±50±100±150±33804805803404405404103003503102609066.973.980.9Φ40×250GPZ(Ⅱ)2.0DX±50±100±150±342052062038048058046035040036031010096.0104.9113.8Φ40×250GPZ(Ⅱ)2.5DX±50±100±150±346056066042052062050539545405355105122.3132.3142.4Φ40×250GPZ(Ⅱ)3DX±50±100±150±3485585685435535635565425485435370110157.3169.6182.1Φ40×250GPZ(Ⅱ)3.5DX±100±150±200±3620720820570670770600460520470400115202.6216.7230.8Φ40×250GPZ(Ⅱ)4DX±100±150±200±3640740840590690790635485555505435130285.5275.5292.9Φ40×250GPZ(Ⅱ)5DX±100±150±200±3690790890635735835710545620560480140338.5358.5378.7Φ50×300GPZ(Ⅱ)6DX±100±150±200±3740840940680780880770600680620540150423.4446.3468.7Φ50×300GPZ(Ⅱ)7DX±100±150±200±3780880980720820920820650730670590160516.7542.5568.1Φ50×300GPZ(Ⅱ)8DX±100±150±200±38109101010740840940890690780710620170634.0664.7695.5Φ60×300GPZ(Ⅱ)9DX±100±150±200±38509501050780880980935725825755665180744.9778.9813.0Φ60×300GPZ(Ⅱ)10DX±100±150±200±39801080118091010101110985770875800715190907.1944.9982.3Φ60×300GPZ(Ⅱ)12.5DX±150±200±250±31060116012609801080118011008609708907802051205.41251.11291.1Φ70×350GPZ(Ⅱ)15DX±150±200±250±3113012301330105011501250119095010609808702201513.71565.91618.2Φ70×350GPZ(Ⅱ)17.5DX±150±200±250±311901290139011051205130512951030114510609352351887.61949.12010.6Φ70×350GPZ(Ⅱ)20DX±150±200±250±312501155137511001225113010002502263.92332.12400.2Φ80×3501350 14501255 1355GPZ(Ⅱ)22.5DX±150±200±250±3131014101510122013201420145011801300121010802602620.32694.22768.1Φ80×350GPZ(Ⅱ)25DX±150±200±250±3137014601560127013601460154012401370127011202703058.83134.33229.2Φ90×400GPZ(Ⅱ)27.5DX±150±200±250±3144015101610131014101510161013101440134011902803476.13539.83161.7Φ90×400GPZ(Ⅱ)30DX±150±200±250±3150015601660140014601560167013701500140012502903903.93975.04072.7Φ90×400GPZ(Ⅱ)32.5DX±200±250±300±3161017101810150016001700175014201560145012703004470.04577.14684.7Φ100×400GPZ(Ⅱ)35DX±200±250±300±3165017501850154016401740181014801620151013303104949.35064.35179.3Φ100×400GPZ(Ⅱ)37.5DX±200±250±300±3169017901890158016801780189015401680157013703205512.05637.25762.4Φ100×400GPZ(Ⅱ)40DX±200±250±300±31730183016201720194015901730162014203306003.46134.96266.5Φ100×40019301820GPZ(Ⅱ)45DX±200±250±300±3184019102010171017801880207016801840171015103457109.87214.27361.8Φ110×450GPZ(Ⅱ)50DX±200±250±300±3193019902090180018601960216017701930180016003608124.98222.98383.6Φ110×450GPZ(Ⅱ)55DX±200±250±300±3203020602160189019202020228018602030189016803759130.39468.89665.4Φ120×450GPZ(Ⅱ)60DX±200±250±300±32110213022301970199020902360194021101970176039010484.51026.410718.8Φ120×450注:表中数据除规格以"MN"计及注名者外,均以毫米为单位.GPZ(II)系列盆式橡胶支座双向活动支座(SX)型主要尺寸表单位:mm规格(MN)纵向位移(mm)横向主要尺寸（mm）重量预埋底柱位移A A'B B'C(D)C'(D')H（mm)Kg d×lGPZ(II)0.8SX±50±100±150±403204205202803804803002602452007526.930.133.4φ40×250 GPZ(II)1.0SX±50±100±150±403404405403004005003202802702258033.937.641.3φ40×250 GPZ(II)1.25SX±50±100±150±403604605603204205203403003002508542.046.050.0φ40×250 GPZ(II)1.5SX±50±100±150±403804805803404405403603203302759052.557.061.5φ40×250 GPZ(II)2SX±50±100±150±4042052062038048058040036038532010078.781.790.6φ40×250 GPZ(II)2.5SX±50±100±150±40460560660420520620440400425355105100.1107.0113.8φ40×250GPZ(II)3SX±50±100±150±40490590690440540640465415465385110124.1131.7139.3φ40×250 GPZ(II)3.5SX±100±150±200±40620720820570670770500450500415115159.2168.2177.2φ40×250 GPZ(II)4SX±100±150±200±40640740840590690790540490540450130210.4221.8233.3φ40×250 GPZ(II)5SX±100±150±200±40690790890630730830600540600500140271.6284.7297.8φ50×300 GPZ(II)6SX±100±150±200±40740840940680780880655595655540150341.7356.5371.3φ50×300 GPZ(II)7SX±100±150±200±40780880980720820920705640705580160423.7444.3458.9φ50×300 GPZ(II)8SX±100±150±200±408109101010735835935755680755630170512.2532.2552.2φ60×300 GPZ(II)9SX±100±150±200±408509501050775875975800720800660180608.2630.7653.1φ60×300 GPZ(II)10SX±150±200±250±409801080118090510051105845765845700190736.9762.0787.0φ60×300 GPZ(II)12.5SX±150±200±250±4010601160126097010701170945855945780205983.41013.61043.9φ70×350 GPZ(II)15SX±150±200±250±40113012301330104011401240103094010308602201215.21280.51315.9φ70×350 GPZ(II)17.5SX±150±200±250±401190129013901100120013001110102011109202351531.41572.41612.8φ70×350 GPZ(II)20SX±150±200±250±401250135014501150125013501190109011909902501861.81911.21957.6φ80×350 GPZ(II)22.5SX±150±200±250±4013101410151012101310141012601090126010502602166.22217.12268.5φ80×350 GPZ(II)25SX±150±200±250±4013601460156012501350145013401160134011102702510.12597.92651.2φ90×400 GPZ(II)27.5SX±150±200±250±401410151016101300140015001410123014011702802898.82961.53019.5φ90×400 GPZ(II)30SX±150±200±250±4014701560166013601450155014701300147012202903277.33331.53403.2φ90×400 GPZ(II)32.5SX±200±250±300±4016101710181014901590169015251360152512703003714.13788.93963.8φ100×400 GPZ(II)35SX±200±250±300±5016501750185015301630173015851460158513203104113.94225.54307.0φ100×400 GPZ(II)37.5SX±200±250±300±5016901790189015701670177016451520164513703204581.94669.04756.2φ100×400 GPZ(II)40SX±200±250±300±5017301830193016101710181016901570169014103304993.35085.55177.7φ100×400 GPZ(II)45SX±200±250±300±5018101910201016801780188018001660180015003455870.95973.36075.8φ110×450 GPZ(II)50SX±200±250±300±5018901990209017601860196018901750189015703606751.06861.56977.9φ110×450 GPZ(II)55SX±200±250±300±5019902060216018501920202019901850199016603757832.47921.58047.2φ120×450GPZ(II)60SX±200±250±300±5020702130223019301990209020701930207017203908823.78907.79011.9φ120×450注:表中数据除规格以"MN"计及注明者外,均以毫米为单位.。
