香农-奈奎斯特采样定理（Shannon-Nyquist Sampling Theorem）是一项基本的信号处理原理，它规定了一个连续时间信号的采样频率应该至少是该信号中最高频率成分的两倍，以便在离散时间中完整地重构原始信号。

这个定理是由克劳德·香农（Claude Shannon）和哈里·奈奎斯特（Harry Nyquist）在20世纪初提出的。

具体来说，香农-奈奎斯特采样定理表述如下：
如果一个连续时间信号的最高频率成分为f_max，那么为了在离散时间中准确地重建原始信号，采样频率f_s（采样率）必须满足：
f_s ≥ 2 * f_max
这意味着采样频率应至少是信号中最高频率的两倍。

如果采样频率不满足这个条件，就会出现所谓的"混叠"或"奈奎斯特折叠"，导致信号在离散时间中无法准确还原。

香农-奈奎斯特采样定理在数字信号处理、通信系统、音频处理、图像处理和各种数据采集应用中具有重要作用。

它强调了适当选择采样频率的重要性，以避免信息丢失和混叠问题，确保准确的信号重建。

因此，合理的采样频率选择是数字信号处理的基本原则之一。

简述采样定理的基本内容采样定理，也被称为奈奎斯特定理（Nyquist theorem）或香农-奈奎斯特采样定理（Shannon-Nyquist sampling theorem），是在信号处理领域中至关重要的一条基本原理。

它对数字信号处理、通信系统以及采样率等方面具有重要的指导意义。

1. 采样定理的基本内容采样定理表明，如果要正确恢复连续时间信号的完整信息，就需要以至少两倍于信号最高频率的采样频率对信号进行采样。

采样频率应该大于等于信号最高频率的两倍，即Fs >= 2 * Fmax。

采样定理的原理基于奈奎斯特频率，奈奎斯特频率是指信号频谱中的最高频率成分。

如果采样频率小于奈奎斯特频率的两倍，那么采样信号中将出现混叠现象，即频谱中的不同频率成分相互干扰，导致原信号无法准确恢复。

2. 采样定理的应用采样定理在多个领域都有广泛的应用，以下是几个常见的应用领域：音频处理：在音频信号的数字化处理中，采样定理保证了通过合适的采样率可以准确还原原始音频信号，同时避免了音频信号的混叠现象。

这就是为什么音频 CD 的采样率是44.1kHz，超过人类可听到的最高频率20kHz的两倍。

通信系统：在数字通信系统中，为了正确传输模拟信号，信号需要经过模数转换（采样）和数模转换两个过程。

采样定理确保了在采样时不会丢失信号的信息，同时在接收端通过恢复出原始信号。

这对于保证通信质量和准确传输数据来说非常关键。

图像处理：在数字图像采集中，采样定理用于设置合适的采样率，以避免图片出现信息丢失和混叠现象。

在数字摄影中，也需要根据采样定理来选择适当的像素密度，以保证图像的质量和细节。

3. 采样定理的局限性和改进采样定理的一个重要前提是信号是带限的，即信号的频谱有一个上限，超过这个上限的频率成分可以被忽略。

然而，在实际应用中，许多信号并不是严格带限的，因此采样定理可能无法完全适用。

为了克服采样定理的局限性，一种常见的方法是使用过采样（oversampling）技术。

香农采样定理英文描述Shannon Sampling Theorem or Nyquist Sampling Theorem is an important concept in digital signal processing. Thetheorem states that the sample rate must be equal to or more than twice the highest frequency component of a signal to accurately reconstruct it. In simpler terms, it means that we need to sample a signal at a rate equal to or higher thantwice its maximum frequency.The theorem was proposed by Claude Shannon in 1949, andit has been widely used in many areas of science, engineering, and technology. It has been used for signal processing in music, telecommunications, image processing, and many other fields.The following are the steps involved in understandingand using the Shannon Sampling Theorem:1. Definition of the theorem: The Shannon Sampling Theorem is a mathematical principle that describes the minimum sampling rate required to accurately represent a continuous-time signal in the digital domain.2. Understanding the importance of sampling rate: Sampling rate is the number of times a signal is sampled per unit of time. It is essential to have a higher sampling rateto capture the details of a signal accurately. If thesampling rate is not high enough, the reconstructed signalmay not be accurate.3. Finding the Nyquist frequency: The Nyquist frequencyis half of the sampling rate. It represents the maximum frequency component that can be accurately represented. Ifthe maximum frequency of a signal is above the Nyquist frequency, aliasing occurs, and the signal cannot be accurately reconstructed.4. Applying the theorem: Once the Nyquist frequency is known, it can be used to determine the minimum sample rate required to accurately reproduce the signal. This is done using the formula Fs = 2B, where Fs is the sample rate and B is the bandwidth of the signal.5. Examples: Here is a simple example that demonstrates the importance of the Shannon Sampling Theorem. Suppose we have a signal that has a maximum frequency of 100 Hz. According to the theorem, the minimum sampling rate required to accurately reproduce the signal is 200 Hz (2*100). Any lower sampling rate would lead to aliasing, and the signal cannot be reconstructed accurately.In conclusion, the Shannon Sampling Theorem is a fundamental principle in digital signal processing. It is essential to understand its importance and apply it correctly to avoid errors and inaccuracies in signal processing.。

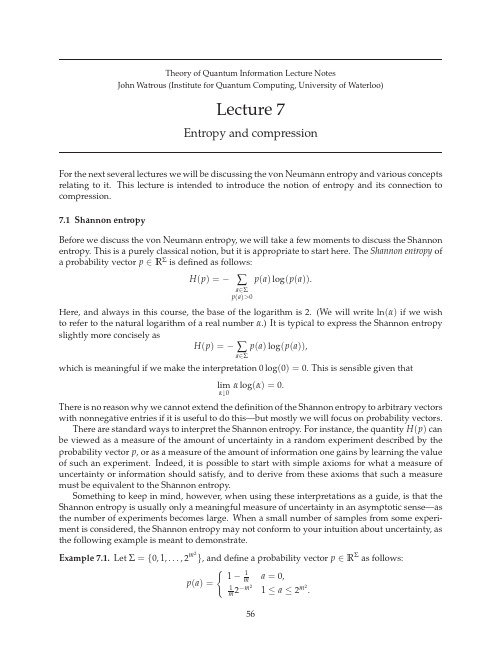

For the next several lectures we will be discussing the von Neumann entropy and various concepts relating to it.This lecture is intended to introduce the notion of entropy and its connection to compression.7.1Shannon entropyBefore we discuss the von Neumann entropy,we will take a few moments to discuss the Shannon entropy.This is a purely classical notion,but it is appropriate to start here.The Shannon entropy of a probability vector p∈RΣis defined as follows:p(a)log(p(a)).H(p)=−∑a∈Σp(a)>0Here,and always in this course,the base of the logarithm is2.(We will write ln(α)if we wish to refer to the natural logarithm of a real numberα.)It is typical to express the Shannon entropy slightly more concisely asp(a)log(p(a)),H(p)=−∑a∈Σwhich is meaningful if we make the interpretation0log(0)=0.This is sensible given thatαlog(α)=0.limα↓0There is no reason why we cannot extend the definition of the Shannon entropy to arbitrary vectors with nonnegative entries if it is useful to do this—but mostly we will focus on probability vectors.There are standard ways to interpret the Shannon entropy.For instance,the quantity H(p)can be viewed as a measure of the amount of uncertainty in a random experiment described by the probability vector p,or as a measure of the amount of information one gains by learning the value of such an experiment.Indeed,it is possible to start with simple axioms for what a measure of uncertainty or information should satisfy,and to derive from these axioms that such a measure must be equivalent to the Shannon entropy.Something to keep in mind,however,when using these interpretations as a guide,is that the Shannon entropy is usually only a meaningful measure of uncertainty in an asymptotic sense—as the number of experiments becomes large.When a small number of samples from some experi-ment is considered,the Shannon entropy may not conform to your intuition about uncertainty,as the following example is meant to demonstrate.Example7.1.LetΣ={0,1,...,2m2},and define a probability vector p∈RΣas follows:p(a)= 1−1m2−m21≤a≤2m2.56nn∑j=1Y j−E[Y j] ≥ε =0,which is true by the(weak)law of large numbers.uu∗, Ξ⊗1L(Z) (uu∗)represents one way of measuring the quality with whichΦacts trivially on the state uu∗.Now,any purification u∈W⊗Z ofσmust take the formu=vec √k∑j=1√σB 2=k ∑j=1 σ,A j 2.Another expression for the channelfidelity isF channel(Ξ,σ)=ρ⊗n,B j A i。

解密模数转换器（ADC）分辨率和采样率分辨率和采样率是选择（模数转换器）(（ADC）) 时要考虑的两个重要因素。

为了充分理解这些，必须在一定程度上理解量化和奈奎斯特准则等概念。

在选择模数转换器(（AD）C) 的过程中要考虑的两个最重要的特性可能是分辨率和采样率。

在进行任何选择之前，应仔细考虑这两个因素。

它们将影响选择过程中的一切，从价格到所需模数转换器的底层架构。

为了为特定应用正确确定正确的分辨率和正确的采样率，应该对这些特性有一个合理的了解。

下面是与模数转换相关的术语的一些数学描述。

数学很重要，但它所代表的概念更重要。

如果您能忍受数学并理解所介绍的概念，您将能够缩小适合您应用的ADC 的数量，并且选择将变得容易得多。

量化（Quan（ti）sation）模数转换器将连续（信号）（电压或（电流））转换为由离散逻辑电平表示的数字序列。

术语量化是指将大量值转换为较小值集或离散值集的过程。

在数学上，ADC 可以被描述为量化具有大域的函数以产生具有较小域的函数。

上面的等式在数学上描述了模数转换过程。

在这里，我们将输入电压V in描述为一系列位b N-1 ...b 0。

在这个公式中，2 N 代表量化级别的数量。

直观的是，更多的量化级别会导致原始（模拟）信号的更精确的数字表示。

例如，如果我们可以用1024 个量化级别而不是256 个级别来表示信号，我们就提高了ADC 的精度，因为每个量化级别代表一个更小的幅度范围。

（Vr）ef 表示可以成功转换为精确数字表示的最大输入电压。

因此，重要的是V ref 大于或等于V in的最大值。

但是请记住，比V in值大得多的值将导致表示原始信号的量化级别更少。

例如，如果我们知道我们的信号永远不会增加到 2.4 V 以上，那么使用5 V 的电压参考将是低效的，因为超过一半的量化电平将被使用。

量化误差（Quantisation Error）量化误差是一个术语，用于描述原始信号与信号的离散表示之间的差异。
