MPALL-（正片）量产工具使用说明书量产工具相关文件：打开量产工具文件夹，请检查是否包括如下图1文件。
（图1）1．双击量产程序主程序文件，打开量产程序，进入主界面，如图2（图2）2．插入待量产U盘，稍等片刻，会出现待量产U盘的盘符及Flash信息，如图3，如果没有显示，可以点击“update”更新一下。
3．点击“setting”按键（如图4）。
4．出现“Setting Type ”选择窗口,按如图5选择。
（图5）5．点击“OK”按键，出现“MPParamEdit ”主设定界面，做具体参数的设定：⑴．IC_FW设定（如图6）:主控选择: PS2251-50FC1-FC2: 0XFF-01PS2251-50择固件:勾选烧入固件,激活固件输入对话框, 在“burner 档案 ”一栏点击“选择”，在量产程序文件夹选择对应的burner File ，如图7（图7）在“固件档案 ”一栏点击“选择”，在量产程序文件夹选择对应的FW File ，如图8选择适当的Burner 文件选择适当的FW 文件⑵．Flash setting: 按默认设定即可，如图9（图9） ⑶．Driver setting:如图10（图10） 分区设置：目前UP19有如下4种模式：Mode 3：1 Removable Drive(Normal) 普通盘，单一个分区，如图11；Mode7： 1 Public Removable+1 Secure Removable 加密盘，分两个分区，系统中显示两个盘符，1个为公共区，另1个为加密区，如图12；Mode8： 1 Public/Secure Removable 加密盘，分为两个分区，在系统中同一时间只显示一个盘符，公共区与加密区是通过UP19 专用的加密AP 来切换，如图13。
（图11）（图12）MODE3具体设定在此框中选择MODE 3在此设定磁盘卷标，文件格式，是否拷贝文件等设定公共区与安全区的信息设定公共区与安全区的容量分配，提供按容量分配或按比例分配两种方式（图13）（图14）设定CDROM 与安全区的信息设定CDROM 与安全区的容量分配⑷．“driver setting”设置，如图15如果勾选：自动侦测，将会按原厂的默认设定；否则不选，客户自行设定一此设备信息。
一﹑面板介紹﹕12 5 8113214 6 10 9 7 15 13 141.電源開關﹕用于接接﹑斷開供電電源2.預置/測試開關﹕用于選擇兩種狀態3.預置調節﹕用于調整漏電流4.漏電流開關﹕用于選擇漏電流檔位5.漏電流表﹕用于顯示漏電流6.啟動﹕用于控動儀器崳出高壓7.電壓調節﹕用于調整輸出電壓大小 8.電壓表﹕用于顯示電壓9.復位﹕用于停止儀器輸出高壓 10.定時開/關﹕用于開啟或關閉定時功能11.定時設置﹕用于調整定時時間。
12.定時﹕用于顯示定時時間13.高壓輸出正極端 14.高壓輸出負極端 15.外控﹕用于遠程控制啟動或停止儀器二﹑操作說明﹕1.接通電源220V﹐按下“電源開關”﹐使其處于“開”位置。
定時(S)﹑漏電流(mA)﹑電壓表(KV)工作。
核准审核制作日期仪器名称耐壓測試儀功能高壓測試文件编号仪器型号CC2670A 厂商南京長創版本A12. 按下“預置/測試”鍵﹐使儀器處于“預置”狀態﹐對漏電流﹑電壓﹑定時進行設置。
2.1漏電流設置根據漏電流大小﹐選擇漏電流2/20檔﹐用“預置調節”旋鈕調整所需漏電流。
同時“漏電流表”也顯示漏電流。
順時針漏電流孌大﹐逆時針變小。
2.2電壓設置按下“啟動”開關﹐“測試”燈亮﹐旋轉“電壓調節”旋鈕﹐使“電壓表”顯示為所需電壓即可。
順時針電壓孌大﹐逆時針變小。
(交流電壓0-5KV可調)2.3定時設置按下“定時開/關”鍵﹐儀器處于“開”狀態。
根據所需測試時間﹐按下“定時調節”拔盤之“﹢”或“﹣”鍵﹐調節所需時間﹐同時“定時表”也顯示調整時間。
(時間范圍﹕0-99S可調)若不需要定時測試﹐按下“定時開/關”鍵即關閉。
3.參數設置完成后﹐按下“預置/測試”鍵﹐儀器處于測試狀態。
4.將測試治具與儀器高壓輸出端連接后即可測試﹐若測試中產品漏電流超出設定值﹐儀器超漏指示燈工作并發出報警聲。
按下“停止鍵”﹐儀器即停止。
5.測試完成后﹐按下“電源開關”﹐使其處于“關”狀態﹐儀器即斷電。

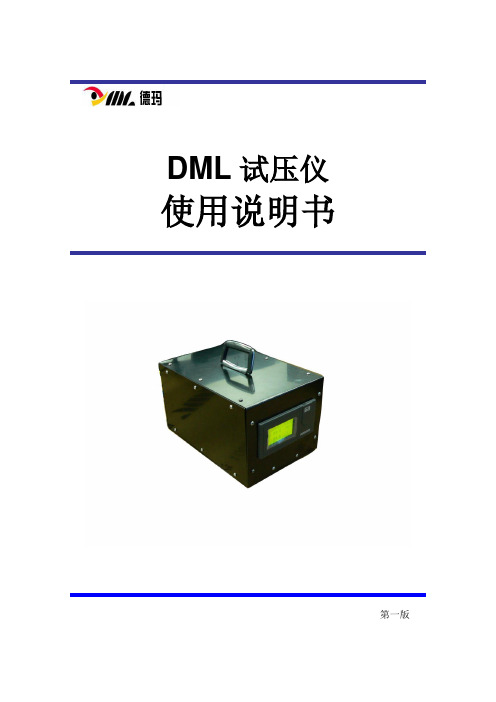

DML试压仪使用说明书第一版目录第一部分硬件部分 (1)第一章各部分的名称和功能 (2)一、试压仪前面板 (2)二、试压仪后面板 (3)三、传感器安装位置示意图 (4)第二章系统设置操作 (7)一、保存功能 (7)二、使用模式 (8)三、通用键操作 (9)第三章显示界面的切换 (12)第二部分软件部分 (18)一、软件安装 (19)二、软件操作 (22)三、数据导出 (26)四、试压报告单操作说明 (29)第一部分硬件部分第一章各部分的名称和功能一、试压仪前面板1、LCD画面显示曲线等各种运行画面，组态画面。
2、键盘3、操作盖操作按键，插入或取出U盘等外部存储媒体时，请打开盖子进行。
打开盖子扣住盖子上方的扣子面向操作者方向一拉即可。
此盖子在不进行上述操作时请务必关好。
4、USB接口按键说明：：左移键，向左移动光标，向前追忆等功能。
：右移键，向右移动光标，向后追忆等功能。
：上移键，增加光标所在值的量，切换通道等功能。
：下移键，减少光标所在值的量，切换时标等功能。
：确认键，执行光标所在按钮的动作，编辑光标所在值，切换追忆方式等功能。
：翻页键，运行画面时切换画面使用。
可与左移键形成组合键，进入组态画面。
二、试压仪后面板1、传感器信号线接口2、电源线接口3、通讯线接口（计算机COM口）三、传感器安装位置示意图在压井管汇表座部位上加入转换接头一个，用于连接压力传感器。
如下图1-1 转换接头。
图1-1 转换接头压力传感器与转换接头之间采用双丝（公/英）转换接头连接。
如下图1-2双丝。
图 1-2 双丝压力传感器信号线采用防爆快速接头连接。
如下图1-3快速接头图1-3快速接头注：压力传感器性能指标：●工作温度：-40℃～85℃●工作电压：24VDC●测量精度：±0.25%FS●输出信号：4～20mA●防护等级：IP67第二章系统设置操作本说明中使用的记号单位K 代表[1024]k 代表[1000]M 代表[1024K]G 代表[1024M]B Byte一、保存功能本仪表可收集、保存仪表测量到的数据和运算数据。
目录1BETA325 (1)1.1简介 (1)1.2使用方法 (1)1.3设定阻尼值 (6)1.4查看模块信息 (7)1.5掉电监测 (7)2HC-5500A (10)2.1简介 (10)2.2技术指标 (10)2.3使用操作 (10)2.4校准 (11)2.5注意事项 (17)3ZH205D (18)3.1概述 (18)3.2用途 (18)3.3技术指标 (18)3.4工作原理 (20)3.5使用方法 (20)3.6校准 (22)4HC-7116SVP (25)4.1简介 (25)4.2技术指标 (25)4.3操作步骤 (25)4.4注意事项 (26)5HC-7260 (27)5.1简介 (27)5.2技术指标 (27)5.3操作步骤 (27)5.4注意事项 (28)5.5常见故障 (28)5.6压力情况表 (29)6HRJ-600热电偶检定炉 (29)6.1概述 (29)6.2技术指标： (30)6.3使用方法 (30)6.4注意事项 (30)7HTS-95A型恒温水槽 (30)7.1概述 (30)7.2主要技术指标 (30)7.3使用说明 (31)7.4注意事项 (31)7.5控制仪表使用说明 (31)8HTS-300A型恒温油槽 (35)8.1概述 (35)8.2主要技术指标 (35)8.3使用说明 (35)8.4注意事项 (36)8.5控制仪表使用说明 (37)9 ATC-650B型温度校准仪 (39)9.1 概述 (39)9.2 主要性能 (39)9.3 注意事项及操作方法 (40)9.4 控制仪表使用说明 (42)9.5 压力温度计校验方法 (45)1 BETA3251.1 简介BETA325是双通道的压力校验设备，它可同时显示两个通道的压力值。
显示的数据取决于安装在仪器下方左右两侧的压力模块，显示屏的上半部分显示通道1（左侧通道）的压力值，下半部分显示通道2（右侧通道）的压力值。
2Refer to the “Flow Chart Programming Instructions”while reviewing this guide.Gauge is field programmable by the operator while installed in the vehicle.This programming isaccessed by pressing the control buttons located on the face or the meter dial,ONE AT A TIME .The “Down”and “Up”buttons move the pointer to a desired setting or controls the faceplate illumination.BRIGHTNESSPLAYBACK OPTION:RESTORE MENU SUBMENU BUTTON TO PROGRAM LEVEL.THEN PRESS BOTH AND RIGHT BUTTONS FOR FIVE SECONDS TO ENTER DOWN MODEUP+–OPTION:CALIBRATE GAUGE2PROGRAMMING STARTS INMAIN MENUPRESS PROGRAM BUTTON ONE(1)AT A TIME IN THE MAIN MENU MODE.1NORMAL/DIAL BRIGHTNESS:On power up,the meter usually starts operation in NORMAL/DIAL BRIGHTNESS.Gauge reads the sensor value as temperature,pressure,etc.The“Down”and“Up”buttons will control the brightness of the dial lighting.Press the center“Mode”button to save the setting and advance you to PEAK PLAYBACK2PEAK PLAYBACK:Reads the highest value displayed on the gauge since the last time the“PEAK”value was displayed.“PEAK”value will be held in memory until erased by pressing the RIGHT or LEFT button while in the “PEAK”level.Press the center“Mode”button to advance to HIGH RED-LINE SETTING3HIGH RED-LINE SETTING:Sets the point at which“HIGH”warning threshold is reached for that specific gauge.The“Down and “Up”buttons will move the dial pointer to select HIGH RED-LINE SETTING.During normal operation the gauge constantly monitors the sensor value and compares it to the“HIGH”threshold. If the threshold is exceeded,the red“HI”indicator is turned on.Press the center“Mode”button to save the setting and advance to LOW THRESHOLD SETTING4LOW THRESHOLD SETTING:Set the Minimum Threshold:Sets the point at which“LOW”warning threshold is reached for that specific gauge.The“Down”and“Up”buttons will move the dial pointer to select the LOW THRESHOLD SETTING.During normal operation the gauge constantly monitors the sensor value and compares it to the“LOW”threshold.If the sensor value drops below the threshold,the yellow “LOW”indicator is turned on.Press the center“Mode”button save the setting and advance to5C O L O R S C H E M E5C O L O R S C H E M E:Set Faceplate Color Scheme:Operator can select the color of the gauge dial illumination.Each time you press the“Down”control button you scroll through dial color selection until the dial light goes off.Then press the“Up”button to reverse the scroll.Select your dial color illumination by pressing the center“Mode”button to save the setting and advance to DIAL BRIGHT-NESS6DIAL BRIGHTNESS:Adjust dial brightness for day or evening driving conditions.The RIGHT or LEFT command but-tons will dim or brighten faceplate illumination.Press the Center mode button to save the setting and return to NORMAL OPERATION.2SUBMENUSUBMENU IS ACCESSED THROUGH THE MAIN MENU.FIRST GO TO THE APPROPRIATE LEVEL OF THE MAIN MENU AND THEN FOLLOW THE INSTRUCTIONS IN THE PROGRAMMING FLOW DIAGRAM TO ENTER THE SUBMENU.PRESS THE“MODE”AND“UP”OR“MODE”AND“DOWN”BUTTONS SIMULTANEOUSLY FOR5SECONDS TO ENTER THE SUBMENU AND ONE BUTTON AT A TIME WHILE IN THAT SUBMENU.OPTION:CALIBRATE GAUGE TO ENVIORNMENT:Turn the ignition ON with the engine OFF.While in the Normal Mode,Press and hold the CENTER and LEFT buttons for five(5)seconds.The dial face plate will flash GREEN rapidly.Press the CENTER Mode button to save the setting and return to NORMAL OPERATION.OPTION:RESTORE FACTORY DEFAULT:While in Peak Playback.Main Menu,press and hold both the CENTER and RIGHT buttons for5seconds.The dial pointer will step5times and return to zero(0).All user programmed setting will be erased and the gauge will return to NORMAL OPERA-TIONOPTION:DEMO MODE:Displays the features of the meter.The pointer goes up and down the scale,the dial colors change and the HI,LOW and PEAK warning indicators light.The DEMO MODE does not time out.If the gauge is turned off in the DEMO MODE,it will start up in the DEMO MODE. Press the“Mode”button to return the gauge to NORMAL operation.OPTION:POINTER BRIGHTNESS MODE:The DOWN and UP buttons adjust the dial pointer brightness to blend in with original manufacturer’s gauges and the owner’s requirements.Press the MODE button to return to NORMAL OPERATION.Factory default programming settings:Oil Pressure……………………………………………………....40PSI maxWater Pressure………………………………6PSI low.......50PSI HighGAUGE CRITICAL CONDITIONALERT OUTPUT GUIDE•TO RESET THE PROGRAM TO NORMAL OPERATION FROM ANY MODE PRESS THE “UP”AND “DOWN”BUTTONS SIMULTANEOUSLY .THIS SOFT RESET CANCELS THE INFORMATION YOU PROGRAMMED IN THAT MODE ONLY AND RETURN YOU TO NORMAL OPERATION .•THE FACEPLATE WILL “FLASH”WHEN BUTTONS ARE DEPRESSED TO ACKNOWLEDGE COMMANDS.•PROGRAMMING ERRORS WILL BE SIGNALLED BY FLASHING THE FACEPLATE LIGHTING “PURPLE ”,“BLUE ”,“GREEN ”THEN “ORANGE ”.•IF PROGRAMMING IS INACTIVE FOR 120SECONDS THE MODE WILL TIME OUT AND THE GAUGE WILL RETURN TO NORMAL OPERATION,EXCEPT FOR IN THE DEMONSTRATION MODE.THE DEMO MODE WILL NOT TIME OUT UNTIL THE CENTER “MODE”BUTTON IS PRESSED.IF THE GAUGE IS TURNED OFF IN THE DEMO MODE,IT WILL START-UP IN THE DEMO MODE.•TO RESTORE FACTORY DEFAULTS,PRESS THE “MODE”BUTTON ONCE TO ENTER THE PEAKPLAYBACK .THEN PRESS AND HOLD THE “MODE”AND “UP”BUTTONS FOR FIVE SECONDS.YOUR PROGRAMMING WILL BE ERASED BUT FACTORY PROGRAM WILL NOT BE AFFECTED.1THE GAUGE FACEPLATE WILL FLASH ALTERNATELY “RED ”THEN “GREEN ”IF THE SENSOR PROBE IS NOT CONNECTED TO THE WIRING HARNESS.2DO NOT USE ANY SENDER ADAPTER THAT WOULD REDUCE THE SENSORS IMMERSION IN FLUID.FOR ACCURACY ,SENSOR SHOULD BE 3-6MM IMMERSED IN THE FLUID IT IS MONITORING.2U.S.Patent#7,278,749and #7,612,660Additional Patents Pending2SPEK PRO™PRESSURE GAUGESPEK PERFORMANCE GAUGE FEATURES:•INTELLIGENT ELECTRICAL GAUGES.•GAUGES ARE PROGRAMMED THROUGH COMMAND KEYS ON FACEPLATE.•STEPPER MOTOR DRIVES THE GAUGE POINTER OVER A280DEGREE SWEEP.•WIDE-ANGLE-DIAL™HAS A15%LARGER VIEWING AREA ON A21/16”GAUGE.•PROGRAMMABLE7COLOR DIAL AND RED POINTER ILLUMINATION.•OPTIONAL OUTPUT CONTROL MODULE.INSTALLATION INSTRUCTIONS:1DISCONNECT NEGATIVE(-)BATTERY TERMINAL.2VARIOUS MOUNTING SOLUTIONS ARE PRESENTED BY PROPARTS.DASH INSTALLATION:SELECT LOCATION IN THE DASH TO MOUNT GAUGE AND CUT A21/16”HOLE. USE A FILE TO INCREASE THE HOLE SIZE IF REQUIRED.BE SURE THERE IS SUFFICIENT ROOM BEHIND THE HOLE FOR THE METER CASE AND THE CONNECTORS YOU WILL USE.3IF A SUITABLE HOLE IN THE FIRE WALL IS NOT AVAILABLE,CUT AN11/16HOLE.4Grommet MUST BE CUT TO PERMIT INSTALLATION OF WIRING HARNESS.(SEE DIAGRAM1)25INSTALL GROMMMET AND MOUNTING CUP ON THE WIRING HARNESS AS SHOWN IN DIAGRAM 1.GROMMET IS FOR THE HOLE IN THE FIREWALL6DO NOT CONNECT WIRING HARNESS TO THE GAUGE UNTIL THE OTHER CONNECTIONS HAVE BEEN MADE AND TESTED.7SELECT A LOCATION FOR MOUNTING THE SENDER.SENSOR MUST BE IMMERSED IN FLUID3-6 MM FOR AN ACCURATE READING.WIRING SHOULD BE SECURED TO A FENDERWELL OR FIREWALL TO INSULATE THE SENDER FROM VIBRATION.8OIL,DIFFERENTIAL AND TRANSMISSION SENDERS MAY REQUIRE A MOUNTING HOLE BE DRILLED AND A1/4”NPTF ADAPTER WELDED IN PAN.9USE TEFLON SEALING COMPOUND.TAPE IS NOT RECOMMENDED.10TEST ALL FITTINGS FOR LEAKS.11CONNECT THE RED(+12VOLT SUPPLY)WIRE TO“ON”CIRCUIT THAT GETS POWER WHEN THE IGNITION IS TURNED ON.THIS CIRCUIT MUST BE FUSED BEFORE THE IGNITION SWITCH(5AMP,FAST ACTING FUSE).12CONNECT THE BLACK WIRE TO A GOOD GROUNDING POINT ON THE CAR’S CHASSIS.13CONNECT THE WHITE WIRE TO THE DIMMER VOLTAGE GOING TO THE DASH LIGHTS.14TERMINATE GAUGE WIRES2,3,4TO GREEN/WHITE,BLACK AND RED/WHITE SENSOR LEADS AS SHOWN IN DIAGRAM115PLUG THE WIRING HARNESS INTO THE GAUGE AND MOUNT IN POD OR E CARE WHEN CONNECTING OR DISCONNECTING THE WIRING HARNESS.16FOR DASH MOUNTING,ATTACH MOUNTING CUP OVER THE BACK OF THE GAUGE AND HAND TIGHTEN.DO NOT OVER-TIGHTEN.MOUNT CUP BEFORE INSTALLING GROMMET.FAILURE TO DO SO WILL TWIST WIRES CAUSING A SHORT CIRCUIT.17POWER UP THE GAUGE AND INSPECT ALL CONNECTIONS.IF GAUGE IS OPERATING NORMAL, PROCEED TO“PROGRAMMING MANUAL.”TROUBLESHOOTING:1THE GAUGE FACEPLATE WILL FLASH ALTERNATELY“RED”THEN“GREEN”IF THE SENSOR PROBE IS NOT CONNECTED TO THE WIRING HARNESS.2DO NOT USE ANY SENDER ADAPTER THAT WOULD REDUCE THE SENSORS IMMERSION IN FLUID. FOR ACCURACY,SENSOR SHOULD BE3-6MM IMMERSED IN THE FLUID IT IS MONITORING.2DIAGRAM1DIAGRAM 212WARNING :1.FUEL SYSTEM MAY BE UNDER PRESSURE AND MUST BE PROP-ERLY VENTED BEFORE INSTALLATION OF FUEL SENDER BY AN EXPERIANCED MECHANIC.2.FUEL AND FUEL VAPOR ARE EXTREMLY FLAMMABLE.INSTALLER MUST TAKE EVERY PRECAUTION TO REMOVE ANY HOT MATERIAL.OPEN FLAME OR ANYTHING THAT IGNITE FUEL OR FUEL VAPOR.THERE ARE THREE SECTIONS TO THIS MANUAL:WIRING INSTRUCTIONS,PROGRAMMING INSTRUCTIONS AND FLOW CHART PROGRAMMING INSTRUCTIONS.PLEASE READ EACH SECTION CAREFULLY BEFORE ATTEMPTING TO INSTALL OR OPERATE THIS PRODUCT. WARNING:•ALL INSTRUCTIONS IN THIS MANUAL MUST BE FOLLOWED TO INSURE SAFE INSTALLA-TION AND OPERATION OF THIS PRODUCT.•NEVER DISASSEMBLE MODIFY OR TAMPER WITH THIS PRODUCT.THIS COULD CAUSE DAMAGE AND MAKE THEM UNSAFE TO USE.TAMPERING WITH THE PRODUCT WILL VOID THE LIMITED WARRANTY.•INSTALLATION MUST BE PERFORMED BY AN EXPERIENCED AUTOMOTIVE TECHNICIAN.•INSTALLER MUST USE SAFETY GLASSES.•DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE BEGINNING INSTALLATION. PROPARTS LLC IS NOT RESPONSIBLE FOR DAMAGE TO ENGINE,VEHICLE OR UNIT CAUSED BY ELECTRICAL SHORTS.•DURING INSTALLATION,DO NOT INTERFERE WITH ANY EXISTING CONNECTIONS OR WIRES.•ALL ELECTRICAL CONNECTIONS USE SOLDER LESS CONNECTORS AND INSULATE ALL CONNECTIONS WITH ELECTRICAL TAPE.•AVOID WIRING NEAR ENGINE,EXHAUST SYSTEM,TURBINE OR ANY AREA THAT MAY RE-SULT IN DAMAGE.•DISCONTINUE USE OF THE PRODUCT IF SMOKE OR A STRANGE ODOR IN PRESENT. CAUTION•PROPARTS LLC IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR PROGRAMMING OF SPEK™GAUGES OR CONTROLLERS.•SPEK™GAUGES AND CONTROLLERS ARE DESIGNED FOR12V DC ELECTRICAL SYSTEMS WITH A NEGATIVE GROUND.•DO NOT ADJUST THE GAUGES OR GAUGE PROGRAM WHILE DRIVING•OBEY ALL RULES AND REGULATIONS OF HIGHWAY AND STREET DRIVING.•INSTALL SENSOR AND WIRE AWAY FROM HIGH HEAT AND/OR VIBRATION AREAS.•USE CARE WHEN CONNECTING OR DISCONNECTING THE WIRING HARNESS.PULL OUT EACH CONNECTOR WHILE PRESSING THE LOCK OF THE CONNECTOR FIRMLY.•IF THE BATTERY TERMINAL IS DISCONNECTED,THE AUDIO,CLOCK AND OTHER MEMORY DATA MAY BE LOST.THE NECESSARY DATA WILL HAVE TO BE RESET AFTER INSTALLA-TION.。
气压表使用方法说明书一、产品概述气压表是一种用于测量气体压力的仪器，广泛应用于工业、制造、实验室等领域。
本说明书将详细介绍气压表的使用方法，帮助用户正确操作和维护气压表，以确保其准确和可靠的测量结果。
二、产品特点1. 高精度：气压表采用先进的传感技术，具有高精度的测量能力，能够满足各类实际应用场景的需求。
2. 易于读取：气压表配备清晰的刻度盘和指针，标识清晰，读数准确直观。
3. 耐用可靠：气压表外壳采用耐腐蚀材料制成，仪表内部采用优质零部件组装而成，具有较强的耐用性和可靠性。
4. 多功能：气压表提供多种单位切换功能，满足不同国家和行业的使用标准。
三、使用方法1. 准备工作a. 确保气压表处于关机状态，并检查表盘和指针是否有损坏。
b. 检查压力表的连接口、泄漏和堵塞情况，确保连接正常。
2. 连接气源a. 将气源连接管插入气压表的连接口，并用螺帽紧固。
b. 确保连接牢固可靠，避免压力泄漏。
3. 打开气源a. 打开气源开关，使气体流经气压表。
b. 注意观察指针是否有反应，判断气体压力是否正常。
4. 读取压力值a. 观察指针在刻度盘上的位置，并确定相应的压力数值。
b. 轻轻敲击仪表，确保指针稳定在一个数值上，方便准确读取。
5. 关闭气源a. 在使用完毕后，及时关闭气源开关，避免浪费气体资源。
b. 断开气源连接管，放置在干燥、通风的地方，避免受潮或污染。
四、维护保养1. 清洁表盘使用柔软的布料轻轻擦拭表盘，避免使用化学溶剂或刺激性清洁剂，以免对表盘造成损害。
2. 定期校验建议定期将气压表送至专业机构进行校验，以确保其测量结果的准确性和可靠性。
3. 防止震动和冲击在使用过程中，避免气压表受到剧烈震动和冲击，以免损坏仪表内部部件。
4. 防尘防潮长期不使用时，应将气压表放置在干燥、通风的环境中，避免受潮或遭受灰尘污染。
五、常见问题及解决方法1. 读数不准确a. 检查连接是否牢固，确保气体没有泄漏。
b. 检查指针和刻度盘是否有损坏，若有损坏应及时更换。
马波斯量仪简易操作流程一.首先开机，待量仪自检完成后，显示测量界面。
此量仪共有参数设置、线性倍率调整、校正、三大步骤，二.、参数设置:1、按“↑”2秒进入参数设置功能（如图1）。
2、『PROGRAM』程序。
按：『ENTER键』确认（如图2）。
3、『ONE。
CH』①通道。
按：『ENTER键』确认（如图3）。
4、『MEASURE』测量。
按：『ENTER键』确认（如图4）。
图1 图2 图3 图4 图5 图6 图75、『M。
SYST』测量单位（一般情况不更改里面的设置，选择metric）。
按：『ENTER键』确认（如图5、6）。
6、『TOLER+ =』公差带上限（设定：按照产品公差带设置）。
.按：『ENTER键』确认（如图7）。
7、『TOLER - =』公差带下限（设定同上）。
.按：『ENTER键』确认（如图8）。
8、『APPRCH+』报警上限。
设：R。
（关闭不用）。
按：『ENTER键』确认（如图9、10）。
9、『APPRCH-』报警下限。
设：R。
（关闭不用）。
按：『ENTER键』确认（如图11、12）。
图8 图9 图10 图11 图1210、『SCALE』量程选择。
（选择：Auto）即：量仪显示值为每小格0.002mm。
按：『ENTER键』确认（如图13）。
11、『K。
CH。
A』K系数（内径设为+1。
0000）。
与（外径设为-1。
0000）。
按：『ENTER键』确认（如图14）。
12、『ABSOLUT=』名义值：产品的基本尺寸。
按：『ENTER键』确认（如图15）。
13、『MASTER1』大规实测值与基本尺寸之差。
（大规实测值减去名义值）。
按：『ENTER键』确认（如图16）。
图13 图14 图15 图1614、『MASTER2』小规实测值与基本尺寸之差。
（小规实测值减去名义值）。
按：『ENTER键』确认（如图17）。
15、直按“↑”出现『。
』退至测量模式。
注：如果更改参数，程序自动弹出『save』保存提示。
First things firstFor use in hazardous locations •MGP7000X meriGauge® plus•MS700X meriSense™DisclaimerPlace only meriSense sensorsinside the meriGauge plushousing.Steps to get startedMake pressure connectionThe meriSense has a 316 stainless steel 1/4 in. male NPT connection for direct mounting. •The threads should be coated with a pipe sealant compound before installation. •Tighten to finger tight plus 1.5 turns to3 turns using a 23 mm (7/8 in.) wrench.Remember: The gauge will face the samedirection as the Meriam logo on the sensor.Never rotate meriSense byturning meriGauge plus.Use only a wrench on the hex fitting. Know your batteriesThe meriGauge plus is powered by four 1.5volt AA size batteries.•Use only batteries listed on 9R525.•Never mix batteries—not bymanufacturer, by size, by capacity, or bychemistry.•Never mix old and new batteries.•Remove all four batteries in themeriGauge plus at the same time.•Replace all four batteries with batteriesfrom the same package or with thesame expiration date.Install the batteriesDo not change batteries inexplosive atmospheres.1.Turn over the meriGauge plus so the displayfaces down.2.Remove the four screws on the battery coverwith the Phillips head screwdriver by turningthem counterclockwise.3.Remove the plastic battery compartmentcap.4.Pay attention to the positive (+) andnegative (−) battery polarity markings at thebottom of the compartment as you installthe batteries.5.Install the plastic battery compartment cap.6.Replace the metal battery cover. To securethe cover, torque the screws clockwise 0.56N-m (5 in-lbs) maximum.Connect meriGauge plus tomeriSenseThe notch on the sensor must face the samedirection as the meriGauge plus for the sensor tolock in place. Simply slide the gauge housing onthe sensor until it fully connects.Learn the function keysUSB cable & meriSuite™ CGFor use onlyin non-hazardous locationsConnect the USB cable to meriGauge plus andto your computer to configure meriGauge plusand meriSense using the meriSuite CG app.Install meriSuite CG & USBDriversYou must install USB Drivers first then install themeriSuite CG app. For installation instructions:https:///resources/download/Open meriSuite CGUse meriSuite CG application to:•Sync PC Time to Gauge for data loggingand display.•Select or deselect the Display Modes oneach gauge or Measurement Units that youneed on each sensor.•Select the timeout for the Backlight and forthe Auto Off.Watch meriSuite CG & batteriesDo not turn off the power onthe meriGauge plus while it iscommunicating with meriSuiteCG.Close meriSuite CG first, disconnect the USB,and turn off the meriGauge plus.The meriGauge plus System Quick Start GuideHow often is a new pressure measurement displayed?The meriGauge plus display updates with a new pressure measurement five times per second.What are the different Display modes on the gauge?The meriGauge plus has nine display modes:1. Normal 5. Tare (T.OFF, T.ON)2. Minimum (MIN) 6. Average (AVG)3. Maximum (MAX) 7. Rate of change (RATE)4. Accuracy (+/–) 8. Data Log Lite(DATA LOG)9. Time & Temperature Why are the available units different between a 15 psi and3 000 psi meriSense?If a given measurement unit cannot display the correct number of digits, the meriGauge plus automatically advances to the next displayable unit.What does it mean when the red backlight flashes?•The flashing red backlight indicates an error condition.•Possible error conditions are:o Pressure has exceeded the statedaccuracy of the meriSense.o Pressure has fallen below the stated accuracy of the meriSense.•The red backlight overrides the white backlight. FAQsWhat does the Zero (Ø) key do?In normal measure modeIf the sensor is within a tolerance band aroundzero, press and hold the Zero key to zero thepressure measurement and to reset the Minand Max measurements.Note: The tolerance band is approximately± 1 % of the Full Scale pressure value of thesensor.In Min or Max modePress and hold the Zero key to reset the Minand Max measurement. However, this does notzero the pressure measurement.In Tare modeWhen the Tare is off (T.OFF), press and hold theZero key to turn on Tare (T.ON) and to set theTare value at the current pressuremeasurement.Likewise, when the Tare is on (T.ON), press andhold the Zero key to turn off the Tare mode.In Average modePress and hold the Zero key to restart the rollingaverage.Holding the Zero keyThe key must be held to perform the Zero orTare mode. The displayed value(s) dashes outduring the zero or tare process.Which version of Data Log is on mygauge?1.Make sure the sensor is installed.2.Turn on the gauge.3.Press the Display button until “DATA LOG”appears.4.Press the Information button. Theversion appears: Vers. Pro or Vers. Lite.FAQsHow long does the white backlightstay on after the Backlight key ispressed?The white backlight has an automatic timeout. Ifno keys have been pressed, the backlightautomatically turns off after 1 minute.Note: You can configure the backlight timeoutwith meriSuite CG.What does the bar graph at the topof the display indicate?•The bar graph displays a live indication ofthe current pressure applied to the sensoras a % of Full Scale.•However, when the battery percentage isdisplayed, the bar graph follows the largedigit display in indicating the remainingstate of charge for the batteries.Is it OK to leave the sensorattached to a pipe without a gaugeconnected?•Yes.•Make sure to replace the dust cap on thesensor to protect the electrical contactsafter the sensor has been detached from ameriGauge plus gauge.What does a low battery indicatormean?Be prepared to change batteries when you seethe outline of the battery icon or when theoutline of the icon flashes.FAQsHow long will the gauge remain onif I leave it unattended?•The default setting is Always On.•You can configure the timeout for Auto Offwith meriSuite CG.How to contact usContact SalesIf you have any issues, questions, orsuggestions, please contact us using one of thefollowing methods.****************Meriam®10920 Madison AveCleveland | Ohio | 44102 | USA+ 1 216 281 1100(800) 817-7849。
