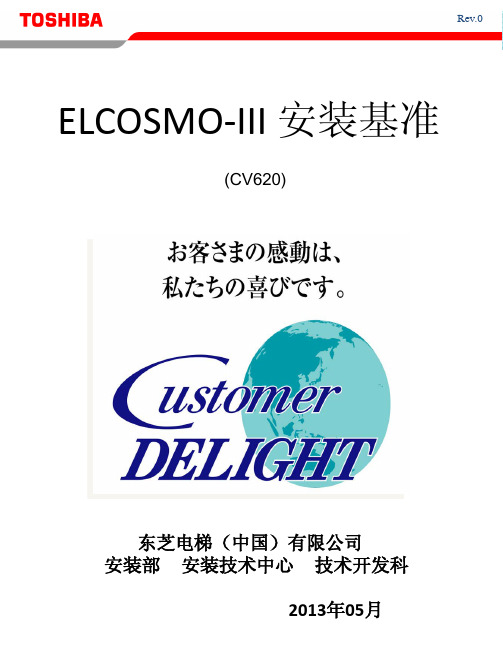

东芝电梯（中国）有限公司安装部安装技术中心技术开发科2013年05月ELCOSMO-III 安装基准(CV620)Rev.0【井道概略图】Rev.0 C/W后落式C/W侧落式目录尺寸注意点机房部分井道部品轿厢部品DBL-5轿门DBL-5厅门钢丝绳施放滚轮导靴调整P1页P3页P19页P35页P44页P51页P55页P59页Rev.0尺寸注意点Rev.1注意：目前ELCOSMO-III机种副轨中心距离墙面不得小于170mm/P11人份以上（P8人份155mm)。
C/W侧落注意：目前厅门地坎与轿厢地坎之间的尺寸为25mm原先为30mm。
C/W侧落/后落共通机房部分（C/W后落式）1.机械梁的安装2.曳引机座的安装3.曳引机的安装4.压力传感器·轿厢侧绳头板的安装(压力传感器配线注意点)5.限速器的安装6.控制柜·停电平层装置·受电盘的安装( )内尺寸为8根钢丝绳的场合确认的要求的要求Rev.0机械梁的安装使用水平尺确认满足1：600的要求防震橡胶螺栓·大平垫M8×30×4个）螺栓·弹垫·大平垫（M8×30×6个）使用垫片调整满足1：600的要求曳引机座②曳引轮倾倒(A-B=0~1)※只允许反符合侧倾倒螺栓·弹垫·平垫（M16×55×4个）②②③螺栓·平垫螺栓·弹垫（M10×40×2个）防倾倒螺栓螺栓/ 螺母压力传感器轿厢侧绳头板2~3mmRev.0压力传感器·轿厢侧绳头板的安装压力传感器配线限速器配线注意点！压力传感器配线必须与其他配线相隔50mm 以上。
Rev.0压力传感器配线注意点骑马夹压力传感器配线限速器器配线天井面天井面限速器螺栓·平垫· 弹垫/（M8×30×2个）螺栓·平垫· 弹垫（M8×30×2个）限速器Rev.0限速器的安装控制柜停电平层装置受电盘膨胀螺栓M12×4个膨胀螺栓M12×4个膨胀螺栓M8×55×4个控制柜Rev.0控制柜·停电平层装置·受电盘的安装曳引机侧配线Rev.0机房配线位置示意图机房部分（C/W侧落式）1.机械梁的安装2.曳引机座的安装3.曳引机的安装4.压力传感器·绳头板的安装5.限速器的安装6.控制柜·停电平层装置·受电盘的安装确认的要求的要求机械梁的安装Rev.0使用水平尺确认满足1：600的要求·弹垫·螺母螺栓·弹垫·大平垫（M8×30×8个）使用垫片调整满足1：600的要求防震橡胶底座②螺栓·弹垫·平垫（M16×55×2个）(A-B=0~1)螺栓·弹垫·平垫（M16×40×2个）②焊接螺母曳引机座曳引机座机械梁曳引机座2~3mm注意！此处间隙调整为钢丝绳挂设完毕后进行。
控制柜保险1、保险1F-1 1F-2 1F-3 2F-1 2F-2 2F-4 F-1 F-2 F-3 8F-1 8F-2 8F-3 3FA 3FB●●●●●●●●●●●●●●2、保险说明注：1. ●为走慢车必须安装保险，—为走慢车必须拆除保险。
上述带—保险除3FA、3FB可安装上外，其他保险必须拆除，否则在安装过程中操作不当易造成PU、I/O、及操纵盘基板烧毁。
2.高层及带停电平层的电梯会增加1F-5、2F-5、2F-3等保险安全回路说明1、端子排符号排序PC1C NC NC NC NC P24A P24A P24A P24A NC2….NC2共8个 KNOR R201 T201 NC BKC A2 A7 A10 A11 DC HDC CC DLS2、安全回路封线解析PC1C-A2：机房急停(CCS)、底坑急停两个(1KS1,1KS2)A2-A7：轿顶急停(2KS)、安全钳开关(SOLS)A7-A10：上极限(2LS)、下极限（1LS），轿厢缓冲器开关（BUFS1），对重缓冲器开关（BUFS2），涨绳轮开关（GRS）A10-A11：限速器开关(SLS)A11-HDC：厅门联锁(20+NLS)HDC-DCR：轿门联锁(GLS)走慢车封线1、试运行慢车：①机房打检修②PC1A与A11封③门联锁短封钥匙扳到封闭一侧④CNH1-1（DNLS）、CNH1-2（UPLS）、KNOR与E （地线）短封⑤正确接上码盘线BP5A\BN5A\\PNS\DNS\ZNS⑥接上抱闸线B1，B2⑦插上CNMB插子（抱闸微动开关）CNM12温控开关2、电机线及码盘线接法注：现场安装发现电梯反向的，将U和W调换一下，同时将PNS和DNS调换，方向即改过来了。
一般故障分析1、控制柜继电器排序RLR LZN LBKR SMR 1BKR 2BKR KNORR AMC1 AMC2■■■■■■■■■2、控制柜接触器排序（控制柜左下角）AMC1 AMC2 SC 1BK 1BKX 2BK3、读故障号●●●MOD NUM STB ● PRS①按动最左面〈MOD〉按钮两下，PU基板上显示O.O后面O闪烁②按中间〈NUM〉按钮8下，至显O.8③连续按最后面的〈STB〉按钮，第9下显示出来的数既是故障号④调出故障号后，按动右下角的〈PRS〉按钮一下就恢复原来状态了4、清除故障，解决一般死机状态①按动最左面〈MOD〉按钮两下，PU基板上显示O.O后面O闪烁②按中间〈NUM〉按钮，至显O.E③按右面〈STB〉一下显E1，按〈STB〉一下显OE④按右面〈STB〉一下显E1，按〈NUM〉一下显E2，按〈STB〉一下显OE⑤按右面〈STB〉一下显E1，按〈NUM〉两下显E3，按〈STB〉一下显OE⑥按〈MOD〉按钮一下，清除故障完毕5、故障编码表Ⅰ、故障代码30（STH）检查出暂存器发热异常，电梯停止后SMC跳闸。
