胶水TDS术语

耐高温胶水/固化剂1613系室温或低温固化型环氧树脂胶，固化物表面平整、光亮、硬度高、绝缘性能好，广泛用于各类电容器、变压器、发生器、电源模快、灯饰及其它电子零件的绝缘、固定、防潮、灌封及用于保密之遮封，耐温高达280℃。

一、性状：环氧树脂1613A 固化剂1613B 颜色黑色，白色，透明等透明，赤褐色粘度25℃ 2500-3000CPS 150-200CPS比重g/ml 1.4-1.5 1.05保存期 6个月 6个月闪燃点＞155℃ ＞150℃二、混合比例： A ：B = 2 ：1（重量比）或者其他比例三、可使用时间：25℃×40-60分钟（mass100g）四、固化条件：60℃-65℃×2-4小时或100-120℃/10-15分钟五、初干时间：25℃×6-8小时硬化时间：25℃×24-48小时六、固化特性：抗拉强度 kg/cm2 16—18耐电压 kv/mm 20—22抗压强度 kg/cm2 18—22表面电阻 ohm 1.2×1016体积电阻 ohm-cm 1.1×101收缩率 % 0.35-0.55硬度 SHORE D 80-85吸水率%(25℃×24HRS) ＜0.03耐热温度℃ 250-280七、操作注意事项1、要灌注密封的部位需保持干燥、清洁，工作场所需保持通风；2、操作时，须按标准重量比配比，混合并搅拌均匀。

搅拌时注意搅拌四周与底部，都须均匀混合。

本品混合后会逐渐固化，其粘稠度也会逐渐上升；3、混合在一起的胶量越多，其反应就越快，固化速度也会越快，请注意控制一次配胶的量，因为由于反应加快，其可使用的时间也会缩短；在大量使用前，请先小量试用，掌握产品的使用技巧，以免差错。

4、有极少数人长时间接触胶液会产生轻度皮肤过敏，有轻度痒痛，建议使用时戴防护手套，粘到皮肤上请用丙酮或酒精擦去，并使用清洁剂清洗干净。

5、混合后材料尽早使用完毕，以免反应胶稠而损失，固化过程中请及时清洁使用器具，以免胶水凝固在器具上；未使用完之原料应密封储存，并注意远离火源及潮湿场所。

以上固化前性能数据均在25℃，相对湿度55%条件下所测，机械性能及电性能数据均在试样完全固化后所测。

本公司对测试条件不同或产品改进造成的数据不同不承担相关责任。

四、使用工艺1、混合前：首先把A组分和B组分在各自的容器内充分搅拌均匀。

2、混合时：应遵守A组分：B组分=1：1的重量比，并搅拌均匀。

3、排泡：胶料混合后应真空排泡1-3分钟。

4、灌封：混合好的胶料应尽快灌注到被灌产品中，以免后期胶料增稠而流动性不好5、固化：加温固化。

温度越高，固化速度越快。

五、注意事项1、胶料应在干燥室温环境下密封贮存，混合好的胶料应尽快用完，避免造成浪费。

2、本品属非危险品，但勿入口和眼。

3、本品无毒，具有良好的生理惰性，对皮肤无刺激和伤害。

产品不含有易燃易爆成份，不会引发火灾及爆炸事故，对运输无特殊要求。

4、存放一段时间后，胶会有所分层。

请搅拌均匀后使用，不影响性能。

5、以下物质可能会阻碍本产品的固化，或发生不固化现象，所以，最好在进行简易实验验证后应用，必要时需要清洗应用部位。

a、不完全固化的缩合型硅酮胶。

b、胺固化型环氧树脂。

c、白蜡焊接处或松香焊点。

六、包装规格及贮存及运输1、A剂 25kg/桶；B剂 25kg/桶。

2、本产品的贮存期为1年（25℃以下），超过保存期限的产品应确认无异常后方可使用。

3、此类产品属于非危险品，可按一般化学品运输。

七、建议和声明建议用户在正式使用本产品之前先做适用性试验。

由于实际应用的多样性，我公司不担保特定条件下使用我司产品出现的问题，不承担任何直接、间接或意外损失的责任，用户在使用过程遇到什么问题，可联系我公司售后服务部，我们将竭力为您提供帮助。

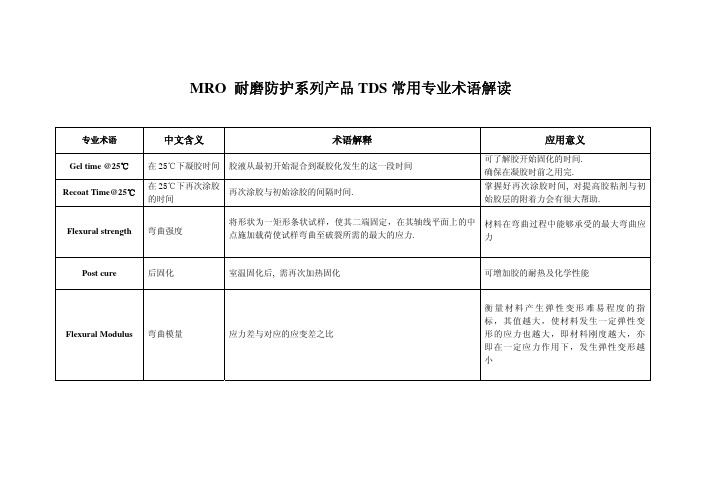

MRO 耐磨防护系列产品TDS常用专业术语解读专业术语中文含义术语解释应用意义Gel time @25℃在25℃下凝胶时间胶液从最初开始混合到凝胶化发生的这一段时间可了解胶开始固化的时间. 确保在凝胶时前之用完.Recoat Time@25℃在25℃下再次涂胶的时间再次涂胶与初始涂胶的间隔时间.掌握好再次涂胶时间, 对提高胶粘剂与初始胶层的附着力会有很大帮助.Flexural strength 弯曲强度将形状为一矩形条状试样，使其二端固定，在其轴线平面上的中点施加载荷使试样弯曲至破裂所需的最大的应力.材料在弯曲过程中能够承受的最大弯曲应力Post cure 后固化室温固化后, 需再次加热固化可增加胶的耐热及化学性能Flexural Modulus 弯曲模量应力差与对应的应变差之比衡量材料产生弹性变形难易程度的指标，其值越大，使材料发生一定弹性变形的应力也越大，即材料刚度越大，亦即在一定应力作用下，发生弹性变形越小MRO 耐磨防护系列产品TDS常用专业术语解读专业术语中文含义术语解释应用意义Coefficient of Thermal Expansion 热膨胀系数材料由于温度改变而有胀缩现象。

其变化能力以等压(p一定)下，单位温度变化所导致的体积变化，即热膨胀系数可以了解胶粘剂在受热情况下的变化情况, 及与基材的匹配能力Elongation 延伸率材料在拉伸过程中出现的塑性变形量与试件原标距长度之比的百分数为材料的延伸率.延伸率可以用来衡量材料塑性变形的程度, 延伸率的值越大,说明材料在拉断前能承受的塑性变形量越大, 也就是材料的塑性越好.Glass Transition Temperature 玻璃化转变温度玻璃态到高弹态的转变温度称玻璃化温度(Tg)，当聚合物处于玻璃态时，整个大分子链和链段的运动均被冻结，宏观性质为硬、脆、形变小，只呈现一般硬性固体的普弹形变选胶时,工件的实际耐温要求一定要远离Tg前后两个点, 才比较安全.Volume Shrinkage 体积收缩率胶粘剂在固化时，由于链交联反应而产生体积的收缩率评估胶粘剂在固化时体积收缩程度Water Vapor Transmission Rate 水蒸气透过量保持试样两表面特定的温湿度环境,在单位时间内,由试样两侧单位水蒸气压差引起的,在单位面积上透过样品的水蒸气总量.主要看胶阻隔水蒸气性能, 即防腐性能.MRO 耐磨防护系列产品TDS常用专业术语解读专业术语中文含义术语解释应用意义Coefficient of Thermal Conductivity 导热系数当壁厚为1m,单位时间内通过1m2的传热面积, 两壁表面温差为10C时的传热量.导热系数是胶导热能力的标志. 导热系数值越大, 则胶的导热能力越强.Abrasion Resistance ASTM D4060 耐磨性 ASTM D4060 检测胶粘剂的耐磨性, 耐磨耗性根据工况的磨损恶劣程度, 选择不同的耐磨性胶种Heat Deflection Temperature 热变形温度聚合物耐热性的一种量度, 是将聚合物试样浸在一种等速升温的适宜传热介质中，在简支梁式的静弯曲负荷作用下，测出试验结果.可知道胶粘剂在哪个温度下开始变形, 选胶时尽量避开这个温度.Volume Resistivity 体积电阻率体积电阻率是在绝缘材料里面的直流电场强度与稳态电流密度之商，即单位体积内的体积电阻.体积电阻率可作为选择绝缘材料的一个参数，电阻率随温度和湿度的变化而显著变化.Surface Resistivity 表面电阻率表面电阻率是在绝缘材料的表面层的直流电场强度与线电流密度之商，即单位面积内的表面电阻.通过测得的表面电阻值可以反映被测试样表面污染的程度Hot Strength 热强度在标明温度下测试的相应强度选胶时注意客户在高温下的强度要求.Heat Aging 热老化将粘接件暴露在标明温度下进行指定时间的老化测试, 并室温测得其相应强度了解胶经不同温度和指定时间热老化后的强度变化趋势, 选胶时应注意客户在不同温度下的强度要求及寿命评估.。

耐高温胶水/固化剂1613系室温或低温固化型环氧树脂胶，固化物表面平整、光亮、硬度高、绝缘性能好，广泛用于各类电容器、变压器、发生器、电源模快、灯饰及其它电子零件的绝缘、固定、防潮、灌封及用于保密之遮封，耐温高达280℃。

一、性状：环氧树脂1613A 固化剂1613B 颜色黑色，白色，透明等透明，赤褐色粘度25℃ 2500-3000CPS 150-200CPS比重g/ml 1.4-1.5 1.05保存期 6个月 6个月闪燃点＞155℃ ＞150℃二、混合比例： A ：B = 2 ：1（重量比）或者其他比例三、可使用时间：25℃×40-60分钟（mass100g）四、固化条件：60℃-65℃×2-4小时或100-120℃/10-15分钟五、初干时间：25℃×6-8小时硬化时间：25℃×24-48小时六、固化特性：抗拉强度 kg/cm2 16—18耐电压 kv/mm 20—22抗压强度 kg/cm2 18—22表面电阻 ohm 1.2×1016体积电阻 ohm-cm 1.1×101收缩率 % 0.35-0.55硬度 SHORE D 80-85吸水率%(25℃×24HRS) ＜0.03耐热温度℃ 250-280七、操作注意事项1、要灌注密封的部位需保持干燥、清洁，工作场所需保持通风；2、操作时，须按标准重量比配比，混合并搅拌均匀。

搅拌时注意搅拌四周与底部，都须均匀混合。

本品混合后会逐渐固化，其粘稠度也会逐渐上升；3、混合在一起的胶量越多，其反应就越快，固化速度也会越快，请注意控制一次配胶的量，因为由于反应加快，其可使用的时间也会缩短；在大量使用前，请先小量试用，掌握产品的使用技巧，以免差错。

4、有极少数人长时间接触胶液会产生轻度皮肤过敏，有轻度痒痛，建议使用时戴防护手套，粘到皮肤上请用丙酮或酒精擦去，并使用清洁剂清洗干净。

5、混合后材料尽早使用完毕，以免反应胶稠而损失，固化过程中请及时清洁使用器具，以免胶水凝固在器具上；未使用完之原料应密封储存，并注意远离火源及潮湿场所。

以上固化前性能数据均在25℃，相对湿度55%条件下所测，机械性能及电性能数据均在试样完全固化后所测。

本公司对测试条件不同或产品改进造成的数据不同不承担相关责任。

四、使用工艺1、混合前：首先把A组分和B组分在各自的容器内充分搅拌均匀。

2、混合时：应遵守A组分：B组分=1：1的重量比，并搅拌均匀。

3、排泡：胶料混合后应真空排泡1-3分钟。

4、灌封：混合好的胶料应尽快灌注到被灌产品中，以免后期胶料增稠而流动性不好5、固化：加温固化。

温度越高，固化速度越快。

五、注意事项1、胶料应在干燥室温环境下密封贮存，混合好的胶料应尽快用完，避免造成浪费。

2、本品属非危险品，但勿入口和眼。

3、本品无毒，具有良好的生理惰性，对皮肤无刺激和伤害。

产品不含有易燃易爆成份，不会引发火灾及爆炸事故，对运输无特殊要求。

4、存放一段时间后，胶会有所分层。

请搅拌均匀后使用，不影响性能。

5、以下物质可能会阻碍本产品的固化，或发生不固化现象，所以，最好在进行简易实验验证后应用，必要时需要清洗应用部位。

a、不完全固化的缩合型硅酮胶。

b、胺固化型环氧树脂。

c、白蜡焊接处或松香焊点。

六、包装规格及贮存及运输1、A剂 25kg/桶；B剂 25kg/桶。

2、本产品的贮存期为1年（25℃以下），超过保存期限的产品应确认无异常后方可使用。

3、此类产品属于非危险品，可按一般化学品运输。

七、建议和声明建议用户在正式使用本产品之前先做适用性试验。

由于实际应用的多样性，我公司不担保特定条件下使用我司产品出现的问题，不承担任何直接、间接或意外损失的责任，用户在使用过程遇到什么问题，可联系我公司售后服务部，我们将竭力为您提供帮助。

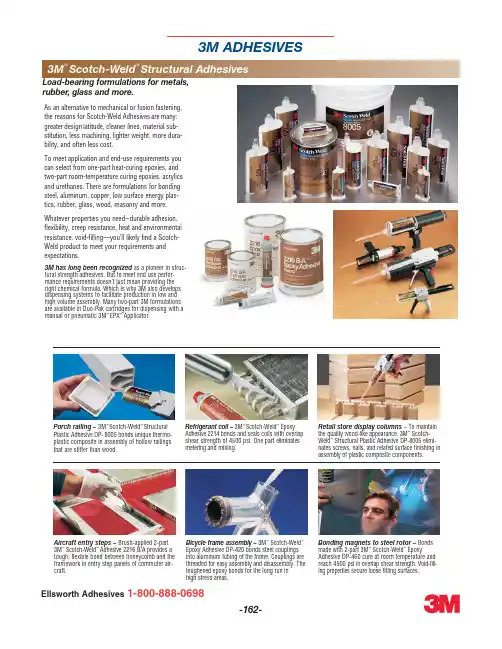

3M胶⽔规格说明书TDS3M ? Scotch-Weld ? Structural AdhesivesLoad-bearing formulations for metals,rubber, glass and more.As an alternative to mechanical or fusion fastening, the reasons for Scotch-Weld Adhesives are many: greater design latitude, cleaner lines, material sub-stitution, less machining, lighter weight, more dura-bility, and often less cost.To meet application and end-use requirements you can select from one-part heat-curing epoxies, and two-part room-temperature curing epoxies, acrylics and urethanes. There are formulations for bonding steel, aluminum, copper, low surface energy plas-tics, rubber, glass, wood, masonry and more.Whatever properties you need–durable adhesion, flexibility, creep resistance, heat and environmental resistance, void-filling —you’ll likely find a Scotch-Weld product to meet your requirements and expectations.3M has long been recognized as a pioneer in struc -tural strength adhesives. But to meet end use perfor -mance requirements doesn’t just mean providing the right chemical formula. Which is why 3M also develops dispensing systems to facilitate production in low and high volume assembly. Many two-part 3M formulations are available in Duo-Pak cartridges for dispensing with a manual or pneumatic 3M ?EPX ? Applicator.Aircraft entry steps – Brush-applied 2-part Bicycle frame assembly – 3M ? Sco tch-Weld ? Bonding magnets to steel rotor –Bonds 3M ? Sco tch-Weld ? Adhesive 2216 B/A provides a Epoxy Adhesive DP-420 bonds steel couplings made with 2-part 3M ? Sco tch-Weld ? Epoxytough, flexible bond between honeycomb and the into aluminum tubing of the frame. Couplings are Adhesive DP-460 cure at room temperature and framework in entry step panels of commuter air-threaded for easy assembly and disassembly. The reach 4500 psi in overlap shear strength. Void-fill-craft.toughened epoxy bonds for the long run in ing properties secure loose fitting surfaces.high stress areas.Ellsworth Adhesives 1-800-888-0698Product Information: 3M? Scotch-Weld?Adhesives in Duo-Pak CartridgesWe are on the web@ /doc/d89c2de49b89680203d8250d.html Product Information: 3M ?Scotch-Weld ?Two-Part StructuralProduct Information: 3M ? Scotch-Weld ?Adhesives in Duo-Pak Cartridges (cont.) Average Overlap Mix Approximate Approximate T-Peel PSI Ratio Viscosity Worklife At 75°F Product(Volume) 75°F (24°C) At 75°F (24°C) -67°F 75°F 180°F 250°F (Color)FeaturesB:A (CPS) (24°C) PIW (-55°C) (24°C) (82°C) (121°C)DP-8005 ? Structurally bonds polyolefins without 10:127,5002.5-3 Min.16–2000340– Off-White, surface preparation ? Excellent Black environmental resistance ? 2-3 hourhandling strengthD u o -P a k C a r t r i d g e sSizes 35ml 250mlGal Pail DrumAverage Overlap Shear StrengthMix Approximate Approximate T-Peel PSI Ratio Viscosity WorklifeAt 75°FProduct (Volume) 75°F (24°C) At 75°F (24°C) -67°F 75°F180°F 250°F(Color) FeaturesB:A (CPS) (24°C) PIW (-55°C) (24°C) (82°C) (121°C) 1751 B/A ? Long worklife adhesive ? Rigid epoxy 3:2700,00045 Min.414002000500300Gray8-12 hrs. handling strengthExcellent void filler and machinable for many "Body Solder" applications 1838 B/ALong worklife adhesive Rigid epoxy 4:5 400,000 60 Min. 4 1500 3000 500 300Green8-12 hrs. handling strength Meets MIL-A-23941AExcellent Environmental Resistance 1838 B/A Long worklife adhesive Rigid epoxy 6:5 250,000 60 Min. 5 1500 3000 500 300Tanof B/A 1838 Green Adhesive1838-L B/A ? Long worklife adhesive ? Rigid epoxy 1:1 10,000 60 Min. 5 2000 3000 400 200Translucent ? 8-12 hrs. handling strengthTranslucent, low viscosity version of 1838 B/A Green Adhesive 2158 B/A Long worklife adhesive Rigid epoxy 1:1 375,000 120 Min. 4 1700 2000 400 300Gray ? 8-12 hrs. handling strength ? General purpose product2216 B/A ? Long worklife adhesive? Flexible epoxy 2:3 80,000 90 Min. 25 2000 2500 400 200Gray8-12 hrs. handling strengthCan bond plastic, metal and other dissimilar materials2216 B/A ? Long worklife adhesive? Flexible epoxy 2:3 350,000 90 Min. 252000 2500 400 200Tan ? 8-12 hrs. handling strengthNon sag2216 B/A ? Long worklife adhesive? Flexible epoxy 1:1 10,000 120 Min. 25 3000 2000 200 100Translucent ? 16-20 hrs. handling strengthTranslucent versionof 2216 B/A Gray Adhesive 3501 B/A ? Fast cure adhesive ? Rigid epoxy 1:1 500,000 7 Min. 5 1500 2400 300 200 Gray20-30 minutes handling strengththat can bond metal, wood, most plastics and masonry products 3532 B/A ? Fast cure adhesive1:1 30,000 7 Min. 25 2500 2000 300 150Brown20-30 min. handling strength Semi-rigid urethaneRapid cure for flexible bonds of many plastics, wood, and rubber 3535 B/A Very fast cure adhesive1:1 30,000 3 Min. 25 2500 2000 300 150Off-White15-20 min. handling strength Semi-rigid urethane Faster setting version of 3532 B/A Adhesive 3549 B/A Long worklife adhesive 1:1 30,000 60 Min. 25 2500 2000 300 150Brown2-4 hrs. handling strength Semi-rigid urethane Longer worklife version of 3532 B/A AdhesiveT w o -P a r t U r e t h a n e A d h e s i v e sT w o -P a r t E p o x y A d h e s i v e sSizes 2oz, Pt Qt, Gal Pail 2oz, Pt, Qt Gal, PailQt, Pail2oz, Pt, Qt Gal, Pail2oz, Pt, Qt Gal, Pail Pail2oz, Pt, Qt Gal, Pail Pail2oz, Pt, Qt Gal, Pail2oz, Pt Gal2oz, Pt Pail2oz, Pt2oz, Pt PailS h ear Strengt h8-12 hrs. handling strength Tan version Tan version of 2216 B/A Gray Adhesive Rapid room temperature curing material Ellsworth Adhesives 1-800-888-0698 Product Information: 3M? Scotch-Weld? One-Part Epoxy Adhesives; Metal PrimersWe are on the web@ /doc/d89c2de49b89680203d8250d.html3M? Scotch-Weld? Electronic Grade Epoxy AdhesivesHigh-performance specifically for demanding electronics applications.For assembly of sophisticated electronics where outgassing and corrosion of adhesive bonds are a concern, Scotch-Weld Electronic Grade (EG) epoxies are the advanced alternative to mechanical fasteners and lower-grade adhesives. These 2-part epoxies produce far lower contamination levels of ionic and outgassing impurities than typical epoxy adhesives. Chloride content is lower than standard industrial counterparts.Targeted dispensing is easy with the3M? EPX? Applicator System. Duo-Pak cartridges with long shelf life are stored at room temperature for added convenience in many oper-ations.17Component rigidization –3M? Scotch-Weld? Voice coil assembly – Controlled flow ofEpoxy Adhesive DP-125EG reaches handling 3M? Scotch-Weld? Epoxy Adhesive DP-460EG strength within 3 hours at room temperature. provides a clear, targeted application in bonding Stabilizes board components with 1500 psi the coil into the head gimble assembly.shear strength and 20 piw.Ellsworth Adhesives 1-800-888-06983M? Scotch-Weld? Film AdhesivesFilm adhesives for the best combination of fatigue resistance and highest performance.Film adhesives can be formulated with the highest performance level of all structural strength adhesives available. Scotch-WeldFilm Adhesives offer the best combinationof shear and peel strength, plus shock and fatigue resistance. They also provideseveral other advantages:Uniform adhesive thicknessthroughout joints for an even, securebond line.Adhesive confined to immediatebonding area for a clean operationand less waste.Simple application for fast assembly.Stability for extended usability andshelf life.Precise fit – Available in various thicknesses Simultaneously seal and bond – In metal-and widths, 3M? Scotch-Weld? Film Adhesive to-metal lamination 3M? Scotch-Weld? Film can be die-cut into shapes to facilitate bonding of Adhesives bond with up to 4800 psi shear complex parts. strength and provide a barrier against water,fuels, and oil.We are on the web@ /doc/d89c2de49b89680203d8250d.html3M? Pronto? Instant AdhesivesFast bonding with the rightcombination of strength, curetime and viscosity.For speed and performance, you’ll likely find a product in this line with precisely the right combination of bond strength, cure time and viscosity.These one-part cyanoacrylate adhesives rapidly reach handling strength at room tem-perature without a catalyst. On many applica-tions, bonds reach handling strength in 5–10seconds and 80% of full strength in an hour.A single drop per square inch can bond manyplastics, rubber, metal and more with tensilestrength up to 5000 PSI.Depending on the specific formulation, youhave the following features: resistance tofuels, lubricating oils and other chemicals from-40°F to 200°F (-40°C to 93°C); gap filling;extended cure rates for repositionability; highpeel and impact strength; conformance toMIL-Spec A-46050C.With 3M? Pronto? Instant Adhesives appli-cation is easy from their own containers orthrough intermediate manual dispensers or auto-mated systems. Curing requires no expensiveequipment or fixturing.A single drop of 3M? Pronto? Instant To bond a flexible PVC mat into a high 3M? Pronto? Instant Adhesive CA-8 is an Adhesive quickly bonds many plastics, rubber, impact polystyrene turntable, 3M? Pronto? Instant excellent multi-purpose product for use in a variety metal and more. Adhesive CA-40H provides high viscosity and a of assembly applications. slower set time to meet handling requirements.Architectural pottery – For repair of fiber-3M? Pronto? Instant Adhesive CA-40 works Veneer and wood repair – 3M? Pronto? glass/ concrete cast pottery, 3M? Pronto? Instant on many problem surfaces where other adhesives Instant Adhesive CA-40H is a high viscosity Adhesive CA-50 Gel bonds with high tensile and may fail, such as bonding EPDM rubber. liquid for void filing between veneer and core. A shear strength. Non-sagging formulation applies light spray of 3M? Pronto? Surface Activator over neatly when bonding curved surfaces. the adhesive before assembly accelerates curingspeed.Product Information: 3M? Pronto? Instant AdhesivesEllsworth Adhesives“Your One- Stop Shop”Adhesive & chemical products from allthe top manufacturersDispensing equipment-manual to fully automaticComplete tech support (inside and out) An outside sales staff that is very willing to serve (most are degreed engineers) Custom packaging to your specification We are easy to reach:in person-check the location nearestyou on the phone -1-800-888-0698over the internet @/doc/d89c2de49b89680203d8250d.html Have an application problem? CallEllsworth Adhesives at 1-800-888-0698We are on the web@ /doc/d89c2de49b89680203d8250d.html3M? Jet-Weld? Thermoset Adhesive SystemHot melt speed and structuralstrength performance in thepalm of your hand.This single system combines many production benefits typical of hot melt adhesives and bond performance usually associated with 2-part structural adhesives.Fast initial set can help you reduce costs. Fast handling strength helps eliminate or minimize fixturing and speed assembly.One-component, moisture-curingformulation eliminates metering, mixing and curing equipment. And 100% solids give you a low-VOC adhe-sive system with no drying equipment and no attack on plastics.With the long bonding range and initial repositionability, assembly of complex parts is easier. Bond lines are thin, flexible and tough for improved part fit, appearance and rugged performance.Combine this versatility with the applicator's portability, and you have a system that can adapt readily to many of your production requirements.The 3M? Jet-Weld? II Applicator and moisture-curing urethane adhesives put a powerful production capability in your assembly operation. Bond strength approaches the high end of the performance range, exceeding many con-ventional hot melts and PVA (polyvinyl acetate) adhesives. Bond wood, plastics, rubber, dissimilar materials, plasti-cized vinyls, and more.Decorator tables – 3M?Jet-Weld?Adhesive Trade show booths –3M?Jet-Weld?Adhesive Speaker assemblies – Flexible, tough bond performs multiple tasks including V-groove bonds extruded aluminum bracket to laminate lines of 3M?Jet-Weld? Adhesive holdbonding at the table joints. covering of honeycomb panel. Bracket is for dissimilar materials and multiple components. hanging graphics.High performance gliding windows – With Bent wood furniture – With 100% solids 3M? Wood furniture – 3M? Jet-Weld? Adhesive is fast handling strength, 3M?Jet-Weld?Adhesive Jet-Weld?Adhesive, a manufacturer holds the aes-easily applied as a bead for bonding wood helps speed the bonding of interior wood trim thetic contours of unique bentwood furniture. furniture and cabinet components. Fastto the vinyl sash. handling strength helps speed production. Ellsworth Adhesives 1-800-888-0698Product Information: 3M? Jet-Weld?Adhesives1 234Job-matched tips –1) Threaded cap for sealing tip after use.2) Extension tip for improved sight linein hard-to-reach areas.3) .062" tip for low flow applications.4) .125" tip for high flow applications. .090" tip standard on 3M?Jet-Weld?II Applicator. Container sizes to meet your production volume – ? 10 fl.oz. cartridges 2k foil packsGallon pail5 gallon pail55 gallon drumWe are on the web@ /doc/d89c2de49b89680203d8250d.html3M Light Cure AdhesivesSelect UV curing versions for thin films and coatings, and bonding heat-sensitive substrates. For curing through thicker sections, visible light formulations cure to depths of 2" to almost 4".For visible light, the 3M Curing Light VL1 (at right) is a compact and convenient hand tool for spot curing.Wire tacking – To reduce processing time, Potting – All 3M ?Light Cure Adhesives feature 3M ? Light Cure Adhesives cure on demand superior depth of cure for potting applications.with exposure to UV or visible light.Precision bonding, potting, encap-sulation, tacking, andmore at the speed of light.With cure speeds generally less than 5 seconds, you can raise the speed limit for many electronics assem-bly applications. These specialized acrylate formula-tions cure on demand when exposed to UV or visible light. And for precision targeting and placement, each adhesive in the line is available in 3, 5, 10, and 30ml EFD ?-compatible syringes.Use with manual, semi-automatic, or fully automatic dispensing systems to meet your production require-ments for encapsulation, potting, fixturing, wire tacking, sealing, conformal coating, and lens bonding.Ellsworth Adhesives 1-800-888-06983M ? Fastbond ? and Scotch-Grip ? Contact AdhesivesA tradition of 40 years and the performance you’ll want for a long time to come.This line offers a wide range of choices for con-tact adhesive applications. Select from bonding ranges, strengths, solids content, and solvent or water-based formulations to meet requirements for bonding laminate, foam, and more. In the line, you’ll find the water-basedpioneer 3M ? Fastbond ? Contact Adhesive 30 NF – proven for almost 40 years in cabinet shops and still in compliance with current and current-ly proposed air quality regulations. Plus, there’s the latest innovation – 3M ? Fastbond ? Contact Adhesive 2000-NF with handling speed exceed-ing most solvent-based systems and up to 350 psi in overlap shear.The Fastbond Water-Based StoryWhile competition pressures you to improve productivity, regulatorylegislation demands that you move toward more environmentally-responsible tech-nologies. Some local and regional regula -tions have made traditional solvent-based contact adhesives virtually obsolete. Fastbond is the 3M trademark on a contin-ually growing line of water-based adhesives that are helping many industries meet the challenge right now and aim for the fore-seeable future. By replacing solvent-based adhesives, compliance is getting easier in Tabletop lamination – With 3M ? Fastbond ?Foam fabrication –In compound cushion more and more applications.Contact Adhesive 2000-NF, you get three times the cov-assembly, high tack 3M ? Fastbond ? Foam erage of a typical solvent-based system. For produc-Adhesive 100 holds curves in seconds. Lighter tion speed, you go from spray to trim in seconds.density foam is adhered around the higher density core with a smooth rounded edge.Buy only the quantity you need – Depending on the specific 3M ? Fastbond ? Adhesive, you can select quart or gallon jugsfor convenient handling, or 5-gallon pails and 55-gallon drums for largebulk dispensing.Upholstered household furniture – 3M ? Fastbond ? Foam Adhesive 100 quickly bonds substrates throughout chairs and couches. Bond foam to foam and fiber fill, foam to wood, fiber fill to fabric, and more. Cabinet assembly – 3M ? Fastbond ? Contact Adhesive 30-NF is a formulation proven in shops for four decades. Combines open time of up to 4 hours with high immediate bond strength. Apply with roller, brush, or spray gun.Marine carpeting – In bonding carpet to fiberglass flooring and steps, 3M ? Fastbond ?Contact Adhesive 2000-NF helps withstand the foot traffic and moisture in boat cabins.Product Information: 3M ? Fastbond ? Contact Adhesives, Water-BasedProduct Information: 3M ? Scotch-Grip ? Contact Adhesives************************************/minuteseparationrate.*********************************/minuteseparationrate.Note: 3M ? Hi-Strength 90 Adhesive, a Note: Flash Point (closed cup) in all Fastbond Adhesives: None. popular 3M aerosol adhesive, is now also available in bulk form.We are on the web@/doc/d89c2de49b89680203d8250d.html3M ? Fastbond ? and Scotch-Grip ?AdhesivesInnovative answers toa wide variety of non-struc-tural bonding challenges.3M ? Scotch-Grip ? Adhesives are industrial tools designed to provide innovative answers to a wide variety of non-structural bonding problems.Some formulations are tailored to specific types of applications such as Scotch-Grip Plastic Adhesives. These high strength, fast drying elastomers bond polycarbonate, vinyl, and many other plastics to themselves and materials such as wood or metal. With Scotch-Grip Rubber and Gasket Adhesives you can easily bond neoprene, EPDM, and many more.Other Scotch-Grip Adhesives are multi-purpose and used worldwide in hundreds of different product assembly operations. If you’re looking for a reliable non-structural adhesive, you’re likely to find just what you need in the Scotch-Grip Adhesives line backed with more than 50 years of 3M adhesives research and engineering.Containers to meet your production requirements – Depending on the specific 3M ? Scotch-Grip ? Adhesive, you can select drums, cans, pails, or handy tubes.These collapsible tubes are self-containedlightweight applicators to give you “take-it-to-the-job” convenience for multi-station or low volume assembly and field repairs.Pinball machine refurbishing – 3M ? Scotch-Grip ? Plastic Adhesive 4693H bonds and seals decorative translucent plastic inserts into the underside of the playing surface. Up to 60 minutebonding range with contact bond properties.Light fixture assembly – To prevent moisture Chemical drum gasket – With excellent penetration, a pressure flow gun applies 3M ?resistance to fuel and oil, 3M ? Scotch-Grip ?Scotch-Grip ? Rubber and Gasket Adhesive to bond a Rubber and Gasket Adhesive 847 bonds and seals rubber gasket into a commercial light fixture cover.drum gaskets in place. Very low VOC formulation.Display board – 3M ? Scotch-Grip ? Plastic Adhesive 1099 bonds wood flooring samples to a plastic display board with overlap shear strength ofmore than 385 psi. Very low VOC formulation.Washing machine repair – 3M ? Scotch-Grip ? Rubber and Gasket Adhesive 1300 bonds with high immediate strength and seals the doughnut ring seal in the outer tub. Bond line resists up to 300°F (149°C).Sporting goods – In bonding plastic feathers and nocks onto arrow shafts, fast-tacking 3M ?Scotch-Grip ? Plastic Adhesive 4475 dries quickly to a firm bond. Resists plasticizers, water, and heat up 200°F (93°C). Product Information: 3M? Scotch-Grip? Plastic AdhesivesEllsworth Adhesives 1-800-888-0698Product Information: 3M Insulation and Light DutyAdhesivesHVAC duct insulation – Easy and economicalto apply, 3M? Fastbond? Insulation Adhesive 49 is asingle-component water-based pressure sensitiveformulation with instant tack to speed assembly. We are on the web@ /doc/d89c2de49b89680203d8250d.htmlNote: 3M? Super 77? Adhesive, a popular aerosol adhesive, is now available in bulk form for high vol-ume applications on many light-weight materials.3M Sealant TechnologiesSolutions for the elements from windows to ductwork.Air, water, dirt, fuel, cold, heat – keeping these or other elements in or out is a challenge in applications as varied as windows and doors, truck lap seams, HVAC ductwork, vinyl siding, and livestock troughs. With 3M ? Scotch-Seal ? and Weatherban ? Sealants, you have a wide selection of solutions based on more than 50 years of development and innovation. Meeting your volume requirements – Depending on the formulation, 3M sealants are To meet your requirements, you’ll find formulations available in caulking cartridges, collapsible from acrylic to polyurethane, and forms from self-applicator tubes, pails, drums, or rolls. liquids to tapes.Ductwork – 3M ? Scotch-Seal ? Duct Sealer 900 fills gaps and cures quickly to a firm rubbery seal on medium and high pressure ductwork for heat-ing, ventilating, and air conditioning.Product Information: 3M ? Scotch-Seal ? and Weatherban ? SealantsProduct Information: 3M Aerosol AdhesivesProduct Information: 3M ? Hi-Strength 90 and Super 77?Adhesives in Bulk3M’s most popular aerosol adhesives are now available in bulk form. The following char-acteristics of interest to higher volume users supplement the chart above.We are on the web@/doc/d89c2de49b89680203d8250d.html 3M ? Shipping-Mate ? Aerosols for PackagingThe convenient system to help your package do its full job.A package performs three functions –containment, protection, and communication. The Shipping-Mate aerosol family can help you save time and effort for the full job. For containment in shipping and handling, rely on Shipping- Mate case sealing adhesive for neat, clean bonds with carton- tearing strength. For protection, you have fewer worries with Shipping-Mate palletizingadhesive stabilizing coated cartons or bags. For communica -tions, Shipping-Mate labeling adhesive bonds to even difficult sur- faces, and Shipping-Mate Box Re-nu covers unwanted printing to provide a new looking surface.3M aerosol chemicals contain no methylene chloride, chlorofluo -rocarbons (CFCs), or 1,1,1-trichlorethane (methyl chloroform).3M ? Shipping-Mate ? Case Sealing Adhesive3M ? Shipping-Mate ? Labeling Adhesive – 3M ? Shipping-Mate ? Box Re-nu Coating – – Helps save time and money if you fill miscellaneous Clear spray adhesive permanently bonds labels to To save the cost of new corrugated cartons, this orders, have cartons that come unglued, fill by hand, many problem surfaces such as glass, rubber, or easy- to-use aerosol covers most printing and or open and close for inspection. Quick drying to metal where other adhesives or gummed labels labels with permanent tan color for carton reuse. keep pace with your operation. may fail. Moisture-resistant formulation. Quick drying and long lasting.N/R = Not recommended AdhD T.M. C-700: 1/8" birch veneer bonded to 1/8" birch AdhD T.M. C-483; 500 g load for 1 hr. at noted temp. N/A = Not applicableveneer.All container sizes 24-fl. oz. except Box Re-nu AdhD T.M. C-449. Coating.Ellsworth Adhesives 1-800-888-0698。

胶水tds说明书胶水TDS（Technical Data Sheet）说明书是对胶水产品的详细介绍和技术参数的文档。

本文将从胶水的成分、性能特点、使用方法以及安全注意事项等方面进行介绍。

一、胶水的成分胶水通常由以下几类成分组成：基体树脂、添加剂、填料和溶剂。

基体树脂是胶水的主要成分，常见的有丙烯酸酯、聚氨酯、环氧树脂等。

添加剂可以改善胶水的黏附性、流动性等性能，常见的有固化剂、稳定剂等。

填料可以增加胶水的粘度和强度，常见的有硅酸盐、碳酸钙等。

溶剂则用于调节胶水的粘度和干燥速度，常见的有丙酮、甲苯等。

二、胶水的性能特点1. 黏附性：胶水具有良好的黏附性，能够将不同材料粘合在一起。

2. 强度：胶水能够提供一定的强度，使粘合的材料具有一定的抗拉、抗剪和抗剥离能力。

3. 耐候性：胶水具有一定的耐候性，能够在不同环境条件下保持稳定的性能。

4. 耐温性：胶水能够在一定温度范围内保持稳定的性能，一些特殊胶水甚至具有耐高温或耐低温的特点。

5. 耐化学性：胶水对一些化学物质具有一定的耐受性，能够在接触一些化学物质时仍然保持良好的性能。

三、胶水的使用方法1. 表面处理：在使用胶水之前，需要将粘合表面进行处理，确保表面干净、干燥、光滑。

可以使用去油剂、砂纸等工具进行处理。

2. 胶水的涂布：将胶水均匀地涂布在粘合表面上，可以使用刷子、滚筒等工具进行涂布。

3. 压合：将需要粘合的材料紧密地压合在一起，确保胶水能够充分接触到粘合表面，并保持一定的压力，促使胶水快速固化。

4. 固化时间：胶水在涂布后需要一定的时间进行固化，具体时间根据胶水的种类和环境条件而定。

四、安全注意事项1. 使用胶水时，应保持通风良好的工作环境，避免吸入胶水挥发出的有害气体。

2. 避免胶水接触皮肤和眼睛，如不慎接触，请立即用清水冲洗，并寻求医生帮助。

3. 使用胶水时应避免接触明火，以免引起火灾。

4. 存放胶水时，应密封保存在阴凉、干燥的地方，远离火源和高温。

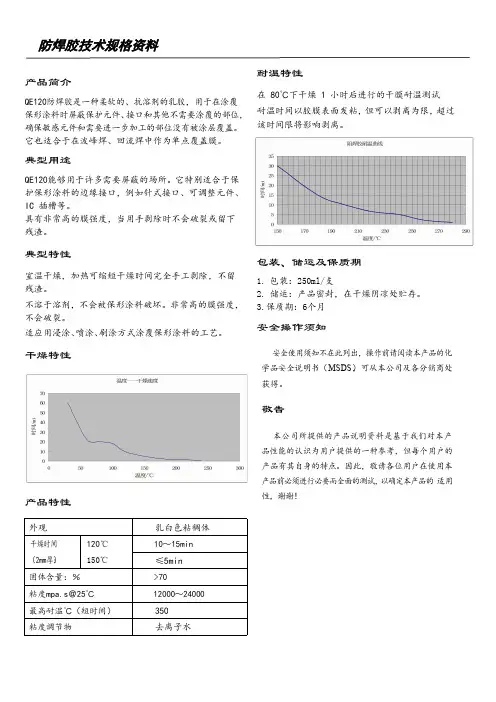

防焊胶技术规格资料产品简介QE120防焊胶是一种柔软的、抗溶剂的乳胶，用于在涂覆保形涂料时屏蔽保护元件、接口和其他不需要涂覆的部位，确保敏感元件和需要进一步加工的部位没有被涂层覆盖。

它也适合于在波峰焊、回流焊中作为单点覆盖膜。

典型用途QE120能够用于许多需要屏蔽的场所。

它特别适合于保护保形涂料的边缘接口，例如针式接口、可调整元件、IC 插槽等。

具有非常高的膜强度，当用手剥除时不会破裂或留下残渣。

典型特性室温干燥，加热可缩短干燥时间完全手工剥除，不留残渣。

不溶于溶剂，不会被保形涂料破坏。

非常高的膜强度，不会破裂。

适应用浸涂、喷涂、刷涂方式涂覆保形涂料的工艺。

干燥特性产品特性耐温特性在80℃下干燥1小时后进行的干膜耐温测试耐温时间以胶膜表面发粘，但可以剥离为限，超过该时间限将影响剥离。

包装、储运及保质期1.包装：250ml/支2.储运：产品密封，在干燥阴凉处贮存。

3.保质期：6个月安全操作须知安全使用须知不在此列出，操作前请阅读本产品的化学品安全说明书（MSDS ），可从本公司及各分销商处获得。

敬告本公司所提供的产品说明资料是基于我们对本产品性能的认识为用户提供的一种参考，但每个用户的产品有其自身的特点。

因此，敬请各位用户在使用本产品前必须进行必要而全面的测试，以确定本产品的适用性，谢谢！外观乳白色粘稠体干燥时间（2mm厚）：120℃150℃10～15min≤5min固体含量：％>70粘度mpa.s＠25℃12000～24000最高耐温℃（短时间）350粘度调节物去离子水。

单组份、高温快速固化环氧胶贴片胶技术规格书TDS产品简介及应用产品GB-3301是一种单组份、高温快速固化的环氧胶粘剂。

用于SMD贴片元件粘接于印制PCB线路板上。

GB-3301的特性适用于钢网印刷，完全固化后具有优异的粘接强度。

主要特性与优点固化前材料特性典型固化性能推荐固化条件为90~120s@150℃。

下图为一些典型的固化曲线。

固化速度及最终粘接强度与固化温度及时间有密切关系。

实际生产过程中，整个加热时间要比图中标的长一些，因为有一段预热时间。

固化后材料典型性能耐湿热性在标明温度下老化，测试温度为22 ℃% 初始强度剩有率条件温度100hr 500hr 1000hr 空气22℃100 100100 98%RH 40℃ 90 85 85典型耐环境性能测试方法：ISO 4587/ASTM D1002剪切强度基材：BMS 搭接固化条件：30 min @ 150℃根据IPC SM817(2.4.42.1)标准，产品GB-3301经过热焊料浸渍试验合格。

将用GB-3301粘结的R-1206的FR4 PCB置于温度为260℃的焊料锅上方停留60 秒，然后在锅中浸渍10 秒。

结果：没有任何元件脱落或移位现象使用说明1、在2～8℃冷藏贮存的GB-3301须回温之后方可使用（300ml装须8小时以上）。

2、推荐印刷温度为25℃，湿度低于75%。

在较高温度下，胶水粘度下降，会影响印刷效果；在较高湿度条件下，胶水会吸潮，减少其网板寿命。

印刷效果还与网板开孔大小、脱模距离、印刷速度、印刷压力和脱模速度等因素有关。

注意事项1、为避免污染未用胶液，不能将任何胶液倒回原包装内。

2、胶液长期裸置于空气中会吸潮而影响性能。

贮存条件2～8℃温度下，阴凉干燥处，可存放 6 个月；低于 2℃或高于 8℃贮存会影响胶的性能。
