电动托盘搬运车简介
电动托盘搬运叉车适合于狭窄通道和有限空间内的作业，是仓库、超市、车间内装卸和搬运托盘化货物的理想工具。

外形
●采用圆弧、，曲面造型，整车小巧美观。

稳定性
●五支点低重心设计，整车具有良好的稳定性。

机动性
●驱动单元采用中位布置、弹簧支承、可左右旋转近90度，转向灵活轻便，即使在凹凸路面亦能行走自如。

舒适性
●根据人机工程设计的操纵手柄集加速、换向、嗽叭、制动、起升/下降、紧急反向等功能，为操作最大程度的舒适性，设置高效阻尼减振器，将由于路面不平引起的振动减最小。

可靠性
●电机控制器、起升电机、液压泵等主要部件均选用国际一流产品。

●采用国际一流品牌LED电量显示表，能在强振动环境和很宽的温度范围内精确工作。

先进性
●高频MOSFET集成控制器和SEM驱动电机组成的先进的SEM行走控制系统，调速性能优异，具有再生制动、反接制动等功能，使操作更加安全舒适、经济高效。

●采用组合式液压动力单元，体积紧凑、噪音低、压力损失小。

●非线性变速功能在加速开关在较大行程时，驱动电机仅以较小的转速运转，因而叉车起步更加平衡，便于在窄小的空间操作。

安全性
●智能延时制动功能在停止前进和后退操作时，自动动作电磁制动器制动叉车，使操作更加安全。

紧急断电开关作为标准配置，符合欧洲安全标准。

电动托盘搬运车技术参数表。

托盘搬运车的分类及适用范围-回复托盘搬运车是一种用于搬运和运输货物的设备，可以提高工作效率和减少劳动强度。

根据其功能和使用场景的不同，托盘搬运车可以分为几个不同的分类。

在本文中，将详细介绍托盘搬运车的分类以及它们的适用范围。

一、手动托盘搬运车手动托盘搬运车是指由人力操作的搬运车。

它们通常是简单且轻便的设备，适用于小型仓库和货物搬运场景。

手动托盘搬运车通常具有一个手柄和四个轮子，操作人员通过提拉或推动手柄，将货物从一个地点搬运到另一个地点。

它们在狭小空间中的搬运和堆垛工作非常有效，可以用于从货车到仓库，或者从仓库到销售区域的货物转移。

二、电动托盘搬运车电动托盘搬运车是指由电池供电的搬运车。

它们通常比手动搬运车更强大和功能更丰富，适用于大型仓库和物流中心。

电动托盘搬运车被广泛应用于货物装卸、仓库内部搬运和堆垛等工作。

它们可以根据需要选择不同的电动系统，如前驱动、后驱动或四驱系统，以适应不同类型货物的搬运需求。

三、手动托盘升降车手动托盘升降车是一种结合了搬运和升降功能的设备。

它们通常具有一个可调节高度的货叉和一个手动泵，通过操作手柄提升或降低货物。

手动托盘升降车适用于需要将货物从地面升至合适高度或者从一层叉车转移到另一层叉车的场景。

它们比起传统的手动托盘搬运车更灵活，可以适应不同高度货物的需求。

四、电动托盘升降车电动托盘升降车是一种电动搬运车辅助设备。

它们具有类似于手动托盘升降车的功能，但是通过电动系统来提供更高的升降效率和工作负荷能力。

电动托盘升降车通常配备电动泵、升降装置和一套控制系统，操作人员只需通过简单的按钮控制，就可以完成货物的升降工作。

它们广泛应用于需要在不同楼层之间进行货物转移的场景，比如仓库、工厂和商场。

总结起来，托盘搬运车根据功能和使用场景的不同，可以分为手动托盘搬运车、电动托盘搬运车、手动托盘升降车和电动托盘升降车。

它们在不同的工作环境中都有广泛的应用，可以提高工作效率，减少劳动强度，并满足不同类型货物的搬运需求。

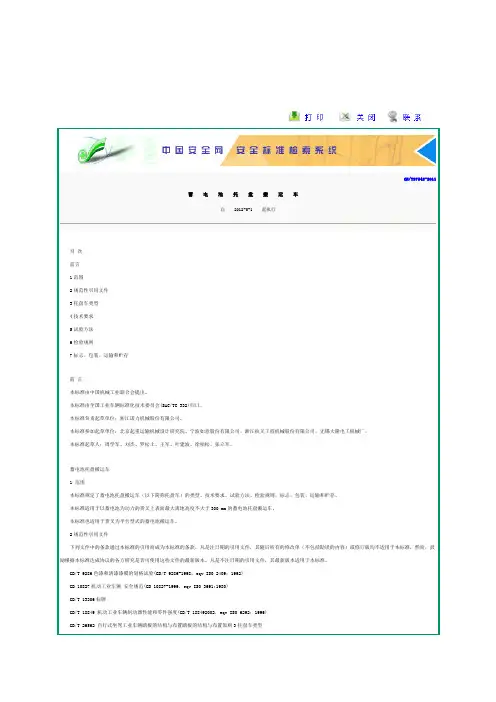

托盘车的类型分为：a) 手动起升电动行走步行式托盘车（图1）；b)电动起升电动行走步行式托盘车（图2）；c) 电动起升电动行走站板式托盘车（站板可折叠）（图3）；d) 电动起升电动行走乘驾式（包括站驾式和坐驾式）托盘车（图4）。

单位为毫米单位为毫米单位为毫米单位为毫米4技术要求4.1 基本要求4.1.1托盘车作业的地面应坚硬、相对水平、表面平整。

4.1.2托盘车应满足GB 10827中规定的安全要求。

4.1.3托盘车最低高度小于或等于90 mm。

4.1.4步行式和无护栏站板式托盘车的无载运行速度不应大于4.0km/h（不可调）或6.0km/h（可调）；有护栏站板式托盘车无载运行速度不应大于10.0km/h;乘驾式托盘车无载运行速度不应大于16.0km/h。

4.1.5托盘车额定载荷状态下，在10min内货叉自然下滑量不大于10mm。

4.1.6托盘车的传动系统应无异常声响。

30 min工作制的电动机。

电动机的绝缘等级均不低于F级。

4.1.7托盘车直流或交流驱动装置中，行走电动机应采用不低于S24.1.8托盘车的站人平台、站板、踏板应有防滑措施。

4.1.9托盘车外露表面应光洁、美观。

油漆（或喷涂）应均匀，不应有裂纹、起皮、流挂及起泡等缺陷。

漆膜的附着力不应低于GB/T 9286中规定的2级质量要求。

4.2运行速度和制动控制4.2.1运行速度的控制装置，当其动作幅度增大时，车辆的速度应增大；当速度控制装置被释放时，控制装置应能自动返回到中间位置（零位），车辆应停止运行。

4.2.2 托盘车的行车制动器和停车制动器应符合GB/T 18849的规定。

4.2.3步行式托盘车的操纵杆应能在垂直平面内转动，制动器的作用应符合图5所示。

说明：A- 制动器松闸接通驱动电源；B- B，B′——制动器起制动作用，驱动电源切断。

图5操纵杆位置示意图4.2.4乘驾式托盘车应有驾驶员离开车辆时能自动切断运行电路的装置。

4.2.5采用踏板控制加速及制动踏板的坐驾式托盘车，其踏板的布置应符合GB/T 26562的规定，当加速踏板踩下后应增大车速，制动踏板踩下后，行车制动器应起制动作用。

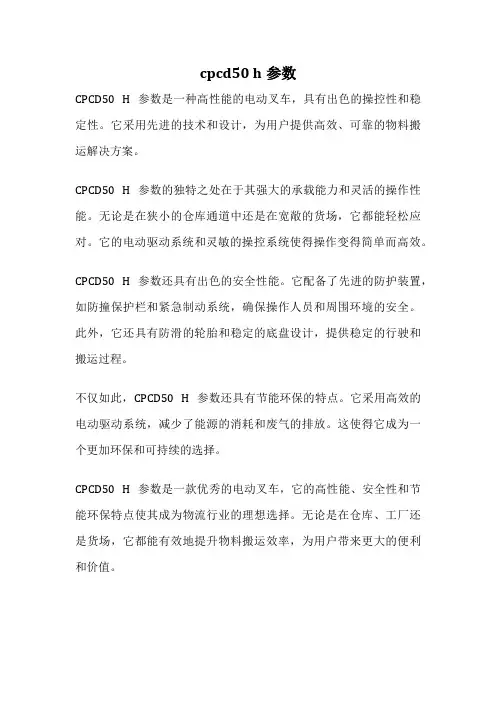

cpcd50 h参数
CPCD50 H参数是一种高性能的电动叉车，具有出色的操控性和稳定性。

它采用先进的技术和设计，为用户提供高效、可靠的物料搬运解决方案。

CPCD50 H参数的独特之处在于其强大的承载能力和灵活的操作性能。

无论是在狭小的仓库通道中还是在宽敞的货场，它都能轻松应对。

它的电动驱动系统和灵敏的操控系统使得操作变得简单而高效。

CPCD50 H参数还具有出色的安全性能。

它配备了先进的防护装置，如防撞保护栏和紧急制动系统，确保操作人员和周围环境的安全。

此外，它还具有防滑的轮胎和稳定的底盘设计，提供稳定的行驶和搬运过程。

不仅如此，CPCD50 H参数还具有节能环保的特点。

它采用高效的电动驱动系统，减少了能源的消耗和废气的排放。

这使得它成为一个更加环保和可持续的选择。

CPCD50 H参数是一款优秀的电动叉车，它的高性能、安全性和节能环保特点使其成为物流行业的理想选择。

无论是在仓库、工厂还是货场，它都能有效地提升物料搬运效率，为用户带来更大的便利和价值。

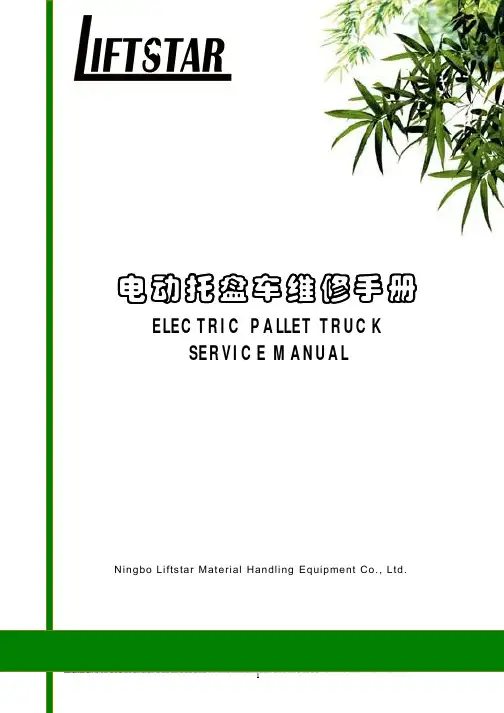

精心整理中国驰名商标操作手册/零件清单WP-LPT20/LPT22全电动搬运车 前言 ................................................................................................错误!未指定书签。
