138®NIC COMPONENTS CORP.

www.niccomp.comwww.lowESR.comwww.RFpassives.comwww.SMTmagnetics.com

NRSG SeriesMiniature Aluminum Electrolytic Ca pac i tors

ULTRA LOW IMPEDANCE, RADIAL LEADS, POLARIZED, ALUMINUM ELEC TRO LYT IC

• VERY LOW IMPEDANCE• LONG LIFE AT 105°C (2000 ~ 4000 hrs.)• HIGH STABILITY AT LOW TEMPERATURE• IDEALLY FOR SWITCHING POWER SUPPLIES & CONVERTORSFEATURESCHARACTERISTICSRated Voltage Range6.3 ~ 100VdcCapacitance Range6.8 ~ 6,800µFOperating Temperature Range-40°C ~ +105°CCapacitance Tolerance±20% (M)Maximum Leakage CurrentAfter 2 Minutes at 20°C0.01CV or 3µAwhichever is greater

Max. Tan δ at 120Hz/20°CW.V. (Vdc)6.3101625355063100S.V. (Vdc)8132032446379125C < 1,000µF0.220.190.160.140.120.100.090.08C = 1,200µF0.220.190.160.140.12---C = 1,500µF0.220.190.160.14----C = 1,800µF0.220.190.160.140.12---C = 2,200µF0.240.210.18-----C = 2,700µF0.240.210.180.16----C = 3,300µF0.260.23------C = 3,900µF0.260.230.20-----C = 4,700µF0.28-------C = 5,600µF0.300.27------C = 6,800µF0.32-------Low Temperature StabilityImpedance Ratio @ 120HzZ-25°C/Z+20°C2Z-40°C/Z+20°C3Load Life Test at Rated W.V. & 105°C2,000 Hrs. 5 ~ 6.3mm Dia.3,000 Hrs 8mm Dia.4,000 Hrs 10 ~ 12.5mm Dia.5,000 Hrs 16 ~ 18mm Dia.Capacitance ChangeWithin ±25% of initial measured valueTan δLess than 200% of specifi ed valueLeakage CurrentLess than specifi ed value

NRSG 102 M 25V 10X20 TB FTB = Tape & Box*

Working VoltageTolerance Code M=20%, K=10%Capacitance Code in µFSeriesCase Size (mm)RoHS CompliantPART NUMBER SYSTEMRoHS

Compliantincludes all homogeneous materials*See Part Number System for Details

*see tape specifi cation for details

PRECAUTIONSPlease review the notes on correct use, safety and precautions found on pages T10 & T11of NIC’s Electrolytic Capacitor catalog. Also found at www.niccomp.com/precautions If in doubt or uncertainty, please review your specifi c application - process details with NIC’s technical support personnel: tpmg@niccomp.com 元器件交易网www.cecb2b.com

139®NIC COMPONENTS CORP. www.niccomp.comwww.lowESR.comwww.RFpassives.comwww.SMTmagnetics.com MAXIMUM IMPEDANCE (mΩ AT 100KHz/20°C)MAXIMUM RIPPLE CURRENT (mA AT 100KHz/105°C)Cap (µF)Working Voltage (Vdc)6.31016253550631006.8-------140015------88057022-----340--27-------36033----300-350-39-------25047---300-140-24056--300-130-22019068-------18082------160130150130100-300-130-74-120120--130--6112094110150300---7261--180-----46807182220-130-72564273635371

270----413060525369330130-72563828434653390-------4149470-725641232739335338453956072---222833303231680-5641232121292853383882056--23-2326-31100053412321182121-38251200412323-16-19-381820150023232118--18-1800---1616---182200232118-----2700--1616----1833002118------3900181616-----18470016-------56001816------680016-------Cap (µF)Working Voltage (Vdc)6.31016253550631006.8-------12515------16520522-----238--27-------35533----250-265-39-------45047---250-385-45056--250-405-50056568-------58082------665750685735100-250-405-724-880120--405--9508201045945150250---760979--180-----1190110011951135220-405-76099513701300141010301295

270----125015801495156016001470330405-76099514301870185017001030390-------17501620470-760995125018202050225018901030143019901775560760---215024102450208025502060680-995125018202360236027802570103014302450820995--1820-27302810-278010001030125018202360277030102835-143032701200125018201820-3290-3340-14303140331015001820182023602770--3420-1800---32903460---31402200182023602770-----2700--32903460----3140330023602770------3900277032903460-----314047003290-------560031403460------68003460-------NRSG SeriesMiniature Aluminum Electrolytic Ca pac i tors元器件交易网www.cecb2b.com

140®NIC COMPONENTS CORP.

www.niccomp.comwww.lowESR.comwww.RFpassives.comwww.SMTmagnetics.com STANDARD PRODUCT AND CASE SIZE TABLE DΦ x L (mm)NRSG SeriesMiniature Aluminum Electrolytic Ca pac i torsDIAMETER AND LEADSPACE (mm)dφ ± 0.05Insulation Sleeve

F ± 0.5

Dφ ± α4mm Min.15mm Min. L + β max.Polarity MarkingCap (µF)CodeWorking Voltage (Vdc)6.31016253550631006.86R8-------5x1115150------5x116.3x1122220-----5x11--27270-------8x11.533330----5x11-6.3x11-39390-------8x16474705x11-6.3x11-10x12.556560--5x11-6.3x11-8x11.58x2068680-------10x1682820------8x1610x2010x12.512.5x16100101-5x11-6.3x11-8x12.5-10x23120121--6.3x11--8x158x2012.5x2010x161501515x11---8x12.510x12.5--180181-----8x2010x2012.5x2512.5x16220221-6.3x11-8x11.58x1510x1610x2312.5x3010x12.516x20

270271----8x2010x2012.5x2012.5x3516x2518x203303316.3x11-8x11.58x1510x1610x2312.5x2512.5x4010x12.5390391-------16x31.518x25470471-8x11.58x158x2010x2012.5x2012.5x3016x35.510x12.510x1616x2018x31.55605618x11.5---10x2312.5x2512.5x3516x4016x2518x35.5680681-8x158x2010x2012.5x2012.5x3012.5x4018x4010x12.510x1618x208208218x15--10x20-16x2116x31.5-18x25100010210x12.58x2010x2012.5x2012.5x2516x2516x35.5-10x1618x31.512001228x2010x2010x20-12.5x30-16x40-10x1616x2118x35.5150015210x2010x2012.5x2012.5x25--18x40-1800182---12.5x3016x25---16x21220022210x2012.5x2012.5x25-----2700272--12.5x3016x25----16x21330033212.5x2012.5x25------390039212.5x2512.5x3016x25-----16x21470047212.5x30-------560056216x2116x25------680068216x25-------

NRLMW103M25V22X35F中文资料

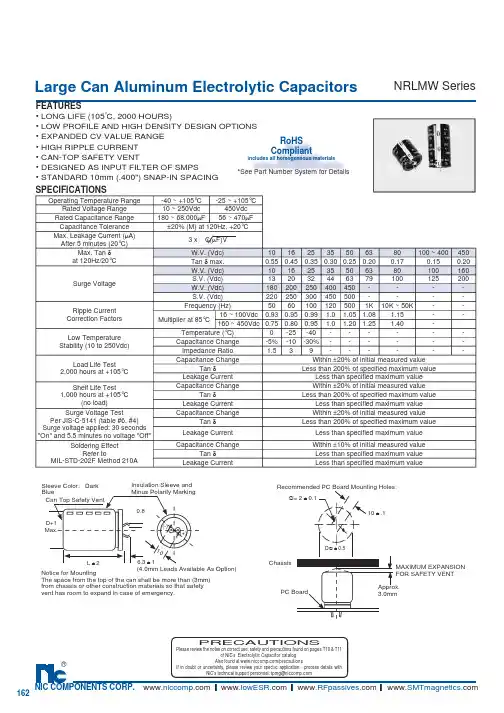

162®NIC COMPONENTS CORP.

www

Large Can Aluminum Electrolytic Capacitors

FEATURES

• LONG LIFE (105°C, 2000 HOURS)

• LOW PROFILE AND HIGH DENSITY DESIGN OPTIONS

• EXPANDED CV VALUE RANGE

• HIGH RIPPLE CURRENT

• CAN-TOP SAFETY VENT

• DESIGNED AS INPUT FILTER OF SMPS

• STANDARD 10mm (.400") SNAP-IN SPACINGNRLMW SeriesSPECIFICATIONS

Notice for MountingThe space from the top of the can shall be more than (3mm) from chassis or other construction materials so that safety vent has room to expand in case of emer gen cy.Sleeve Color: Dark BlueCan Top Safety VentInsulation Sleeve and Minus Polarity Marking

(4.0mm Leads Available As Option)D+1Max.

L ± 26.3 ± 10.8

10(-)(+)

MAXIMUM EX PAN SION FOR SAFETY VENT

Approx. 3.0mmRecommended PC Board Mounting Holes:

10 ± .1∅= 2 ± 0.1

NACE680M63V10X8TR13F中文资料

1®NIC COMPONENTS CORP. Surface Mount Aluminum Electrolytic CapacitorsNACE SeriesFEATURES•CYLINDRICAL V-CHIP CONSTRUCTION• LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85OC•NEW EXPANDED CV RANGE (up to 6800µF)•ANTI-SOLVENT (2 MINUTES)•DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERINGCHARACTERISTICS*See standard products and case size table for items available in 10% toleranceRated Voltage Range4.0 ~ 100VdcRate Capacitance Range0.1 ~ 6,800µFOerating Temp. Range-40°C ~ +85°CCapacitance Tolerance±20% (M), ±10%Max. Leakage CurrentAfter 2 Minutes @ 20°C0.01CV or 3µAwhichever is greaterTan δ @120Hz/20°CW.V. (Vdc)4.06.31016253550631003mm Dia.0.400.350.240.190.160.140.14--4 ~ 6.3mm Dia.0.350.260.200.160.140.120.100.100.108x6.5mm Dia.-0.250.260.200.160.140.12-0.108mm Dia. ~ upC<1000µF0.400.300.240.200.160.140.120.120.10C<1500µF-0.310.250.21-0.15---C<2200µF-0.320.32-0.18----C<3300µF-0.34-0.24-----C<4700µF--0.36------C<6800µF-0.40-------Low Temperature StabilityImpedance Ratio @ 120HzW.V. (Vdc)4.06.3101625355063100Z-25°C/Z+20°C733222222Z-40°C/Z+20°C1586443333Load Life Test85°C 2,000 HoursCapacitance ChangeWithin ± 25% of initial measured valueTan δLess than 200% of specifi ed max. valueLeakage CurrentLess than specifi ed max. valueNACE 101 M 16V 6.3x5.5 TR 13 F RoHS Compliant 97% Sn (min.), 3% Bi (max.) 330mm (13”) Reel Tape & Reel Size in mm Working Voltage Tolerance Code M=20%, K=10% Capacitance Code in µF, fi rst 2 digits are signifi cant Third digit is no. of zeros, “R” indicates decimal for values under 10µF SeriesPART NUMBER SYSTEMRoHS Compliantincludes all homogeneous materials*See Part Number System for Details

HMD32M32M16G资料

HANBit HMD32M32M16G URL:www.hbe.co.kr - 1 - HANBit Electronics Co.,Ltd. REV.1.0 (August.2002) GENERAL DESCRIPTION The HMD32M32M16G is a 32M x 32bit dynamic RAM high-density memory module. The module consists of sixteen CMOS 16M x 4bit DRAMs in 32-pin TSOPII packages mounted on a 72-pin, double-sided, FR-4-printed circuit board. A 0.1uF decoupling capacitor is mounted on the printed circuit board for each DRAM components. The module is a Single In-line Memory Module with edge connections and is intended for mounting in to 72-pin edge connector sockets. All module components may be powered from a single 5V DC power supply and all inputs and outputs are TTL-compatible. FEATURES wPart Identification HMD32M32M16G-- 4K Cycles/64ms Ref. Gold w Access times : 50, 60ns w High-density 128MByte design w Single + 5V ±0.5V power supply w JEDEC standard pinout w Fast Page mode operation w TTL compatible inputs and outputs w FR4-PCB design OPTIONS MARKING w Timing 50ns access -5 60ns access -6 w Packages 72-pin SIMM M PERFORMANCE RANGE SPEED tRAC tCAC tRC -5 50ns 13ns 90ns -6 60ns 15ns 110ns PRESENCE DETECT PINS Pin 50ns 60ns PD1 NC NC PD2 Vss Vss PD3 Vss NC PD4 Vss NC PIN SYMBOL PIN SYMBOL PIN SYMBOL 1 Vss 25 DQ22 49 DQ8 2 DQ0 26 DQ7 50 DQ24 3 DQ16 27 DQ23 51 DQ9 4 DQ1 28 A7 52 DQ25 5 DQ17 29 A11 53 DQ10 6 DQ2 30 Vcc 54 DQ26 7 DQ18 31 A8 55 DQ11 8 DQ3 32 A9 56 DQ27 9 DQ19 33 /RAS3 57 DQ12 10 Vcc 34 /RAS2 58 DQ28 11 NC 35 NC 59 Vcc 12 A0 36 NC 60 DQ29 13 A1 37 NC 61 DQ13 14 A2 38 NC 62 DQ30 15 A3 39 Vss 63 DQ14 16 A4 40 /CAS0 64 DQ31 17 A5 41 /CAS2 65 DQ15 18 A6 42 /CAS3 66 NC 19 A10 43 /CAS1 67 PD1 20 DQ4 44 /RAS0 68 PD2 21 DQ20 45 /RAS1 69 PD3 22 DQ5 46 NC 70 PD4 23 DQ21 47 /WE 71 NC 24 DQ6 48 NC 72 Vss 128Mbyte (32Mx32) 72-pin Fast Page Mode 4K Ref. SIMM Design 5VPart No. HMD32M32M16G PIN ASSIGNMENT
