AC/DC 模块电源应用指南--2019 版1. 前言 ........................................................... 3 1.1. 警告 ......................................................... 3 1.2. 注意事项 ..................................................... 32. 电源模块选型指导 ............................................... 4 3. AC-DC 模块电源应用说明.......................................... 63.1. 基本测试电路连接 ............................................. 6 3.2. 产品典型应用电路 ............................................. 6 3.3. EMC 推荐电路 ................................................. 7 3.4. 多路输出的负载要求 ........................................... 7 4. 基本性能测试 ................................................... 8 4.1. 输出电压精度 ................................................. 8 4.2. 线性电压调节率 ............................................... 8 4.3. 负载调节率 ................................................... 9 4.4. 转换效率 ..................................................... 9 4.5. 纹波噪声 ..................................................... 9 4.6. 隔离及绝缘特性 .............................................. 12 5. 常见疑问 ...................................................... 12 5.1. 接地----输入和输出 .......................................... 12 5.2. 浪涌电流 .................................................... 13 5.3. 漏电流 ...................................................... 13 5.4. 交直流输入 .................................................. 13 5.5. I 类、II 类设备和保护地 FG 的关系 ............................. 13 5.6. 输入瞬变 .................................................... 13 5.7. 输出空载使用 ................................................ 13 5.8. 工作温度 .................................................... 14 5.9. 产品外壳电压丝印标示 ........................................ 14 5.10. 防辐射干扰 ................................................. 145.11. EMC 外围推荐电路 ........................................... 14 5.12. 电源时序要求 ............................................... 14 6. AC-DC 模块电源应用安全设计 ..................................... 15 6.1. 标志要求 .................................................... 15 6.2. 材料要求 .................................................... 15 6.3. 电气间隙和爬电距离 .......................................... 15 6.4. 输入端电容 .................................................. 15 7. 电源模块应用的热设计 .......................................... 15 7.1. 采用自然风冷 ................................................ 15 7.2. 加强制性散热器风扇 .......................................... 161.前言在使用模块电源前，需特别注意以下警告及注意事项，不正确的安装操作、使用产品可 能会发生电击、模块损坏或者着火等危险情况，请仔细阅读并确认相关警告及注意事项。

1.1.警告（1）模块电源需轻拿轻放，避免撞击或跌落造成产品损坏； （2）禁止打开产品外壳或触摸电源内部器件，以避免产品遭受静电、器件应力等易损 坏的情况； （3）当模块电源工作时，不要靠近模块或触摸散热器和外壳，避免在模块异常时可能 对身体造成伤害。

1.2.注意事项（1）在产品上电之前，请确认已按照产品技术手册，正确连接产品的输入、输出和信 号引脚，以及必要的外围器件；（2）AC-DC 电源模块属于一次电源，在应用时需确认符合相应的安全规范要求； （3）使用时为了满足安规要求，需在输入端 L 线(火线)上接入保险丝，保险丝选型请 参考对应技术手册； （4）模块电源的输入端有高压危险，必须保证终端用户无法接触到，设备制造商还必 须保证模块输入、输出不易被服务工程师短路或被工程遗落的金属部件短路； （5）相关应用电路和参数仅供参考，在完成应用电路设计之前必须对参数和电路进行 验证； （6）如模块电源存储或者不工作超过半年以上，建议客户每半年空载老化 1 小时，以 保证产品的使用寿命和应用可靠性； （7）使用 AC-DC 电源模块的设备，如长期不工作，应每半年开机工作半小时，使得 电解电容重新充电，保证模块寿命。

常规 AC-DC 产品不适合长期工作在高温环境下，如必 须这样使用，建议每一、两年定期更换新品。

电源模块附近不应有大的发热器件，如 CPU、 电机等； （8）模块电源在空载或轻载工作状态时，模块内部如有轻微响声，属于正常现象； （9）模块电源属于元器件，安装和使用必须有专业设计人员进行设计和指导；（10）应用于密闭环境时，模块的外壳要紧挨着设备外壳，并加导热胶； （11）耐压测试属极限破坏性测试，不可多次试验； （12）本指南的更改不能保证即时通知客户，在实际使用中，请注意最新的说明，其他 问题请参考《AC-DC 模块电源常见故障分析》 。

2.电源模块选型指导首先确定需求电源的规格，按照相应指标进行筛选，确认使用标准模块还是需要定制。

图 2-1 是我司 AC-DC 电源产品的基本选型框图。

AC-DC产品选型框图输入电压范围85-264VAC85-305VAC90-528VAC xx-xxxVACLS/LD/LDE （1-20W）LS01-15BxxSS(-F) LD03-20BxxWG LDE03-20BxxW LDE03-20Bxx LD03-10BxxR2 LDE05-20BxxW LDE05-20Bxx LD05-20Bxx LD05-20BxxMU LDE06-20Bxx LDE10-20Bxx LD10-20Bxx LD12-20Bxx LDE15-20Bxx LDE20-20Bxx LD20-10BxxLH/LHE （5-85W）LHE05-20Bxx LHE05-20Cxx LHE05-20Axx LHE05-20Dxx LH05-10Bxx LHE10-20Cxx LHE10-20DxxER2 LHE10-20Dxx LHE10-20Axx LHE10-20Bxx LH10-10Bxx LHE15-20Axx LHE15-20Cxx LHE15-20Dxx LHE15-20Bxx LH15-20BxxMU LH15-10Bxx LHE20-20Axx LHE20-20Cxx LHE20-20Dxx LHE20-20Bxx LH20-10Bxx LHE25-20Bxx LH25-20BxxMU LH25-10Bxx LHE40-20Bxx LH40-10Bxx LHE60-20Bxx LH60-20BxxLI/LM/LOLI120-10Bxx LI240-10Bxx LM30-00J0512-03E LO03-10Bxx LO15-10Bxx LO30-10Cxx LO30-10Bxx LO45-10Bxx LO65-10Bxx LI30-20BxxPR2 LI60-20BxxPR2 LI100-20BxxPR2LS/LD/LDE （1-3W）LS01-15BxxSS(-F) LSxx-K3BxxSSLS03-15BxxSR2S(-F) LS05-15BxxSS(-F) LDE02-23Bxx LD05-23Bxx LDE05-23Bxx LDE10-23Bxx TLAxx-03KCAN TLAxx-03K485LH/LHE/LI （5-120W）LH05-13Bxx LH10-13Bxx LH15-13Bxx LH20-13Bxx LH25-13Bxx LH40-13Bxx LHE60-23Bxx LHE40-23Bxx LHE25-23Bxx LHE15-23Bxx LHE10-23Bxx LI120-13Bxx图 2-1 AC-DC 选型框图LS/LDLOLS03-16BxxSS(-F) LS05-26BxxSS(-F)LD03-16Bxx LD10-26Bxx LD20-26BxxLSC15-26Cxx LSC15-26Dxx LO05-12Bxx LO10-26D0512-04L LO15-22C0612-04 LO15-26D1305-03 LO20-10C0512-01注：因公司持续发展和技术突破创新，新产品的推出必然会导致选型框图的更新。

合集下载

ACDC3W模块规格书

ACDC3W模块规格书

典型性能宽输入电压范围交、直流通用小体积、高可靠性可直接安装到PCB板上短路保护、自恢复输入特性输入电压范围Input voltage range165～265V AC 200～360VDC85～265V AC 100～360VDC 输出电压精度V oltage accuracyV o1标称输出电压±1%V o2标称输出电压±5% 负载效应Load regulation20%~100%Ionom变化时Vo1:△V outnom≦±0.5%Vo2:△V outnom≦±1% 源效应Line regulationVinmin~Vinmax变化时△V outnom≦±0.2% 纹波及噪声Ripple and noise≦±1%V outnom(Max) 转换效率Effiiciency68%（V o≦5V时）75%（V o＞5V时）温度系数输出特性Temperature coefficient≦±0.02%/℃(最大值)隔离电压Isolation voltage Vin~V out、Vin~FG、V out~FG 三者之间均为2000V AC/min绝缘电阻Isolation resistance ≧100MΩ安全特性保护功能Character of Protection 短路保护（自恢复）过热保护（自恢复）-25~+50℃工业级-40~+60℃军工级工作温度Operating ambient-40~+85℃航天级存储温度Storage temperature-40~+105℃相对湿度Relative density 10RH~90RH环境特性冷却方式Cooling自然冷却输出外接电容推荐值：额定输出电压 电容推荐值5V 470UF/16V12V 330UF/25V15V 330UF/25V24V 220UF/35V外形尺寸(单位:mm) :L*W*H（38*18*18）单路、双路隔离双路共地管脚定义：管脚序号 1 2 3 4 5 6 单路 L N GND NC NC Vo+ 双路隔离 L N GND2 Vo2+ GND1 Vo1+ 双路共地 L N -Vo2 COM +Vo1 NC注：NC表示无管脚。

AC DC 10W 双输出电源模块说明书

AC DC 10W 双输出电源模块说明书

AC/DC ConverterE22473610 Watt 2“ x 1“Single andDual OutputFeaturesRegulated Converter• Wide input range 85-305Vac• Operating temperature range: -40°C to +80°C • High effi ciency over entire load range • No external components necessary • Household certifi cation IEC/EN60335• Overvoltage category OVCIII (IEC62477-1)• 140% Peak load capabilityDescriptionThe RAC10-K/277 series are highly effi cient PCB-Mount power conversion modules with ultra-low energy losses even in light load conditions. Built for worldwide usage, the AC/DC units cover an enhanced mains input range of 85VAC up to 305VAC and come with international safety certifi cations for both industrial and household standards. These AC/DC modules offer fully protected single or dual outputs as well as EMC Class B compliance without the need of any external components. The 140% peak power capability makes the RAC10-K/277 series suitable for inductive, high start-up current or nonlinear loads. With a full load temperature range of -40°C to +65°C, they are ideal for always-on and standby mode operations in process automation, IoT and smart building applications.RAC10-K/277UL62368-1 certifi edCSA C22.2 No. 62368-1-14 certifi ed IEC/EN60950-1 certifi ed IEC/EN60335-1 certifi ed IEC/EN62368-1 certifi ed EN62233 certifi ed EN62477-1 certifi ed EN61204-3 compliantCB-ReportSelection GuidePart Input Output Output Effi ciency Max. Capacitive Number Voltage Range Voltage Current typ. (1) Load [VAC] [VDC] [mA] [%] [µF]RAC10-3.3SK/277 85-305 3.3 2500 79 10000RAC10-05SK/277 85-305 5 2000 82 8000RAC10-12SK/277 85-305 12 840 84 1500RAC10-15SK/277 85-305 15 670 85 1000RAC10-24SK/277 85-305 24 420 84 330RAC10-12DK/277 85-305 ±12 ±420 82 ±1200RAC10-15DK/277 85-305 ±15 ±340 83 ±1000Notes:Note1: Effi ciency is tested at 25°C with constant resistant mode at full load and 230VACModel NumberingS ingle or D ual OutputOutput VoltageRAC10-__ _K/277Ordering Examples:RAC10-05SK/277 10 Watt 5Vout Single Output RAC10-24SK/277 10 Watt 24Vout Single Output RAC10-12DK/277 10 Watt 12Vout Dual OutputSpecifi cations (measured @ Ta= 25°C, nominal input voltage (115/230VAC), full load and after warm-up)Specifi cations (measured @ Ta= 25°C, nominal input voltage (115/230VAC), full load and after warm-up)REGULATIONSParameter Condition Value Output Accuracy±1.0% typ. Line Regulation low line to high line±0.5% typ.Load Regulation0-100% load 3.3, 5Voutothers1.5% typ.1.0% typ.Cross Regulation dual output only±10.0% typ.Transient Response 25% load step changerecovery time4.0% max.500µsSpecifi cations (measured @ Ta= 25°C, nominal input voltage (115/230VAC), full load and after warm-up)PROTECTIONSParameter Type Value Input Fuse (4)T2A, slow blow Short Circuit Protection (SCP)Hiccup, automatic restart Over Voltage Protection (OVP)150% - 195%, latch off mode Over Load Protection (OLP)150% - 195%, hiccup mode Over Voltage Category (OVC)according to IEC/EN61477-1OVC III Class of Equipment Class II Isolation Voltage tested for 1 minute4kVACIsolation ResistanceI/P to O/P Isolation Voltage 500VDC1GΩ min.Isolation Capacitance100kHz/0.1V100pF max. Insulation Grade reinforced Leakage Current0.25mA max.Notes:Specifi cations (measured @ Ta= 25°C, nominal input voltage (115/230VAC), full load and after warm-up)SAFETY AND CERTIFICATIONSCertifi cate Type (Safety)Report / File Number StandardAudio/Video, information and communication technology equipment - Safety requirements E224736UL62368-1, 2nd Edition, 2014CAN/CSA C22.2 No. 62368-1-14, 2nd Edition, 2014Information Technology Equipment, General Requirements for Safety (CB Scheme)E491408-A4-CB-1IEC60950-1:2005, 2nd Edition + A2:2013Information Technology Equipment, General Requirements for Safety (LVD)EN60950-1:2006 + A2:2013Household and similar electrical appliances - Safety - Part 1: General requirements LCS170821028CSIEC60335-1:2010 + A2:2016 + C1:2016, 5th EditionEN60335-1:2012 + A11:2014Audio/Video, information and communication technology equipment - Safetyrequirements (CB Scheme)16BCS10045 11IEC62368-1:2014, 2nd EditionAudio/Video, information and communication technology equipment - Safetyrequirements (LVD)EN62368-1:2014 + A11:2017 Measurement methods for electromagnetic fi elds of household appliancesand similar apparatus with regard to human exposureLCS170821028CS EN62233:2008Safety requirements for power electronic converter systems and equipment - Part 1: General LCS181212006CSIEC62477-1:2012 + A1:2016, 1st EditionEN62477-1: 2012 + A1:2017Specifi cations (measured @ Ta= 25°C, nominal input voltage (115/230VAC), full load and after warm-up)DIMENSION and PHYSICAL CHARACTERISTICSParameterTypeValueMaterial case potting PCB baseplateblack plastic (UL94V-0)silicone (UL94V-0)FR4 (UL94V-0)plastic (UL94V-0)Dimension (LxWxH)52.5 x 27.4 x 23.0mmWeight65g typ.Certifi cate Type (Safety)Report / File NumberStandard EAC Safety of Low Voltage Equipment RU-AT.03.67361TP TC 004/020, 2011RoHS2+RoHS 2011/65/EU + AM2015/863EMC ComplianceConditionsStandard / CriterionLow-voltage power supplies DC output - Part 3: Electromagnetic compatibility LCS170821088AE EN61204-3:2000, Class BInformation technology equipment - Radio disturbance characteristics - Limits and methods of measurement AS/NZS CSPR 22:2009 + A1:2010, Class BESD Electrostatic discharge immunity test±8kV Air; ±4kV Contact EN61000-4-2: 2009, Criteria BRadiated, radio-frequency, electromagnetic fi eld immunity test 10V/m, 80MHz-1GHz 3V/m, 1.5GHz-2GHz 1V/m, 2GHz-2.7GHz EN61000-4-3: 2006 + A2, 2010, Criteria AFast Transient and Burst Immunity AC In Port: ±2.0kV DC Out Port: ±2.0kV EN61000-4-4:2012, Criteria B Surge ImmunityAC In Port: ±1.0kV L-PE, N-PE ±2.0kV DC Out Port: ±0.5kVEN61000-4-5:2014, Criteri B Immunity to conducted disturbances, induced by radio-frequency fi elds 10VrmsEN61000-4-6:2014, Criteria A Power Magnetic Field Immunity 50Hz, 1A/m EN61000-4-8:2010, Criteria A Voltage Dips and InterruptionsVoltages Dips: >95%Voltage Dips: 30%Interruptions: >95%EN61000-4-11: 2004, Criteria B EN61000-4-11: 2004, Criteria C EN61000-4-11: 2004, Criteria CVoltage Fluctuations and Flicker in Public Low-Voltage Systems <=16A per phaseEN61000-3-3: 2013Notes:Note6: If output is connected to GND, please contact RECOM tech support for adviceSpecifi cations (measured @ Ta= 25°C, nominal input voltage (115/230VAC), full load and after warm-up) ArrayPACKAGING INFORMATIONParameter Type Value Packaging Dimension (LxWxH)tube490.0 x 56.0 x 40.0mm Packaging Quantity15pcs Storage Temperature Range-40°C to +85°C Storage Humidtiy non-condensing20% to 90% RHThe product information and specifications may be subject to changes even without prior written notice.The product has been designed for various applications; its suitability lies in the responsibility of each customer. Theproducts are not authorized for use in safety-critical applications without RECOM’s explicit written consent. A safety-critical application is an application where a failure may reasonably be expected to endanger or cause。

ACDC电源变换电路

ACDC电源变换电路

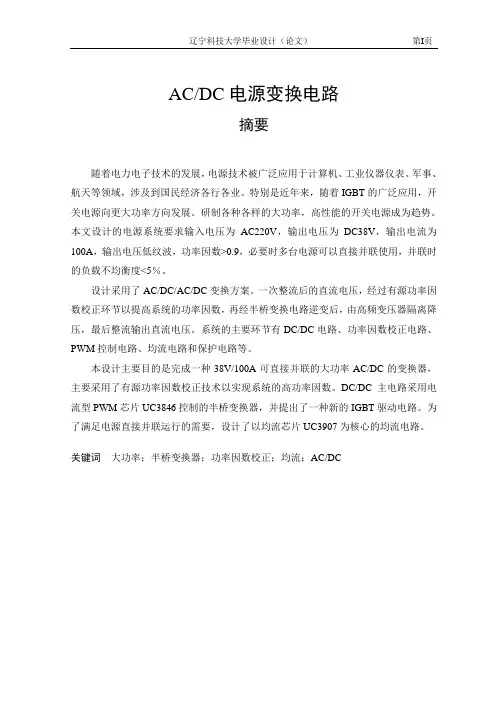

辽宁科技大学毕业设计（论文）第I页AC/DC电源变换电路摘要随着电力电子技术的发展，电源技术被广泛应用于计算机、工业仪器仪表、军事、航天等领域，涉及到国民经济各行各业。
