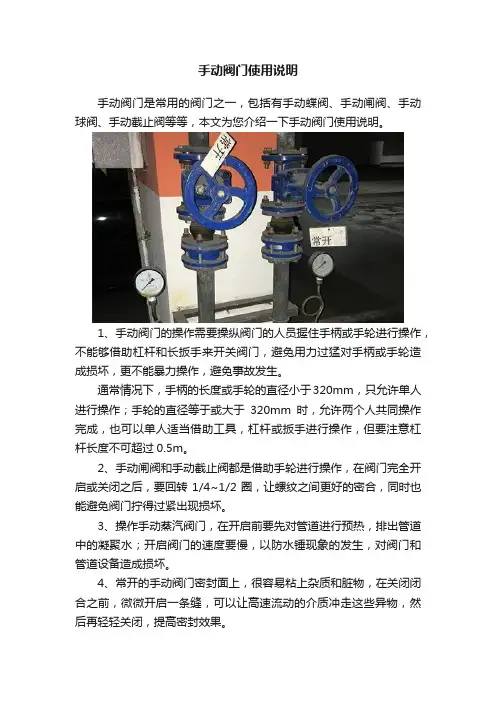

手动阀门使用说明
手动阀门是常用的阀门之一，包括有手动蝶阀、手动闸阀、手动球阀、手动截止阀等等，本文为您介绍一下手动阀门使用说明。
1、手动阀门的操作需要操纵阀门的人员握住手柄或手轮进行操作，不能够借助杠杆和长扳手来开关阀门，避免用力过猛对手柄或手轮造成损坏，更不能暴力操作，避免事故发生。
通常情况下，手柄的长度或手轮的直径小于320mm，只允许单人进行操作；手轮的直径等于或大于320mm时，允许两个人共同操作完成，也可以单人适当借助工具，杠杆或扳手进行操作，但要注意杠杆长度不可超过0.5m。
2、手动闸阀和手动截止阀都是借助手轮进行操作，在阀门完全开启或关闭之后，要回转1/4~1/2圈，让螺纹之间更好的密合，同时也能避免阀门拧得过紧出现损坏。
3、操作手动蒸汽阀门，在开启前要先对管道进行预热，排出管道中的凝聚水；开启阀门的速度要慢，以防水锤现象的发生，对阀门和管道设备造成损坏。
4、常开的手动阀门密封面上，很容易粘上杂质和脏物，在关闭闭合之前，微微开启一条缝，可以让高速流动的介质冲走这些异物，然后再轻轻关闭，提高密封效果。
5、在一些过高温介质的管道中，当手动阀门关闭之后，阀体内温度下降，因为热胀冷缩导致阀件收缩，密封面会出现一些细小的缝隙，阀门会出现泄漏。
在这种情况下，要在关闭手动阀门之后，过一会儿再关闭一次。
