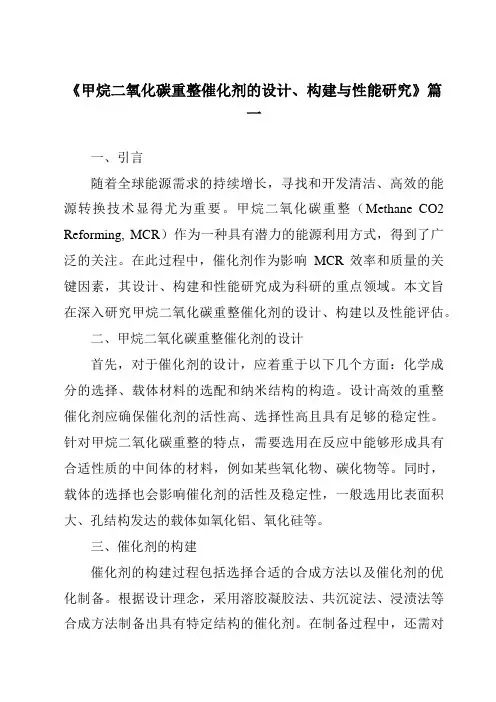

《甲烷二氧化碳重整催化剂的设计、构建与性能研究》篇一一、引言随着全球能源需求的持续增长,寻找和开发清洁、高效的能源转换技术显得尤为重要。
甲烷二氧化碳重整(Methane CO2 Reforming, MCR)作为一种具有潜力的能源利用方式,得到了广泛的关注。
在此过程中,催化剂作为影响MCR效率和质量的关键因素,其设计、构建和性能研究成为科研的重点领域。
本文旨在深入研究甲烷二氧化碳重整催化剂的设计、构建以及性能评估。
二、甲烷二氧化碳重整催化剂的设计首先,对于催化剂的设计,应着重于以下几个方面:化学成分的选择、载体材料的选配和纳米结构的构造。
设计高效的重整催化剂应确保催化剂的活性高、选择性高且具有足够的稳定性。
针对甲烷二氧化碳重整的特点,需要选用在反应中能够形成具有合适性质的中间体的材料,例如某些氧化物、碳化物等。
同时,载体的选择也会影响催化剂的活性及稳定性,一般选用比表面积大、孔结构发达的载体如氧化铝、氧化硅等。
三、催化剂的构建催化剂的构建过程包括选择合适的合成方法以及催化剂的优化制备。
根据设计理念,采用溶胶凝胶法、共沉淀法、浸渍法等合成方法制备出具有特定结构的催化剂。
在制备过程中,还需对催化剂进行优化处理,如热处理、还原处理等,以提高其活性及稳定性。
此外,纳米技术的引入也为催化剂的构建提供了新的可能,通过控制催化剂的纳米尺寸和形态结构,可进一步优化其性能。
四、催化剂性能研究催化剂性能的评估是评价催化剂优劣的重要手段。
主要包括以下几个方面:催化活性、选择性、稳定性以及抗积碳能力。
在甲烷二氧化碳重整过程中,通过实验测定不同条件下的反应速率,以评估催化剂的活性。
同时,通过分析反应产物的组成,评估催化剂的选择性。
此外,还需考察催化剂在长时间运行过程中的稳定性以及抗积碳能力,以评价其实际应用价值。
五、实验结果与讨论经过实验,我们成功制备了不同种类的甲烷二氧化碳重整催化剂,并对其性能进行了深入研究。
结果表明,通过合理设计并优化制备过程,可以显著提高催化剂的活性、选择性和稳定性。

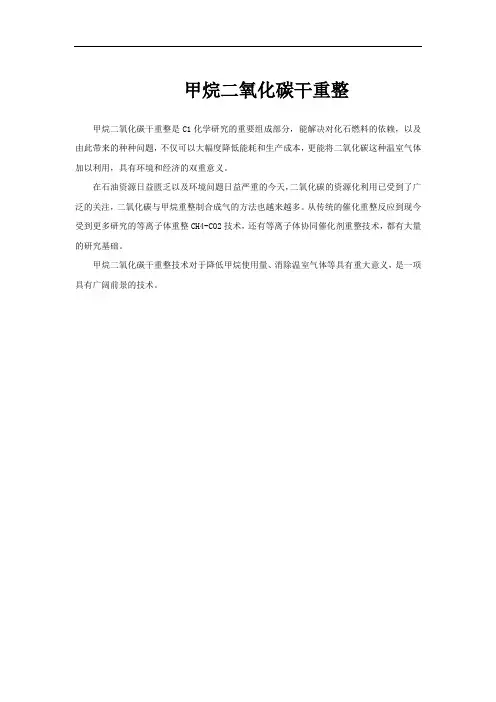

甲烷二氧化碳干重整
甲烷二氧化碳干重整是C1化学研究的重要组成部分,能解决对化石燃料的依赖,以及由此带来的种种问题,不仅可以大幅度降低能耗和生产成本,更能将二氧化碳这种温室气体加以利用,具有环境和经济的双重意义。
在石油资源日益匮乏以及环境问题日益严重的今天,二氧化碳的资源化利用已受到了广泛的关注,二氧化碳与甲烷重整制合成气的方法也越来越多。
从传统的催化重整反应到现今受到更多研究的等离子体重整CH4-CO2技术,还有等离子体协同催化剂重整技术,都有大量的研究基础。
甲烷二氧化碳干重整技术对于降低甲烷使用量、消除温室气体等具有重大意义,是一项具有广阔前景的技术。
五种制氢方法制氢是指将一些化合物、水或者其他可氧化的物质转化成氢气的过程。
随着现代工业的快速发展,制氢技术也在不断创新,现在已经有了多种制氢方法。
以下将介绍其中的五种方法。
1. 蒸汽重整法蒸汽重整法是最广泛使用的制氢方法之一,其原理是将天然气或石油中的烃类物质,如甲烷、丙烷等,通过加热蒸汽反应生成氢气和二氧化碳。
这种方法操作简便,成本低廉,但也存在一些问题,如需要原料气的纯度较高,且二氧化碳的排放会对环境造成负面影响。
2. 电解水法电解水法是将水分解成氢气和氧气的方法。
在电解水过程中,将电流通过水,使水分子分解,生成氢气和氧气。
这种方法无需使用昂贵的催化剂,对环境影响小,但制氢效率较低。
3. 氨分解法氨分解法是制氢的一种高效方法。
在氨分解过程中,氨被加热到高温(700℃ - 1000℃),分解成氢气和氮气,这种方法制氢纯度较高,但需要高温条件,操作较为复杂。
4. 煤炭气化法煤炭气化法是将煤炭加热到高温,使其分解为一系列气体的方法。
在煤炭气化过程中,产生一部分氢气,这种气体经过分离、过滤等多种处理后,可以得到较为纯净的氢气。
这种方法制氢效率高,但是需要大量煤炭资源,会对环境造成较大的负面影响。
5. 光电水裂解法光电水裂解法是制氢的一种新技术,该方法利用太阳能将水分解为氢和氧气。
光电水裂解法克服了电解水过程中电极化和能量损失的问题,制氢效率较高,同时还能减少碳排放。
但是该技术还处于研究阶段,需要更多的实践进行验证。
综上所述,以上五种制氢方法均有各自的优缺点。
未来的制氢技术应该是集多种方法之利于一体,以提高制氢效率和纯度,减少对环境的损害。

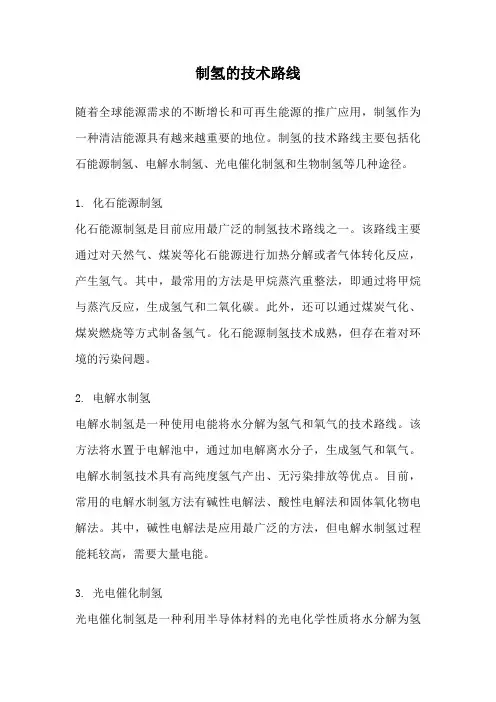

制氢的技术路线随着全球能源需求的不断增长和可再生能源的推广应用,制氢作为一种清洁能源具有越来越重要的地位。
制氢的技术路线主要包括化石能源制氢、电解水制氢、光电催化制氢和生物制氢等几种途径。
1. 化石能源制氢化石能源制氢是目前应用最广泛的制氢技术路线之一。
该路线主要通过对天然气、煤炭等化石能源进行加热分解或者气体转化反应,产生氢气。
其中,最常用的方法是甲烷蒸汽重整法,即通过将甲烷与蒸汽反应,生成氢气和二氧化碳。
此外,还可以通过煤炭气化、煤炭燃烧等方式制备氢气。
化石能源制氢技术成熟,但存在着对环境的污染问题。
2. 电解水制氢电解水制氢是一种使用电能将水分解为氢气和氧气的技术路线。
该方法将水置于电解池中,通过加电解离水分子,生成氢气和氧气。
电解水制氢技术具有高纯度氢气产出、无污染排放等优点。
目前,常用的电解水制氢方法有碱性电解法、酸性电解法和固体氧化物电解法。
其中,碱性电解法是应用最广泛的方法,但电解水制氢过程能耗较高,需要大量电能。
3. 光电催化制氢光电催化制氢是一种利用半导体材料的光电化学性质将水分解为氢气和氧气的技术路线。
该方法通过将半导体材料暴露在阳光下,利用光能激发电子,从而促使水分子发生光催化反应,生成氢气。
光电催化制氢技术具有能源效率高、无污染排放等优点,但目前仍面临着催化剂活性低、光电转换效率有限等挑战。
4. 生物制氢生物制氢是一种利用微生物代谢产生氢气的技术路线。
该方法通过利用某些微生物的代谢特性,使其在特定环境下产生氢气。
生物制氢技术具有原料来源广泛、低能耗、无污染等优点。
目前,常用的生物制氢方法有暗发酵法、光合发酵法和光合非硫细菌法等。
生物制氢技术仍处于研究和开发阶段,需要进一步提高产氢效率和催化剂稳定性。
制氢的技术路线主要包括化石能源制氢、电解水制氢、光电催化制氢和生物制氢等几种途径。
每种技术路线都有其优缺点,需要根据实际应用需求和环境因素选择合适的制氢方法。
随着科技的进步和创新,制氢技术将逐渐向更高效、更环保的方向发展,为推动清洁能源产业发展发挥重要作用。

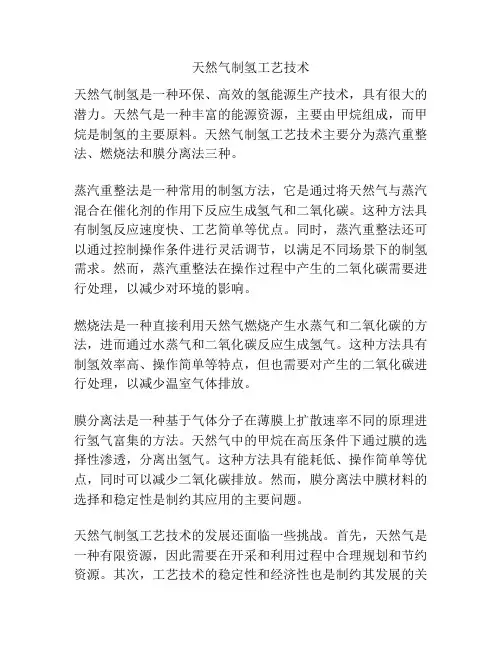

天然气制氢工艺技术天然气制氢是一种环保、高效的氢能源生产技术,具有很大的潜力。
天然气是一种丰富的能源资源,主要由甲烷组成,而甲烷是制氢的主要原料。
天然气制氢工艺技术主要分为蒸汽重整法、燃烧法和膜分离法三种。
蒸汽重整法是一种常用的制氢方法,它是通过将天然气与蒸汽混合在催化剂的作用下反应生成氢气和二氧化碳。
这种方法具有制氢反应速度快、工艺简单等优点。
同时,蒸汽重整法还可以通过控制操作条件进行灵活调节,以满足不同场景下的制氢需求。
然而,蒸汽重整法在操作过程中产生的二氧化碳需要进行处理,以减少对环境的影响。
燃烧法是一种直接利用天然气燃烧产生水蒸气和二氧化碳的方法,进而通过水蒸气和二氧化碳反应生成氢气。
这种方法具有制氢效率高、操作简单等特点,但也需要对产生的二氧化碳进行处理,以减少温室气体排放。
膜分离法是一种基于气体分子在薄膜上扩散速率不同的原理进行氢气富集的方法。
天然气中的甲烷在高压条件下通过膜的选择性渗透,分离出氢气。
这种方法具有能耗低、操作简单等优点,同时可以减少二氧化碳排放。
然而,膜分离法中膜材料的选择和稳定性是制约其应用的主要问题。
天然气制氢工艺技术的发展还面临一些挑战。
首先,天然气是一种有限资源,因此需要在开采和利用过程中合理规划和节约资源。
其次,工艺技术的稳定性和经济性也是制约其发展的关键因素,需要继续进行研究和优化。
此外,二氧化碳的处理和排放问题也需要解决,以减少对环境的影响。
然而,天然气制氢工艺技术的优势仍然明显。
天然气资源丰富,可以为氢能源提供可靠的原料,使得制氢过程更加可持续。
同时,天然气制氢可以减少对传统能源的依赖,有利于改善能源结构和减少环境污染。
另外,天然气制氢技术的应用也能为氢能源的推广提供更多的途径和可能性。
综上所述,天然气制氢工艺技术是一种具有潜力和发展前景的氢能源生产技术。
蒸汽重整法、燃烧法和膜分离法是目前主要的制氢方法。
但是,工艺技术的稳定性、资源利用和环境管理仍然是需要解决的关键问题。

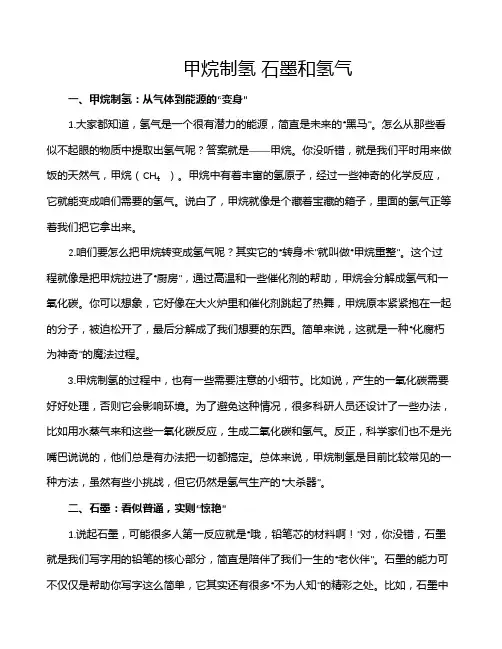

甲烷制氢石墨和氢气一、甲烷制氢:从气体到能源的“变身”1.大家都知道,氢气是一个很有潜力的能源,简直是未来的“黑马”。
怎么从那些看似不起眼的物质中提取出氢气呢?答案就是——甲烷。
你没听错,就是我们平时用来做饭的天然气,甲烷(CH₄)。
甲烷中有着丰富的氢原子,经过一些神奇的化学反应,它就能变成咱们需要的氢气。
说白了,甲烷就像是个藏着宝藏的箱子,里面的氢气正等着我们把它拿出来。
2.咱们要怎么把甲烷转变成氢气呢?其实它的“转身术”就叫做“甲烷重整”。
这个过程就像是把甲烷拉进了“厨房”,通过高温和一些催化剂的帮助,甲烷会分解成氢气和一氧化碳。
你可以想象,它好像在大火炉里和催化剂跳起了热舞,甲烷原本紧紧抱在一起的分子,被迫松开了,最后分解成了我们想要的东西。
简单来说,这就是一种“化腐朽为神奇”的魔法过程。
3.甲烷制氢的过程中,也有一些需要注意的小细节。
比如说,产生的一氧化碳需要好好处理,否则它会影响环境。
为了避免这种情况,很多科研人员还设计了一些办法,比如用水蒸气来和这些一氧化碳反应,生成二氧化碳和氢气。
反正,科学家们也不是光嘴巴说说的,他们总是有办法把一切都搞定。
总体来说,甲烷制氢是目前比较常见的一种方法,虽然有些小挑战,但它仍然是氢气生产的“大杀器”。
二、石墨:看似普通,实则“惊艳”1.说起石墨,可能很多人第一反应就是“哦,铅笔芯的材料啊!”对,你没错,石墨就是我们写字用的铅笔的核心部分,简直是陪伴了我们一生的“老伙伴”。
石墨的能力可不仅仅是帮助你写字这么简单,它其实还有很多“不为人知”的精彩之处。
比如,石墨中的碳元素可以在极高的温度下和甲烷发生反应,直接生成氢气。
你可以理解为,石墨就像是一个超级“催化剂”,帮助甲烷顺利完成“变身”,从而释放出大量的氢气。
2.石墨怎么帮助甲烷制氢呢?石墨在这个过程中发挥的作用类似于“催化剂”的角色。
石墨本身是一种非常稳定的物质,耐高温,又不会轻易发生反应。
所以,当甲烷和石墨一起加热时,石墨会促使甲烷分解,从而生成氢气和一些其他副产物。

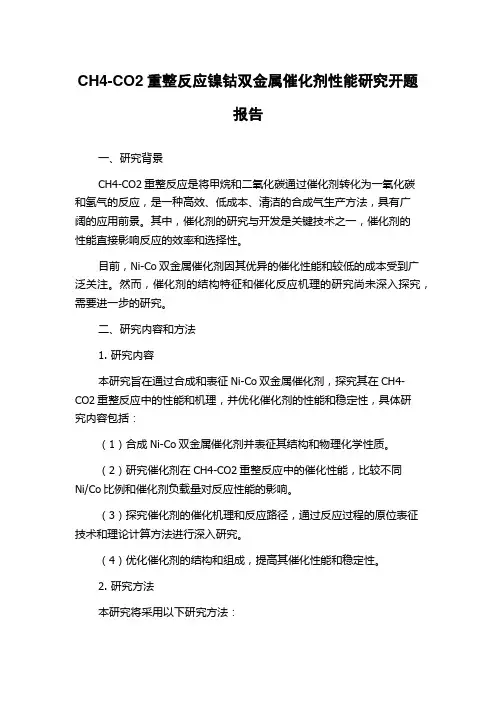

CH4-CO2重整反应镍钴双金属催化剂性能研究开题报告一、研究背景CH4-CO2重整反应是将甲烷和二氧化碳通过催化剂转化为一氧化碳和氢气的反应,是一种高效、低成本、清洁的合成气生产方法,具有广阔的应用前景。
其中,催化剂的研究与开发是关键技术之一,催化剂的性能直接影响反应的效率和选择性。
目前,Ni-Co双金属催化剂因其优异的催化性能和较低的成本受到广泛关注。
然而,催化剂的结构特征和催化反应机理的研究尚未深入探究,需要进一步的研究。
二、研究内容和方法1. 研究内容本研究旨在通过合成和表征Ni-Co双金属催化剂,探究其在CH4-CO2重整反应中的性能和机理,并优化催化剂的性能和稳定性,具体研究内容包括:(1)合成Ni-Co双金属催化剂并表征其结构和物理化学性质。
(2)研究催化剂在CH4-CO2重整反应中的催化性能,比较不同Ni/Co比例和催化剂负载量对反应性能的影响。
(3)探究催化剂的催化机理和反应路径,通过反应过程的原位表征技术和理论计算方法进行深入研究。
(4)优化催化剂的结构和组成,提高其催化性能和稳定性。
2. 研究方法本研究将采用以下研究方法:(1)催化剂的制备:采用共沉淀法、溶胶-凝胶法等方法制备Ni-Co 双金属催化剂,并通过XRD、SEM、TEM、XPS等手段表征其结构和物理化学性质。
(2)催化剂的性能测试:采用固定床反应器进行CH4-CO2重整反应,分析CO和H2的产物比例、反应温度和压力的影响,比较不同Ni/Co比例和催化剂负载量的催化性能。
(3)机理与理论研究:通过催化剂的原位表征技术,如原位红外光谱、原位X射线吸收光谱等手段,研究催化过程中的反应机理和反应路径;同时采用密度泛函理论方法对催化反应进行理论计算,得到反应路径和催化机理。
(4)催化剂的优化:通过调控催化剂的结构和组成等方法,优化催化剂的性能和稳定性,提高其催化性能。
三、预期结果和意义本研究预期可以得到以下结果:(1)成功合成Ni-Co双金属催化剂并表征其结构和物理化学性质。

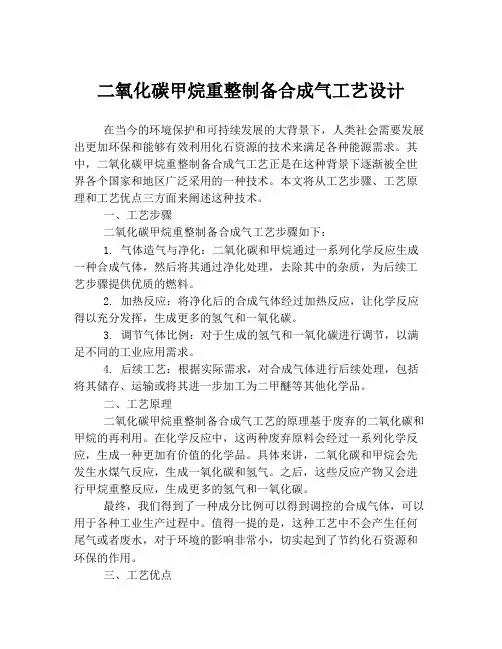

二氧化碳甲烷重整制备合成气工艺设计在当今的环境保护和可持续发展的大背景下,人类社会需要发展出更加环保和能够有效利用化石资源的技术来满足各种能源需求。
其中,二氧化碳甲烷重整制备合成气工艺正是在这种背景下逐渐被全世界各个国家和地区广泛采用的一种技术。
本文将从工艺步骤、工艺原理和工艺优点三方面来阐述这种技术。
一、工艺步骤二氧化碳甲烷重整制备合成气工艺步骤如下:1. 气体造气与净化:二氧化碳和甲烷通过一系列化学反应生成一种合成气体,然后将其通过净化处理,去除其中的杂质,为后续工艺步骤提供优质的燃料。
2. 加热反应:将净化后的合成气体经过加热反应,让化学反应得以充分发挥,生成更多的氢气和一氧化碳。
3. 调节气体比例:对于生成的氢气和一氧化碳进行调节,以满足不同的工业应用需求。
4. 后续工艺:根据实际需求,对合成气体进行后续处理,包括将其储存、运输或将其进一步加工为二甲醚等其他化学品。
二、工艺原理二氧化碳甲烷重整制备合成气工艺的原理基于废弃的二氧化碳和甲烷的再利用。
在化学反应中,这两种废弃原料会经过一系列化学反应,生成一种更加有价值的化学品。
具体来讲,二氧化碳和甲烷会先发生水煤气反应,生成一氧化碳和氢气。
之后,这些反应产物又会进行甲烷重整反应,生成更多的氢气和一氧化碳。
最终,我们得到了一种成分比例可以得到调控的合成气体,可以用于各种工业生产过程中。
值得一提的是,这种工艺中不会产生任何尾气或者废水,对于环境的影响非常小,切实起到了节约化石资源和环保的作用。
三、工艺优点二氧化碳甲烷重整制备合成气工艺具有以下几个优点:1. 节约资源:这种工艺利用废弃的二氧化碳和甲烷,减少了原料成本,也避免了废弃物的浪费。
2. 环保:这种工艺中不会产生任何有害尾气或者废水,对环境无负面影响。
3. 应用广泛:这种合成气可以被广泛应用于各种工业生产过程中,可以替代传统燃料,提升工业生产效率。
综上所述,二氧化碳甲烷重整制备合成气工艺是一种既节约资源又环保的技术,由于其应用广泛,已经受到了全球各国的广泛关注和采用。

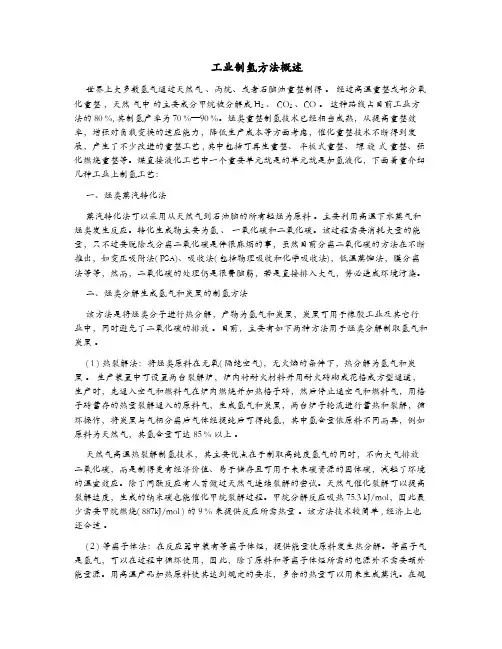

工业制氢方法概述世界上大多数氢气通过天然气、丙烷、或者石脑油重整制得。
经过高温重整或部分氧化重整,天然气中的主要成分甲烷被分解成 H2、 CO2、CO 。
这种路线占目前工业方法的 80 %, 其制氢产率为 70 %—90 %。
烃类重整制氢技术已经相当成熟,从提高重整效率,增强对负载变换的适应能力,降低生产成本等方面考虑,催化重整技术不断得到发展,产生了不少改进的重整工艺 , 其中包括可再生重整、平板式重整、螺旋式重整、强化燃烧重整等。
煤直接液化工艺中一个重要单元就是的单元就是加氢液化,下面着重介绍几种工业上制氢工艺:一、烃类蒸汽转化法蒸汽转化法可以采用从天然气到石油脑的所有轻烃为原料。
主要利用高温下水蒸气和烃类发生反应。
转化生成物主要为氢、一氧化碳和二氧化碳。
该过程需要消耗大量的能量,只不过要脱除或分离二氧化碳是件很麻烦的事,虽然目前分离二氧化碳的方法在不断推出,如变压吸附法( PSA)、吸收法( 包括物理吸收和化学吸收法),低温蒸馏法,膜分离法等等,然而,二氧化碳的处理仍是很费脑筋,若是直接排入大气,势必造成环境污染。
二、烃类分解生成氢气和炭黑的制氢方法该方法是将烃类分子进行热分解,产物为氢气和炭黑,炭黑可用于橡胶工业及其它行业中,同时避免了二氧化碳的排放。
目前,主要有如下两种方法用于烃类分解制取氢气和炭黑。
( 1 ) 热裂解法:将烃类原料在无氧( 隔绝空气),无火焰的条件下,热分解为氢气和炭黑。
生产装置中可设置两台裂解炉,炉内衬耐火材料并用耐火砖砌成花格成方型通道,生产时,先通入空气和燃料气在炉内燃烧并加热格子砖,然后停止通空气和燃料气,用格子砖蓄存的热量裂解通入的原料气,生成氢气和炭黑,两台炉子轮流进行蓄热和裂解,循环操作,将炭黑与气相分离后气体经提纯后可得纯氢,其中氢含量依原料不同而异,例如原料为天然气,其氢含量可达 85 % 以上。
天然气高温热裂解制氢技术,其主要优点在于制取高纯度氢气的同时,不向大气排放二氧化碳,而是制得更有经济价值、易于储存且可用于未来碳资源的固体碳,减轻了环境的温室效应。
甲烷催化二氧化碳重整制合成气反应研究进展天由甲烷制合成气有三条途径: 即水蒸汽重整、甲烷部分氧化和二氧化碳重整。
三条途径可分别提供H2/C0理论比为3 :1、2 : 1和1 : 1的合成气,这些产品可分别用于富H2和富CO 的化学转化过程。
因此,三条途径各具特色,各有值得开发的价值,其中已工业化的水蒸汽重整工艺,设备投资巨大,操作费用昂贵,亦需改进和完善。
# g& @( P: G) V5 z& B* z/ @4 B甲烷作为最小的烃类分子,具有特殊稳定的结构和惰性,C-H键的平均键能为4.1 >105J/mol,CH3-H键离解能高达4.35氷05J/mol。
因此,如何使甲烷分子活化并进行定向转化一直是困扰化学家们的一大难题。
二氧化碳作为含碳化合物的燃烧终产物,也是相当稳定的惰性小分子。
其排放量正以每年4%的速度递增,大气中高浓度的C02 破坏了大气平衡,是造成全球气温升高,气候恶化的主要原因。
随着科技进步和人类环保意识的增强,如何利用和固定C02已经成为世界各国政府和有识之士特别关注的问题。
甲烷催化二氧化碳重整制合成气,不失为一条有潜在应用前景的C02 利用途径,是废气利用,变废为宝之举。
要使惰性小分子气体的CH4和C02活化并进行定向转化,其关键是选择适宜催化剂。
近年来,人们已在催化剂的选择,催化剂和积炭行为以及催化反应机理等方面进行了大量卓有成效的工作,使这一问题的研究日益深化,也预示了这一工艺广阔的应用前景和深远意义。
本文就近年来甲烷催化二氧化碳重整制合成气已取得的成果作一概要介绍。
\( ?$ E/ _/ A( l1 B1 J一、热力学可行性研究吴越[3]译著的《气化和气体合成反应的热力学》一书,介绍了对天然气转化制合成气反应所作的完整的热力学计算,并给出了CH4+C02=2C0+2H2 反应不同温度下的平衡常数及产物分布。
从热力学计算可知,甲烷二氧化碳重整反应是强吸热反应,在温度达到600 C以上时,才有合成气生成,且随反应温度升高,反应物转化率增大,合成气产率升高。
