GBPC 12, 15, 25, 35 SERIES — Bridge Rectifiers (Glass Passivated)
© 2010 Fairchild Semiconductor Corporation
GBPC 12, 15, 25, 35 SERIES Rev. C51 July 2010
GBPC 12, 15, 25, 35 SERIES
Bridge Rectifiers (Glass Passivated)
Features
•Integrally molded heatsink provided very low thermal resistance for maximum heat dissipation.
•Surge Overload Ratings from 300 amperes to 400 amperes.
•Isolated voltage from case to lead over 2500 volts.
•UL certified, UL #E326243
•Terminals Finish Material - Silver (solderable per MIL-STD-202, Method 208 for the wire type GBPC-W package)
- Nickel for GBPC package.
Suffix “W”
Wire Lead Structure
Suffix “M”
Terminal Location Face to Face
Absolute Maximum Ratings * T
A = 25°C unless otherwise noted
* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.SymbolParameterValue
DESCO WEST
- 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178 • Fax (909) 627-7449DESCO EAST
- One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Fax (781) 575-0172 • Website:
TB-3050 Page 1 of 4© 2011 DESCO INDUSTRIES, INC.Employee OwnedJewel® Workstation Continuous Mini Monitor
Operation, Installation and Maintenance
Description
The Jewel® Workstation Continuous Mini Monitor
independently monitors the operator and the
worksurface. The instant an operator’s wrist strap or
cord fails, the monitor will issue audible and visual
alarms alerting the user of the problem. In the same
manner, the unit also confirms that a path to ground
of less than 500 megohms exists from the ESD
worksurface.
The Jewel® Workstation Continuous Monitor is a Single
Conductor Impedance Sensing Continuous Monitor
DMP3020LSS Document number: DS31263 Rev. 10 - 2 1 of 6 November 2011© Diodes Incorporated
DMP3020LSS
SINGLE P-CHANNEL ENHANCEMENT MODE MOSFET Features • Low On-Resistance • 14mΩ @ VGS = -10V • 25mΩ @ VGS = -4.5V • Low Gate Threshold Voltage • Low Input Capacitance • Fast Switching Speed • Low Input/Output Leakage • Lead Free By Design/RoHS Compliant (Note 1) • "Green" Device (Note 2) • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • Case: SO-8 • Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals Connections: See Diagram • Terminals: Finish - Matte Tin annealed over Copper lead frame. Solderable per MIL-STD-202, Method 208 • Weight: 0.072g (approximate)
Ordering Information (Note 3) Part Number Case Packaging DMP3020LSS-13 SO-8

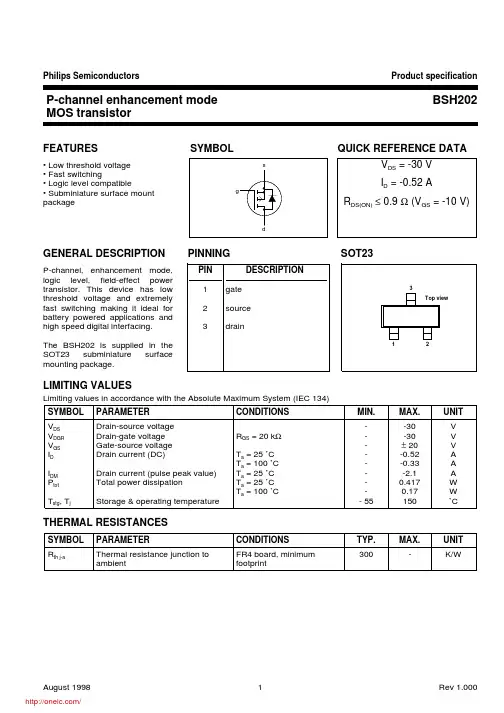

Philips SemiconductorsProduct specification P-channel enhancement modeBSH202
MOS transistor
FEATURESSYMBOLQUICK REFERENCE DATA
• Low threshold voltageVDS = -30 V
• Fast switching
• Logic level compatibleID = -0.52 A
• Subminiature surface mount
packageRDS(ON) ≤ 0.9 Ω (VGS = -10 V)
GENERAL DESCRIPTIONPINNINGSOT23
P-channel,enhancementmode,PINDESCRIPTION
logiclevel,field-effectpower
transistor.Thisdevicehaslow1gate
thresholdvoltageandextremely
fastswitchingmakingitidealfor2source
batterypoweredapplicationsandhighspeeddigitalinterfacing.3drain
TheBSH202issuppliedinthe
SOT23subminiaturesurface
mountingpackage.
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134)
SYMBOLPARAMETERCONDITIONSMIN.MAX.UNIT
VDSDrain-source voltage--30V
VDGRDrain-gate voltageRGS = 20 kΩ--30V
VGSGate-source voltage-± 20V
