Short Form Preliminary Technical Data (vs0.2, April 1999)

TRM7053OC-192 IR-2/ STM S64.2 Transmitter Module

All specifications described herein are subject to change without notice.FEATURES

· Compliant with OC-192 IR-2 and SDH S64.2 applications

· Strained MQW DFB laser with a monolithically integrated external modulator

· Average output power: -1 dBm Min.

· Low power consumption: 4.0 W Typ.

· Operating temperature range; 0 to 65°C

· Low power alarm and performance monitor functions

· Compact 40-pin package with high frequency SMA connectors; 75 x 117 x 23.2 mm3DESCRIPTION

General

The TRM7043 is an external modulator integrated DFB laser transmitter module for OC-192

SR-2 applications.

Block Diagram

Temperature

Monitor

InterfaceAutomatic

Temperature Control

Laser Forward

Current

Alarm Interface

Automatic

Power ControlOptical Low

Power Alarm

InterfaceSignal

Input

Shut-down

Signal InputLaser

Temperature

Monitor Output

10Gbit/s

EM

Driver ICEM Laser

Laser Forward

Current Monitor

Interface

Output Swing

Voltage Control

Shut-down

InterfaceDATAOptical Output

Laser Forward Current

Alarm OutputLaser Forward

Current Monitor

Output

Optical Low Power

Alarm OutputDATA元器件交易网www.cecb2b.comShort Form Preliminary Technical Data of TRM7053HITACHI

- 2 -PERFORMANCE SPECIFICATIONS

Optical Characteristics (Tc = 0 to 65ºC)ParameterSymbolMin.Typ.Max.UnitConditions(Note)

Average Output PowerPo-1.0+2.0dBmPoint S

Peak Wavelengthλp1,530-1,560nm

Extinction RatioER8.2--dB

Side-mode Suppression

RatioSr3033-dB

Optical Waveform-TBD-

Optical Path PenaltyPd-2.0dBDispersion=+800ps/

nm

BER=10-12

Note;Unless otherwise specified, 9.95328Gbit/s NRZ data rate, 50% mark density, PRBS = 231

-

1, V

EE1 = -7.35V±5%, V

EE2 = -5.2V±5%, Vcc = +5.0V±5%, V

EE3 = -2.0V±5%

Electrical Characteristics (Tc = 0 to 65ºC)

ParameterSymbolMin.Typ.Max.UnitConditions(Note)

Data Input VoltageVin400-1,000mVpp

DC Power Supply VoltageV

CC4.755.005.25V

V

EE1-7.72-7.35-6.98V

V

EE2-5.45-5.20-4.95V

V

EE3-2.10-2.00-1.90V

DC Power Supply CurrentI

CC--800mA

I

EE1--640mA

I

EE2--600mA

I

EE3--1,300mA

Power ConsumptionPc-4.010.0W

Low Power Alarm - LowV

opt(L)--0.5VNormal

Low Power Alarm - HighV

opt(H)4.2--V3dB down

Laser Enable InputV

SD(L)--1.0V

Laser Disable InputV

SD(H)3.5--V

Laser Forward Current

Alarm – LowV

LFC(L)--0.5VNormal

Laser Forward Current

Alarm – HighV

LFC(H)4.2--V50% increase

Note;Unless otherwise specified, 9.95328Gbit/s NRZ data rate, 50% mark density, PRBS = 231

-

1, V

EE1 = -7.35V±5%, V

EE2 = -5.2V±5%, V

CC = +5.0V±5%, V

EE3 = -2.0V±5%元器件交易网www.cecb2b.comShort Form Preliminary Technical Data of TRM7053HITACHI

- 3 -Package DimensionsDimension: mm元器件交易网www.cecb2b.comShort Form Preliminary Technical Data of TRM7053HITACHI

- 4 -Pin Configuration

DC ConnectorPinDescriptionPinDescription

1Shut-down Signal Input21V

EE1 = -7.35V

2Ground22V

EE1 = -7.35V

3Ground23V

EE2 = -5.2V

4Ground24V

EE2 = -5.2V

5Optical Low Power Alarm Output25V

EE2 = -5.2V

6Ground26V

EE2 = -5.2V

7Laser Forward Current Alarm Output27Ground

8Ground28Ground

9Laser Forward Current Monitor Output29Ground

10Ground30Ground

11Temperature Monitor Output (+)31V

EE3 = -2.0V

12Temperature Monitor Output (-)32V

EE3 = -2.0V

13Ground33V

EE3 = -2.0V

14Ground34V

EE3 = -2.0V

15Ground35Ground

16V

CC = +5.0V36Ground

17V

CC = +5.0V37Ground

18V

CC = +5.0V38Ground

19V

EE1 = -7.35V39Ground

20V

EE1 = -7.35V40Ground

Metal case should be grounded.元器件交易网www.cecb2b.com

合集下载

SGM8531中文资料

SGM8531中文资料

SGM8531

SGM8532

SGM8534

PRODUCT DESCRIPTION

The SGM8531 (single)，SGM8532 (dual) and SGM8534

(quad) are rail-to-rail input and output voltage feedback

amplifiers offering low cost. They have a wide input

common-mode voltage range and output voltage swing,

and take the minimum operating supply voltage down to

2.1V and the maximum recommended supply voltage is

5.5 V. All are specified over the extended –40°C to

+125°C temperature range. The SGM8531/8532/8534 provide 500KHz bandwidth at a

low current consumption of 18µA per amplifier. Very

low input bias currents of 0.5 pA, enable the

SGM8531/8532/8534 to be used for integrators,

photodiode amplifiers, and piezoelectric sensors.

Rail-to-Rail inputs and outputs are useful to designers

buffering ASIC in single-supply systems. Applications for these amplifiers include safety monitor-

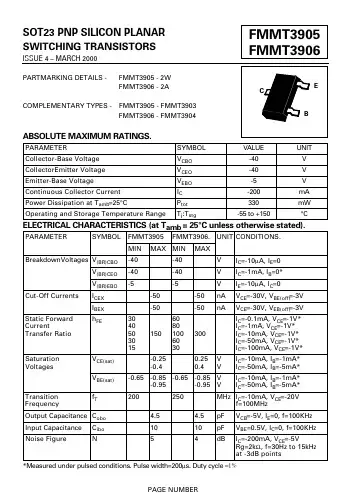

FMMT3905中文资料

FMMT3905中文资料

C

B

ESOT23 PNP SILICON PLANAR

SWITCHING TRANSISTORS

ISSUE 4 – MARCH 2000

PARTMARKING DETAILS -FMMT3905 - 2WFMMT3906 - 2A

COMPLEMENTARY TYPES -FMMT3905 - FMMT3903FMMT3906 - FMMT3904

ABSOLUTE MAXIMUM RATINGS.

PARAMETERSYMBOLVALUEUNITCollector-Base VoltageVCBO-40VCollectorEmitter VoltageVCEO-40VEmitter-Base VoltageVEBO-5VContinuous Collector CurrentIC-200mAPower Dissipation at Tamb=25°CPtot330mWOperating and Storage Temperature RangeTj:Tstg-55 to +150°CELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).

PARAMETERSYMBOLFMMT3905FMMT3906.UNITCONDITIONS.

MINMAXMINMAX

BreakdownVoltagesV(BR)CBO-40-40VIC=-10µA, IE=0

V(BR)CEO-40-40VIC=-1mA, IB=0*

V(BR)EBO-5-5VIE=-10µA, IC=0

Cut-Off CurrentsICEX-50-50nAVCE=-30V, VBE(off)=-3V

IBEX-50-50nAVCE=-30V, VEB(off)=-3V

Static ForwardCurrentTransfer RatiohFE304050301515060801006030300IC=-0.1mA, VCE=-1V*IC=-1mA, VCE=-1V*IC=-10mA, VCE=-1V*IC=-50mA, VCE=-1V*IC=-100mA, VCE=-1V*

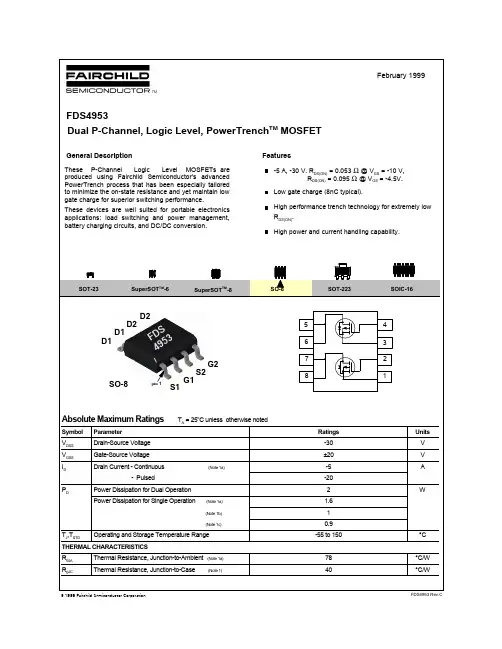

4953芯片资料
