General Purpose Relays

1SCHRACK

DatasheetRev. HC1Issued 2008/03www.tycoelectronics.comwww.schrackrelays.comDimensions are in mm unlessotherwise specified and areshown for reference purposesonly.Product specificationaccording to IEC61810-1.Product data, technical para-meters, test conditions andprocessing information only to be used together with the'Definitions' atschrackrelays.com in the‘Schrack’ section.Specifications subject to

change.Power PCB Relay RT1I1pole 12/16A, 1CO or 1NO contactIDC- or AC-coilISensitive coil 400mWI5kV/10mm coil-contact, reinforced insulationIAmbient temperature 85°C (DC-coil)IWG version: Product in accordance to IEC60335-1IRoHS compliant (Directive 2002/95/EC) as per product date code 0413

ApplicationsBoiler control, timers, garage door control, POS automation,interface modulesF0144-B

Approvals VREG.-Nr. 6106,ZE214025, b14385, BC0786, H98.4118.01, Technical data of approved types on request

Contact data Contact configuration1 CO or 1 NO contactContact setsingle contactType of interruption micro disconnectionRated current12A16ARated voltage / max.switching voltage AC 250/400VACLimiting continuous current UL: 20AMaximum breaking capacity AC 3000VA4000VALimiting making capacity, max 4 s, df 10%25A30AContact materialAgNi 90/10, AgNi 90/10 gold platedMechanical endurance DC coil> 30 x 106cyclesAC coil> 10 x 106cyclesRated frequency of operation with / without load 6/1200 min-1

Contact ratingsTypeLoadCyclesRT31416A, 250VAC, NO contact, 85°C, DF 10%, UL50850x103RT31416A, 250VAC, NC contact, 70°C, 30min-153x103RT31420A, 250VAC, NO contact, 85°C, UL5086x103RT3141000W incandescent lamp, 250VAC1.2x103RT31410A, 250VAC, cosϕ=0.6, CO contact, 70°C200x103RT3145A/2A, 250VAC, cosϕ=1, motor, NO contact, 10min-1, 70°C1.1x106RT3140.26A/0.01A, 230VAC, cosϕ=0.38, valve, NO contact, 25min-17.6x106RT314Pilot duty A300 (NO contact), B300 (CO/NC contact), UL508RT3141hp @ 240VAC, 1/2hp @ 120VAC, NO contact, UL508RT314AC15, 6A, 250VAC, NO and NC contact, 85°C, EN60947-5-1RT314DC13, 2A/24VDC, 0.2A/250VDC, NO and NC contact, 85°C, EN60947-5-1

Coil dataRated coil voltage range DC coil5...110VDCAC coil24...230VACCoil power DC coiltyp 400mWAC coiltyp 0.75VAOperative range 2Coil insulation system according UL1446 class F元器件交易网www.cecb2b.comGeneral Purpose Relays

2SCHRACK

DatasheetRev. HC1Issued 2008/03www.tycoelectronics.comwww.schrackrelays.comDimensions are in mm unlessotherwise specified and areshown for reference purposesonly.Product specificationaccording to IEC61810-1.Product data, technical para-meters, test conditions andprocessing information only to be used together with the'Definitions' atschrackrelays.com in the‘Schrack’ section.Specifications subject to

change.Power PCB Relay RT1(Continued)Coil versions,DC-coilCoilRatedOperateReleaseCoilRated coilcodevoltagevoltagevoltageresistancepowerVDCVDCVDCOhmmW00553.50.562+10%40300664.20.690+10%40000996.30.9200+10%400012128.41.2360+10%4000242416.82.41440+10%4000484833.64.85520+10%4170606042.06.08570+12%42011011077.011.028800+12%420All figures are given for coil without preenergization, at ambient temperature +23°COther coil voltages on request

Coil versions,AC-coil 50HzCoilRatedOperateReleaseCoilRated coilcodevoltagevoltagevoltageresistancepower50Hz50Hz50HzVACVACVACOhmVA5242418.03.6350+10%0.7661511586.317.38100+15%0.7662012090.018.08800+15%0.75700200150.030.024350+15%0.76730230172.534.532500+15%0.74All figures are given for coil without preenergization, at ambient temperature +23°C

Insulation Dielectric strength coil-contact circuit 5000Vrmsopen contact circuit1000VrmsClearance/creepage coil-contact circuit W10 / 10mmMaterial group of insulation parts WIIIaTracking index of relay base PTI 250 VInsulation to IEC 60664-1Type of insulation coil-contact circuitreinforcedopen contact circuitfunctionalRated insulation voltage250VPollution degree12A version3316A version32Rated voltage system 240V400VOvervoltage categoryIII

Other dataRoHS - Directive 2002/95/ECcompliant as per product date code 0413Flammability class according to UL94V-0For WG version: GWFI to IEC 60335-1(IEC 60695-2-12)> 850 °CGWIT to IEC 60335-1 (IEC 60695-2-13)> 755 °CAmbient temperature range DC coil-40...+85°CAC coil-40...+70°COperate- / release time DC coiltyp 7 / 3msBounce time DC coil, NO / NC contacttyp 1 / 3msVibration resistance (function), NO / NC contact20 / 5g, 30 ... 500HzShock resistance (destruction) 100gCategory of protection RTII - flux proof, RTIII - wash tightMountingpcb or on socketMounting positionanyMounting distance DC / AC coils0 / 2.5mmResistance to soldering heat flux-proof version270°C / 10swash-tight version260°C / 5sRelay weight14gPackaging unit20 / 500pcs

合集下载

AA1111RTR资料

AA1111RTR资料

Communication Machine, Electric Household Appliances, OA/FA, Other General Applications

Page 11111R Series

Single Color 3216 Reverse Mount Type

Features

Outer Dimension3.2 x 1.6 x 1.1mm( L x W x H )

Temperature range

Storage Temperature

Operating Temperature

Lead–free soldering compatible

RoHS compliantPackage

Product features

: -40℃～100℃

: -30℃～85℃3216 Reverse Mount Type, Water Clear resin

Recommended ApplicationsGreen: 558nm(BG),567nm(PG)

Yellow Green: 572nm(PY)

Yellow: 590nm(AY)

Orange: 606nm(AA)

Red: 647nm(BR)Dominant wavelength

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESDSorted by luminous intensity per rank taping

Auto pick & place machine (Auto Mounter)

3,000pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

More than 2kV(HBM)Reflow soldering and manual solderingBG: θx= 144 deg.,θy= 151 deg.

RK1-xxx中文资料

RK1-xxx中文资料

101

RK-RELAYS

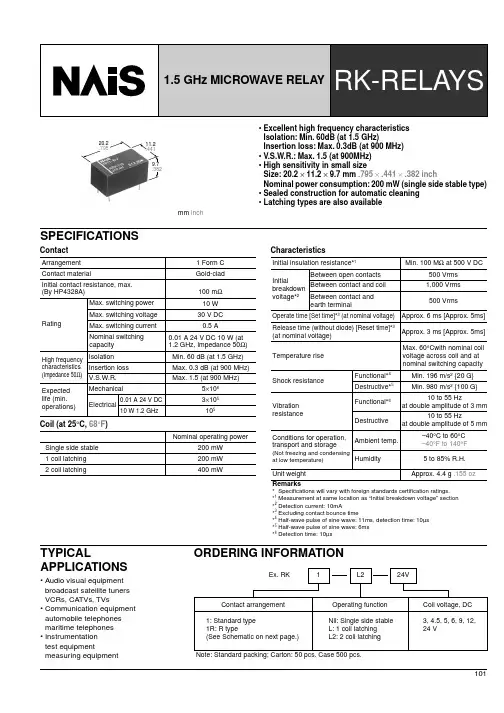

1.5 GHz MICROWAVE RELAY
