General DescriptionThe MAX4534 (single 4-to-1) and MAX4535 (dual 2-to-1) fault-protected multiplexers operate with ±4.5V to±20V dual supplies or a +9V to +36V single supply.These multiplexers feature fault-protected inputs, rail-to-rail signal-handling capability, and overvoltageclamping at 150mV beyond the rails. Both parts feature±40V overvoltage protection with supplies off and ±25Vprotection with supplies on. On-resistance is 400Ωmaxand is matched between channels to 10Ωmax. All digi-tal inputs have TTL logic thresholds, ensuringTTL/CMOS-logic compatibility when using a single+12V or dual ±15V supplies.ApplicationsData-Acquisition Systems Industrial and Process ControlAvionicsSignal Routing

Redundant/Backup SystemsFeatures♦±40V Fault Protection with Power Off±25V Fault Protection with ±15V Supplies♦No Power-Supply Sequencing Required♦All Channels Off with Power Off♦Rail-to-Rail Signal Handling♦Output Clamped to Appropriate Supply VoltageDuring Fault Condition♦1.0kΩtyp Output Clamp Resistance DuringOvervoltage♦400Ωmax On-Resistance♦20ns typ Fault Response Time♦±4.5V to ±20V Dual Supplies+9V to +36V Single Supply♦TTL/CMOS-Compatible Logic Inputs

MAX4534/MAX4535Fault-Protected, High-Voltage, Single 4-to-1/Dual 2-to-1 Multiplexers

________________________________________________________________Maxim Integrated Products1

1413

1211

10981234567A1GNDV+NO3NO1V-ENA0TOP VIEWMAX4534

NO4N.C.N.C.COMN.C.NO2

TSSOP/SO/DIPLOGIC

1413121110981234567N.C.GNDV+NO1BNO1AV-ENA0MAX4535

NO2BN.C.COMBCOMAN.C.NO2A

TSSOP/SO/DIPLOGIC19-1609; Rev 2; 5/05

Ordering InformationPin Configurations

14 Narrow SO0°C to +70°CMAX4535CSD14 TSSOP0°C to +70°CMAX4535CUD14 Plastic DIP-40°C to +85°CMAX4534EPD14 Narrow SO-40°C to +85°CMAX4534ESD14 TSSOP-40°C to +85°CMAX4534EUD14 Plastic DIP14 Narrow SO14 TSSOPPIN-PACKAGETEMP RANGE0°C to +70°C0°C to +70°C0°C to +70°CMAX4534CPDMAX4534CSDMAX4534CUDPART

14 Plastic DIP-40°C to +85°CMAX4535EPD14 Narrow SO-40°C to +85°CMAX4535ESD14 TSSOP-40°C to +85°CMAX4535EUD14 Plastic SO0°C to +70°CMAX4535CPD

For pricing, delivery, and ordering information,please contact Maxim/Dallas Direct!at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.元器件交易网www.cecb2b.com

MAX4534/MAX4535Fault-Protected, High-Voltage, Single 4-to-1/Dual 2-to-1 Multiplexers

2_______________________________________________________________________________________ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS—Dual Supplies(V+ = +15V, V- = -15V, VA_H= VENH= 2.4V, VA_L= VENL= 0.8V, TA= TMINto TMAX, unless otherwise noted. Typical values are atTA = +25°C.) (Note 3)Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functionaloperation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure toabsolute maximum rating conditions for extended periods may affect device reliability.(Voltages Referenced to GND)V+...........................................................................-0.3V to +44VV-............................................................................-44V to +0.3VV+ to V-...................................................................-0.3V to +44VCOM_, A_, EN (Note 1)........................(V- - 0.3V) to (V+ + 0.3V)NO_ (Note 2)...........................................(V+ - 40V) to (V- + 40V)NO_ to COM_ (Note 2)............................................-40V to +40VNO_ Overvoltage with Switch Power On (Note 2)...-36V to +36VNO_ Overvoltage with Switch Power Off (Note 2)...-40V to +40VContinuous Current into Any Terminal..............................±30mAPeak Current Into Any Terminal (pulsed at 1ms, 10% duty cycle).................................±100mAContinuous Power Dissipation (TA= +70°C) 14-Pin TSSOP (derate 6.3mW/°C above +70°C)..........500mW14-Pin Narrow SO (derate 8mW/°C above +70°C).......640mW14-Pin Plastic DIP (derate 10mW/°C above +70°C).....800mWOperating Temperature RangesMAX453_C_D.......................................................0°C to +70°CMAX453_E_D....................................................-40°C to +85°CStorage Temperature Range.............................-65°C to +150°CLead Temperature (soldering, 10s).................................+300°C

Note 1:COM_, EN, and A_ pins are not fault protected. Signals on COM_, EN, or A_ exceeding V+ or V- are clamped by internaldiodes. Limit forward diode current to maximum current rating.Note 2:NO_ pins are fault-protected. Signals on NO_ exceeding -25V to +25V may damage the device during power-on conditions.When the power is off the maximum voltage range is -40V to +40V.

合集下载

MAX3442EASA+T中文资料

MAX3442EASA+T中文资料

Selector GuideGeneral Description

The MAX3440E–MAX3444E fault-protected RS-485 andJ1708 transceivers feature ±60V protection from signalfaults on communication bus lines. Each device containsone differential line driver with three-state output and onedifferential line receiver with three-state input. The 1/4-unit-load receiver input impedance allows up to 128 trans-ceivers on a single bus. The devices operate from a 5Vsupply at data rates of up to 10Mbps. True fail-safe inputsguarantee a logic-high receiver output when the receiverinputs are open, shorted, or connected to an idle data line.

Hot-swap circuitry eliminates false transitions on thedata bus during circuit initialization or connection to alive backplane. Short-circuit current-limiting and ther-mal shutdown circuitry protect the driver against exces-sive power dissipation, and on-chip ±15kV ESDprotection eliminates costly external protection devices.

MAX4053CSE+中文资料

MAX4053CSE+中文资料

MAX4053CSE+中文资料

General Description

The MAX4051/MAX4052/MAX4053 and

MAX4051A/MAX4052A/MAX4053A are low-voltage, CMOS

analog ICs configured as an 8-channel multiplexer

(MAX4051/A),two 4-channel multiplexers (MAX4052/A), and

three sin-gle-pole/double-throw (SPDT) switches

(MAX4053/A).The A-suffix parts are fully characterized for on-resistance match, on-resistance flatness, and low leakage.

These CMOS devices can operate continuously with dual

power supplies ranging from ±2.7V to ±8V or a single supply

between +2.7V and +16V. Each switch can handle rail-to-rail

analog signals. The off-leakage current is only 0.1nA at +25°C or

5nA at +85°C (MAX4051A/MAX4052A/MAX4053A).

All digital inputs have 0.8V to 2.4V logic thresholds,ensuring

TTL/CMOS-logic compatibility when using ±5V or a single +5V

supply.

________________________Applications

MAX4516EUK+T中文资料

MAX4516EUK+T中文资料

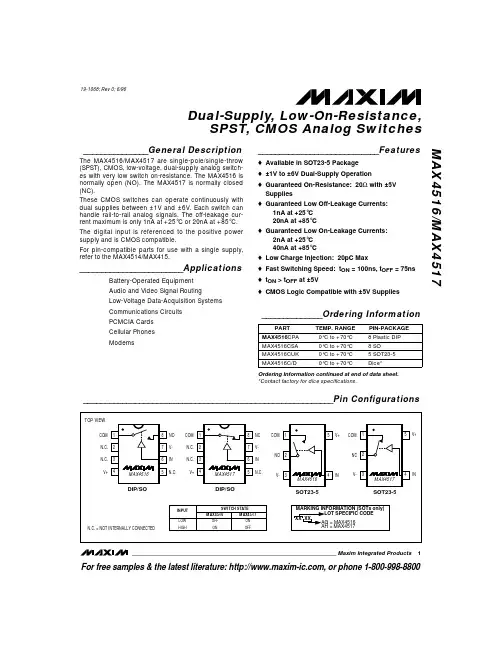

_______________General DescriptionThe MAX4516/MAX4517 are single-pole/single-throw(SPST), CMOS, low-voltage, dual-supply analog switch-es with very low switch on-resistance. The MAX4516 isnormally open (NO). The MAX4517 is normally closed(NC).These CMOS switches can operate continuously withdual supplies between ±1V and ±6V. Each switch canhandle rail-to-rail analog signals. The off-leakage cur-rent maximum is only 1nA at +25°C or 20nA at +85°C.The digital input is referenced to the positive powersupply and is CMOS compatible.For pin-compatible parts for use with a single supply,refer to the MAX4514/MAX415.________________________Applications
