平垫GB95 GB96千件重量表

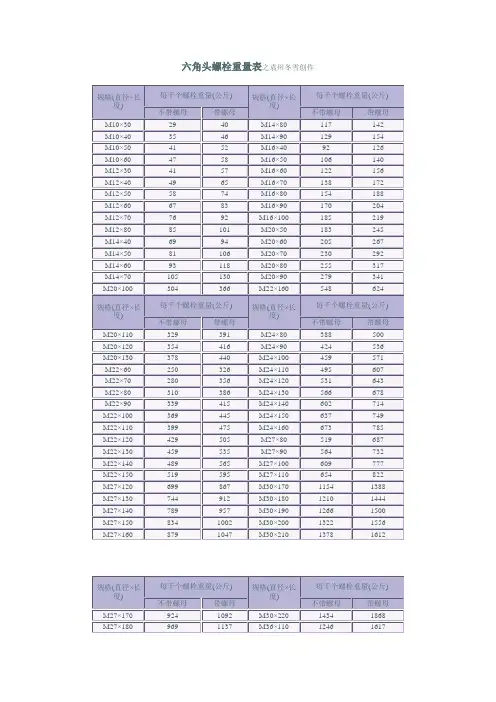

六角头螺栓重量表之袁州冬雪创作

规格(直径×长度) 每千个螺栓重量(公斤) 规格(直径×长度) 每千个螺栓重量(公斤)

不带螺母 带螺母 不带螺母 带螺母

M10×30 29 40 M14×80 117 142

M10×40 35 46 M14×90 129 154

M10×50 41 52 M16×40 92 126

M10×60 47 58 M16×50 106 140

M12×30 41 57 M16×60 122 156

M12×40 49 65 M16×70 138 172

M12×50 58 74 M16×80 154 188

M12×60 67 83 M16×90 170 204

M12×70 76 92 M16×100 185 219

M12×80 85 101 M20×50 183 245

M14×40 69 94 M20×60 205 267

M14×50 81 106 M20×70 230 292

M14×60 93 118 M20×80 255 317

M14×70 105 130 M20×90 279 341

M20×100 304 366 M22×160 548 624

规格(直径×长度) 每千个螺栓重量(公斤) 规格(直径×长度) 每千个螺栓重量(公斤)

不带螺母 带螺母 不带螺母 带螺母

M20×110 329 391 M24×80 388 500

M20×120 354 416 M24×90 424 536

M20×130 378 440 M24×100 459 571

M22×60 250 326 M24×110 495 607

M22×70 280 356 M24×120 531 643

M22×80 310 386 M24×130 566 678

M22×90 339 415 M24×140 602 714

M22×100 369 445 M24×150 637 749

常用螺栓、螺母、垫圈重量表

名称规格 重 量

GB/T5782-00 Kg/100mm重量

螺栓M8 0.037

螺栓M10 0.066

螺栓M12 0.094

螺栓M16 0.178

螺栓M20 0.289

螺栓M24 0.431

螺栓M30 0.722

螺栓M36 1.099

GB/T853-1988 1/1000个

槽钢用方斜垫圈8 5.79

槽钢用方斜垫圈16 28.22

槽钢用方斜垫圈30 128.3

热轧等边角钢 理论重量 / kg.m

L50×50×3 2.332

L50×50×4 3.059

L50×50×5 3.770

L50×50×6 4.465

L75×75×5 5.818

L75×75×6 6.905

L75×75×7 7.976

L75×75×8 9.030

L75×75×10 11.089

I 160×88×6.0 I 16 20.513

I 200×100×7.0 I 20a 27.929

WA253/2-G 17.5kg 1〞外径Φ33.5 2.42kg

名称规格 重 量 GB/T6170-00 Kg/1000个

螺母M8 4.22

螺母M10 7.94

螺母M12 11.93

螺母M16 29

螺母M20 51.55

螺母M24 88.8

螺母M30 184.4

螺母M36 317

GB/T853-1988 1/1000个

槽钢用方斜垫圈10 9.31

槽钢用方斜垫圈20 47.43

槽钢用方斜垫圈36 187.7

热轧等边角钢 理论重量 / kg.m

L63×63×4 3.907

L63×63×5 4.822

L63×63×6 5.721

L63×63×8 7.469

L45×45×3 2.088

L45×45×4 2.736

L45×45×5 3.369

L45×45×6 3.985

热轧工字钢（GB/T706-88） 理论重量/Kg..m

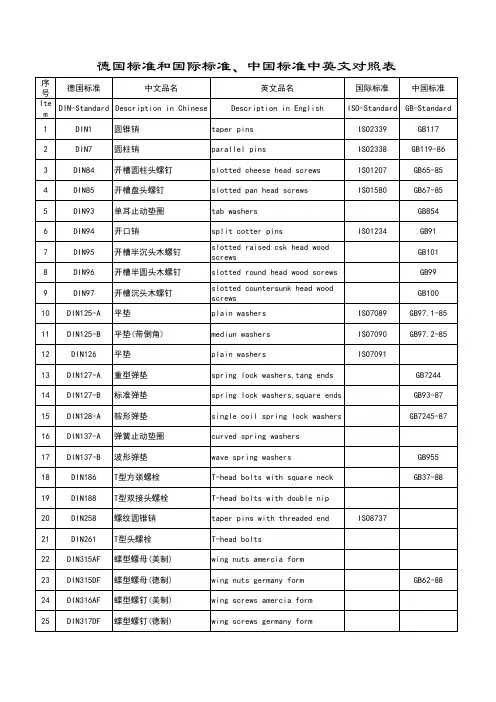

序号德国标准中文品名英文品名国际标准中国标准ItemDIN-StandardDescription in ChineseDescription in EnglishISO-StandardGB-Standard1DIN1圆锥销taper pinsISO2339GB1172DIN7圆柱销parallel pinsISO2338GB119-863DIN84开槽圆柱头螺钉slotted cheese head screwsISO1207GB65-854DIN85开槽盘头螺钉slotted pan head screwsISO1580GB67-855DIN93单耳止动垫圈tab washersGB8546DIN94开口销split cotter pinsISO1234GB917DIN95开槽半沉头木螺钉slotted raised csk head woodscrewsGB1018DIN96开槽半圆头木螺钉slotted round head wood screwsGB999DIN97开槽沉头木螺钉slotted countersunk head woodscrewsGB10010DIN125-A平垫plain washersISO7089GB97.1-8511DIN125-B平垫(带倒角)mediun washersISO7090GB97.2-8512DIN126平垫plain washersISO709113DIN127-A重型弹垫spring lock washers,tang endsGB724414DIN127-B标准弹垫spring lock washers,square endsGB93-8715DIN128-A鞍形弹垫single coil spring lock washersGB7245-8716DIN137-A弹簧止动垫圈curved spring washers17DIN137-B波形弹垫wave spring washersGB95518DIN186T型方颈螺栓T-head bolts with square neckGB37-8819DIN188T型双接头螺栓T-head bolts with double nip20DIN258螺纹圆锥销taper pins with threaded endISO873721DIN261T型头螺栓T-head bolts22DIN315AF蝶型螺母(美制)wing nuts amercia form23DIN315DF蝶型螺母(德制)wing nuts germany formGB62-8824DIN316AF蝶型螺钉(美制)wing screws amercia form25DIN317DF蝶型螺钉(德制)wing screws germany form德国标准和国际标准、中国标准中英文对照表26DIN319圆球型盖型螺母ball knobs27DIN404开槽带孔球面圆柱头螺钉slotted capstan screwsGB832-8828DIN417开槽长圆柱端紧定螺钉slotted set srews with full dogpointISO7435GB75-8529DIN427开槽平端紧定螺钉(半牙)slotted set srews withchamfered endISO2342GB73-8530DIN431小六角特薄细牙螺母pipe nuts with threadGB808-8831DIN432外舌止动垫圈external tapGB856-8832DIN433小垫圈(用于圆柱头螺钉)washers for cheese head screwsISO7092GB848-9533DIN434方斜垫圈(U型)square taper washers for U-sectionGB852-8834DIN435方斜垫圈(I型)square taper washers for I-sectionsGB852-8835DIN436方垫圈square washers36DIN438开槽凹端紧定螺钉slotted set with cup pointISO7436GB74-8537DIN439六角薄螺母hexagon thin nutsISO4035GB6172-8638DIN439细牙六角薄螺母hexagon thin nutsISO8675GB6173-8639DIN440木螺钉专用垫圈rounds washers for woodconstructionsISO709440DIN443密封帽sealing caps,push-in type41DIN444活节螺栓B 型eye bolts form BGB798-8842DIN462内舌止动垫圈internal tab washers43DIN463双耳止动垫圈washers with two tapsGB855-8844DIN464滚花高头螺钉knurled thumb screws withcollarGB834-8845DIN465开槽滚花高头螺钉slotted knurled thumb screwswith collar46DIN466滚花高螺母knurled thumb nuts with collarGB806-8847DIN467滚花薄螺母knurled thumb thin nutsGB807-8848DIN470锁紧垫圈sealing washers49DIN471轴用弹性挡圈retaining rings forshafts(external),circlipsGB894.1-8650DIN472孔用弹性挡圈retaining rings forbores(internal),circlipsGB893.1-8651DIN478方头带垫螺栓square head bolts with collar52DIN479方头圆柱底端螺栓square head bolts with half dogpoint53DIN480方头带垫半圆底端螺栓square head bolts withcollar,half dog point and54DIN508T型槽螺母T-slot nutsISO29955DIN525单头螺柱single end studs56DIN529地脚螺栓masonry boltsGB799-8857DIN546带槽圆螺母slotted round nutsGB817-7658DIN547端面带孔圆螺母round nuts with drilled holesin one faceGB815-8859DIN551开槽平端紧定螺钉slotted sit screws with flatpointISO4776GB73-8560DIN553开槽锥端紧定螺钉slotted set screws with conepointISO7434GB71-8561DIN555六角螺母hexagon nutsISO403462DIN557方螺母-Csquare nutsGB39-8863DIN558六角头螺钉hexagon screwsISO401864DIN561六角头圆柱端紧定螺钉hexagon set screws with fulldog point65DIN562薄型方螺母-Bsquare nuts withoutbevel(pressed nuts)66DIN571六角头木螺钉hexagon head wood screws (coachscrews)GB102-8667DIN580吊环螺钉lifting eye boltsISO3266GB825-7668DIN582吊环螺母lifting eye nuts69DIN601六角头螺栓hexagon boltsISO401670DIN603大半圆头方颈螺栓(马车螺栓)mushroom head square neck bolts(carriage bolts)ISO8677GB14-8871DIN604沉头带插销马车螺栓flat countersunk nib bolts72DIN605沉头长方颈马车螺栓flat countersunk long squareneck bolts73DIN607半圆头带插销马车螺栓cup head nib bolts74DIN608沉头短方颈马车螺栓flat countersunk short squareneck bolts75DIN609六角头精配螺栓（长螺纹）hexagon fitted bolts,longthread76DIN610六角头精配螺栓（短螺纹）hexagon fitted bolts,shortthread77DIN653滚花平头螺钉knurled thumb screws thin typeGB835-8878DIN660半圆头铆钉round head rivetsISO1051GB867-8679DIN661沉头铆钉contersunk head rivetsISO1051GB869-8680DIN662半沉头铆钉raised contersunk head rivetsISO105181DIN674大扁头铆钉mushroom head rivetsISO105182DIN703重型侧面带孔圆螺母adjusting rings,heavy range(shafting collars)83DIN705侧面带孔圆螺母adjusting rings,light range(shafting collars)GB816-8884DIN741卡头wire rope clips85DIN787T型槽螺钉T-slot screwsISO29986DIN835双头螺柱（牙长=2D）studs-metal (end=2d)GB900-8887DIN906内六角锥型闭锁螺钉hexagon socket pipeplugs,conical thread88DIN908内六角直型闭锁螺钉hexagon socket screw plugs,cyl.thread89DIN909外六角锥型闭锁螺钉hexagon head pipe plugs,conicalthread90DIN910外六角直型闭锁螺钉hexagon head screwplugs,cyl.thread91DIN911内六角扳手socket wrenchesISO293692DIN912内六角圆柱头螺钉hexagon socket cap screwsISO4762GB70-8593DIN913内六角平端紧定螺钉hexagon socket set screws withflat pointISO4026GB77-8594DIN914内六角尖端紧定螺钉hexagon socket set screws withcone pointISO4027GB78-8595DIN915内六角圆柱端紧定螺钉hexagon socket set screws withdog pointISO4028GB79-8596DIN916内六角凹端紧定螺钉hexagon socket set screws withcup pointISO4029GB80-8597DIN917薄型盲螺母hexagon cap nuts98DIN920开槽小圆柱头螺钉slotted short cheese headscrews99DIN921开槽大圆柱头螺钉slotted large cheese headscrewsGB838-88100DIN923开槽圆柱头轴肩螺钉slotted pan head screws withshoulderGB830-88101DIN927开槽无头轴肩螺钉slotted shoulder screws102DIN928焊接方螺母square weld nutsGB/T13680-92103DIN929焊接六角螺母hexagon weld nutsGB/T13681-92104DIN931六角头螺栓（半牙）hexagon head screwsISO4014GB5782-86105DIN933六角头螺栓（全牙）hexagon head screwsISO4017GB5783-86106DIN934六角头螺母(1型)hexagon full nutsISO4032GB6170-86107DIN934细牙六角头螺母(1型)hexagon full nutsISO8673GB6171-86108DIN935开槽六角螺母hexagon slotted and castle nutsISO7035GB6178-86109DIN936六角头薄螺母hexagon thin nutsISO4035GB6172.1-86

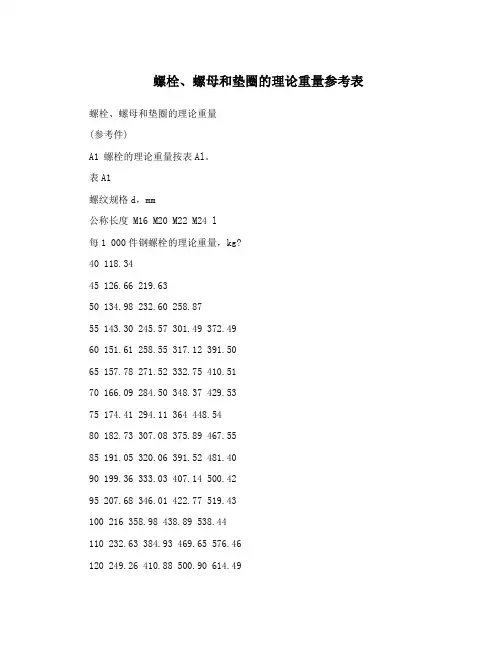

螺栓、螺母和垫圈的理论重量参考表

螺栓、螺母和垫圈的理论重量

(参考件)

A1 螺栓的理论重量按表Al。

表A1

螺纹规格d，mm

公称长度 M16 M20 M22 M24 l

每1 000件钢螺栓的理论重量，kg?

40 118.34

45 126.66 219.63

50 134.98 232.60 258.87

55 143.30 245.57 301.49 372.49

60 151.61 258.55 317.12 391.50

65 157.78 271.52 332.75 410.51

70 166.09 284.50 348.37 429.53

75 174.41 294.11 364 448.54

80 182.73 307.08 375.89 467.55

85 191.05 320.06 391.52 481.40

90 199.36 333.03 407.14 500.42

95 207.68 346.01 422.77 519.43

100 216 358.98 438.89 538.44

110 232.63 384.93 469.65 576.46

120 249.26 410.88 500.90 614.49 130 436.82 532.15 652.51

140 462.77 563.40 690.54

150 549.65 728.56

160 766.58

170 804.61

180 842.630 A2 螺母的理论重量按表A2。

表A2

螺纹规格D，mm M16 M20 M22 M24

每l000件钢螺母的理论重量，kg? 61.51 118.77 146.59 202.67

A3垫圈的理论重量按表A3。

表A3

规格，mm 16 20 22 24

每1000件钢垫圈的理论重量，kg? 23.40 33.55 43.34 55.76
