Monolithic crystal filter

MQF21.4-2200/08

Application

•

8 pol filter

•

i.f.- filter

•

use in mobile and

stationary transceiversCharacterstics MQF21.4-2200/08

Pass band Stop band

Pin connections:

1 Input

2 Input-E

3 Output

4 Output-E

TELE FILTER Zweigniederlassung der DOVER EUROPE GMBH 26.03.98

Potsdamer Str. 18 D- 14513 Teltow ! (+49)03328-4784-10 ; Fax (+49)03328-4784-30 http:\\www.telefilter.comLimiting valuesUnitValue

Center frequencyfoMHz21.4

Insertion lossdB≤ 3.5

Pass band at 3.0 dBkHz± 11.0

Ripple in pass bandfo ± 8.8 kHzdB≤ 2.0

Stop band attenuationfo ± 25 kHzdB≥ 70

fo ± 35 kHzdB> 90

Alternate attenuationfo ± 35...5000 kHzdB> 90

Terminating impedance Z

R1 || C1Ohm/pF910 || 25

R2 || C2Ohm/pF910 || 25

Operating temp. range° C-20... +70元器件交易网www.cecb2b.com

合集下载

洛阳凯迈电涡流缓速器培训资料(中英文)

洛阳凯迈电涡流缓速器培训资料(中英文)

洛阳凯迈电涡流缓速器培训资料

CAMA Electromagnetic retarder

Training Material

凯迈（洛阳）机电有限公司

CAMA（luoyang） Electromechanic Equipment Co.,Ltd

目 录

DIRECTORY

电涡流缓速器原理…………………………2

Electromagnetic retarder principle

主机总成及安装……………………………5

The retarder assembly part

电器总成及安装……………………………11

The Electric System

维护与保养…………………………………33

Maintenance

故障与排除…………………………………38

Troubleshooting

电涡流缓速器原理

Electromagnetic retarder principle

缓速器基本原理是电磁感应现象

1855年，法国物理学家Leon FOUCAULT先生发现了电磁感应现象.

The working principle of electromagnetic retarder is electromagnetism

induction, which is found by physical scientist Leon FOUCAULT in 1855.

电源断开时铁锤急速下降

Hammer dropped quickly when

power is off.

电源接通时铁锤缓速下降

Hammer dropped slowly when

power is on.

定子固定安装在汽车底线圈装在定子上

主机总成部分

The retarder assembly part

目前我公司能提供与进口ZF S 5-80/S6-90变速箱、綦江S6-90、QJ1506、S5-80变速箱、铁马变速箱、大同变速箱、一汽解放系列变速箱和陕齿富勒系列变速箱等相匹配的电涡流缓速器。下面以DHB20A缓速器在綦江S6-90变速箱后端盖上安装为例，介绍缓速器的安装过程。（在其它变速箱上的安装，除了定子支架稍有不同之外，其他过程基本相同）

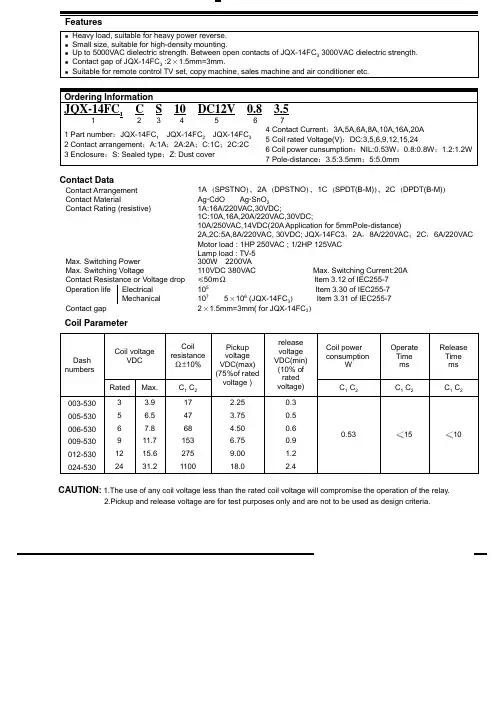

JQX-14FC22CS20中文资料
