Product Number: 2533-0-00-01-00-00-07-0

Description:

2533 - Turret Terminal Pin

Packaging:

Packaged in Bulk

Mill-Max

Part

NumberShell PlatingContact PlatingRoHS

Compliant

2533-0-00-01-00-00-07-0200 - 300 µ" Tin/Lead over Nickel00

SHELL MATERIAL:

BRASS ALLOY (UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

󰁺Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

󰁺Hardness as machined: 80-90 Rockwell B

󰁺Density: .307 lbs/in3

󰁺Electrical conductivity: 26% IACS*

󰁺Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit “free machining” and is permitted by EC Directive 2002/95Annex 6; so all pin materials are

RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

Page 1 of 1Mill-Max Mfg. Corp. Datasheet – Last Modified 10/26/2008 元器件交易网www.cecb2b.com

合集下载

APTO-253-SDS-MedChemExpress

APTO-253-SDS-MedChemExpress

Inhibitors, Agonists, Screening

Safety Data SheetRevision Date:Oct.-11-2018Print Date:Oct.-11-2018

1. PRODUCT AND COMPANY IDENTIFICATION1.1 Product identifierProduct name :APTO-253

Catalog No. :HY-16291

CAS No. :916151-99-01.2 Relevant identified uses of the substance or mixture and uses advised againstIdentified uses :Laboratory chemicals, manufacture of substances.1.3 Details of the supplier of the safety data sheetCompany:MedChemExpress USA

Tel:609-228-6898

Fax:609-228-5909

E-mail:sales@1.4 Emergency telephone numberEmergency Phone #:609-228-6898

2. HAZARDS IDENTIFICATION2.1 Classification of the substance or mixtureNot a hazardous substance or mixture.2.2 GHS Label elements, including precautionary statementsNot a hazardous substance or mixture.2.3 Other hazardsNone.

2-5332070-1资料

2-5332070-1资料

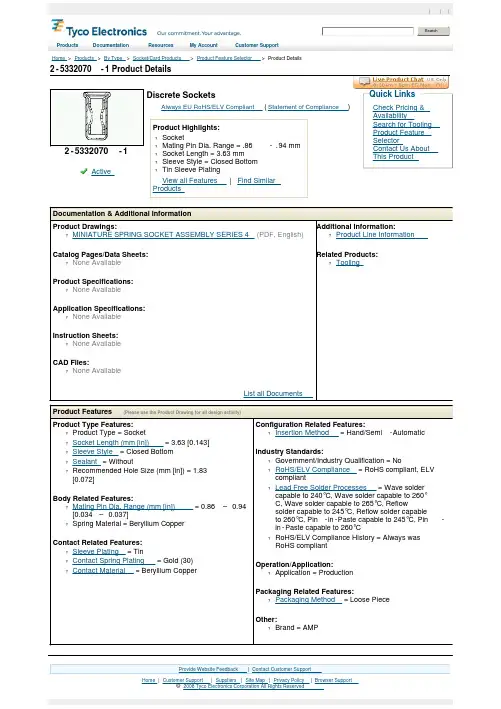

2-5332070-1 Product Details

Home | Customer Support | Suppliers | Site Map | Privacy Policy | Browser Support

© 2008 Tyco Electronics Corporation All Rights Reserved | | |

Search

Home > Products > By Type > Socket/Card Products > Product Feature Selector > Product Details

2-5332070-1

ActiveDiscrete Sockets

Always EU RoHS/ELV Compliant (

Statement of Compliance)

Product Highlights:

?Socket

?Mating Pin Dia. Range = .86 -.94 mm

?Socket Length = 3.63 mm

?Sleeve Style = Closed Bottom

?Tin Sleeve Plating

View all Features | Find Similar

ProductsCheck Pricing &

Availability

Search for Tooling

Product Feature

Selector

Contact Us About

This ProductQuick Links

Documentation & Additional Information

Product Drawings:

?MINIATURE SPRING SOCKET ASSEMBLY SERIES 4(PDF, English)

Catalog Pages/Data Sheets:

?None Available

Product Specifications:

99-2511资料

99-2511资料

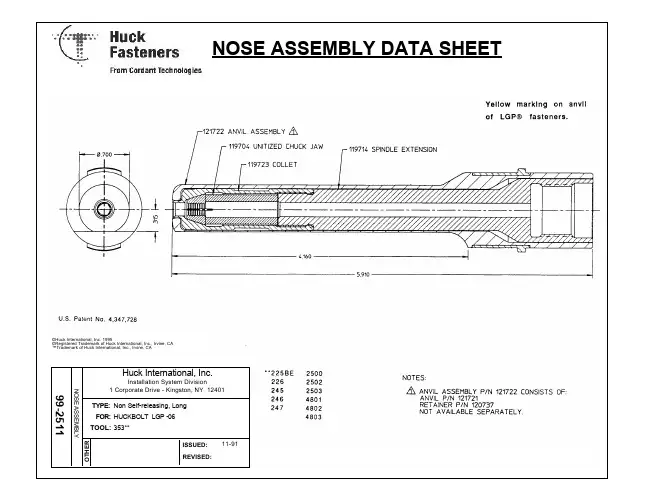

NOSE ASSEMBLY DATA SHEET
