OET DC-DC Series Data SheetTriple-Output, 25 Watts

AUG 11, 2005 revised to APR 05, 2006Page 1of 2

www.power-one.comDescriptionFeatures

OETtriple output dc-dc converters provide 25 watts of output power in an industry-standard package. The OETSeries

features excellent efficiency and industry-leading power density. The OETfeatures open-frame packaging to provide

maximum useable power with minimal thermal constraints. These units are fully compatible with production board

washing processes.•Triple-output 2” x 2”

•Open-frame construction

•1.5 million hours MTBF

•Short-circuit and overvoltage protection

•Input undervoltage lockout

•24 V or 48 V input versions

•1500 V isolation

•100 °C baseplate operation

Technical Specifications

†MTBF predictions may vary slightly from model to model.

Specifications typically at 25 °C, normal line, and full load, unless otherwisestated.

Soldering Conditions: I/O pins, 260 °C, ten seconds; fully compatible with commercial wave-soldering equipment.

Safety: Agency approvals may vary from model to model. Please consult factory for specific model information.

Units are water-washable and fully compatible with commercial spray or immersion post wave-solder washing equipment.NotesVoltage Range24 VDC Nominal 18 - 36 VDC48 VDC Nominal34 - 75 VDCTurn On Voltage 24V/48V Models<17V / <34VTurn On Hysteresis1V NominalReflected Ripple Input Current50 mApk-pkInput Reverse Voltage ProtectionShunt DiodeInput

Setpoint Accuracy±1%

Line Regulation VinMin. - VinMax., IoutRated0.2% Vout

Load Regulation IoutMin. - IoutMax., VinNom.0.5% Vout

Secondary Output Regulation, All Line/Load Conditions10% Vout

Minimum Output Current10 % Ioutrated

Dynamic Regulation, Loadstep25% Iout

Pk Deviation4% Vout

Settling Time500 µsShort Circuit And Overcurrent Protection Shutdown and Self-RecoveringPower LimitThreshold Range110 - 130%

Short Circuit 200% IoutNom.

OVPTrip Range115 - 140% VoutNom.

OVPTypeSelf-Recovering

Output60657075808590

10203040506070809010LOAD %EFFICIENCY %

EFF. OETZGHH-A

EFF. OETZGJJ-AEfficiency vs.Load (48V Input)

Switching Frequency500 kHzTurn-On Time10msRemote ShutdownPositive LogicIsolationInput - Output1500 VDCInput - Case1050 VDCOutput - Case1050 VDCTemperature Coefficient0.03%/ °CCase TemperatureOperating Range-40 to +100 °C Storage Range-40 to +125 °CThermal Shutdown Range105 to 115 °CHumidity Max., Non-Condensing95%Vibration, 3 Axes, 5 Min Each5 g, 10 - 55 Hz

MTBF†(Bellcore TR-NWT-000332)1.5 x 106hrsSafetyUL, cUL, TUVWeight (approx.)1.3 ozGeneral元器件交易网www.cecb2b.comMODEL

INPUT VOLTAGEINPUT VOLTAGEMAXIMUM INPUTOUTPUTRATED OUTPUTRIPPLE & NOISETYPICAL(VOLTS)RANGE (VOLTS)CURRENT (AMPS)*VOLTAGE (VOLTS)CURRENT (AMPS)pk-pk (mV)EFFICIENCY**OET025YGHH-A2418-361.85, ±123.5, ±0.3150, 12086%

OET025YGJJ-A2418-361.85, ±153.5, ±0.2550, 15086%OET020ZEHH-A4834-750.73.3, ±123.5, ±0.3550, 12085%

OET020ZEJJ-A4834-750.73.3, ±153.5, ±0.2850, 15085%

OET025ZGHH-A4834-750.95, ±123.5, ±0.3150, 12085%

OET025ZGJJ-A4834-750.95, ±153.5, ±0.2550, 15085%

NOTES:* Maximum input current at minimum input voltage, maximum rated output power.** At nominal Vin, rated output.Triple-Output, 25 WattsOET DC-DC Series Data Sheet

AUG 11, 2005 revised to APR 05, 2006Page 2of 2www.power-one.comNatural Convection11.0 °C/W100 LFM7.5 °C/W200 LFM5.0 °C/W300 LFM3.7 °C/W400 LFM3.1 °C/WTolerancesPin FunctionMechanical Drawing

Inches: (Millimeters).XX ± 0.020 .X ± 0.5 .XXX ± 0.010 .XX ± 0.25

Pin:± 0.002 ± 0.05

(Dimensions as listed unless otherwisespecified.)Thermal Impedance

Note:Thermal impedance data is dependent onmany environmental factors. The exactthermal performance should be validatedfor specific application.1+Vin

2-Vin

3case4enable

5+Vout(aux)

6+V

out(main)

7common

8-Vout(aux)

5

876

43211.100"(27.9mm)

0.700"(17.8mm)

-0.100"(-2.5mm)0.300"(7.6mm)(50.8mm)2.00"(50.8mm)2.00"

0.400"(10.2mm)

0.200"(5.1mm)

00.600"(15.2mm)

-0.50"(-12.7mm)BOTTOMVIEW

(9.5mm)0.375"(1.02mm)DIA0.040"(4.6mm)0.18"

(-2.5mm)-0.10"0(45.7mm)1.800"Model numbers highlighted in yellow or shaded are not recommended for new designs.Model Selection

NUCLEAR AND MEDICALAPPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical componentsin life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the respectivedivisional president of Power-One, Inc.

TECHNICALREVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on thedate manufactured. Specifications are subject to change without notice.元器件交易网www.cecb2b.com

合集下载

2110-AQ0025-AQ0120中文资料

2110-AQ0025-AQ0120中文资料

18

HerculesSeries 2000

Medium Duty Incremental Rotary Shaft EncoderMechanical

Shaft Speed6000 RPM maximum

Shaft DirectionBidirectional

Standard Shaft Sizes (Dia.).2497", .3747"

Shaft Extension(s)0.80" with .50x.05" flat

Shaft Seals Neoprene or PTFE Options

MountingRefer to dimensional drawings

BearingsABEC 5 Shielded

Radial Loading30 lbs. Operating

Axial Loading15 lbs. Operating

Accuracy+0.1ºof Shaft Rotation Typical

HousingBlack Anodized Aluminum

WeightStandard: 14 oz., Sealed: 19 oz.

Connector6 Pin MS3102 or 18" Cable Out

Electrical

Pulse Rate10 kHz, up to 200 kHz

Outputs NPN w/ pullup; NPN open collector; PNP sourcing

Line Drivers (5Vdc/TTL level, 8 to 15 Vdc)

All line drivers have complementary outputs.

Output Ratings

Open Collector Transistor40 Vdc maximum

Line Drivers 8-15 Vdc15 Vdc maximum

5 Vdc TTL5.5 Vdc maximum

SMBJ8.0CA中文资料

SMBJ8.0CA中文资料

SMBJ5.0(C)A - SMBJ440(C)A

600W Surface Mount Transient Voltage Suppressor

Features

600W Peak Pulse Power Dissipation

5.0V - 440V Standoff Voltages

Glass Passivated Die Construction

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Plastic Material - UL Flammability

Classification Rating 94V-0

Mechanical Data

Case: SMB, Transfer Molded Epoxy

Terminals: Solderable per MIL-STD-202, Method 208

Polarity Indicator: Cathode Band

(Note: Bi-directional devices have no polarity

indicator.)

Marking: Date Code and Marking Code See Page 2

Weight: 0.1 grams (approx.)

MAXIMUM RATINGS

Rating at Ta = 25 C ambient temperature unless otherwise specified. DO-214AA (SMB)

0.083(2.11) 0.155(3.94)

0.075(1.91) 0.130(3.30)

0.185(4.70)

0.160(4.06)

0.012(0.31)

0.006(0.15)

VMICBL-000-F5-002000中文资料

VMICBL-000-F5-002000中文资料

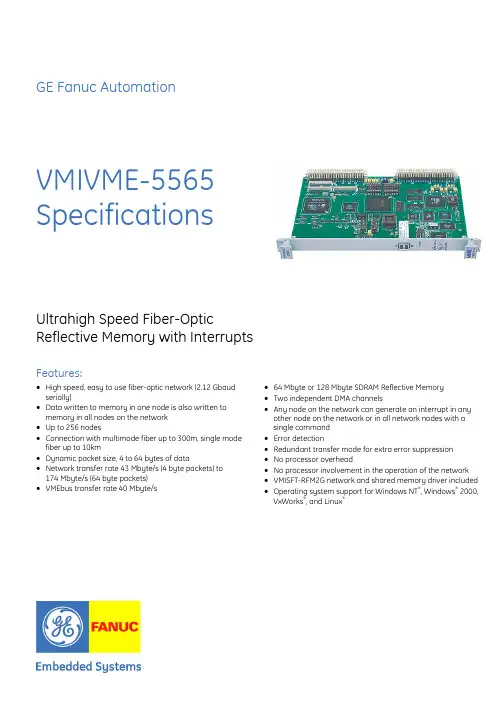

GE Fanuc Automation
