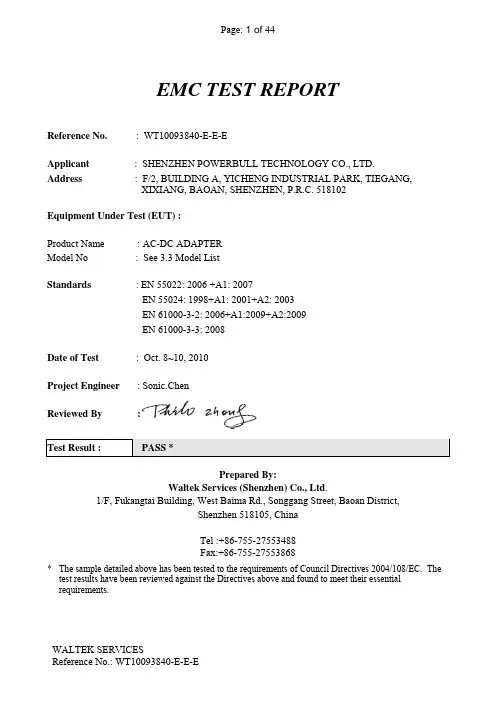

Page: 1 of 44EMC TEST REPORTReference No. : WT10093840-E-E-EApplicant : SHENZHEN POWERBULL TECHNOLOGY CO., LTD.Address : F/2, BUILDING A, YICHENG INDUSTRIAL PARK, TIEGANG,XIXIANG, BAOAN, SHENZHEN, P.R.C. 518102Equipment Under Test (EUT) :Product Name :AC-DC ADAPTERModel No : See 3.3 Model ListStandards : EN 55022: 2006 +A1: 2007EN 55024: 1998+A1: 2001+A2: 2003EN 61000-3-2: 2006+A1:2009+A2:2009EN 61000-3-3: 2008Date of Test: Oct. 8~10, 2010Project Engineer : Sonic.ChenReviewed By :Test Result : PASS *Prepared By:Waltek Services (Shenzhen) Co., Ltd.1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District,Shenzhen 518105, ChinaTel :+86-755-27553488Fax:+86-755-27553868* The sample detailed above has been tested to the requirements of Council Directives 2004/108/EC. The test results have been reviewed against the Directives above and found to meet their essentialrequirements.1Test SummaryTest Test Requirement Test Method Class / Severity ResultMains Terminal Disturbance Voltage, 150kHz to 30MHz EN 55022:2006+A1:2007EN 55022:2006+A1:2007Class B PASSRadiation Emission, 30MHz to 1000MHz EN 55022:2006+A1:2007EN 55022:2006+A1:2007Class B PASSHarmonic Emission on AC, 100Hz to 2kHzEN 61000-3-2:2006+A1:2009+A2:2009EN 61000-3-2:2006+A1:2009+A2:2009Clause 7 ofEN61000-3-2N/AFlicker Emission on AC EN 61000-3-3:2008 EN 61000-3-3:2008Clause 5 ofEN61000-3-3PASSESDEN 55024 : 1998+A1:2001+A2:2003EN 61000-4-2:2009ContactAirPASSRadiated Immunity (80MHz to 1GHz)EN 55024 : 1998+A1:2001+A2:2003EN 61000-4-3:20063V/m, 80%, 1kHz,Amp. Mod.PASSElectrical Fast Transients (EFT) on ACEN 55024 : 1998+A1:2001+A2:2003EN 61000-4-4:2004AC±1.0kVDC±0.5kVPASSSurge Immunity on ACEN 55024 : 1998+A1:2001+A2:2003EN 61000-4-5:2006±1kV D.M.†±2kV C.M.‡PASSInjected Currents on AC, 150kHz to 80MHzEN 55024 : 1998+A1:2001+A2:2003EN61000-4-6:20093Vrms(emf), 80%,1kHz Amp. Mod.PASSPower-frequency magnetic fieldEN 55024 : 1998+A1:2001+A2:2003EN 61000-4-8:1993+A1:20013A/m N/AVoltage Dips and Interruptions on ACEN 55024 : 1998+A1:2001+A2:2003EN 61000-4-11:2004>95 % U T* for0.5per>95 % U T* for250per30 % U T* for 25perPASSRemark:A.M. AmplitudeModulation. P.M. PulseModulation.† D.M. – Differential Modez U T is the nominal supply voltage2ContentsPage 1TEST SUMMARY (2)2CONTENTS (3)3GENERAL INFORMATION (5)3.1C LIENT I NFORMATION (5)3.2G ENERAL D ESCRIPTION OF E.U.T (5)3.3D ETAILS OF E.U.T (5)3.4D ESCRIPTION OF S UPPORT U NITS (10)3.5S TANDARDS A PPLICABLE FOR T ESTING (11)3.6T EST F ACILITY (12)3.7T EST L OCATION (12)4EQUIPMENT USED DURING TEST (13)5EMISSION TEST RESULTS (16)5.1M AINS T ERMINALS D ISTURBANCE V OLTAGE,150K H Z TO 30MH Z (16)5.1.1 E.U.T. Operation (16)5.1.2Conducted Test Setup (16)5.1.3Measurement Data (17)5.1.4Conducted Emissions Test Data (17)5.1.5Photograph– Mains Terminal Disturbance Voltage on AC Test Setup (19)5.2R ADIATION E MISSION D ATA (20)5.2.1 E.U.T. Operation (20)5.2.2Measurement Uncertainty (20)5.2.3Radiated Test Setup (21)5.2.4Spectrum Analyzer Setup (21)5.2.5Test procedure (22)5.2.6Corrected Amplitude & Margin Calculation (22)5.2.7Summary of Test Results (22)5.2.8Radiated Emissions Test Data (23)5.2.9Photograph – Radiation Emission Test Setup (24)5.3H ARMONICS T EST R ESULTS (25)5.4F LICKER T EST R ESULT (26)5.4.1 E.U.T. Operation (26)5.4.2Flicker Test Setup (26)5.4.3Test Data (26)5.4.4Photograph- Flicker Test Setup (27)6IMMUNITY TEST RESULTS (28)6.1P ERFORMANCE C RITERIA D ESCRIPTION (28)6.2ESD (28)6.2.1 E.U.T. Operation (28)6.2.2ESD Test Setup (29)6.2.3Direct Application Test Results (29)6.2.4Indirect Application Test Results (29)6.2.5Photograph - ESD Test Setup (30)6.3R ADIATED I MMUNITY (31)6.3.1 E.U.T. Operation (31)6.3.2Radiated Immunity Test Setup (31)6.3.3Test Results (32)6.3.4Photograph - Radiated Immunity Test Setup (32)6.4E LECTRICAL F AST T RANSIENTS (EFT) (33)6.4.1 E.U.T. Operation (33)6.4.2Electrical Fast Transients Test Setup (33)6.4.3Test Results On AC Cable (33)6.4.4Photograph-EFT Test Setup For EUT On AC Cable (34)6.5S URGE (35)6.5.1 E.U.T. Operation (35)6.5.2Surge Test Setup (35)6.5.3Test Results (35)6.5.4Photograph -Surge Test Setup (36)6.6C ONDUCTED I MMUNITY 0.15MH Z TO 80MH Z (37)6.6.1 E.U.T. Operation (37)6.6.2Conducted Immunity Test Setup (37)6.6.3Test Results AC mains of EUT (37)6.6.4Photograph - Conducted Immunity Test Setup On AC Cable (38)6.7V OLTAGE D IPS AND I NTERRUPTIONS (39)6.7.1 E.U.T. Operation (39)6.7.2Voltage Dips and Interruptions Test Setup (39)6.7.3Measurement Data (39)6.7.4Photograph - Voltage Dips and Interruptions Test Setup (40)7PHOTOGRAPHS - CONSTRUCTIONAL DETAILS (41)7.1EUT–F RONT V IEW (41)7.2EUT–S IDE V IEW (41)7.3EUT–O PEN V IEW (42)7.4PCB–T OP V IEW (43)7.5PCB–B OTTOM V IEW (43)8CE LABEL (44)3 General Information3.1 Client InformationApplicant : SHENZHEN POWERBULL TECHNOLOGY CO., LTD. Address of Applicant : F/2, BUILDING A, YICHENG INDUSTRIAL PARK,TIEGANG, XIXIANG, BAOAN, SHENZHEN P.R.C. 518102Manufacturer : SHENZHEN POWERBULL TECHNOLOGY CO., LTD. Address of Manufacturer: F/2, BUILDING A, YICHENG INDUSTRIAL PARK,TIEGANG, XIXIANG, BAOAN, SHENZHEN, P.R.C. 518102 3.2 General Description of E.U.T.Product Name : AC-DC ADAPTER Model No. : See 3.3 Model ListModel Description: All models have the same schematic and PCB layoutexcept for output voltage. The mode LN-2400050-AW, LN-1390080-AW and LN-0750160-AW were the test sample. 3.3 Details of E.U.T.Model ListOUTPUT Rating MODELINPUT RatingV/ A V A LN-0720160-AW AC100-240V 50/60Hz 0.35A 7.2 1.6 LN-0730160-AW AC100-240V 50/60Hz 0.35A 7.3 1.6 LN-0740160-AW AC100-240V 50/60Hz 0.35A 7.4 1.6 LN-0750160-AW AC100-240V 50/60Hz 0.35A 7.5 1.6 LN-0760150-AW AC100-240V 50/60Hz 0.35A 7.6 1.5 LN-0770150-AW AC100-240V 50/60Hz 0.35A 7.7 1.5 LN-0780150-AW AC100-240V 50/60Hz 0.35A 7.8 1.5 LN-0790150-AW AC100-240V 50/60Hz 0.35A 7.9 1.5 LN-0800150-AW AC100-240V 50/60Hz 0.35A 8.0 1.5 LN-0810140-AW AC100-240V 50/60Hz 0.35A 8.1 1.4 LN-0820140-AW AC100-240V 50/60Hz 0.35A 8.2 1.4 LN-0830140-AW AC100-240V 50/60Hz 0.35A 8.3 1.4 LN-0840140-AWAC100-240V 50/60Hz 0.35A8.41.4LN-0850140-AW AC100-240V 50/60Hz 0.35A 8.5 1.4 LN-0860140-AW AC100-240V 50/60Hz 0.35A 8.6 1.4 LN-0870130-AW AC100-240V 50/60Hz 0.35A 8.7 1.3 LN-0880130-AW AC100-240V 50/60Hz 0.35A 8.8 1.3 LN-0890130-AW AC100-240V 50/60Hz 0.35A 8.9 1.3 LN-0900130-AW AC100-240V 50/60Hz 0.35A 9.0 1.3 LN-0910130-AW AC100-240V 50/60Hz 0.35A 9.1 1.3 LN-0920130-AW AC100-240V 50/60Hz 0.35A 9.2 1.3 LN-0930130-AW AC100-240V 50/60Hz 0.35A 9.3 1.3 LN-0940120-AW AC100-240V 50/60Hz 0.35A 9.4 1.2 LN-0950120-AW AC100-240V 50/60Hz 0.35A 9.5 1.2 LN-0960120-AW AC100-240V 50/60Hz 0.35A 9.6 1.2 LN-0970120-AW AC100-240V 50/60Hz 0.35A 9.7 1.2 LN-0980120-AW AC100-240V 50/60Hz 0.35A 9.8 1.2 LN-0990120-AW AC100-240V 50/60Hz 0.35A 9.9 1.2 LN-1000120-AW AC100-240V 50/60Hz 0.35A 10.0 1.2 LN-1010110-AW AC100-240V 50/60Hz 0.35A 10.1 1.1 LN-1010110-AW AC100-240V 50/60Hz 0.35A 10.2 1.1 LN-1030110-AW AC100-240V 50/60Hz 0.35A 10.3 1.1 LN-1040110-AW AC100-240V 50/60Hz 0.35A 10.4 1.1 LN-1050110-AW AC100-240V 50/60Hz 0.35A 10.5 1.1 LN-1060110-AW AC100-240V 50/60Hz 0.35A 10.6 1.1 LN-1070110-AW AC100-240V 50/60Hz 0.35A 10.7 1.1 LN-1080110-AW AC100-240V 50/60Hz 0.35A 10.8 1.1 LN-1090110-AW AC100-240V 50/60Hz 0.35A 10.9 1.1 LN-1100100-AW AC100-240V 50/60Hz 0.35A 11.0 1.0 LN-1110100-AW AC100-240V 50/60Hz 0.35A 11.1 1.0 LN-1120100-AW AC100-240V 50/60Hz 0.35A 11.2 1.0 LN-1130100-AW AC100-240V 50/60Hz 0.35A 11.3 1.0 LN-1140100-AW AC100-240V 50/60Hz 0.35A 11.4 1.0 LN-1150100-AW AC100-240V 50/60Hz 0.35A 11.5 1.0 LN-1160100-AW AC100-240V 50/60Hz 0.35A 11.6 1.0 LN-1170100-AW AC100-240V 50/60Hz 0.35A 11.7 1.0 LN-1180100-AW AC100-240V 50/60Hz 0.35A 11.8 1.0 LN-1190100-AW AC100-240V 50/60Hz 0.35A 11.9 1.0LN-1200100-AW AC100-240V 50/60Hz 0.35A 12.0 1.0 LN-1210090-AW AC100-240V 50/60Hz 0.35A 12.1 0.9 LN-1220090-AW AC100-240V 50/60Hz 0.35A 12.2 0.9 LN-1230090-AW AC100-240V 50/60Hz 0.35A 12.3 0.9 LN-1240090-AW AC100-240V 50/60Hz 0.35A 12.4 0.9 LN-1250090-AW AC100-240V 50/60Hz 0.35A 12.5 0.9 LN-1260090-AW AC100-240V 50/60Hz 0.35A 12.6 0.9 LN-1270090-AW AC100-240V 50/60Hz 0.35A 12.7 0.9 LN-1280090-AW AC100-240V 50/60Hz 0.35A 12.8 0.9 LN-1290090-AW AC100-240V 50/60Hz 0.35A 12.9 0.9 LN-1300090-AW AC100-240V 50/60Hz 0.35A 13.0 0.9 LN-1310090-AW AC100-240V 50/60Hz 0.35A 13.1 0.9 LN-1320090-AW AC100-240V 50/60Hz 0.35A 13.2 0.9 LN-1330090-AW AC100-240V 50/60Hz 0.35A 13.3 0.9 LN-1340090-AW AC100-240V 50/60Hz 0.35A 13.4 0.9 LN-1350080-AW AC100-240V 50/60Hz 0.35A 13.5 0.8 LN-1360080-AW AC100-240V 50/60Hz 0.35A 13.6 0.8 LN-1370080-AW AC100-240V 50/60Hz 0.35A 13.7 0.8 LN-1380080-AW AC100-240V 50/60Hz 0.35A 13.8 0.8 LN-1390080-AW AC100-240V 50/60Hz 0.35A 13.9 0.8 LN-1400080-AW AC100-240V 50/60Hz 0.35A 14.0 0.8 LN-1410080-AW AC100-240V 50/60Hz 0.35A 14.1 0.8 LN-1420080-AW AC100-240V 50/60Hz 0.35A 14.2 0.8 LN-1430080-AW AC100-240V 50/60Hz 0.35A 14.3 0.8 LN-1440080-AW AC100-240V 50/60Hz 0.35A 14.4 0.8 LN-1450080-AW AC100-240V 50/60Hz 0.35A 14.5 0.8 LN-1460080-AW AC100-240V 50/60Hz 0.35A 14.6 0.8 LN-1470080-AW AC100-240V 50/60Hz 0.35A 14.7 0.8 LN-1480080-AW AC100-240V 50/60Hz 0.35A 14.8 0.8 LN-1490080-AW AC100-240V 50/60Hz 0.35A 14.9 0.8 LN-1500080-AW AC100-240V 50/60Hz 0.35A 15.0 0.8 LN-1510070-AW AC100-240V 50/60Hz 0.35A 15.1 0.7 LN-1520070-AW AC100-240V 50/60Hz 0.35A 15.2 0.7 LN-1530070-AW AC100-240V 50/60Hz 0.35A 15.3 0.7 LN-1540070-AW AC100-240V 50/60Hz 0.35A 15.4 0.7LN-1550070-AW AC100-240V 50/60Hz 0.35A 15.5 0.7 LN-1560070-AW AC100-240V 50/60Hz 0.35A 15.6 0.7 LN-1570070-AW AC100-240V 50/60Hz 0.35A 15.7 0.7 LN-1580070-AW AC100-240V 50/60Hz 0.35A 15.8 0.7 LN-1590070-AW AC100-240V 50/60Hz 0.35A 15.9 0.7 LN-1600070-AW AC100-240V 50/60Hz 0.35A 16.0 0.7 LN-1610070-AW AC100-240V 50/60Hz 0.35A 16.1 0.7 LN-1620070-AW AC100-240V 50/60Hz 0.35A 16.2 0.7 LN-1630070-AW AC100-240V 50/60Hz 0.35A 16.3 0.7 LN-1640070-AW AC100-240V 50/60Hz 0.35A 16.4 0.7 LN-1650070-AW AC100-240V 50/60Hz 0.35A 16.5 0.7 LN-1660070-AW AC100-240V 50/60Hz 0.35A 16.6 0.7 LN-1670070-AW AC100-240V 50/60Hz 0.35A 16.7 0.7 LN-1680070-AW AC100-240V 50/60Hz 0.35A 16.8 0.7 LN-1690070-AW AC100-240V 50/60Hz 0.35A 16.9 0.7 LN-1700070-AW AC100-240V 50/60Hz 0.35A 17.0 0.7 LN-1710070-AW AC100-240V 50/60Hz 0.35A 17.1 0.7 LN-1720070-AW AC100-240V 50/60Hz 0.35A 17.2 0.7 LN-1730060-AW AC100-240V 50/60Hz 0.35A 17.3 0.6 LN-1740060-AW AC100-240V 50/60Hz 0.35A 17.4 0.6 LN-1750060-AW AC100-240V 50/60Hz 0.35A 17.5 0.6 LN-1760060-AW AC100-240V 50/60Hz 0.35A 17.6 0.6 LN-1770060-AW AC100-240V 50/60Hz 0.35A 17.7 0.6 LN-1780060-AW AC100-240V 50/60Hz 0.35A 17.8 0.6 LN-1790060-AW AC100-240V 50/60Hz 0.35A 17.9 0.6 LN-1800060-AW AC100-240V 50/60Hz 0.35A 18.0 0.6 LN-1810060-AW AC100-240V 50/60Hz 0.35A 18.1 0.6 LN-1820060-AW AC100-240V 50/60Hz 0.35A 18.2 0.6 LN-1830060-AW AC100-240V 50/60Hz 0.35A 18.3 0.6 LN-1840060-AW AC100-240V 50/60Hz 0.35A 18.4 0.6 LN-1850060-AW AC100-240V 50/60Hz 0.35A 18.5 0.6 LN-1860060-AW AC100-240V 50/60Hz 0.35A 18.6 0.6 LN-1870060-AW AC100-240V 50/60Hz 0.35A 18.7 0.6 LN-1880060-AW AC100-240V 50/60Hz 0.35A 18.8 0.6 LN-1890060-AW AC100-240V 50/60Hz 0.35A 18.9 0.6LN-1900060-AW AC100-240V 50/60Hz 0.35A 19.0 0.6 LN-1910060-AW AC100-240V 50/60Hz 0.35A 19.1 0.6 LN-1920060-AW AC100-240V 50/60Hz 0.35A 19.2 0.6 LN-1930060-AW AC100-240V 50/60Hz 0.35A 19.3 0.6 LN-1940060-AW AC100-240V 50/60Hz 0.35A 19.4 0.6 LN-1950060-AW AC100-240V 50/60Hz 0.35A 19.5 0.6 LN-1960060-AW AC100-240V 50/60Hz 0.35A 19.6 0.6 LN-1970060-AW AC100-240V 50/60Hz 0.35A 19.7 0.6 LN-1980060-AW AC100-240V 50/60Hz 0.35A 19.8 0.6 LN-1990060-AW AC100-240V 50/60Hz 0.35A 19.9 0.6 LN-2000060-AW AC100-240V 50/60Hz 0.35A 20.0 0.6 LN-2010050-AW AC100-240V 50/60Hz 0.35A 20.1 0.5 LN-2020050-AW AC100-240V 50/60Hz 0.35A 20.2 0.5 LN-2030050-AW AC100-240V 50/60Hz 0.35A 20.3 0.5 LN-2040050-AW AC100-240V 50/60Hz 0.35A 20.4 0.5 LN-2050050-AW AC100-240V 50/60Hz 0.35A 20.5 0.5 LN-2060050-AW AC100-240V 50/60Hz 0.35A 20.6 0.5 LN-2070050-AW AC100-240V 50/60Hz 0.35A 20.7 0.5 LN-2080050-AW AC100-240V 50/60Hz 0.35A 20.8 0.5 LN-2090050-AW AC100-240V 50/60Hz 0.35A 20.9 0.5 LN-2100050-AW AC100-240V 50/60Hz 0.35A 21.0 0.5 LN-2110050-AW AC100-240V 50/60Hz 0.35A 21.1 0.5 LN-2120050-AW AC100-240V 50/60Hz 0.35A 21.2 0.5 LN-2130050-AW AC100-240V 50/60Hz 0.35A 21.3 0.5 LN-2140050-AW AC100-240V 50/60Hz 0.35A 21.4 0.5 LN-2150050-AW AC100-240V 50/60Hz 0.35A 21.5 0.5 LN-2160050-AW AC100-240V 50/60Hz 0.35A 21.6 0.5 LN-2170050-AW AC100-240V 50/60Hz 0.35A 21.7 0.5 LN-2180050-AW AC100-240V 50/60Hz 0.35A 21.8 0.5 LN-2190050-AW AC100-240V 50/60Hz 0.35A 21.9 0.5 LN-2200050-AW AC100-240V 50/60Hz 0.35A 22.0 0.5 LN-2210050-AW AC100-240V 50/60Hz 0.35A 22.1 0.5 LN-2220050-AW AC100-240V 50/60Hz 0.35A 22.2 0.5 LN-2230050-AW AC100-240V 50/60Hz 0.35A 22.3 0.5 LN-2240050-AW AC100-240V 50/60Hz 0.35A 22.4 0.5LN-2250050-AW AC100-240V 50/60Hz 0.35A 22.5 0.5LN-2260050-AW AC100-240V 50/60Hz 0.35A 22.6 0.5LN-2270050-AW AC100-240V 50/60Hz 0.35A 22.7 0.5LN-2280050-AW AC100-240V 50/60Hz 0.35A 22.8 0.5LN-2290050-AW AC100-240V 50/60Hz 0.35A 22.9 0.5LN-2300050-AW AC100-240V 50/60Hz 0.35A 23.0 0.5LN-2310051-AW AC100-240V 50/60Hz 0.35A 23.1 0.5LN-2320050-AW AC100-240V 50/60Hz 0.35A 23.2 0.5LN-2330050-AW AC100-240V 50/60Hz 0.35A 23.3 0.5LN-2340050-AW AC100-240V 50/60Hz 0.35A 23.4 0.5LN-2350050-AW AC100-240V 50/60Hz 0.35A 23.5 0.5LN-2360050-AW AC100-240V 50/60Hz 0.35A 23.6 0.5LN-2370050-AW AC100-240V 50/60Hz 0.35A 23.7 0.5LN-2380050-AW AC100-240V 50/60Hz 0.35A 23.8 0.5LN-2390050-AW AC100-240V 50/60Hz 0.35A 23.9 0.5LN-2400050-AW AC100-240V 50/60Hz 0.35A 24.0 0.5--THE END--3.4Description of Support UnitsThe resistor is the support unit.3.5Standards Applicable for TestingThe customer requested EMC tests for an AC-DC ADAPTER. The standards used wereEN55022 for emissions & EN55024 for immunity, and EN 61000-3-2,EN 61000-3-3 forHarmonic and Flicker..Table 1 : Tests Carried Out Under EN 55022: 2006+A1:2007Standard Status EN 55022:2006+A1:2007 Radiation Emission, 30MHz to 1000MHz √EN 55022:2006+A1:2007 Mains Terminal Disturbance Voltage,150KHz to 30MHz √Table 2 : Tests Carried Out Under EN 61000-3-2: 2006+A1:2009+A2:2009 & EN 61000-3-3:2008EN 61000-3-2: 2006+A1:2009+A2:2009 Harmonic Emissions on AC ×EN 61000-3-3:2008 Flicker Emissions on AC √Table 3 : Tests Carried Out Under EN 55024:1998+A1:2001+A2: 2003Standard Status EN 61000-4-2:2009 Electro-static discharge √EN 61000-4-3:2006 Radio frequency EM fields (80MHz to 1GHz) √EN 61000-4-4:2004 Fast transients √EN 61000-4-5:2006 Surges √EN 61000-4-6: 2009 Radio frequency continuous conducted (150kHz to 80MHz) √EN 61000-4-8:1993+A1:2001 Power-frequency magnetic field (50Hz) ×EN 61000-4-11:2004 Voltage dips & interruptions √√Indicates that the test is applicable×Indicates that the test is not applicable3.6Test FacilityThe test facility is recognized, certified, or accredited by the following organizations:• IC – Registration No.: 7760AWaltek Services(Shenzhen) Co., Ltd. has been registered and fully described in a report filed with the Industry Canada. The acceptance letter from the Industry Canada is maintained in our files. Registration 7760A, Aug 03, 2010.•FCC – Registration No.: 880581Waltek Services(Shenzhen) Co., Ltd. EMC Laboratory has been registered and fullydescribed in a report filed with the (FCC) Federal Communications Commission. Theacceptance letter from the FCC is maintained in our files. Registration 880581, June 24, 2008.3.7Test LocationAll the tests were performed at:-Waltek Services(Shenzhen) Co., Ltd. at 1/F, Fukangtai Building, West Baima Rd.,Songgang Street, Baoan District, Shenzhen, China4Equipment Used during TestEquipment Name ManufacturerModelEquipment NoInternal No SpecificationCal.DateDueDateCert. No UncertaintyEMC Analyzer Agilent/E7405AMY45114943W2008001 9k-26.5GHz Aug-10Aug-11Wws20081596±1dBTrilog Broadband Antenne 30-3000 MHz SCHWARZBECK MESS-ELEKTROM/VULB9163336W2008002 30-3000MHz Aug-10Aug-11 - ±1dBBroad-band Horn Antenna 1-18 GHz SCHWARZBECK MESS-ELEKTROM/VULB9163667W2008003 1-18GHz Aug-10Aug-11 -f＜10GHz：±1dB10GHz＜f＜18 GHz：±1.5dBBroadband Preamplifier 0.5-18 GHz SCHWARZBECK MESS-ELEKTROM/BBV 97189718-148W2008004 0.5-18GHz Aug-10Aug-11 - ±1.2dB10m Coaxial Cable with N-male Connectors usable up to 18GHz, SCHWARZBECK MESS-ELEKTROM/AK 9515 H-- - Aug-10Aug-11--10m 50 Ohm Coaxial Cable with N-plug, individual length, usable up to 3(5)GHz, Connector SCHWARZBECK MESS-ELEKTROM/AK 9513- - - Aug-10Aug-11- -Positioning Controller C&C LAB/CC-C-IF-- - N/AN/A--Color Monitor SUNSPO/ SP-14C-- - N/AN/A--Test Receiver ROHDE&SCHWARZ/ESPI101155W2005001 9k-3GHz Aug-10Aug-11Wws20080942±1dBEMI Receiver Beijingkehuan KH3931- 9k-1GHzAug-10Aug-11--Two-Line V-Network ROHDE&SCHWARZ/ENV216100115W2005002 50Ω/50μΗ Aug-10Aug-11Wws20080941±10%Absorbing Clamp ROHDE&SCHWARZ/MDS-21100205 W2005003 impandance50Ωloss：17 dBAug-10Aug-11Wws20080943±1dBEquipment Name ManufacturerModelEquipment NoInternal No SpecificationCal.DateDueDateCert. No Uncertainty10m 50 Ohm Coaxial Cable with N-plug, individual length, usable up to 3(5)GHz, Connectors SCHWARZBECK MESS-ELEKTROM/AK 9514- - - Aug-10Aug-11- -Digital Power Analyzer Em TestAG/Switzerland/ DPA 500V0745103095W2008012Power：2000VAVol-range：0-300VFreq_range：10-80HzPower Source Em TestAG/Switzerland/ ACS 500V0745103096W2008013Vol-range：0-300VPower_freq：10-80HzAug-10Aug-11Wwd20081185Voltagedistinguish:0.025%Power_freqdistinguish:0.02HzElectrostatic Discharge Simulator Em TestAG/Switzerland/DITOV0745103094W2008005Contactdischarge：500V-10KVAirdiacharge：500V-16.5KVAug-10Aug-11Wwc200824007.5A currentwill bechanged inV m=1.5VRF Generator TESEQGmbH/NSG407025781W2008008Fraq-range：9K-1GHzRF voltage：-60 dBm-+10dBmAug-10Aug-11Wws20081890Power_freqdistinguish0.1HzRFeletricitydistinguish0.1ＢCDN M-Type TESEQGmbH/ CDNM01625112W2008009Voltagecorrect factor9.5 dBAug-10Aug-11Wwc20082396150K-80MHz：±1dB80-230MHz:-2-+3dBEM-Clamp TESEQGmbH/KEMZ 801 25453W2008010Freq_range：0.15-1000MHzAug-10Aug-11Wwc200823970.3-400MHz：±4dBOther freq：±5dBAttenuator 6dB TESEQGmbH/ATN605025365Aug-10Aug-11Wws20081597All Modules GeneratorSCHAFFNER /6150 34579 W2008006voltage:200V-4.4KVPulsecurrent：100A-2.2KAAug-10Aug-11Wwc20082401voltage:±10%Pulsecurrent：±10%Equipment Name ManufacturerModelEquipment NoInternal No SpecificationCal.DateDueDateCert. No UncertaintyCapacitive Coupling Clamp SCHAFFNER/ CDN 801425311Aug-10Aug-11Wwc20082398-Signal and Data Line Coupling Network SCHAFFNER/ CDN 11725627W20080111.2/50μSAug-10Aug-11Wwc20082399-AC Power Supply TONGYUN/DTDGC-4Aug-10Aug-11Wws20080944-Exposure Level Tester ELT-400 Narda SafetyTESTSolutions/2304/03M-0155 w2008022Test freqrange：1－400kHzTestuncertainly:1－120kHz:±1.83%,120 kHz-400kHz:±4.06%Magnetic Field Probe 100cm2 Narda SafetyTESTSolutions/2300/90.10M-1070w2008021Test freqrange：1－400kHzAug-10Aug-11Wwd20081191 Testuncertainly:1Hz-10Hz:±16.2%,10Hz -120kHz:±2.2%,120 kHz-400kHz: ±4.7%Active LoopAntenna Charger 10kHz-30MHz Beijing Dazhi/ ZN30900A- -10kHz-30MHzAug-10Aug-11 - ±1dB5Emission Test Results5.1Mains Terminals Disturbance Voltage, 150kHz to 30MHzTest Requirement: EN 55022 Class BTest Method: EN 55022 Class BTest Result: PASSFrequency Range: 150kHz to 30MHzBClass/Severity: ClassDetector: Peak for pre-scan (9kHz Resolution Bandwidth)Quasi-Peak & Average if maximised peak within 6dB of AverageLimit5.1.1E.U.T. OperationOperating Environment:°CTemperature: 25.5Humidity: 51 % RHAtmospheric Pressure: 1012 mbarEUT Operation :Compliance test was performed in working mode with full load,half load and no load.fullload is the worst mode.below shows the mode data.The maximised peak emissions from the EUT was scanned and measured for both the Live and Neutral Lines. Quasi-peak & average measurements were performed if peak emissions were within 6dB of the average limit line.5.1.2Conducted Test SetupThe conducted emission tests were performed using the setup accordance with the EN55022:2006+A1:2007, The specification used in this report was the EN 55022:2006+A1:2007 Paragraph 5 limits.5.1.3Measurement DataAn initial pre-scan was performed on the live and neutral lines.No futher quasi-peak or average measurements were performed since no peak emissions were detected within 10dB line below the average limit.Please refer to the following peak scan graph for reference.5.1.4Conducted Emissions Test DataM/N:LN-1390080-AW(the worst model) Mode:Full load mode(the worst mode)Live Line:Neutral Line:5.1.5Photograph– Mains Terminal Disturbance Voltage on AC Test Setup5.2Radiation Emission DataTest Requirement: EN 55022 Class BTest Method: EN 55022 Class BTest Result: PASSFrequency Range: 30MHz to 1000MHzBClass/Severity: ClassDetector: Peak for pre-scan (120KHz Resolution Bandwidth)Quasi-Peak & Average if maximised peak within 6dB of AverageLimit5.2.1E.U.T. OperationOperating Environment:°CTemperature: 25.5Humidity: 51 % RHAtmospheric Pressure: 1012 mbarEUT Operation :Compliance test was performed in working mode with full load,half load and no load.full load is the worst mode.below shows the mode data.5.2.2Measurement UncertaintyAll measurements involve certain levels of uncertainties, especially in the field of EMC. The factors contributing to uncertainties are spectrum analyzer, cable loss, antenna factorcalibration, antenna directivity, antenna factor variation with height, antenna phase centervariation, antenna factor frequency interpolation, measurement distance variation, siteimperfections, mismatch (average), and system repeatability.Based on CISPR16-4-2, The Treatment of Uncertainty in EMC Measurements, the bestestimate of the uncertainty of a radiation emissions measurement at Waltek EMC Lab is+5.03 dB.5.2.3Radiated Test SetupThe radiated emission tests were performed in the 3m Semi- Anechoic Chamber test site,using the setup accordance with the EN 55022:2006+A1:2007, The specification used in this report was the EN 55022:2006+A1:2007Paragraph 6 limits.5.2.4Spectrum Analyzer SetupAccording to EN55022 Class B Rules, the system was tested to 1000 MHz.Start Frequency..............................................30 MHzStop Frequency..............................................1000 MHzSweep Speed AutoIF Bandwidth.............................................120KHzVideo Bandwidth...........................................100KHzQuasi-Peak Adapter Bandwidth....................120 KHzQuasi-Peak Adapter Mode............................NormalResolution Bandwidth...................................100KHz5.2.5Test procedureFor the radiated emissions test, maximizing procedure was performed on the six (6) highest emissions to ensure EUT is compliant with all installation combinations.All data was recorded in the peak detection mode. Quasi-peak readings was performed only when an emission was found to be marginal (within +/-4 dBμV of specification limits), and are distinguished with a "Qp" in the data table.The EUT was under normal mode during the final qualification test and the configuration was used to represent the worst case results.5.2.6Corrected Amplitude & Margin CalculationThe Corrected Amplitude is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain from the Amplitude reading. The basic equation is as follows:Corr. Ampl. = Indicated Reading + Antenna Factor + Cable Factor - Amplifier GainThe “Margin” column of the following data tables indicates the degree of compliance with the applicable limit. For example, a margin of -7dBμV means the emission is 7dBμV below the maximum limit for Class B. The equation for margin calculation is as follows:Margin = Corr. Ampl. – Class B Limit5.2.7Summary of Test ResultsAccording to the data in section 5.2.8, the EUT complied with the EN55022 Class B standards.5.2.8Radiated Emissions Test DataM/N:LN-1390080-AW(the worst model) Mode:Full load mode(the worst mode) Antenna Polarization：VerticalAntenna Polarization：Horizontal5.2.9Photograph – Radiation Emission Test Setup5.3Harmonics Test ResultsTest Requirement: EN61000-3-2Test Method: EN61000-3-2Frequency Range: 100Hz to 2kHzTest Result: N/AFor further details, please refer to Clause 7, Note 1 of EN61000-3-2 which states:-“For the following categories of equipment limits are not specified in this edition of the standard.Note 1: Equipment with a rated power of 75W or less, other than lighting equipment.”5.4Flicker Test ResultTest Requirement: EN61000-3-3Test Method: EN61000-3-3Test Result PASS5.4.1E.U.T. OperationOperating Environment:°CTemperature: 25.5Humidity: 51 % RHAtmospheric Pressure: 1012 mbarEUT Operation :Compliance test was performed in working mode with full load,half load and no load.full load is the worst mode.below shows the mode data.5.4.2Flicker Test SetupThe Flicker Test steup accordance with the EN 61000-3-3, The Specificationused in this report was the EN61000-3-3 Paragraph 5 limits.5.4.3Test DataM a x i m u m F l i c k e r r e s u l t sEUT values Limit ResultPASS1.00Pst 0.0540.65PASSPlt 0.054dc [%] 0.004 3.30 PASSdmax [%] 0.269 4.00 PASSdt [s] 0.000 0.50 PASS5.4.4Photograph- Flicker Test Setup6Immunity Test Results6.1Performance Criteria DescriptionCriterion A: The apparatus shall continue to operate as intended. No degradation ofperformance or loss of function is allowed below a performance level specified bythe manufacturer, when the apparatus is used as intended.Criterion B: The apparatus shall continue to operate as intended after the test. No degradation of performance or loss of function is allowed below a performance level specifiedby the manufacturer, when the apparatus is used as intended.Criterion C: Temporary loss of function is allowed, provided the function is self recoverable or can be restored by the operation of the controls.For further details, please refer to EN55024.6.2ESDTest Requirement: EN55024Test Method: EN61000-4-2Test Result: PASSDischarge Impedance: 330 Ω / 150 pFDischarge Voltage: Air Discharge: +/- 8 kVContact Discharge: +/- 4 kVHCP & VCP: +/- 4 kVPolarity: Positive & NegativeNumber of Discharge: Minimum 10 times at each test pointDischarge Mode: Single DischargeDischarge Period: 1 second minimum6.2.1 E.U.T. OperationOperating Environment:Temperature : 25.5 °CHumidity : 51 % RHBarometric Pressure : 1012 mbarEUT Operation:Compliance test was performed in working mode with full load mode.。
