ADM3202ARU

  • 格式：pdf
  • 大小：153.61 KB
  • 文档页数：8

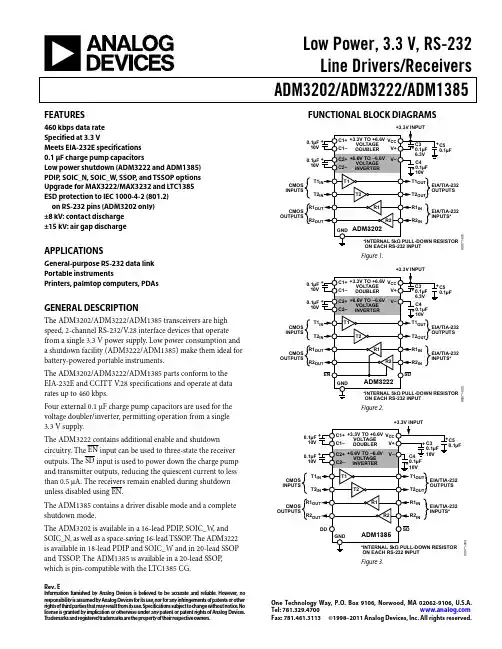

REV.AInformation furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.aADM3202/ADM3222/ADM1385One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.Tel: 781/329-4700World Wide Web Site: Fax: 781/326-8703© Analog Devices, Inc., 2000Low Power, +3.3 V, RS-232Line Drivers/Receivers FUNCTIONAL BLOCK DIAGRAMSFEATURES460 kbps Data Rate Specified at +3.3 VMeets EIA-232E Specifications 0.1 ␮F Charge Pump CapacitorsLow Power Shutdown (ADM3222E and ADM1385)DIP, SO, SOIC, SSOP and TSSOP Package Options Upgrade for MAX3222/32 and LTC1385APPLICATIONSGeneral Purpose RS-232 Data Link Portable Instruments PrintersPalmtop Computers PDAsGENERAL DESCRIPTIONThe ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices which operate from a single +3.3 V power supply.Low power consumption and a shutdown facility (ADM3222/ADM1385) makes them ideal for battery powered portable instruments.The ADM3202/ADM3222/ADM1385 conforms to the EIA-232E and CCITT V.28 specifications and operates at data rates up to 460 kbps.Four external 0.1µF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single +3.3V supply.The ADM3222 contains additional enable and shutdown cir-cuitry. The EN input may be used to three-state the receiver outputs. The SD input is used to power down the chargepump and transmitter outputs reducing the quiescent current to less than 0.5µA. The receivers remain enabled during shutdown unless disabled using EN .The ADM1385 contains a driver disable mode and a complete shutdown mode.The ADM3202 is available in a 16-lead DIP, narrow and wide SOIC as well as a space saving 20-lead TSSOP package. The ADM3222 is available in 18-lead DIP, SO and in 20-lead SSOP and TSSOP. The ADM1385 is available in a 20-lead SSOP package, which is pin compatible with the LTC1385 CG.ADM3202/ADM3222/ADM1385–SPECIFICATIONS(V CC = +3.3 V ؎ 0.3 V, C1–C4 = 0.1 ␮F. All specifications T MIN to T MAX unless otherwise noted.)Parameter Min Typ Max Unit Test Conditions/CommentsDC CHARACTERISTICSOperating Voltage Range 3.0 3.3 5.5VV CC Power Supply Current 1.3 2.1mA No Load810mA R L = 3 kΩ to GNDShutdown Supply Current0.010.5µALOGICInput Logic Threshold Low, V INL0.8V T INInput Logic Threshold High, V INH 2.0V T INCMOS Output Voltage Low, V OL0.4V I OUT = 1.6 mACMOS Output Voltage High, V OH V CC – 0.6V I OUT = –1 mAInput Leakage Current0.01±1µA T IN = GND to V CC*Output Leakage Current±10µA Receivers DisabledRS-232 RECEIVEREIA-232 Input Voltage Range–30+30VEIA-232 Input Threshold Low0.6 1.2VEIA-232 Input Threshold High 1.6 2.4VEIA-232 Input Hysteresis0.4VEIA-232 Input Resistance357kΩRS-232 TRANSMITTEROutput Voltage Swing (RS-232)±5.0±5.2V V CC = 3.3 V. All Transmitter Outputs Loadedwith 3kΩ to GroundOutput Voltage Swing (RS-562)±3.7V V CC = 3.0 VTransmitter Output Resistance300ΩV CC = 0 V, V OUT = ±2 VRS-232 Output Short Circuit Current±15mAOutput Leakage Current±25µA SD = Low, V OUT = 12 VTIMING CHARACTERISTICSMaximum Data Rate460kbps V CC = 3.3 V, R L = 3 kΩ to 7 kΩ, C L = 50pF to Receiver Propagation Delay1000 pF. One Tx SwitchingTPHL0.41µsTPLH0.41µsTransmitter Propagation Delay300750ns R L = 3 kΩ, C L = 1000 pFReceiver Output Enable Time200nsReceiver Output Disable Time200nsTransmitter Skew30nsReceiver Skew300nsTransition Region Slew Rate Measured from +3 V to –3 V or –3 V to +3 V,V CC = +3.3 V61030V/µs R L = 3 kΩ, C L = 1000 pF, T A = +25°C41030V/µs R L = 3 kΩ, C L = 2500 pF, T A = +25°C*ADM1385: Input leakage current typically –10 µA when T IN = GND.Specifications subject to change without notice.–2–REV. AADM3202/ADM3222/ADM1385–3–REV. A ABSOLUTE MAXIMUM RATINGS *(T A = +25°C unless otherwise noted)V CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +6 V V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . (V CC – 0.3 V) to +14 V V– . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to –14 V Input VoltagesT IN . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to (V+, +0.3 V)R IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 V Output VoltagesT OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15 V R OUT . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to (V CC + 0.3 V)Short Circuit DurationT OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous Power DissipationPower Dissipation N-16 . . . . . . . . . . . . . . . . . . . . . 450 mW (Derate 6 mW/°C above +50°C)θJA , Thermal Impedance . . . . . . . . . . . . . . . . . . . 117°C/W Power Dissipation R-16 . . . . . . . . . . . . . . . . . . . . . 450 mW (Derate 6 mW/°C above +50°C)θJA , Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W Power Dissipation RU-16 . . . . . . . . . . . . . . . . . . . 500 mW (Derate 6 mW/°C above +50°C)θJA , Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W Power Dissipation R-18 . . . . . . . . . . . . . . . . . . . . . 450 mW (Derate 6 mW/°C above +50°C)θJA , Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W Power Dissipation RS-20 . . . . . . . . . . . . . . . . . . . . 450 mW (Derate 6 mW/°C above +50°C)θJA , Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W Power Dissipation RU-20 . . . . . . . . . . . . . . . . . . . 450 mW (Derate 6 mW/°C above +50°C)θJA , Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W Operating Temperature RangeIndustrial (A Version) . . . . . . . . . . . . . . . . –40°C to +85°C Storage Temperature Range . . . . . . . . . . . . –65°C to +150°C Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . +300°C ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1500 V*This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operation sections of this specificatio n is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.ORDERING GUIDEModel Temperature Range Package Options *ADM3202AN –40°C to +85°C N-16ADM3202ARN –40°C to +85°C R-16A ADM3202ARW –40°C to +85°C R-16ADM3202ARU –40°C to +85°C RU-16ADM3222AN –40°C to +85°C N-18ADM3222ARW –40°C to +85°C R-18ADM3222ARS –40°C to +85°C RS-20ADM3222ARU –40°C to +85°C RU-20ADM1385ARS–40°C to +85°CRS-20*N = Plastic DIP; R = Small Outline; RS = Shrink Small Outline; RU = Thin Shrink Small Outline.ADM3202/ADM3222/ADM1385–4–REV. APIN FUNCTION DESCRIPTIONSMnemonic FunctionV CC Power Supply Input: +3.3V ± 0.3 V.V+Internally Generated Positive Supply (+6 V Nominal).V–Internally Generated Negative Supply (–6 V Nominal).GND Ground Pin. Must be connected to 0 V.C1+, C1–External Capacitor 1 is connected between these pins. 0.1 µF capacitor is recommended but larger capacitors up to 47 µF may be used.C2+, C2–External Capacitor 2 is connected between these pins. 0.1 µF capacitor is recommended but larger capacitors up to 47 µF may be used.Tx IN Transmitter (Driver) Inputs. These inputs accept TTL/CMOS levels.Tx OUT Transmitter (Driver)Outputs. These are RS-232signal levels (typically ±9 V).Rx INReceiver Inputs. These inputs accept RS-232signal levels. An internal 5 k Ω pull-down resistor to GND is connected on each input.Rx OUT Receiver Outputs. These are CMOS output logic levels.EN(ADM3222) Receiver Enable, Active Low. When low, the receiver outputs are enabled. When high,they are three-stated.SD(ADM3222) Shutdown Control. Active Low.When low, the charge pump is shut down and the transmitter outputs are disabled.SD(ADM1385) Shutdown Control. When low, thecharge pump is shut down and all transmitters and receivers are disabled.DD(ADM1385) Driver Disable. When low, the charge pump is turned off and the transmitters are disabled. The receivers remain active.PIN CONNECTIONS DIP (N, R Packages)PIN CONNECTIONS DIP (RS, RU Packages)ADM3202/ADM3222/ADM1385–5–REV. A Typical Performance CharacteristicsFigure 1.Transmitter Output Voltage High/Low vs. Load Capacitance @ 230 kbpsV CC – V12103 5.53.54.04.55.08642Figure 2.Transmitter Output Voltage High vs. V CCFigure 3.Transmitter Output Voltage Low/High vs. Load CurrentCURRENT – mA86–4010203040420–2–6–8V– (V)V+ (V)Figure 4.Charge Pump V+, V– vs. CurrentFigure 5.Charge Pump Impedance vs. VCCFigure 6.Power Supply Current vs. Load CapacitanceADM3202/ADM3222/ADM1385–6–REV. AGENERAL DESCRIPTIONThe ADM3202/ADM3222/ADM1385 are RS-232 line drivers/receivers. Step-up voltage converters coupled with level shifting transmitters and receivers allow RS-232 levels to be developed while operating from a single +3.3 V supply.CMOS technology is used to keep the power dissipation to an absolute minimum, allowing maximum battery life in portable applications.The ADM3202/ADM3222/ADM1385 is a modification, en-hancement and improvement to the AD230–AD241 family and its derivatives. It is essentially plug-in compatible and does not have materially different applications.CIRCUIT DESCRIPTIONThe internal circuitry consists of three main sections. These are:1.A charge pump voltage converter 2.3.3V logic to EIA-232 transmitters 3.EIA-232 to 5V logic receivers.Charge Pump DC-DC Voltage ConverterThe charge pump voltage converter consists of a 200 kHz oscil-lator and a switching matrix. The converter generates a ±6.6V supply from the input +3.3 V level. This is done in two stages using a switched capacitor technique as illustrated below. First,the +3.3V input supply is doubled to +6.6 V using capacitor C1 as the charge storage element. The +6.6V level is then inverted to generate –6.6 V using C2 as the storage element. C3is shown connected between V+ and V CC , but is equally effec-tive if connected between V+ and GND.Capacitors C3 and C4 are used to reduce the output ripple.Their values are not critical and can be increased if desired.Capacitor C3 is shown connected between V+ and V CC . It is also acceptable to connect this capacitor between V+ and GND.If desired, larger capacitors (up to 10 µF) can be used for capacitors C1–C4.Figure 8.Typical Operating CircuitsFigure 7.230 kbps Data TransmissionADM3202/ADM3222/ADM1385–7–REV. A OUTLINE DIMENSIONSDimensions shown in inches and (mm).16-Lead Plastic DIP(N-16)16-Lead Thin Shrink Small Outline (TSSOP)(RU-16)PLANE BSC0.0035 (0.090)16-Lead Narrow Body SOIC(R-16A)؇16-Lead Wide Body SOIC(R-16)Figure 9.Charge Pump Voltage DoublerFigure 10.Charge Pump Voltage InverterTransmitter (Driver) SectionThe drivers convert 3.3V logic input levels into RS-232 output levels. With V CC = +3.3V and driving an RS-232 load, the output voltage swing is typically ±6 V.Receiver SectionThe receivers are inverting level-shifters that accept RS-232input levels and translate them into 3 V logic output levels.The inputs have internal 5 k Ω pull-down resistors to ground and are also protected against overvoltages of up to ±30 V. Uncon-nected inputs are pulled to 0 V by the internal 5 k Ω pull-down resistor. This, therefore, results in a Logic 1 output level for unconnected inputs or for inputs connected to GND.The receivers have Schmitt trigger inputs with a hysteresis level of 0.4 V. This ensures error-free reception for both noisy inputs and for inputs with slow transition times.HIGH BAUD RATEThe ADM3202E/ADM3222E feature high slew rates permitting data transmission at rates well in excess of the EIA/RS-232E specifications. RS-232 voltage levels are maintained at data rates up to 460 kbps even under worst case loading conditions. This allows for high speed data links between two terminals or indeed it is suitable for the new generation I SDN modem standards which requires data rates of 230 kbps. The slew rate is internally con-trolled to less than 30 V/µs in order to minimize EMI interference.ADM3202/ADM3222/ADM1385–8–REV. AC 00071–0–8/00 (r e v . A )P R I N T E D I N U .S .A .20-Lead Thin Shrink Small Outline (TSSOP)(RU-20)18-Lead Plastic DIP(N-18)18-Lead Wide Body SOIC(R-18)20-Lead Shrink Small Outline (SSOP)(RS-20)。

合集下载

MEMORY存储芯片ADM3202ARUZ-REEL7中文规格书

MEMORY存储芯片ADM3202ARUZ-REEL7中文规格书

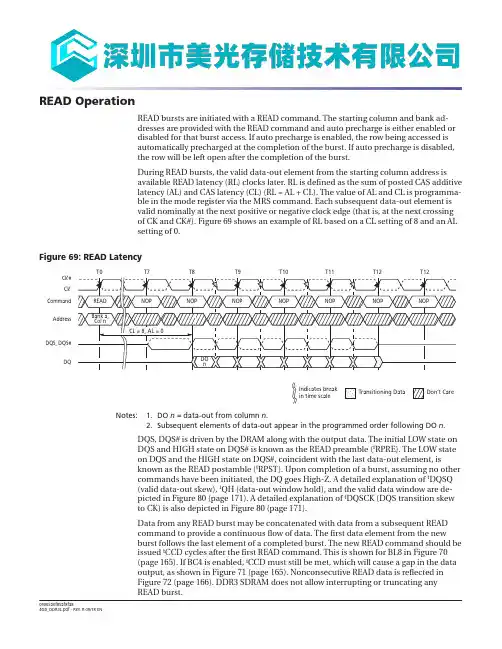

READ OperationREAD bursts are initiated with a READ command. The starting column and bank ad-dresses are provided with the READ command and auto precharge is either enabled or disabled for that burst access. If auto precharge is enabled, the row being accessed is automatically precharged at the completion of the burst. If auto precharge is disabled,the row will be left open after the completion of the burst.During READ bursts, the valid data-out element from the starting column address is available READ latency (RL) clocks later. RL is defined as the sum of posted CAS additive latency (AL) and CAS latency (CL) (RL = AL + CL). The value of AL and CL is programma-ble in the mode register via the MRS command. Each subsequent data-out element is valid nominally at the next positive or negative clock edge (that is, at the next crossing of CK and CK#). Figure 69 shows an example of RL based on a CL setting of 8 and an AL setting of 0.Figure 69: READ LatencyCKCK#CommandAddressDQDQS, DQS#Don’t CareTransitioning Data Indicates break in time scaleNotes:1.DO n = data-out from column n .2.Subsequent elements of data-out appear in the programmed order following DO n .DQS, DQS# is driven by the DRAM along with the output data. The initial LOW state on DQS and HIGH state on DQS# is known as the READ preamble (t RPRE). The LOW state on DQS and the HIGH state on DQS#, coincident with the last data-out element, isknown as the READ postamble (t RPST). Upon completion of a burst, assuming no other commands have been initiated, the DQ goes High-Z. A detailed explanation of t DQSQ (valid data-out skew), t QH (data-out window hold), and the valid data window are de-picted in Figure 80 (page 171). A detailed explanation of t DQSCK (DQS transition skew to CK) is also depicted in Figure 80 (page 171).Data from any READ burst may be concatenated with data from a subsequent READ command to provide a continuous flow of data. The first data element from the new burst follows the last element of a completed burst. The new READ command should be issued t CCD cycles after the first READ command. This is shown for BL8 in Figure 70(page 165). If BC4 is enabled, t CCD must still be met, which will cause a gap in the data output, as shown in Figure 71 (page 165). Nonconsecutive READ data is reflected in Figure 72 (page 166). DDR3 SDRAM does not allow interrupting or truncating any READ burst.Figure 100: Precharge Power-Down (Slow-Exit Mode) Entry and ExitCKCK#CommandCKEEnter power-downmode Exit power-downmodeDon’t CareIndicates break in time scaleNotes:1.Any valid command not requiring a locked DLL.2.Any valid command requiring a locked DLL.Figure 101: Power-Down Entry After READ or READ with Auto Precharge (RDAP)Don’t CareTransitioning Data CKCK#Command DQ BL8DQ BC4DQS, DQS#Address CKEPower-down or self refresh entryIndicates break in time scaleFigure 102: Power-Down Entry After WRITECKCK#Command DQ BL8DQ BC4DQS, DQS#AddressCKEself refresh entry1Don’t CareTransitioning Data Indicates break in time scaleNote:1.CKE can go LOW 2t CK earlier if BC4MRS.Figure 103: Power-Down Entry After WRITE with Auto Precharge (WRAP)Don’t CareTransitioning Data CKCK#CommandDQ BL8DQ BC4DQS, DQS#Address A10CKEPower-down or self refresh entry 2Start internal precharge Indicates break in time scaleNotes:1.t WR is programmed through MR0[11:9] and represents t WRmin (ns)/t CK rounded up tothe next integer t CK.2.CKE can go LOW 2t CK earlier if BC4MRS.Figure 104: REFRESH to Power-Down EntryCKCK#CommandCKET0T1T2T3Ta0Ta1Ta2Tb0Don’t CareIndicates break in time scaleNote:1.After CKE goes HIGH during t RFC, CKE must remain HIGH until t RFC is satisfied.Figure 105: ACTIVATE to Power-Down EntryCKCK#Command Address CKET0T1T2T3T4T5T6T7Figure 108: Power-Down Exit to Refresh to Power-Down EntryCKCK#CKET0T1T2T3T4Ta0Ta1Tb0Command。

ADM3202

ADM3202

Figure 2.
+3.3V INPUT
0.1µF + 10V
0.1µF + 10V
CMOS INPUTS
T1IN T2IN
C1+
+3.3V TO +6.6V VOLTAGE
VCC
C1– DOUBLER V+
C2+ +6.6V TO –6.6V V– VOLTAGE
C2– INVERTER
T1
T2
C4 0.1µF
on RS-232 pins (ADM3202 only) ±8 kV: contact discharge ±15 kV: air gap discharge
APPLICATIONS
General-purpose RS-232 data link Portable instruments Printers, palmtop computers, PDAs
CMOS INPUTS
T1IN T2IN
C1+
+3.3V TO +Leabharlann .6V VOLTAGEVCC
C1– DOUBLER V+
C2+ +6.6V TO –6.6V V– VOLTAGE
C2– INVERTER
T1
T2
C3 0.1µF 6.3V
C5 0.1µF
C4 0.1µF 10V
T1OUT T2OUT
The ADM1385 contains a driver disable mode and a complete shutdown mode.
The ADM3202 is available in a 16-lead PDIP, SOIC_W, and SOIC_N, as well as a space-saving 16-lead TSSOP. The ADM3222 is available in 18-lead PDIP and SOIC_W and in 20-lead SSOP and TSSOP. The ADM1385 is available in a 20-lead SSOP, which is pin-compatible with the LTC1385 CG.
