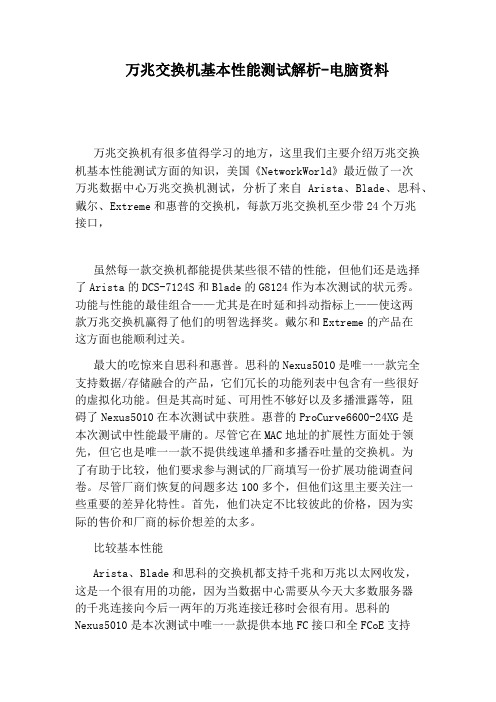

万兆交换机基本性能测试解析-电脑资料万兆交换机有很多值得学习的地方，这里我们主要介绍万兆交换机基本性能测试方面的知识，美国《NetworkWorld》最近做了一次万兆数据中心万兆交换机测试，分析了来自Arista、Blade、思科、戴尔、Extreme和惠普的交换机，每款万兆交换机至少带24个万兆接口，虽然每一款交换机都能提供某些很不错的性能，但他们还是选择了Arista的DCS-7124S和Blade的G8124作为本次测试的状元秀。
功能与性能的最佳组合——尤其是在时延和抖动指标上——使这两款万兆交换机赢得了他们的明智选择奖。
戴尔和Extreme的产品在这方面也能顺利过关。
最大的吃惊来自思科和惠普。
思科的Nexus5010是唯一一款完全支持数据/存储融合的产品，它们冗长的功能列表中包含有一些很好的虚拟化功能。
但是其高时延、可用性不够好以及多播泄露等，阻碍了Nexus5010在本次测试中获胜。
惠普的ProCurve6600-24XG是本次测试中性能最平庸的。
尽管它在MAC地址的扩展性方面处于领先，但它也是唯一一款不提供线速单播和多播吞吐量的交换机。
为了有助于比较，他们要求参与测试的厂商填写一份扩展功能调查问卷。
尽管厂商们恢复的问题多达100多个，但他们这里主要关注一些重要的差异化特性。
首先，他们决定不比较彼此的价格，因为实际的售价和厂商的标价想差的太多。
比较基本性能Arista、Blade和思科的交换机都支持千兆和万兆以太网收发，这是一个很有用的功能，因为当数据中心需要从今天大多数服务器的千兆连接向今后一两年的万兆连接迁移时会很有用。
思科的Nexus5010是本次测试中唯一一款提供本地FC接口和全FCoE支持的交换机。
FC可选件包括2G、4G和8G版本。
其他各款交换机虽然也能转发FCoE流量，但是多少都有点儿像以太网交换机支持IPv6一样，甚至不知道所转发的帧含有IPv6报头。
气流是数据中心需要考虑的一个大问题，厂商们为了保证其万兆交换机的冷却采取了各种不同的方法。
