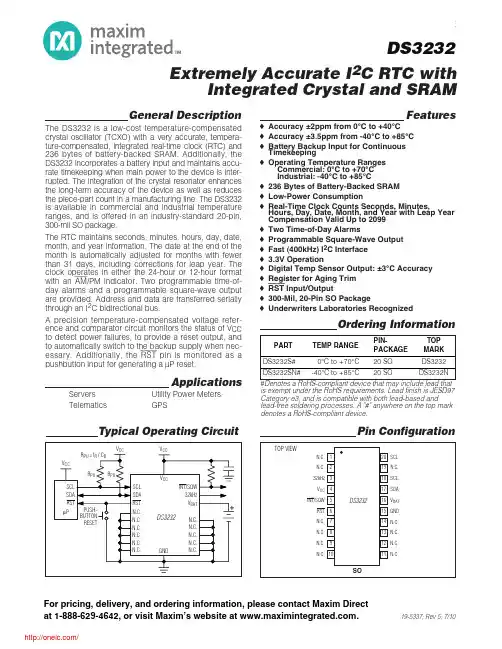

EVALUATION KIT AVAILABLE For pricing, delivery, and ordering information, please contact Maxim Directat 1-888-629-4642, or visit Maxim’s website at www.maxim .General DescriptionThe D S3232 is a low-cost temperature-compensatedcrystal oscillator (TCXO) with a very accurate, tempera-ture-compensated, integrated real-time clock (RTC) and236 bytes of battery-backed SRAM. Additionally, theDS3232 incorporates a battery input and maintains accu-rate timekeeping when main power to the device is inter-rupted. The integration of the crystal resonator enhancesthe long-term accuracy of the device as well as reducesthe piece-part count in a manufacturing line. The DS3232is available in commercial and industrial temperatureranges, and is offered in an industry-standard 20-pin,300-mil SO package.The RTC maintains seconds, minutes, hours, day, date,month, and year information. The date at the end of themonth is automatically adjusted for months with fewerthan 31 days, including corrections for leap year. Theclock operates in either the 24-hour or 12-hour formatwith an AM/PM indicator. Two programmable time-of-day alarms and a programmable square-wave outputare provided. Address and data are transferred seriallythrough an I2C bidirectional bus.A precision temperature-compensated voltage refer-ence and comparator circuit monitors the status of V CCto detect power failures, to provide a reset output, andto automatically switch to the backup supply when nec-essary. Additionally, the RST pin is monitored as apushbutton input for generating a µP reset.ApplicationsServers Utility Power MetersTelematics GPSFeatures♦Accuracy ±2ppm from 0°C to +40°C♦Accuracy ±3.5ppm from -40°C to +85°C♦Battery Backup Input for ContinuousTimekeeping♦Operating Temperature RangesCommercial: 0°C to +70°CIndustrial: -40°C to +85°C♦236 Bytes of Battery-Backed SRAM♦Low-Power Consumption♦Real-Time Clock Counts Seconds, Minutes,Hours, Day, Date, Month, and Year with Leap YearCompensation Valid Up to 2099♦Two Time-of-Day Alarms♦Programmable Square-Wave Output♦Fast (400kHz) I2C Interface♦3.3V Operation♦Digital Temp Sensor Output: ±3°C Accuracy♦Register for Aging Trim♦RST Input/Output♦300-Mil, 20-Pin SO Package♦Underwriters Laboratories RecognizedExtremely Accurate I2C RTC withIntegrated Crystal and SRAM19-5337; Rev 5; 7/10Ordering InformationPin ConfigurationDS3232Extremely Accurate I 2C RTC with Integrated Crystal and SRAMABSOLUTE MAXIMUM RATINGSRECOMMENDED OPERATING CONDITIONSStresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.Voltage Range on V CC , V BAT , 32kHz, SCL, SDA, RST ,INT /SQW Relative to Ground.............................-0.3V to +6.0V Junction-to-Ambient Thermal Resistance (θJC ) (Note 1)..55.1°C/W Junction-to-Case Thermal Resistance (θJC ) (Note 1)..........24°C/W Operating Temperature Range(noncondensing).............................................-40°C to +85°CJunction Temperature......................................................+125°C Storage Temperature Range...............................-40°C to +85°C Lead Temperature (soldering, 10s).................................+260°C Soldering Temperature (reflow, 2 times max)....................+260°C(See the Handling, PC Board Layout, and Assembly section.)ELECTRICAL CHARACTERISTICSNote 1:Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-layer board. For detailed information on package thermal considerations, refer to /thermal-tutorial .DS32322Maxim IntegratedExtremely Accurate I 2C RTC withIntegrated Crystal and SRAMELECTRICAL CHARACTERISTICS (continued)ELECTRICAL CHARACTERISTICSDS32323Maxim IntegratedExtremely Accurate I 2C RTC with Integrated Crystal and SRAMAC ELECTRICAL CHARACTERISTICSPOWER-SWITCH CHARACTERISTICSDS32324Maxim IntegratedDS3232Extremely Accurate I2C RTC withIntegrated Crystal and SRAMPushbutton Reset TimingPower-Switch Timing5 Maxim IntegratedExtremely Accurate I 2C RTC with Integrated Crystal and SRAMData Transfer on I 2C Serial BusNote 2:Limits at -40°C are guaranteed by design and not production tested.Note 3:All voltages are referenced to ground.Note 4:I CCA —SCL clocking at max frequency = 400kHz.Note 5:Current is the averaged input current, which includes the temperature conversion current.Note 6:The RST pin has an internal 50k Ω(nominal) pullup resistor to V CC .Note 7:After this period, the first clock pulse is generated.Note 8:A device must internally provide a hold time of at least 300ns for the SDA signal (referred to the V IH(MIN)of the SCL signal)to bridge the undefined region of the falling edge of SCL.Note 9:The maximum t HD:DAT needs only to be met if the device does not stretch the low period (t LOW ) of the SCL signal.Note 10:A fast-mode device can be used in a standard-mode system, but the requirement t SU:DAT ≥250ns must then be met. Thisis automatically the case if the device does not stretch the low period of the SCL signal. If such a device does stretch the low period of the SCL signal, it must output the next data bit to the SDA line t R(MAX)+ t SU:DAT = 1000 + 250 = 1250ns before the SCL line is released.Note 11:C B —total capacitance of one bus line in pF.Note 12:Minimum operating frequency of the I 2C interface is imposed by the timeout period.Note 13:The parameter t OSF is the period of time the oscillator must be stopped for the OSF flag to be set over the voltage range of0V ≤V CC ≤V CC(MAX) and 2.3V ≤V BAT ≤3.4V.Note 14:This delay only applies if the oscillator is enabled and running. If the EOSC bit is 1, t REC is bypassed and RST immediatelygoes high.WARNING: Negative undershoots below -0.3V while the part is in battery-backed mode may cause loss of data.DS32326Maxim IntegratedExtremely Accurate I 2C RTC withIntegrated Crystal and SRAMSTANDBY SUPPLY CURRENT vs. SUPPLY VOLTAGEV CC (V)S U P P L Y C U R R E N T (n A )5.34.84.32.83.33.850100150125752502.3SUPPLY CURRENT vs. SUPPLY VOLTAGEV BAT (V)S U P P L Y C U R R E N T (n A )5.34.84.32.83.33.880090010009508507507002.3SUPPLY CURRENT vs. TEMPERATURETEMPERATURE (°C)S U P P L Y C U R R E N T (μA )806040-20200.7000.8000.9000.600-40FREQUENCY DEVIATION vs. TEMPERATURE vs. AGINGTEMPERATURE (°C)F R E Q U E N C Y D E V I A T I O N (p p m )806040-20020*******-5-15-25-3575655545-45-40Typical Operating Characteristics(V CC = +3.3V, T A = +25°C, unless otherwise noted.)DELTA TIME AND FREQUENCYvs. TEMPERATURETEMPERATURE (°C)D E L T A F R E Q U E N C Y (p p m )D E L T A T I M E (M I N /Y E A R )80705060-10010203040-30-20-180-160-140-120-100-80-60-40-20020-200-80-60-40-200-100-40DS32327Maxim IntegratedExtremely Accurate I2C RTC withIntegrated Crystal and SRAMBlock DiagramDetailed Description The D S3232 is a serial RTC driven by a temperature-compensated 32kHz crystal oscillator. The TCXO pro-vides a stable and accurate reference clock, and maintains the RTC to within ±2 minutes per year accu-racy from -40°C to +85°C. The TCXO frequency output is available at the 32kHz pin. The RTC is a low-power clock/calendar with two programmable time-of-day alarms and a programmable square-wave output. The INT/SQW provides either an interrupt signal due to alarm conditions or a square-wave output. The clock/cal-endar provides seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. The internal registers are accessible though an I2C bus interface.A temperature-compensated voltage reference and comparator circuit monitors the level of V CC to detectDS32328Maxim IntegratedExtremely Accurate I2C RTC with Integrated Crystal and SRAMpower failures and to automatically switch to the back-up supply when necessary. The RST pin provides an external pushbutton function and acts as an indicator of a power-fail event. Also available are 236 bytes of gen-eral-purpose battery-backed SRAM.Operation The block diagram shows the main elements of the D S3232. The eight blocks can be grouped into four functional groups: TCXO, power control, pushbutton function, and RTC. Their operations are described sep-arately in the following sections.32kHz TCXO The temperature sensor, oscillator, and control logic form the TCXO. The controller reads the output of the on-chip temperature sensor and uses a lookup table to determine the capacitance required, adds the aging correction in AGE register, and then sets the capaci-tance selection registers. New values, including changes to the AGE register, are loaded only when a change in the temperature value occurs. The tempera-ture is read on initial application of V CC and once every 64 seconds (default, see the description for CRATE1 and CRATE0 in the control/status register) afterwards.DS32329Maxim IntegratedPower Control This function is provided by a temperature-compensat-ed voltage reference and a comparator circuit that monitors the V CC level. When V CC is greater than V PF, the part is powered by V CC. When V CC is less than V PF but greater than V BAT, the DS3232 is powered by V CC. If V CC is less than V PF and is less than V BAT, the device is powered by V BAT. See Table 1.BATthe device, the oscillator does not start up and no tem-perature conversions take place until V CC exceeds V PF or until a valid I2C address is written to the part. After the first time V CC is ramped up, the oscillator starts up and the V BAT source powers the oscillator during power-down and keeps the oscillator running. When the DS3232 switches to V BAT, the oscillator may be dis-abled by setting the EOSC bit.V BAT Operation There are several modes of operation that affect the amount of V BAT current that is drawn. While the device is powered by V BAT and the serial interface is active, active battery current, I BATA, is drawn. When the serial interface is inactive, timekeeping current (I BATT), which includes the averaged temperature conversion current, I BATTC, is used (refer to Application Note 3644: Power Considerations for Accurate Real-Time Clocks for details). Temperature conversion current, I BATTC, is specified since the system must be able to support the periodic higher current pulse and still maintain a valid voltage level. D ata retention current, I BATTDR, is the current drawn by the part when the oscillator is stopped (EOSC= 1). This mode can be used to mini-mize battery requirements for times when maintaining time and date information is not necessary, e.g., while the end system is waiting to be shipped to a customer.Pushbutton Reset Function The DS3232 provides for a pushbutton switch to be con-nected to the RST output pin. When the DS3232 is not in a reset cycle, it continuously monitors the RST signal for a low going edge. If an edge transition is detected, the D S3232 debounces the switch by pulling the RST low.After the internal timer has expired (PB DB), the D S3232 continues to monitor the RST line. If the line is still low, the DS3232 continuously monitors the line looking for a rising edge. Upon detecting release, the D S3232 forces the RST pin low and holds it low for t RST.The same pin, RST, is used to indicate a power-fail con-dition. When V CC is lower than V PF, an internal power-fail signal is generated, which forces the RST pin low. When V CC returns to a level above V PF, the RST pin is held low for t REC to allow the power supply to stabilize. If the oscillator is not running (see the Power Control section) when V CC is applied, t REC is bypassed and RST immediately goes high.Assertion of the RST output, whether by pushbutton or power-fail detection, does not affect the internal opera-tion of the DS3232.Real-Time Clock With the clock source from the TCXO, the RTC provides seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automati-cally adjusted for months with fewer than 31 days, includ-ing corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. The clock provides two programmable time-of-day alarms and a programmable square-wave output. The INT/SQW pin either generates an interrupt due to alarm condition or outputs a square-wave signal and the selection is controlled by the bit INTCN.SRAM The D S3232 provides 236 bytes of general-purpose battery-backed read/write memory. The I2C address ranges from 14h to 0FFh. The SRAM can be written or read whenever V CC or V BAT is greater than the mini-mum operating voltage.Address Map Figure 1 shows the address map for the DS3232 time-keeping registers. During a multibyte access, when the address pointer reaches the end of the register space (0FFh), it wraps around to location 00h. On an I2C START or address pointer incrementing to location 00h, the current time is transferred to a second set of regis-ters. The time information is read from these secondary registers, while the clock may continue to run. This eliminates the need to reread the registers in case the main registers update during a read.I2C Interface The I2C interface is accessible whenever either V CC or V BAT is at a valid level. If a microcontroller connected to the D S3232 resets because of a loss of V CC or otherExtremely Accurate I2C RTC withIntegrated Crystal and SRAMDS323210Maxim Integrated分销商库存信息:MAXIMDS3232S#DS3232SN#DS3232S#T&R DS3232SN#T&R。

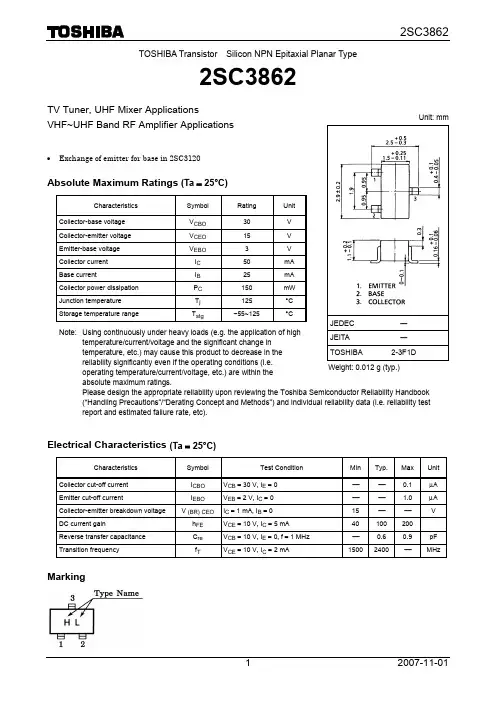

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type2SC3862TV Tuner, UHF Mixer ApplicationsVHF~UHF Band RF Amplifier Applications• Exchange of emitter for base in 2SC3120Absolute Maximum Ratings (Ta = 25°C)Characteristics Symbol RatingUnitCollector-base voltage V CBO 30 V Collector-emitter voltage V CEO15 VEmitter-base voltage V EBO 3 V Collector current I C 50 mA Base currentI B 25 mA Collector power dissipation P C 150 mW Junction temperature T j 125 °C Storage temperature rangeT stg−55~125 °CNote: Using continuously under heavy loads (e.g. the application of hightemperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e.operating temperature/current/voltage, etc.) are within the absolute maximum ratings.Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).Electrical Characteristics (Ta = 25°C)Characteristics Symbol Test Condition Min Typ. Max UnitCollector cut-off current I CBO V CB = 30 V, I E = 0 ⎯ ⎯ 0.1 μA Emitter cut-off currentI EBO V EB = 2 V, I C = 0 ⎯ ⎯ 1.0 μA Collector-emitter breakdown voltage V (BR) CEOI C = 1 mA, I B = 0 15 ⎯ ⎯ V DC current gainh FE V CE = 10 V, I C = 5 mA 40100200Reverse transfer capacitance C re V CB = 10 V, I E = 0, f = 1 MHz ⎯ 0.6 0.9 pF Transition frequencyf TV CE = 10 V, I C = 2 mA15002400⎯ MHzMarkingUnit: mmJEDEC―JEITA ―TOSHIBA 2-3F1D Weight: 0.012 g (typ.)RESTRICTIONS ON PRODUCT USE20070701-EN GENERAL •The information contained herein is subject to change without notice.•TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or damage to property.In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability Handbook” etc.• The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.).These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in his document shall be made at the customer’s own risk.•The products described in this document shall not be used or embedded to any downstream products of which manufacture, use and/or sale are prohibited under any applicable laws and regulations.• The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any patents or other rights of TOSHIBA or the third parties.• Please contact your sales representative for product-by-product details in this document regarding RoHS compatibility. Please use these products in this document in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances. Toshiba assumes no liability for damage or losses occurring as a result of noncompliance with applicable laws and regulations.。

13862fbT YPICAL APPLICATIONF EATURESA PPLICATIONSD ESCRIPTION Step-Up DC/DC ControllerThe L TC ®3862 is a two phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. T wo phase operation reduces system fi ltering capacitance and inductance requirements. The 5V gate drive is optimized for most automotive and industrial grade power MOSFETs.Adjustable slope compensation gain allows the user to fi ne-tune the current loop gain, improving noise immunity.The operating frequency can be set with an external resistor over a 75kHz to 500kHz range and can be synchronized to an external clock using the internal PLL. Multi-phase operation is possible using the SYNC input, the CLKOUT output and the PHASEMODE control pin allowing 2-, 3-, 4-, 6- or 12-phase operation.Other features include an internal 5V LDO with undervoltage lockout protection for the gate drivers, a precision RUN pin threshold with programmable hysteresis, soft-start and programmable leading edge blanking and maximum duty cyclenWide V IN Range: 4V to 36V Operationn 2-Phase Operation Reduces Input and Output Capacitancen Fixed Frequency, Peak Current Mode Control n 5V Gate Drive for Logic-Level MOSFETs n Adjustable Slope Compensation Gain n Adjustable Max Duty Cycle (Up to 96%)n Adjustable Leading Edge Blanking n ±1% Internal Voltage Referencen Programmable Operating Frequency with One External Resistor (75kHz to 500kHz)n Phase-Lockable Fixed Frequency 50kHz to 650kHz n SYNC Input and CLKOUT for 2-, 3-, 4-, 6- or12-Phase Operation (PHASEMODE Programmable)n Internal 5V LDO Regulator n 24-Lead Narrow SSOP Package n 5mm × 5mm QFN with 0.65mm Lead Pitch and 24-Lead Thermally Enhanced TSSOP PackagesnAutomotive, Telecom and Industrial Power SuppliesL , L T , L TC and L TM are registered trademarks of Linear Technology Corporation.All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 6144194, 6498466, 6611131.V OUT 48V5A (MAX)V IN5V TO 36VEffi ciency vs Output CurrentLOAD CURRENT (mA)10080E F F I C I E N C Y (%)82848690941000100003862 TA01b9888929623862fbA BSOLUTE MAXIMUM RATINGS Input Supply Voltage (V IN ) .........................–0.3V to 40VINTV CC Voltage............................................–0.3V to 6V INTV CC LDO RMS Output Current .........................50mA RUN Voltage ................................................–0.3V to 8V SYNC Voltage ...............................................–0.3V to 6V SLOPE, PHASEMODE, D MAX ,BLANK Voltage ...........................................–0.3V to 3V8SENSE1+, SENSE1–, SENSE2+,SENSE2– Voltage .......................................–0.3V to 3V8SS, PLLFL TR Voltage .................................–0.3V to 3V8(Notes 1, 2)P IN CONFIGURATION ORDER INFORMATIONLEAD FREE FINISH TAPE AND REEL PART MARKING*PACKAGE DESCRIPTION TEMPERATURE RANGE L TC3862EFE#PBF L TC3862EFE#TRPBF 3862FE 24-Lead Plastic TSSOP –40°C to 85°C L TC3862IFE#PBF L TC3862IFE#TRPBF 3862FE 24-Lead Plastic TSSOP –40°C to 125°C L TC3862HFE#PBF L TC3862HFE#TRPBF 3862FE 24-Lead Plastic TSSOP –40°C to 150°C L TC3862EGN#PBF L TC3862EGN#TRPBF L TC3862GN 24-Lead Plastic SSOP –40°C to 85°C L TC3862IGN#PBF L TC3862IGN#TRPBF L TC3862GN 24-Lead Plastic SSOP –40°C to 125°C L TC3862HGN#PBF L TC3862HGN#TRPBF L TC3862GN 24-Lead Plastic SSOP –40°C to 150°C L TC3862EUH#PBF L TC3862EUH#TRPBF 386224-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C L TC3862IUH#PBF L TC3862IUH#TRPBF 386224-Lead (5mm × 5mm) Plastic QFN –40°C to 125°C L TC3862HUH#PBF L TC3862HUH#TRPBF 386224-Lead (5mm × 5mm) Plastic QFN –40°C to 150°C Consult L TC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container .Consult L TC Marketing for information on non-standard lead based fi nish parts.For more information on lead free part marking, go to: http://www.linear .com/leadfree/For more information on tape and reel specifications, go to: http://www.linear .com/tapeandreel/ITH Voltage ...............................................–0.3V to 2.7V FB Voltage ..................................................–0.3V to 3V8FREQ Voltage ............................................–0.3V to 1.5V Operating Junction Temperature Range (Notes 3, 4) L TC3862E .............................................–40°C to 85°C L TC3862I............................................–40°C to 125°C L TC3862H ..........................................–40°C to 150°C Storage Temperature Range ...................–65°C to 150°C Refl ow Peak Body Temperature ...........................260°CE LECTRICAL CHARACTERISTICS(Notes 2, 3) The l denotes the specifi cations which apply over the full operating junction temperature range, otherwise specifi cations are at T A = 25°C. V IN = 12V, RUN = 2V and SS = open, unless otherwise noted.SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Supply Input and INTV CC Linear RegulatorV IN V IN Supply Voltage Range436V I VIN V IN Supply CurrentNormal Mode, No Switching Shutdown (Note 5)V RUN = 0Vll1.8303.080mAμAINTV CC LDO Regulator Output Voltage 4.8 5.0 5.2V dV INTVCC(LINE)Line Regulation6V < V IN < 36V0.0020.02%/V dV INTVCC(LOAD)Load Regulation Load = 0mA to 20mA–2%V UVLO INTV CC UVLO Voltage Rising INTV CCFalling INTV CC 3.32.9VV3V8LDO Regulator Output Voltage 3.8V Switcher Control LoopV FB Reference Voltage V ITH = 0.8V (Note 6) E-Grade (Note 3)I-Grade and H-Grade (Note 3)ll1.2101.1991.2231.2231.2351.248VVdV FB/dV IN Feedback Voltage V IN Line Regulation V IN = 4V to 36V (Note 6)±0.0020.01%/V dV FB/dV ITH Feedback Voltage Load Regulation V ITH = 0.5V to 1.2V (Note 6)0.010.1% g m T ransconductance Amplifi er Gain V ITH = 0.8V (Note 6), ITH Pin Load = ±5μA660μMho f0dB Error Amplifi er Unity-Gain CrossoverFrequency(Note 7) 1.8MHzV ITH Error Amplifi er Maximum Output Voltage(Internally Clamped)V FB = 1V, No Load 2.7V Error Amplifi er Minimum Output Voltage V FB = 1.5V, No Load50mV I ITH Error Amplifi er Output Source Current–30μAError Amplifi er Output Sink Current30μA I FB Error Amplifi er Input Bias Currents(Note 6)–50–200nAV ITH(PSKIP)Pulse Skip Mode Operation ITH Pin Voltage Rising ITH Voltage (Note 6)Hysteresis 0.27525VmVI SENSE(ON)SENSE Pin Current0.012μAV SENSE(MAX)Maximum Current Sense Input Threshold V SLOPE = Float, Low Duty Cycle(Note 3)l 656075758590mVmVV SENSE(MATCH)CH1 to CH2 Maximum Current SenseThreshold Matching V SLOPE = Float, Low Duty Cycle (Note 3)(V SENSE1 – V SENSE2)l–1010mVRUN/Soft-StartI RUN RUN Source Current V RUN = 0VV RUN = 1.5V –0.5–5μAμAV RUN High Level RUN Channel Enable Threshold 1.22V V RUNHYS RUN Threshold Hysteresis80mV I SS SS Pull-Up Current V SS = 0V–5μA R SS SS Pull-Down Resistance V RUN = 0V10kΩOscillatorf OSC Oscillator Frequency R FREQ = 45.6kR FREQ = 45.6k l 280260300300320340kHzkHzOscillator Frequency Range l75500kHz V FREQ Nominal FREQ Pin Voltage R FREQ = 45.6k 1.223V33862fbSYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS f SYNC SYNC Minimum Input Frequency V SYNC = External Clock l50kHzSYNC Maximum Input Frequency V SYNC = External Clock l650kHz V SYNC SYNC Input Threshold Rising Threshold 1.5V I PLLFL TR Phase Detector Sourcing Output Current f SYNC > f OSC–15μAPhase Detector Sinking Output Current f SYNC < f OSC15μACH1-CH2Channel 1 to Channel 2 Phase Relationship V PHASEMODE = 0VV PHASEMODE = FloatV PHASEMODE = 3V8180180120DegDegDegCH1-CLKOUT Channel 1 to CLKOUT Phase Relationship V PHASEMODE = 0VV PHASEMODE = FloatV PHASEMODE = 3V89060240DegDegDegD MAX Maximum Duty Cycle V DMAX = 0VV DMAX = FloatV DMAX = 3V8968475%%%t ON(MIN)1Minimum On-Time V BLANK = 0V (Note 8)180ns t ON(MIN)2Minimum On-Time V BLANK = Float (Note 8)260ns t ON(MIN)3Minimum On-Time V BLANK = 3V8 (Note 8)340ns Gate DriverR DS(ON)Driver Pull-Up R DS(ON) 2.1ΩDriver Pull-Down R DS(ON)0.7ΩOvervoltageV FB(OV)V FB, Overvoltage Lockout Threshold V FB(OV) – V FB(NOM) in Percent81012%Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime.Note 2: All currents into device pins are positive; all currents out of device pins are negative. All voltages are referenced to ground unless otherwise specifi ed.Note 3: The L TC3862E is guaranted to meet performance specifi cations from 0°C to 85°C. Specifi cations over the –40°C to 85°C operating junction temperature range are assured by design, characterization and correlation with statistical process controls. The L TC3862I is guaranteed over the full –40°C to 125°C operating junction temperature range and the L TC3862H is guaranteed over the full –40°C to 150°C operating junction temperature range. High junction temperatures degrade operating lifetimes. Operating lifetime is derated at junction temperatures greater than 125°C.Note 4: This IC includes overtemperature protection that is intended to protect the device during momentary overload conditions. Continuous operation above the specifi ed maximum operating junction temperature may impair device reliability.Note 5: Supply current in normal operation is dominated by the current needed to charge the external MOSFET gates. This current will vary with supply voltage and the external MOSFETs used.Note 6: The IC is tested in a feedback loop that adjusts V FB to achieve a specifi ed error amplifi er output voltage.Note 7: Guaranteed by design, not subject to test.Note 8: The minimum on-time condition is specifi ed for an inductor peak-to-peak ripple current = 30% (see Minimum On-Time Considerations in the Applications Information section).E LECTRICAL CHARACTERISTICS(Notes 2, 3) The l denotes the specifi cations which apply over the full operating junction temperature range, otherwise specifi cations are at T A = 25°C. V IN = 12V, RUN = 2V and SS = open, unless otherwise noted.43862fb53862fbT YPICAL PERFORMANCE CHARACTERISTICS Effi ciency vs Output CurrentEffi ciency and Power Loss vs Input VoltageLoad StepInductor Current at Light LoadQuiescent Current vs Input VoltageLOAD CURRENT (mA)1070E F F I C I E N C Y (%)758085901001000100003862 G016560555095100INPUT VOL TAGE (V)90E F F I C I E N C Y (%)POWER LOSS (mW)919293949596150020002500300035004000102030403862 G02I LOAD 5A/DIV 1A TO 5A I L15A/DIV I L25A/DIV V OUT 500mV/DIV500μs/DIVV IN = 24V V OUT = 48V3862 G03SW150V/DIV SW250V/DIVI L12A/DIVI L22A/DIV1μs/DIVV IN = 12V V OUT = 48V I LOAD = 100mA3862 G04INPUT VOL TAGE (V)40Q U I E S C E N T C U R R E N T (m A )0.501.001.502.003.0081216203862 G05242832362.500.250.751.251.752.752.25Quiescent Current vs TemperatureShutdown Quiescent Current vs Input VoltageShutdown Quiescent Current vs TemperatureTEMPERATURE (°C)–50Q U I E S C E N T C U R R E N T (m A )1.701.801503862 G061.601.5050100–2525751251.901.651.751.551.85INPUT VOL TAGE (V)4S H U T D O W N C U R R E N T (μA )253035363862 G072015012202881624321054540TEMPERATURE (°C)–50S H U T D O W N C U R R E N T (μA )30405025751503862 G082010–255010012563862fbT YPICAL PERFORMANCE CHARACTERISTICS INTV CC Line RegulationINTV CC Load RegulationINTV CC vs TemperatureINTV CC LDO Dropout vs Load Current, TemperatureINTV CC UVLO Threshold vs TemperatureFeedback Voltage vs TemperatureFeedback Voltage Line RegulationCurrent Sense Threshold vs ITH VoltageCurrent Sense Threshold vs TemperatureINPUT VOL TAGE (V)05.005.25203962 G0951015254.75I N T V C C V O L T A G E (V)INTV CC LOAD CURRENT (mA)I N T V C C V O L T A G E (V )4.904.95403862 G104.854.80102030505.00TEMPERATURE (°C)–504.90I N T V C C V O L T A G E (V )4.914.934.944.955.004.97050753862 G114.924.984.994.96–2525100125150INTV CC LOAD (mA)0D R O P O U T V O L T A GE (m V )600800100030503862 G124002000102040120014001600TEMPERATURE (°C)–502.6I N T V C C V O L T A G E (V )2.72.93.03.13.63.3050753862 G132.83.43.53.2–2525100125150TEMPERATURE (°C)–501.211F B V O L T AG E (V )1.2151.2191.2231.2271.235–2525503862 G14751001251501.2311.2131.2171.2211.2251.2331.229INPUT VOLTAGE (V)41.220F B V O L T AG E (V )1.2211.2221.2231.224122028363862 G151.2251.2268162432ITH VOLTAGE (V)C U R R E N T S E N S E T H R E S H O LD (m V )5060703862 G163000.40.8 1.2 1.6 2.02.480402010TEMPERATURE (°C)–5070C U R R E N T S E N S E T H R E S H O LD (m V )717374758077050753862 G1772787976–252510012515073862fbTYPICAL PERFORMANCE CHARACTERISTICSMaximum Current Sense Threshold vs Duty CycleRUN Threshold vs TemperatureRUN Threshold vs Input VoltageRUN (Off) Source Current vs TemperatureRUN Source Current vs Input VoltageDUTY CYCLE (%)50M A X I M U M C U R R E N T S E N S E T H R E S H O L D (m V )607080556575204060803862 G1810010030507090TEMPERATURE (°C)–501.10R U N P I N V O L T A G E (V )1.151.201.251.30–2525503862 G0975ONOFF100125150INPUT VOLTAGE (V)0R U N P I N V O L T A G E (V )1.31.41.51525403862 G201.21.11.051020ONOFF3035RUN (On) Source Current vs TemperatureTEMPERATURE (°C)–50–1.0R U N P I N C U R R E N T (μA )–0.9–0.7–0.6–0.50–0.3050753862 G21vv–0.8–0.2–0.1–0.4–2525100125150TEMPERATURE (°C)–50R U N P I N C U R R E N T (μA )–4–21501344 G06–6–850100–2525751250–5–3–7–1INPUT VOLTAGE (V)48R U N P I N C U R R E N T (μA )–3–2–1283862 G23–4–5121620322436–6–70Soft-Start Current vs Soft-Start VoltageOscillator Frequency vs TemperatureSoft-Start Current vs TemperatureTEMPERATURE (°C)–50–5.6S O F T -S T A R T C U R R E N T (μA )–5.5–5.4–5.3–5.20501001503862 G24–5.1–5.0–252575125SOFT-START VOLTAGE (V)0–6S O F T -S T A R T C U R R E N T (μA )–5–4–3–212343862 G25–100.51.52.53.5TEMPERATURE (°C)–50F R E Q U E N C Y (k H z )3023033043051503862 G2630130029850100–25257512529930730683862fbTYPICAL PERFORMANCE CHARACTERISTICSOscillator Frequency vs Input VoltageR FREQ vs FrequencyFrequency vs PLLFL TR VoltageFrequency Voltage vs TemperatureMinimum On-Time vs Input VoltageMinimum On-Time vs TemperatureGate Turn-On Waveform Driving Renesas HAT2266Gate Turn-Off Waveform Driving Renesas HAT2266INPUT VOLTAGE (V)F R E Q U E N C Y (k H z )300305310323862 G2729529028081624436122028285320315FREQUENCY (kHz)100R F R E Q (k Ω)30010003862 G281010020010009008007006005004000PLLFLTR VOLTAGE (V)010001200140023862 G298006000.51 1.5 2.54002000F R E Q U E N C Y (k H z)TEMPERATURE (°C)–50F R E Q V O L T A G E (V )1.2231.2291.2311503862 G301.2211.2191.21150100–2525751251.2151.2351.2331.2271.2251.2171.213TEMPERATURE (°C)–50100M I N I M U M O N -T I M E (n s )1502002503000501001503862 G31350400–252575125INPUT VOLTAGE (V)4100M I N I M U M O N -T I M E (n s )150200250300122028363862 G323504008162432GATE 1V/DIV 20ns/DIV V IN = 12V VOUT = 48V I OUT = 1AMOSFET RENESAS HAT22663862 G33GATE 1V/DIV20ns/DIV V IN = 12V V OUT= 48V I OUT = 1AMOSFET RENESAS HAT22663862 G34P IN FUNCTIONS3V8: Output of the Internal 3.8V LDO from INTV CC. Supply pin for the low voltage analog and digital circuits. A low ESR 1nF ceramic bypass capacitor should be connected between 3V8 and SGND, as close as possible to the IC. BLANK: Blanking Time. Floating this pin provides a nominal minimum on-time of 260ns. Connecting this pin to 3V8 provides a minimum on-time of 340ns, while connecting it to SGND provides a minimum on-time of 180ns. CLKOUT: Digital Output Used for Daisy-Chaining Multiple L TC3862 ICs in Multi-Phase Systems. The PHASEMODE pin voltage controls the relationship between CH1 and CH2 as well as between CH1 and CLKOUT.D MAX: Maximum Duty Cycle.This pin programs the maxi-mum duty cycle. Floating this pin provides 84% duty cycle. Connecting this pin to 3V8 provides 75% duty cycle, while connecting it to SGND provides 96% duty cycle.FB: Error Amplifi er Input. The FB pin should be connected through a resistive divider network to V OUT to set the output voltage.FREQ: A resistor from FREQ to SGND sets the operating frequency.GATE1, GATE2: Gate Drive Output. The L TC3862 provides a 5V gate drive referenced to PGND to drive a logic-level threshold MOSFET.INTV CC: Output of the Internal 5V Low Dropout Regulator (LDO). A low ESR 4.7μF (X5R or better) ceramic bypass capacitor should be connected between INTV CC and PGND, as close as possible to the IC.ITH: Error Amplifi er Output. The current comparator trip threshold increases with the ITH control voltage. The ITH pin is also used for compensating the control loop of the converter.PGND: Power Ground. Connect this pin close to the sources of the power MOSFETs. PGND should also be connected to the negative terminals of V IN and INTV CC bypass capacitors. PGND is electrically isolated from the SGND pin. The Exposed Pad of the FE and QFN packages is connected to PGND.PHASEMODE: The PHASE MODE pin voltage programs the phase relationship between CH1 and CH2 rising gate signals, as well as the phase relationship between CH1 gate signal and CLKOUT. Floating this pin or connecting it to either 3V8, or SGND changes the phase relationship between CH1, CH2 and CLKOUT.PLLFL TR: PLL Lowpass Filter Input. When synchroniz-ing to an external clock, this pin serves as the lowpass fi lter input for the PLL. A series resistor and capacitor connected from PLLFL TR to SGND compensate the PLL feedback loop.RUN: Run Control Input. A voltage above 1.22V on the pin turns on the IC. Forcing the pin below 1.22V causes the IC to shut down. There is a 0.5μA pull-up current for this pin. Once the RUN pin raises above 1.22V, an additional 4.5μA pull-up current is added to the pin for program-mable hysteresis.93862fbP IN FUNCTIONSSENSE1+, SENSE2+: Positive Inputs to the Current Comparators. The ITH pin voltage programs the current comparator offset in order to set the peak current trip threshold. This pin is normally connected to a sense resistor in the source of the power MOSFET.SENSE1–, SENSE2–: Negative Inputs to the Current Com-parators. This pin is normally connected to the bottom of the sense resistor.SGND: Signal Ground. All feedback and soft-start con-nections should return to SGND. For optimum load regulation, the SGND pin should be kelvin connected to the PCB location between the negative terminals of the output capacitors.SLOPE: This pin programs the gain of the internal slope compensation. Floating this pin provides a normalized slope compensation gain of 1.00. Connecting this pin to 3V8 increases the normalized slope compensation by 66%, and connecting it to SGND decreases the normalized slope compensation by 37.5%. See Applications Informa-tion for more details.SS: Soft-Start Input. For soft-start operation, connecting a capacitor from this pin to SGND will clamp the output of the error amp. An internal 5μA current source will charge the capacitor and set the rate of increase of the peak switch current of the converter.SYNC: PLL Synchronization Input. Applying an external clock between 50kHz and 650kHz will cause the operating frequency to synchronize to the clock. SYNC is pulled down by a 50k internal resistor. The rising edge of the SYNC input waveform will align with the rising edge of GATE1 in closed-loop operation.V IN: Main Supply Input. A low E SR ceramic capacitor should be connected between this pin and SGND.103862fbFUNCTIONAL DIAGRAMOUTO PERATIONThe Control LoopThe L TC3862 uses a constant frequency, peak current mode step-up architecture with its two channels operat-ing 180 degrees out of phase. During normal operation, each external MOSFET is turned on when the clock for that channel sets the PWM latch, and is turned off when the main current comparator, ICMP, resets the latch. The peak inductor current at which ICMP trips and resets the latch is controlled by the voltage on the ITH pin, which is the output of the error amplifi er, EA. The error amplifi er compares the output feedback signal at the V FB pin to the internal 1.223V reference and generates an error signal at the ITH pin. When the load current increases it causes a slight decrease in V FB relative to the reference voltage, which causes the EA to increase the ITH voltage until the average inductor current matches the new load current. After the MOSFET is turned off, the inductor current fl ows through the boost diode into the output capacitor and load, until the beginning of the next clock cycle.Cascaded LDOs Supply Power to the Gate Driver and Control CircuitryThe L TC3862 contains two cascaded PMOS output stage low dropout voltage regulators (LDOs), one for the gate drive supply (INTV CC) and one for the low voltage analog and digital control circuitry (3V8). A block diagram of this power supply arrangement is shown in Figure 1.The Gate Driver Supply LDO (INTV CC)The 5V output (INTV CC) of the fi rst LDO is powered from V IN and supplies power to the power MOSFET gate driv-ers. The INTV CC pin should be bypassed to PGND with a minimum of 4.7μF of ceramic capacitance (X5R or better), placed as close as possible to the IC pins. If two power MOSFETs are connected in parallel for each channel in order to increase the output power level, or if a single MOSFET with a Q G greater than 50nC is used, then it is recommended that the bypass capacitance be increased to a minimum of 10μF.An undervoltage lockout (UVLO) circuit senses the INTV CC regulator output in order to protect the power MOSFETs from operating with inadequate gate drive. For the L TC3862 the rising UVLO threshold is typically 3.3V and the hyster-esis is typically 400mV. The L TC3862 was optimized for logic-level power MOSFETs and applications where the output voltage is less than 50V to 60V. For applications requiring standard threshold power MOSFE Ts, please refer to the L TC3862-1 data sheet.INVCC3V8NOTE: PLACE C VCC AND C3V8 CAPACITORS AS CLOSE AS POSSIBLE TO DEVICE PINSFigure 1. Cascaded LDOs Provide Gate Drive and Control Circuitry PowerO PERATIONIn multi-phase applications, all of the FB pins are connected together and all of the error amplifi er output pins (ITH) are connected together. The INTV CC pins, however, should not be connected together. The INTV CC regulator is capable of sourcing current but is not capable of sinking current. As a result, when two or more INTV CC regulator outputs are connected together, the highest voltage regulator supplies all of the gate drive and control circuit current, and the other regulators are off. This would place a thermal burden on the highest output voltage LDO and could cause the maximum die temperature to be exceeded. In multi-phase L TC3862 applications, each INTV CC regulator output should be independently bypassed to its respective PGND pin as close as possible to each IC.The Low Voltage Analog and Digital Supply LDO (3V8) The second LDO within the L TC3862 is powered off of INTV CC and serves as the supply to the low voltage analog and digital control circuitry, as shown in Figure 1. The output voltage of this LDO (which also has a PMOS out-put device) is 3.8V. Most of the analog and digital control circuitry is powered from the internal 3V8 LDO. The 3V8 pin should be bypassed to SGND with a 1nF ceramic ca-pacitor (X5R or better), placed as close as possible to the IC pins. This LDO is not intended to be used as a supply for external circuitry.Thermal Considerations and Package OptionsThe L TC3862 is offered in two package options. The 5mm × 5mm QFN package (UH24) has a thermal resistance R TH(JA) of 34°C/W, the 24-pin TSSOP (FE24) package has a thermal resistance of 38°C/W, and the 24-pin SSOP (GN24) package has a thermal resistance of 85°C/W. The QFN and TSSOP package options have a lead pitch of 0.65mm, and the GN24 option has a lead pitch of 0.025in.The INTV CC regulator can supply up to 50mA of total current. As a result, care must be taken to ensure that the maximum junction temperature of the IC is never exceeded. The junction temperature can be estimated using the following equations:I Q(TOT) = I Q + Q G(TOT) • fP DISS = V IN • (I Q + Q G(TOT) • f)T J = T A + P DISS • R TH(JA)The total quiescent current (I Q(TOT)) consists of the static supply current (I Q) and the current required to charge the gate capacitance of the power MOSFETs. The value of Q G(TOT) should come from the plot of V GS vs Q G in the Typical Performance Characteristics section of the MOSFE T data sheet. The value listed in the electrical specifi cations may be measured at a higher V GS, such as 10V, whereas the value of interest is at the 5V INTV CC gate drive voltage. As an example of the required thermal analysis, consider a 2-phase boost converter with a 9V to 24V input voltage range and an output voltage of 48V at 2A. The switching frequency is 150kHz and the maximum ambient tempera-ture is 70°C. The power MOSFET used for this application is the Vishay Si7478DP, which has a typical R DS(ON) of 8.8mΩ at V GS = 4.5V and 7.5mΩ at V GS = 10V. From the plot of V GS vs Q G, the total gate charge at V GS = 5V is 50nC (the temperature coeffi cient of the gate charge is low). One power MOSFET is used for each phase. For the QFN package option:I Q(TOT) = 3mA + 2 • 50nC • 150kHz = 18mAP DISS = 24V • 18mA = 432mWT J = 70°C + 432mW • 34°C/W = 84.7°CIn this example, the junction temperature rise is only 14.7°C. These equations demonstrate how the gate charge current typically dominates the quiescent current of the IC, and how the choice of package option and board heat sinking can have a signifi cant effect on the thermal performance of the solution.O PERATIONTo prevent the maximum junction temperature from be-ing exceeded, the input supply current to the IC should be checked when operating in continuous mode (heavy load) at maximum V IN. A tradeoff between the operating frequency and the size of the power MOSFETs may need to be made in order to maintain a reliable junction tem-perature. Finally, it is important to verify the calculations by performing a thermal analysis of the fi nal PCB using an infrared camera or thermal probe. As an option, an exernal regulator shown in Figure 3 can be used to reduce the total power dissipation on the IC.Thermal Shutdown ProtectionIn the event of an overtemperature condition (external or internal), an internal thermal monitor will shut down the gate drivers and reset the soft-start capacitor if the die temperature exceeds 170°C. This thermal sensor has a hysteresis of 10°C to prevent erratic behavior at hot temperatures. The L TC3862’s internal thermal sen-sor is intended to protect the device during momentary overtemperature conditions. Continuous operation above the specifi ed maximum operating junction temperature, however, may result in device degradation.Operation at Low Supply VoltageThe L TC3862 has a minimum input voltage of 4V, making it a good choice for applications that experience low sup-ply conditions. The gate driver for the L TC3862 consists of PMOS pull-up and NMOS pull-down devices, allowing the full INTV CC voltage to be applied to the gates during power MOSFET switching. Nonetheless, care should be taken to determine the minimum gate drive supply voltage (INTV CC) in order to choose the optimum power MOSFETs. Important parameters that can affect the minimum gate drive voltage are the minimum input voltage (V IN(MIN)), the LDO dropout voltage, the Q G of the power MOSFETs, and the operating frequency.If the input voltage V IN is low enough for the INTV CC LDO to be in dropout, then the minimum gate drive supply voltage is:V INTVCC = V IN(MIN) – V DROPOUTThe LDO dropout voltage is a function of the total gate drive current and the quiescent current of the IC (typically 3mA). A curve of dropout voltage vs output current for the LDO is shown in Figure 2. The temperature coeffi cient of the LDO dropout voltage is approximately 6000ppm/°C. The total Q-current (I Q(TOT)) fl owing in the LDO is the sum of the controller quiescent current (3mA) and the total gate charge drive current.I Q(TOT) = I Q + Q G(TOT) • fAfter the calculations have been completed, it is impor-tant to measure the gate drive waveforms and the gate driver supply voltage (INTV CC to PGND) over all operating conditions (low V IN, nominal V IN and high V IN, as well as from light load to full load) to ensure adequate power MOSFET enhancement. Consult the power MOSFET data sheet to determine the actual R DS(ON) for the measured V GS, and verify your thermal calculations by measuring the component temperatures using an infrared camera or thermal probe.INTV CC LOAD (mA)DROPOUTVOLTAGE(mV)600800100030503862 F02400200102040120014001600Figure 2. INTV CC LDO Dropout Voltage vs Current。
