1 波形产生电路的设计

1 正弦波振荡电路的分析方法

2 RC 正弦波振荡电路

3 LC 正弦波振荡电路

4 石英晶体振荡器

5 非正弦波发生电路

一、正弦波振荡电路的分析方法

1．产生正弦波振荡的条件

如果反馈电压 uf 与原输入信号 ui 完全相等，则即使无外输入信号，放大电路输出端也有一个正弦波信号——自激振荡。

由此知放大电路产生自激振荡的条件是：ifUU

即：iiofUUAFUFU

所以产生正弦波振荡的条件是：1FA

1FA ——幅度平衡条件

π2argFAnFA,2,1,0n ——相位平衡条件

2. 分析步骤：

（1）判断能否产生正弦波振荡

a. 检查电路是否具备正弦波振荡的组成部分；

b. 检查放大电路的静态工作点是否能保证放大电路正常工作；

c. 分析电路是否满足自激振荡的相位平衡条件和振幅平衡条件。

(2) 判断相位平衡条件的方法是：瞬时极性法。

估算振荡频率和起振条件, 振荡频率由相位平衡条件决定。

a.写出回路增益FA的表示式

b.令π2FAn，即可求得满足该条件的0f ，此频率即为振荡频率；

c.令0ff时的1FA，即得起振条件。

3．正弦波产生电路一般应包括以下几个基本组成部分:

(1) 放大电路。 ~iU放大电路AioUAU反馈网络FtUUsin2iiOfUFU 2 (2) 反馈网络。

(3) 选频网络。

(4) 稳幅电路。

判断一个电路是否为正弦波振荡器, 就看其组成是否含有上述四个部分。

二、RC 正弦波振荡电路(文氏电桥)

（一）RC 串并联网络振荡电路

电路组成：

放大电路 —— 集成运放 A ；

选频与正反馈网络 —— R、C 串并联电路；

稳幅环节 —— RF 与 R 组成的负反馈电路。

VRLA BATTERIESFEBRUARY 2002VALVE-REGULATED LEAD ACID BATTERIES: INDIVIDUAL DATA SHEET

This information is generally descriptive only and is not intended to make or imply any representation, guarantee or warranty with respect to any cells and batteries. Cell and battery designs/specifications are subject tomodification without notice. Contact Panasonic for the latest information.For main and standby power supplies.Expected trickle life: 3-5 years at 25°C, Approx. 5 years at 20°C.LC-R127R2P

Specifications

CharacteristicsDimensions (mm)

Discharge characteristics 77°F (25°C) (Note)

Duration of discharge vs. Discharge current (Note)Photo/Label for reference only.

(Note) The above characteristics data are average values obtainedwithin three charge/discharge. Cycles not the minimum values.Terminal type: Faston 187 or Faston 250

3525总结

nan’sir

SG3525

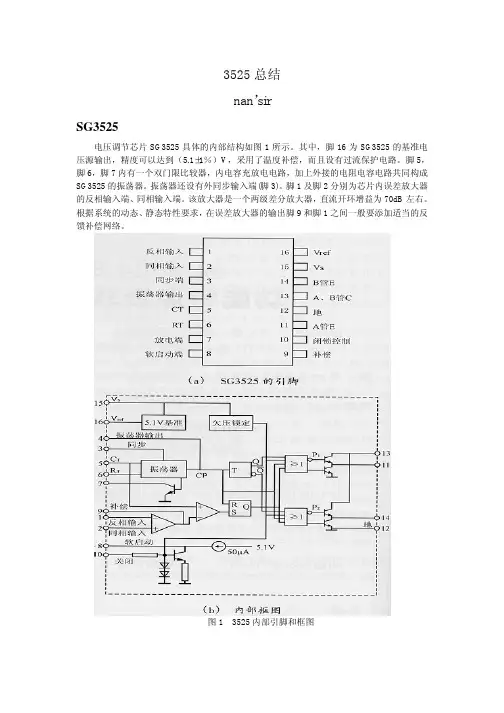

电压调节芯片SG3525具体的内部结构如图1所示。其中，脚16为SG3525的基准电
