Moldflow2010详细安装步骤和解决跟UG的License冲突问题

Autodesk Moldflow 2010Installation and Registration Reference GuideQuick Overview of Changes:•Product Name:Moldflow Plastic Insight (MPI) is now referred to as Autodesk Moldflow Insight (AMI)Moldflow Plastic Adviser (MPA) is now referred to as Autodesk Moldflow Adviser (AMA) •A version of FlexLM is now used for our license manager. For additional information on the license manager installation, please refer to step # 10.•The supported platforms have changed. Please refer to the installation manuals located on the DVD.•The installation DVD contains all Autodesk Moldflow products and their existing language files.•Modules have been combined to form three different bundles for both AMI and AMA. The bundles are as follows:1. Autodesk Moldflow Insight Basic2. Autodesk Moldflow Insight Performance3. Autodesk Moldflow Insight Advanced1. Autodesk Moldflow Adviser Design2. Autodesk Moldflow Adviser Manufacturing3. Autodesk Moldflow Adviser Advanced•Additional information in regards to your packages has already been sent to the appropriate contacts at your company.•All licenses are now floating licenses.Further details pertaining to the installations can be found on the DVD.Installation process:The following installation instructions represent the process for installing Autodesk Moldflow Insight 2010 (AMI) on Windows XP 64. The installation process for Autodesk Moldflow Adviser and our other products is very similar.1.Select the product that you would like to install.2.Start the Autodesk Moldflow Insight (AMI) installation.3.Accept the license agreements.4.Choose the installation directory. We suggest installing in the default directory.5.Specify the default project directory. This can either be in the user’s “My Documents” folderor in a custom folder. We recommend specifying a local custom folder (i.e.c:\My_AMI_2010_Projects) to avoid any right access issues with accessing folders over the network.6.Verify the Project Directory location.7.Choose the Temporary File location.8.These directories will be created and the product will begin the installation after selectingInstall.9.Directories are being created and AMI is being installed.10.The license manager installation will now initiate.11.We strongly recommend keeping the default installation directory.12.Choose one of the following installation options for the license manager:Client and Server: allows the machine to be used as a license serverClient Only: will not allow the machine to be used as a license server so it will need to be directed to a different machine that is specified as a license server.13.If this is the license server then please note this host name for the remaining clientinstallations. The colons behind hostname can be left as is. If this is the client machine then please specify the host name or IP address of the license server.14.The license manager installation will begin.15.Ensure that the following check box is selected so the registration process will begin. If youdo not wish to register the product at this time then please uncheck the box.16.Please use Windows Explorer for the registration process. If you are a new user then youmay register as a new user at the following link.17.Please fill out the following information if you are creating a new User Account. If youcurrently have your login information then skip this step and simply log into the site.18.Select the license location and click Next.19.Enter the Serial number located on the back of the DVD case. Then click Next.20.Enter the host name of the license server (do not to use the colons here).We will explain how to obtain the data for the Server ID field in the next few steps.21.Select “start” then “run”.22.Enter cmd and select OK to confirm.23.Enter ipconfig /all and hit the Return key to confirm.e only the physical address (MAC address) of the Ethernet adapter. You may also obtainyour host name information from this utility if it is not known.25.Enter the physical address of the Ethernet adapter (without Hyphens) here. You may alsonotice that there is an option to choose a Network server type. Using the single serveroption will assign all of your licenses for that product to one machine. The distributedserver option will allow you to split the licenses for the product between different machines (if you own multiple licenses for that product). We do not support redundant servers sothis option should not be used.26.At this point you will have two options available:1.Save the file to your local machine. An email with this information will be sent to youremail address automatically.2.You can request licenses for additional products. AMI, AMA, CADDr, MDL, and MSA areall considered separate products so you should have received an install packet for each.All of the products can be installed from the same DVD, but you will need to register theserial number on the back of each DVD case in order to obtain a license for eachproduct.27.The installation for AMI 2010 and the new product security should be complete. Theproducts should all be registered as well. You may install any additional products that you own at this point (AMI, MDL, CADDr, MSA), but it is not necessary to run through theproduct security install or registration process again.28.If licenses have been requested for more than one product then we will have to combinethese licenses into one file.29.Open all of the lic files in Notepad (Right click ‐> Open With ‐> Notepad)bine all of the license files. Please pay special attention to the format used.e File ‐> Save As so that we may save the combined file as a new file. This will ensure thatwe keep all of our original licenses in their original format. They can be stored on yourmachine for future reference.32.Save the license file in the following directory:32 bit: C:\Program files\Autodesk Network License Manager\License64 bit: C:\Program files (x86)\Autodesk Network License Manager\License33.Open the LMTOOLS so that we can configure it. We require full admin rights for this step. Ifyou are operating on Vista then you may need to right click on the application and select“run as administrator.”34.Please ensure that the following option is check prior to continuing with the configuration.35.Navigate to the “Configure Service” tab. The service is named “Flexlm service 1” bydefault.” You may assign it a different name at this point if you wish. (i.e. Autodesk Moldflow Network License Manager).36.Specify the file path to the lmgrg.exe file. It should be in the following location if you usedthe recommended directories:32 bit: C:\Program files\Autodesk Network License Manager\lmgrd.exe64 bit: C:\Program files (x86)\Autodesk Network License Manager\lmgrd.exe37.Specify the file path to the license file. It should be in the following location if you used therecommended directories:32 bit: C:\Program files\Autodesk Network License Manager\License\test.lic64 bit: C:\Program files (x86)\Autodesk network License manager\License\test.licPlease ensure to include the license file in the specified path.38.Specify a directory for the debug file. It will be necessary to create a .log file in the specifieddirectory. The file name should have a .log file extension. (i.e. anlm_licence.log).39.Select the following service settings and save them. Please note that you will need to checkthe “Use Services” box prior to being able to check the “Start Server at Power Up” option.40.It is necessary to restart the machine at this point.41.After the machine reboots please try to start Autodesk Moldflow Insight 2010.42. If the software should happen to fail with a license error, open the LMTOOLS., navigate tothe Start/Stop/Reread tab, and click on the Start server button.If the software is still not opening at this point then you may need to call the technical support group at 1-800-284-3569 for additional assistance.。

UG各版本安装详细说明前言1. 请通过合法途径获得UGS 公司的授权许可文件2. 安装过程中需要用到虚拟光驱，可以安装使用DAEMON TOOLS或Alcohol 120% （酒精120°）。

3. UG 中不能包含“非英文”字符，否则可能出现错误l 计算机名是英文l 登录用户名是英文l 安装文档路及许可服务器路径是英文l 将要安装到的文档及许可服务器路径是英文4. 包括了UG NX 2.0\3.0\4.0\5.0\6.0 在Windows XP\VISTA上的安装，以及UG NX 4.0 on Linux 在Debian Lenny上的安装，还有安装UG 中，经常出现的错误。

5. 错误提示图片来源于网络资源，一、UG NX 4.0（包括UG2.0、UG3.0）1. 编辑ugnx4.lic 文件：用记事本打开编辑，把第一行的host 改成你的计算机名,保存并退出。

Tips：l 是计算机名，不是windows 用户名l 计算机名要使用英文，不能用中文2. 运行UGNX4.0 的安装程序2.1 安装许可服务器点击Install License Server安装中提示指定.lic文件时，指定到在第一步中修改的文件。

2.2 安装UGNX4.0 主程序点击Install NX2.3 安装格式转化点击Translators3. 重启计算机这时，UG 就可以正常启动了。

以上是安装UG 的主要步骤，下面的可以选择安装4.安装帮助文件这个需要单独下载安装，比较简单。

点击Install on Windows2000/XP 。

安装完成后可以在资源条的帮助中查看。

说明：安装这个文件要求安装分区是NTFS 格式，如果你要安装的分区是FAT32，可以通过下面的方法将FAT32 转为NTFS 格式（以D 盘为例）打开命令提示符界面：运行里面输入cmd命令提示符下输入：convert d: /fs:ntfs5.安装CAST点击Install CAST。

联系人 ：黄国强 公司全称（建议与营业执照保持一致） ：（填写合同里的公司英文名字） 公司详细地址 ：中国江苏省无锡市无锡新加坡工业园锡坤路18号 邮编 ：214028 电话 ：（0510）85280907 传真 ：（0510）85281686 邮件地址 ：linus.huang@ 经销商名称 （如果您知道经销商的名称，请填写）：新科益系统与咨询（上海）有 限公司 软件序列号 ：350-32408945 350-32409044（光盘上的序列号） 网络版用户： 服务器名称：CAD-9 网卡地址：0019DB685267 网络节点数：1 1
刘海燕
将1.lic和2.lic合并成3.lic 就是将2中和1相同的起始 三行不要，复制其他行到1 中即可。
刘海燕
License做好后将license文件放到如下目录: C:\Program Files\Autodesk Network License Manager 然后在这个目录下面双击
点击save service保存。
主要内容一软件安装二申请license三安装license一软件安装收到货后将光盘放入光驱里双击就会出现如下界面现在autodeskmoldflow2010里包含了所有moldflow产品可以安装amiamaamdlcaddoctoramsaamc等
Autodesk Moldflow软件安装及License申请 和安装
刘海燕
点击browse找到目录下 面的这个两个文件。
前面设置好后, 点击Start Server, 然后重启计算机就OK了! 刘海燕
谢 谢！
刘海燕
新科益系统与咨询(上海)有限公司
主要内容
一、软件安装 二、申请License 三、安装License
刘海燕

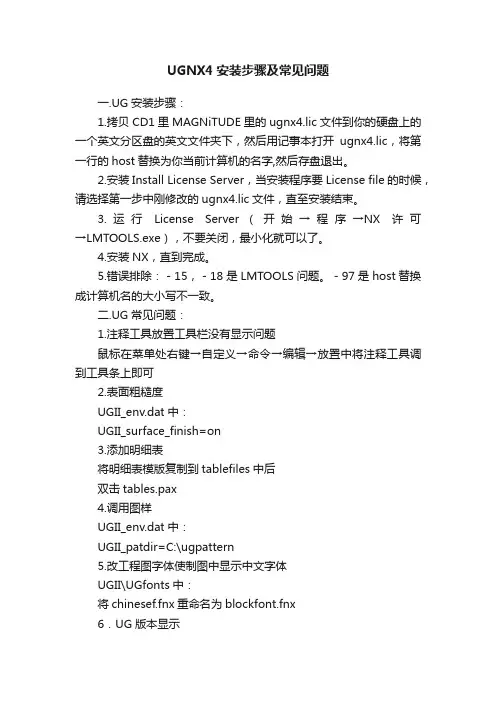

UGNX4安装步骤及常见问题一.UG安装步骤：1.拷贝CD1里MAGNiTUDE里的ugnx4.lic文件到你的硬盘上的一个英文分区盘的英文文件夹下，然后用记事本打开ugnx4.lic，将第一行的host替换为你当前计算机的名字,然后存盘退出。

2.安装Install License Server，当安装程序要License file的时候，请选择第一步中刚修改的ugnx4.lic文件，直至安装结束。

3.运行License Server（开始→程序→NX许可→LMTOOLS.exe），不要关闭，最小化就可以了。

4.安装NX，直到完成。

5.错误排除：－15，－18是LMTOOLS问题。

－97是host替换成计算机名的大小写不一致。

二.UG常见问题：1.注释工具放置工具栏没有显示问题鼠标在菜单处右键→自定义→命令→编辑→放置中将注释工具调到工具条上即可2.表面粗糙度UGII_env.dat中：UGII_surface_finish=on3.添加明细表将明细表模版复制到tablefiles中后双击tables.pax4.调用图样UGII_env.dat中：UGII_patdir=C:\ugpattern5.改工程图字体使制图中显示中文字体UGII\UGfonts中：将chinesef.fnx重命名为blockfont.fnx6．UG版本显示两种方法：1）新建环境变量：UGII_Display_Debug=12）打开UG目录下的ugii_env.dat末尾加入UGII_DISPLAY_DEBUG=1保存退出7．建立宏文件作用：避免重复工作工具→宏→开始记录，记录结束后，停止→保存每次可使用快捷键Ctrl+Shift+P加载你建立的宏文件8．保存定制好的菜单工具→自定义角色→创建一个.mtx文件加载同理9．工程制图设置（接近国标）实用工具→用户默认设置→管理当前设置→导入默认设置NX4_metric_def.dpv10.Windows下不能看到UG Part的缩略图问题UGS\NX 4.0\UGII下，将ugshext.dll复制到C:\WINDOWS\system32下开始→运行，输入regsvr32 ugshext.dll，回车11.建立主模板文件作用：避免重复工作，统一设计规范，提高效率。
