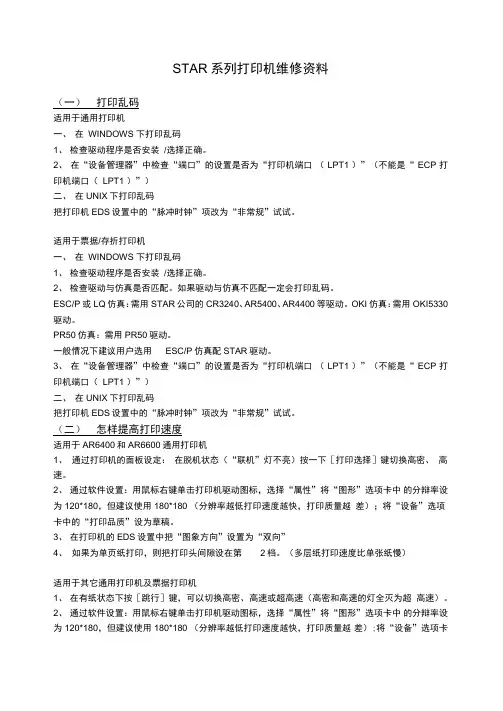

star打印机维修资料（Star printer maintenance data）STAR series printer maintenance dataPrinting garbled codeApplicable to general printersFirst, print garbled code under WINDOWS1, check whether the driver is installed / selected correctly.2, in device manager, check whether the port setting is "LPT1" (not ECP printer port (LPT1))Two, print garbled code in UNIXTry changing the "pulse clock" item in the printer's EDS setting to "unconventional".Suitable for note / passbook printerFirst, print garbled code under WINDOWS1, check whether the driver is installed / selected correctly.2, check whether the drive and simulation match. If the drive does not match the simulation, it will print the garbled code.ESC/P or LQ simulation: use STAR company's CR3240, AR5400, AR4400 and other drivers.OKI simulation: use OKI5330 drive.PR50 simulation: use PR50 drive.Under normal circumstances, it is recommended that users choose ESC/P simulation with STAR driver.3, in device manager, check whether the port setting is "LPT1" (not ECP printer port (LPT1))Two, print garbled code in UNIXTry changing the "pulse clock" item in the printer's EDS setting to "unconventional".(two) how to improve the printing speed?Applies to AR6400 and AR6600 universal printers1, through the printer panel settings: in offline status (online light is not lit), press the [select Print] key to switch the high-density, high-speed.2, set up by the software: Drive Icon right-click the printer, select "properties" of the "graphics" tab of the resolution is 120*180, but to recommend the use of 180*180 (the lower resolution print speed, print quality is worse); "equipment" tab in the "print quality" is set to draft.3, in the printer's EDS settings, the "image direction" is set to "two-way""4, if single page printing, the print head gap is located in the second file. (multilayer paper is printed at a rate slower than a sheet of paper)Applicable to other general printers and bills printersIn the paper, 1 state press [] key skip can switch, high density, high or super high speed (high density and high speed light Quanmie for ultra high speed).2, set up by the software: Drive Icon right-click the printer, select "properties" of the "graphics" tab of the resolution is 120*180, but to recommend the use of 180*180 (the lower resolution print speed, print quality is worse); "equipment" tab in the "print quality" is set to draft.3, in the printer's EDS settings, the "image direction" is set to "two-way""4, if single page printing, the print head gap is located in second stalls (multilayer paper printing speed slower than sheet paper)Suitable for bankbook printer1, in a paper state, press the [teller] 1] key to switch the high-density, high-speed.2, set up by the software: Drive Icon right-click the printer, select "properties" of the "graphics" tab of the resolution is120*180, but to recommend the use of 180*180 (the lower resolution print speed, print quality is worse); "equipment" tab in the "print quality" is set to draft.3, if single page printing, the print head gap is located in second stalls (multilayer paper printing speed slower than sheet paper)(three) do not print1, check whether the printer power is open, whether the cable is inserted tight.2. Check that the printer is loaded and that the online light is already on.3, check whether the computer has installed a print driver4, in the computer "device manager", check whether the port is "printer port (LPT1)" (not "ECP printer port" (LPT1)).5, in the host computer's BIOS, check whether the parallel port is selected as SPP or Normal(four) missing lineMissing line faults are usually caused by broken needles or needles out of a certain pin. This requires the printer to be sent to the actual maintenance center for maintenance.(five) the vertical line is not straightAR3200+, AR3200II:1, first install a wide row of printing paper, turn off the printer, and then press the "paper / paper / return paper" and [Online] button to start, the printer will print the operation prompts and test data.2. During the operation, the printer will send the paper back and forth to check whether the print is aligned.3, use the button and the word spacing to correct the print. [Arial] button will be second times the print position to tune recently left; the word [space] button second times print position correction to the right tune recently.4, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.5, to select the next two-way correction test, click the skip button. If you press paper / paper / return the paper, select the last test item. Test in the "high-density", "high-speed high-density", "draft" and "Chinese characters" model in circulation.6, press the [Online] button to quit.AR2400:1, first installed the printing line of paper, turn off theprinter, and then press the [skip] [] button boot and online at the same time, the printer will print the operating tips and test data.2. During the operation, the printer will send the paper back and forth to check whether the print is aligned.3, use the button and the word spacing to correct the print. [Arial] button will be second times the print position to tune recently left; the word [space] button second times print position correction to the right tune recently.4, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.5, to select the next two-way correction test, click the skip button. Test in the "high-density", "high-speed high-density", "draft" and "Chinese characters" model in circulation.6, press the [Online] button to quit.CR3240:1, first install a wide row of printing paper, turn off the printer, and then press the "paper / paper / return paper" and [Online] button to start, the printer will print the operation prompts and test data.2. During the operation, the printer will send the paper back and forth to check whether the print is aligned.3, [paper / eject] and [skip] button button correction print. [paper / eject] button will be second times the print position to the left [skip] tune recently; second print position correction button to the right tune recently.4, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.5, to select the next two-way correction test, press the [Online] button. Test in the "high-density", "high-speed high-density", "draft" and "Chinese characters" model in circulation.6, press [word spacing] button exit.CR3240II, AR6600:1, first install a wide row of printing paper, turn off the printer, and then press the "paper / paper / return paper" and [Online] button to start, the printer will print the operation prompts and test data.2. During the operation, the printer will send the paper back and forth to check whether the print is aligned.3. Print the button and adjust the distance between the words. [Select] button will print second print position to the left word tune recently; [space] button second times print position correction to the right tune recently.4, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.5, to select the next two-way correction test, click the skip button. If you press paper / paper / return the paper, select the last test item.6, press the [Online] button to quit.AR5400, AR5400+:1, press the [] button on the top of the boot at the same time, 2 to 3 seconds after the release button, and then loaded on the printing paper into EDS and longitudinal correction parameter settings.First, the printer will ask if you need to modify the EDS parameters, please choose not to enter at this time [skip] button press.Second items, three types of time and options for inserting a single page of paper. Please choose one of them.Third items, please choose the direction of the paper, and play two ways for you to choose.Fourth items, play "normal" and "bankbook" two kinds of printing mode, you choose.The fifth item is not available until the actual setting,two-way test and vertical correction. Please press the "paper / paper back" button to enter.2, the printer will print out 12 items, and then print the first of these 12 items, waiting for correction.3, [put eject button and [skip]] button correction print. [eject button installed] second print position to the left [skip] tune recently; second print position correction button to the right tune recently.4, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.5, to select the next two-way correction test, press the [Online] button.6, press the [] button to exit.Note: single sheet and multi ply paper are adjusted separately, without affecting each other. To ensure consistency between adjustment and application. The thickness of the paper bar is more than 3 at the scale, and it is made of multilayer paper.AR5400TX:1, press the [] button on the top of the boot, until the print head moves release key.2, after the printer to print paper, stop printing, followedby [skip] start button, turn the printer to print settings, until the two-way test and longitudinal correction play the words, then press [installed eject] button to confirm, will print out the test item.3, if the choice of single paper press paper loading correction [/] back paper confirmation, if the correction of multi-layer paper, press the [] button to skip, and then click Install eject button.4, [put eject button and [skip]] button correction print. [eject button installed] second print position to the left [skip] tune recently; second print position correction button to the right tune recently.5, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.6, to select the next two-way correction test, press the [Online] button.7, press the [] button to exit.Note: single sheet and multi ply paper are adjusted separately, without affecting each other. To ensure consistency between adjustment and application. The thickness of the paper bar is below 2. It is a single layer of paper, and the scale is more than 3. It is made of multilayer paper.AR6400:1. Open the front cover of the printer.2, press [Online] and [paper / paper back] do not put at the same time boot, until the print head began to move, let go. The level in A4 paper, print printer, if the printer paper will exit, put the paper back in the flat.3, the longitudinal correction models include: "Chinese characters of high density, high speed Chinese characters" and "west the density" and "western high speed", "high density image", "high speed image", can use paper loading [paper] / back select these settings to adjust a set, in whom [] key to enter in the back rows.4, if the choice of single paper press [skip] to confirm the correction, if the correction of multi-layer paper, press the [put eject "button, then press the button [skip].5. Press the paper / paper button and print the button. [Select] button will print second print position to the tune recently eject; [] button installed second print position correction to the right tune recently.6, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected. According to [skip], you will be prompted to save, and then click Save as Skip button, or press [paper / paper] then press [skip].When all modes are satisfied, press the [Online] key to exit.Note: single sheet and multi ply paper are adjusted separately, without affecting each other. To ensure consistency between adjustment and application. The thickness of the paper bar is below 2. It is a single layer of paper, and the scale is more than 3. It is made of multilayer paper.AR1000:1. Open the front cover of the printer. Press the [on line] and [teller] II] key to turn on, and when the print head begins to move, let go.2, the level of a A4 paper, if the printer paper will exit, put the paper back in the flat.3, the longitudinal correction models include: "Chinese characters of high density, high speed Chinese characters" and "west the density" and "western high speed", "high density image", "high speed image", can be used to select the II] teller [a few settings, want to adjust a setting in which, who in the back [teller I] to enter.4, if you choose the passbook correction, please press [teller I]] confirm, if correct multi-layer paper, first press [teller II] key], and then press [teller I] button].5, with [passbook / multi joint] button and [teller] II] button, proofreading is printing.[passbook / multiple button second times to print position tunerecently left; [teller II] button second times print position correction to the right tune recently.6, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected. Press [teller I]] will prompt you to save, such as save, and then press [teller I] key], or first press [teller II] and then press [teller I]].When all modes are satisfied, press the [Online] key to exit.AR4400:1, first install a wide row of printing paper, turn off the printer, and then press the [jump page] and [Online] button to start, the printer will print the operation prompts and test data.2. During the operation, the printer will send the paper back and forth to check whether the print is aligned.3, [page] [skip and jump button button correction print. [page] button will jump second print position to the left [skip] tune recently; second print position correction button to the right tune recently.4, when the print "|" characters with each other to form a continuous line, said that the bidirectional printing mode has been corrected.5, to select the next two-way correction test, press the [Online]button. Test cycle in "high density", "high speed", "high" and "draft" mode。
