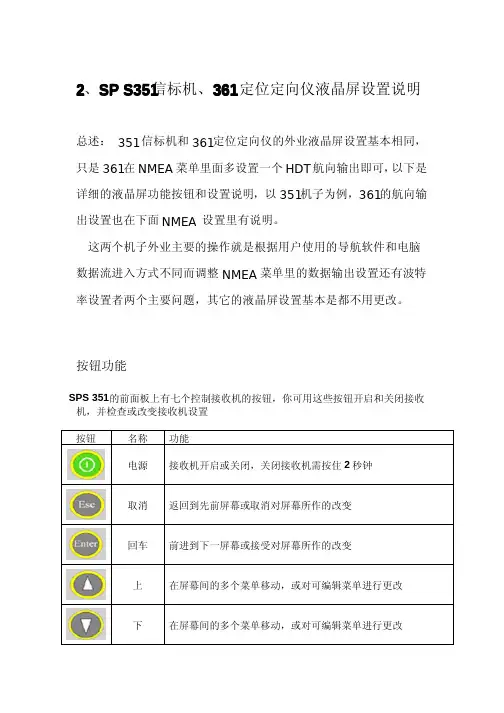

2、SP S351信标机、361定位定向仪液晶屏设置说明总述：351信标机和361定位定向仪的外业液晶屏设置基本相同，只是361在NMEA菜单里面多设置一个HDT航向输出即可，以下是详细的液晶屏功能按钮和设置说明，以351机子为例，361的航向输出设置也在下面NMEA设置里有说明。

这两个机子外业主要的操作就是根据用户使用的导航软件和电脑数据流进入方式不同而调整NMEA菜单里的数据输出设置还有波特率设置者两个主要问题，其它的液晶屏设置基本是都不用更改。

按钮功能SPS 351的前面板上有七个控制接收机的按钮，你可用这些按钮开启和关闭接收机，并检查或改变接收机设置按钮名称功能电源接收机开启或关闭，关闭接收机需按住2秒钟取消返回到先前屏幕或取消对屏幕所作的改变回车前进到下一屏幕或接受对屏幕所作的改变上在屏幕间的多个菜单移动，或对可编辑菜单进行更改下在屏幕间的多个菜单移动，或对可编辑菜单进行更改左在可编辑菜单的字符之间移动光标右在可编辑菜单的字符之间移动光标，按此按钮可进入编辑状态信标设置1、开机的初始化键面SV0表示目前收到0颗卫星；Se a rch表示正在搜索信标台信号，如果锁定了信标信号，则显示Lo cked；Ro ver表示接收机目前的工作方式，S P S3 51都是使用该方式；3 2 4.5表示信标频率。

按键进入2。

2、设置接收机模式Mo de Se tti n gs ----接收机系统设置进入此选项可以修改：语言，单位，端口波特率，屏幕Sys tem Se tu p -- --省电等查看接收机当前卫星状态SV Sta t u s- --按回车进入33．设为流动站（Ro ver）按回车进入44:信标模式选择，有以下模式可以选择：（1）A u to p o we r:自动追强（2）A u to Ra n ge:自动追近（3）Ma n ual：手动输入频率（4）Disa b le:关闭以下是设置界面：A u to p o we r:自动追强A u to Ra n ge:自动追近Ma n u al：手动输入频率Disa b le:关闭卫星高度角设置：默认为10度天线类型：s p s3 51 /3 61定位需要使用G A5 30天线差分源输出，一般设置为关（N o ne）NMEA格式输出为351信标机和361定位定向仪有所区别：对3 51来说，因为只涉及定位，所以NMEA输出格式只设置G GA即可，端口设置为：L+M，频率设置为：1 Hz（端口设置和频率设置这些都是通常设置，用户也可以自行根据所用导航软件的数据进入要求设定频率）对3 61来说，因为既涉及到定位也涉及到定向，首先，定位和3 51一样在NMEA这项选G GA，不过Po rt这一项的端口3 61是MO DEM（即用MO D EM口数据头输出）、SE RI A L3（即用SE RI A L3口输出）、off（不输出）三个选项，3 51上有le mon和L+M选项。

天宝DINI03数据传输及处理使用说明2019年03月1、数据传输；1.1、安装传输软件Trimble Datatransfer（没有配套的可以网上百度）；如右图所示图标软件即为该软件：1.2、连接驱动安装；驱动只需在第一次连接的时候需要安装，且数据线插入即会进行驱动安装。

若出现驱动安装失败，不要慌，把失败的卸掉再装一次，就好了。

1.3、数据线连接水准仪和电脑；图1连接后打开界面如上图所示。

1.4、新建设备；由于仪器与电脑连接是USB连接，因此在进行传输之前需要新建设备连接工程。

单击上图的【仪器设备】按钮，会弹出如下对话框，选择左下角的【新建】按钮，跳出如下图3对话框，找到图内红线所画设备，单击之，然后点击确认，进行下一步。

图2图3图4如上图4所示，在名称下面的文本框中输入接口名字点完成就好。

名字尽量显而易见，不要下次要找不到就尴尬了。

1.5、数据传输。

在初次使用的时候，需要在上图1中的左上角选择设备，选择我们新建的设备，再次打开时软件会有记忆功能，无需再次选择。

然后单击图1的【添加】按钮，找到需要的工程文件，然后单击【全部输出】，等待片刻即可输出到PC。

2、数据格式转化；通过上述传输软件导出到PC端的数据为DAT格式的（如下图5），不能够使用平差软件对其进行数据处理，须通过一定的软件对其进行处理，使其格式成为平差软件相应数据格式。

图52.1、软件安装及使用；该类软件品类较多，可自行安装。

本文所用软件为实际生产中用到的软件，是对已有软件进行优化加工的。

仅以此为例。

解压安装包，双击安装文件，根据提示安装即可。

图6如图6所示即为软件初始界面。

2.2、生成观测手簿；2.2.1、打开原始数据；点击菜单栏的【文件】菜单，选择下拉菜单下的【打开】按钮，单击一下，找到所需的文件，确认即可。

2.2.2、生成手簿文件；打开文件后，再次单击【文件】→【转化为EXCEL】，稍稍等待几秒钟，软件会自行导出EXCEL表（如下图7所示）。
