FX-16 MULTI EFFEKT MODULEVersion 1.01FLAMEManual FLAMEFX-16 MODULE Version 1.01

Contents1. Short description ....................................................................... 32. Hardware / Connection ..............................................................32.1 Module overview 32.2 Connection 4

3. Effect programms / parameters................................................5

4. Appendix and technical informations........................................64.1 Technical details 4.2 Warrenty 4.3 Terms of production 4.4 Disposal 4.5 Support 4.6 Acknowledgment

21. Short description2. Hardware / Connection

32.1. Module overviewRotary switch effect select

Audio mono inputand input attenuator

Audio stereo outputs left/right

Clip LED

CV-inputs and pots 1,2,3 for effect parameter controlCV range: 0..+5v

The Flame "FX-16” module is a small DSP-based (Spin semiconductors FV-1, 24bit ADC/DAC)multi effect module, designed for small mobile euro racks. 16 different multi effect programs areavailable.There are three knobs with additional CV inputs (0..+5v range) to change the effect parameters. Audio mono input and stereo output levels are adjusted for modular rack levels. The input canbe attanuated and is protected against level peaks. The outputs are buffered by an op-amp. One red LED indicates clipping. +12Vgroundgroundground-12V

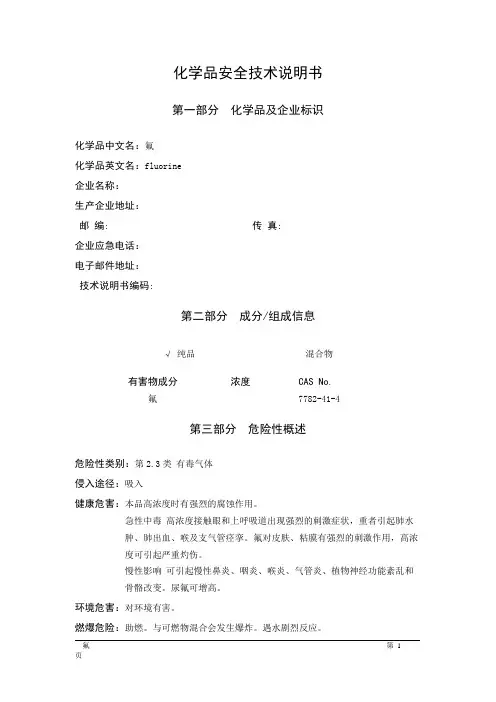

化学品安全技术说明书第一部分化学品及企业标识化学品中文名：氟化学品英文名：fluorine企业名称：生产企业地址：邮编: 传真:企业应急电话：电子邮件地址：技术说明书编码:第二部分成分/组成信息√纯品混合物有害物成分浓度CAS No.氟7782-41-4第三部分危险性概述危险性类别：第2.3类有毒气体侵入途径：吸入健康危害：本品高浓度时有强烈的腐蚀作用。
