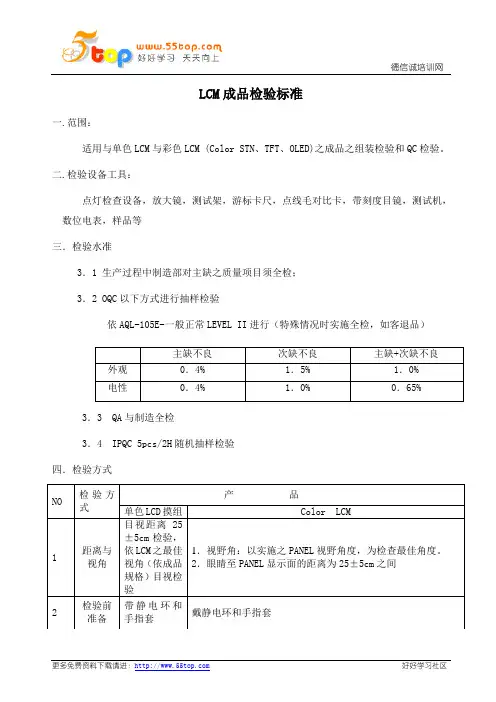

TFT成品检验标准

液晶电视检验标准规范液晶电视整机验收标准1、主题容与适用围本检验规规定了我公司3D广告机生产、检验的依据，主要包括QC检验、日抽样检验、样本抽取、出厂验收等。

2、一般要求3.2、使用条件使用条件由产品标准规定。

3.3、正常测试条件在下列围的湿度、温度和气压的任意组合条件下进行测量。

环境温度：15℃～35℃；相对湿度：45%～75%；大气压力：86KPa～106Kpa；在上述测试条件下，被测设备应满足其性能规，但在比上述测试条件更宽的围，设备仍能工作，但可不满足其所有的性能规，并允许被测设备在更为极端的条件下储存。

3.4、互连配接要求TFT LCD-TV液晶平面显示器/电视接收机应有复合视频输入接口，还可带有分量信号输入接口，如果与计算机连接，还应有VGA接口，对于TFT LCD-TV液晶平面电视接收机，应具备电视射频输入信号接入端子，至少支持PAL I/DK信号的解调及解码显示，并应符合GB 12281和GB/T 15859中的有关规定。

3、QC检验要求和容4.1、检验方式QC检验方式采取在线检验方式。

在整机生产的重要环节和最后环节设置QC，对整机生产的全过程进行全数检验。

4.2、检验项目A、外观、结构、部工艺质量检验B、图象、伴音质量检验C、功能质量检验D、安全、电磁兼容质量检验4.3、检验方法和要求按工序操作工艺文件的容和要求进行检查。

4.4、质量记录和处理凡在在线检验过程中出现的有缺陷的半成品机器，均要求在流程卡上注明故障现象或故障部位，并将坏机打入前道工序维修，不得流入下道工序。

经前道工序修复后方可重新提交检验。

检验人员每天作好检验记录，汇总后提交上级质量主管人员，对批量性和其它质量异常必须在第一时间反馈上级质量主管人员或经理。

4、日抽样检验5.1、检验项目A、开箱检验B、工艺装配检验C、常温主要电性能检验D、常温负荷试验 6、开箱检验要求和容6.1、检验方式开箱检验采取包装后开箱抽检方式进行。

1. Scope:The incoming inspection standards shall be applied to TFT-LCD Modules (hereinafter called "Modules") that supplied by Shanghai Tianma Micro-Electronics Corporation.2. Incoming InspectionThe customer shall inspect the modules within twenty calendar days of the delivery date（the “inspection period）at its own cost. The result of the inspection（acceptance or rejection）shall be recorded in writing, and a copy of this writing will be promptly sent to the seller, If the results of the inspecting from buyer does not send to the seller within twenty calendar days of the delivery date. The modules shall be regards as acceptance.Should the customer fail to notify the seller within the inspection period, the buyers right to reject the modules. Shall be lapsed and the modules shall be deemed to have been accepted by the buyer.3. Inspection Sampling Method3.1. Lot size: Quantity per shipment lot per model3.2. Sampling type: Normal inspection, Single sampling3.3. Inspection level: II3.4. Sampling table: MIL-STD-105D3.5. Acceptable quality level （AQL）Major defect: AQL=0.1Minor defect: AQL=0.654. Inspection Conditions4.1 Ambient conditions:a. Temperature: Room temperature 25±5℃b. Humidity: (60±10) ％RHc. Illumination: Single fluorescent lamp non-directive ( 600 to 800 Lux )4.2 Viewing distanceThe distance between the LCD and the inspector’s eyes shall be at least 30±5㎝. 4.3 Viewing AngleU/D: 45º/45º, L/R: 45º/45º5. Inspection CriteriaPage 2 of 6Defects are classified as major defects and minor defects according to the degree of defectiveness defined herein.5.1 Major defect5.2 Minor defect Item NoItems to be inspectedInspection standard5.2.1Spot Defect Including Black spotWhite spot Pinhole Foreign particle Polarizer dirtFor dark/white spot is definedSize φ(mm)Acceptable Quantityφ≤0.10 Ignore 0.10﹤φ≤0.203 0.20﹤φNot allowed5.2.2Line DefectDefine:Item No Items to be inspected Inspection Standard 5.1.1 All functional defects 1) No display 2) Display abnormally3) Short circuit 4) line defect5.1.2 missing Missing function component5.1.3 CrackGlass CrackPage 3 of 6 IncludingBlack lineWhite lineScratchTouch panel White line Scratch Width(mm)Length(mm)Acceptable Quantity W≤0.03 Ignore0.03﹤W≤0.05L≤5.020.05﹤W Follow 5.2.15.2.3PolarizerDent/BubbleSize φ(mm)Acceptable Quantityφ≤0.2Ignore0.2﹤φ≤0.5 30.5﹤φNot allowed5.2.4 Electrical DotDefectBright and Black dot define:andInspection pattern: Full white﹑Full black﹑Red﹑greenand blue screensItem Acceptable QuantityDark dot defect 2Bright dot defect 0Total Dot 25.2.5 Touch paneldefect1.Corner Fragment:Page 4 of 6Size(mm) Acceptable QuantityX≤3.0mm Y≤3.0mm Z≤TIgnoreT:Glass thickness X: LengthY: WidthZ: thickness2. Side Fragment:Size(mm) Acceptable QuantityX≤5.0mm Y ≤3.0mm Z≤TIgnoreT：Glass thickness X: LengthY: WidthZ: thickness5.2.6 Touch panelspotSize φ(mm)Acceptable Quantityφ≤0.15 Ignore0.15﹤φ≤0.25 30.25﹤φ05.2.7 Touch panelNewton ringCompare with limit sample5.2.8 BezelDirtNo harm WrapSunken No dangerous Broken No harm5.2.9 FPC Broken Not allowed Crease Can't resume is not allowedPage 5 of 6 Note: 1. Dot defect is defined as the defective area of the dot area is larger than50% of the dot area.2.The distance between black dot defects or black and bright dot defectsshould be more than 5mm apart.3. Polarizer bubble is defined as the bubble appears on active display area. Thedefect of polarizer bubble shall be ignored if the polarizer bubble appears on theoutside of active display area.4.Mura is checker by 6% ND filter.5.Foreign particle on the surface of the LCM should be ignore.6. Mechanics specificationAs for the outside dimension, weight of the modules, please refer to product specification for more details7. PrecautionPlease pay attention to the following items when you use the LCD Modules:7-1 Do not twist or bend the module and prevent the unsuitable external force for display module during assembly.7-2 Adopt measures for good heat radiation. Be sure to use the module with in the specified temperature.7-3 Avoid dust or oil mist during assembly.7-4 Following the correct power sequence while operating. Do not apply the invalid signal, otherwise, it will cause improper shut down and damage the module.7-5 Less EMI: it will be more safety and less noise.7-6 Please operate module in suitable temperature. The response time & brightness will drift by different temperature.7-7 Avoid to display the fixed pattern (exclude the white pattern) in a long period, otherwise, it will cause image stains.7-8 Be sure to turn off the power when connection of disconnecting the circuit.7-9 Polarizer scratches easily, please handle it carefully.7-10 Display surface never likes dirt of stains.7-11 A dew drop may lead to destruction. Please wipe off and moisture before using module.7-12 Sudden temperature changes cause condensation, and it will cause polarizer damaged.7-13 High temperature and humidity may degrade performance. Please do not expose the module to the direct sunlight and so on.7-14 Acetic acid or chlorine compounds are not friends with TFT display module.7-15 Static electricity will damage the module, please do not touch the module without any grounded device.7-16 Do not disassemble and reassemble the module by self.7-17 Be careful do not touch the rear side directly.Page 6 of 6 7-18 Not strong vibration or shock. It will cause module broken.7-19 Storage the modules in suitable environment with regular packing.7-20 Be careful or injury from a broken display module.7-21 Please avoid the pressure adding to the surface (front or rear side) of modules, because it will cause the display non-uniformity of other function issue.。

●
2217
铁框表面外观
Φ=（长+宽）/2
Φ单位：mm
1．：生锈，氧化，不合格。
●
2．任何破裂，正面不可有缺口，侧面缺口≧0.2mm,不合格。
3．正面变形﹥1.0 mm,侧面变形﹥2.0 mm，不合格
●
4．铁框视区开口内部有毛边向内或向下﹥0.1mm（特殊机型依另定规格），不合格
●
5．材质，型号
材质与型号不符合定单要求，不合格
尺寸Φ
容许个数
Φ≦0.10
不计(密集不可)
0.10<Φ≦0.20
3
0.20<Φ≦0.25
2
Φ>0.25
0
●
2215
LCD崩裂/损伤
电极区外（非导电面）
1．1. X≧3mmNG; 2. Y破损达可视区,NG；3.Z>1/2T,不合格；4.破损造成1/3胶框以上外露者,不合格.
说明:X:长边方向,Y:短边方向,Z:厚度方向,T为LCD上片或下片的厚度
●
2215
LCD崩裂/损伤
1.X、Y触及框胶宽度1/3以上，不合格；
2.A>1/4导电层宽度,不合格。
●
2216
铁框组装外观
Φ=（长+宽）/2
Φ单位：mm
1．铁框变形,不合格
●
2．（适用于铁框组装机型）组装后，铁框应与LCD表面紧密接触，不可有悬空，但不可积压LCD，使之变色
●
3．铁框，刮伤不合格。
4
温湿度
温度在22℃±3℃之间
湿度在55%~75%之间
温度在22℃±3℃之间
湿度在45%~75%之间
5．可视区域的定义：
A区可视区域 B区：外行尺寸，包括A区的可视区域

B类：AQL=0.4C类：AQL=1.5
6.24.2依GB/T 2829-2002，判别水平Ⅱ的一次抽样方案执行。
B类：RQL=15,n=10，Ac=0，Re=1C类：RQL=30，n=10，Ac=1，Re=2
7处理方法：按《进货检验标准总则》执行。
批准
审核
拟制
8缺陷类别
8.1脏污、杂质、异物、气泡、白点、黑点等缺陷判定参照“点缺陷”判定
4检验项目及技术要求
4.1外观：
4.1.1液晶屏无破损，表面无脏污、斑点、划痕。
4.1.2边框及FPC线无氧化、脏污、弯形。
4.2结构尺寸：
4.2.1液晶屏主体长、宽、厚应符合装配或样品要求。
4.2.2FPC线及背光电源线尺寸应符合装配或样品要求。
4.3电气性能：无不显示、缺划、多划、闪动、显示暗等不良现象。

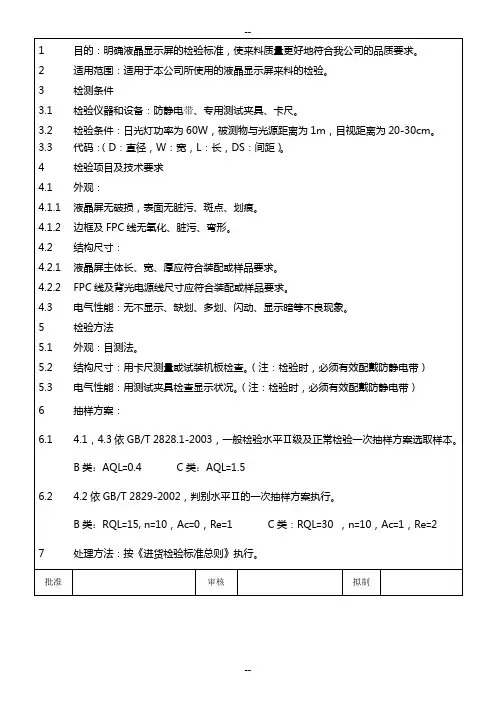

1目的：明确液晶显示屏的检验标准，使来料质量更好地符合我公司的品质要求。
2适用范围：适用于本公司所使用的液晶显示屏来料的检验。
3检测条件
3.1检验仪器和设备：防静电带、专用测试夹具、卡尺。
3.2检验条件：日光灯功率为60W，被测物与光源距离为1m，目视距离为20-30cm。
3.3代码：（D：直径，W：宽，L：长，DS：间距）。
不显示、显示缺划、多划、闪动、显示暗
B
显示颜色异常、条纹
B
显示有2个（含2个）以上的亮点或黑点
B
显示有1个亮点或黑点
C
显示有3个（含3个）以上的彩点
B
显示有2个彩点，且DS＞30mm
C
附表
B
有3条以上0.03mm＜W≤0.1mm，L≤3mm的划伤
B
有2条0.03mm＜W≤0.1mm，L≤3mm的划伤
