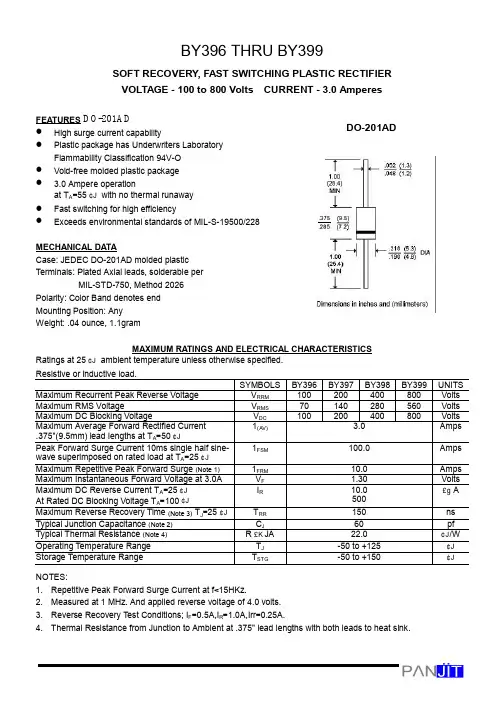

BY396 THRU BY399SOFT RECOVERY, FAST SWITCHING PLASTIC RECTIFIER VOLTAGE - 100 to 800 Volts CURRENT - 3.0 AmperesFEATURES DO-201ADl High surge current capabilityl Plastic package has Underwriters Laboratory Flammability Classification 94V-O l Void-free molded plastic package l 3.0 Ampere operationa t T A =55¢J with no thermal runaway l Fast switching for high efficiencyl Exceeds environmental standards of MIL-S-19500/228MECHANICAL DA TACase: JEDEC DO-201AD molded plastic Terminals: Plated Axial leads, solderable per MIL-STD-750, Method 2026Polarity: Color Band denotes end Mounting Position: AnyWeight: .04 ounce, 1.1gramMAXIMUM RA TINGS AND ELECTRICAL CHARACTERISTICSRatings at 25¢J ambient temperature unless otherwise specified.Resistive or inductive load.SYMBOLS BY396BY397BY398BY399UNITS Maximum Recurrent Peak Reverse Voltage V RRM 100200400800Volts Maximum RMS VoltageV RMS 70140280560Volts Maximum DC Blocking VoltageV DC 100200400800Volts Maximum Average Forward Rectified Current .375"(9.5mm) lead lengths at T A =50¢J1(AV)3.0Amps Peak Forward Surge Current 10ms single half sine-wave superimposed on rated load at T A =25¢J 1FSM 100.0Amps Maximum Repetitive Peak Forward Surge (Note 1)1FRM 10.0Amps Maximum Instantaneous Forward Voltage at 3.0A V F 1.30Volts Maximum DC Reverse Current T A =25¢J At Rated DC Blocking Voltage T A =100¢JI R 10.0500£g A Maximum Reverse Recovery Time (Note 3) T J =25¢J T RR 150ns Typical Junction Capacitance (Note 2)C J 60pf Typical Thermal Resistance (Note 4)R £K JA 22.0¢J /W Operating Temperature Range T J -50 to +125¢J Storage Temperature RangeT STG-50 to +150¢JNOTES:1. Repetitive Peak Forward Surge Current at f<15HKz.2. Measured at 1 MHz. And applied reverse voltage of 4.0 volts.3. Reverse Recovery T est Conditions; I F =0.5A,I R =1.0A,Irr=0.25A.4. Thermal Resistance from Junction to Ambient at .375" lead lengths with both leads to heat sink.DO-201ADRATING AND CHARACTERISTIC CURVES BY396 THRU BY399AMBIENT TEMPERATURE, ¢JNUMBER OF CYCLES AT 60HzFig. 1-FORWARD CURRENT DERATING CURVEFig. 2-MAXIMUM NON-REPETITIVE PEAK FORWARDSURGE CURRENT0.4 0.60.8 1.0 1.2 1.4 1.6 1.8 2.0INSTANTANEOUS FORWARD VOLTAGE, VOLTSPERCENT OF RATED PEAK REVERSE VOLTAGEFig. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICSFig. 4-TYPICAL REVERSE CHARACTERISTICSREVERSE VOLTAGE, VOLTSFig. 5-TYPICAL JUNCTION CAPACITANCE。
BY448GPVishay General SemiconductorDocument Number: 88543For technical questions within your region, please contact one of the following:Miniature Clamper/Damper Glass Passivated RectifierFEATURES•Superectifier structure for high reliability application •Cavity-free glass-passivated junction •Low forward voltage drop •Typical I R less than 0.1 µA •High forward surge capability•Meets environmental standard MIL-S-19500 •Solder dip 260 °C, 40 s•Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC TYPICAL APPLICATIONSFor use in high voltage rectification of power supplies,inverters, converters and freewheeling diodes specially designed for clamping circuits, horizontal deflection systems and damper applications.MECHANICAL DATACase: DO-204AC, molded epoxy over glass body Epoxy meets UL 94V-0 flammability ratingTerminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2whisker testPolarity:Color band denotes cathode endPRIMARY CHARACTERISTICSI F(AV) 1.5 A V RRM 1650 V I FSM 40 A I R 5.0 µA V F 1.6 V T J max.175 °CMAXIMUM RATINGS (T A = 25 °C unless otherwise noted)PARAMETER SYMBOL BY448GP UNITMaximum repetitive peak reverse voltage V RRM 1650V Maximum RMS voltage V RMS 1150V Maximum DC blocking voltageV DC1650VMaximum average forward rectified current 0.375" (9.5 mm)lead length at T A = 50 °CI F(AV) 1.5 A Peak forward surge current 8.3 ms single half sine wave superimposed on rated loadI FSM 40 A Maximum full load reverse current, full cycle average, 0.375" (9.5 mm) lead length at T A = 100 °CI R(AV) 50µA Operating junction and storage temperature rangeT J , T STG- 65 to + 175°C元器件交易网BY448GPVishay General Semiconductor For technical questions within your region, please contact one of the following:Document Number: 88543Note:(1) Pulse test: 300 µs pulse width, 1 % duty cycleNote:(1) Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, P.C.B. mountedNote:(1) Automotive grade AEC Q101 qualifiedRATINGS AND CHARACTERISTICS CURVES(T A = 25 °C unless otherwise noted)ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted)PARAMETER TEST CONDITIONS SYMBOL BY448GP UNITMaximum instantaneous forward voltage (1)I F = 3.0 A V F 1.6V Maximum reverse current V R = 1650 VT A = 25 °C T A = 100 °CI R 5.0 100 µA Maximum reverse recovery time I F = 0.5 A, I R = 50 mA t rr 20µs Reverse recovery time I F = 0.5 A,I R = 1.0 A, I rr = 0.25 A typical maximumt rr 0.5 1.5 µs Typical junction capacitance 4.0 V , 1 MHzC J15pFTHERMAL CHARACTERISTICS (T A = 25°C unless otherwise noted)PARAMETER SYMBOL BY448GP U NITTypical thermal resistance (1) R θJA 55°C/WORDERING INFORMATION (Example)PREFERRED P/N UNIT WEIGHT (g)PREFERRED PACKAGE CODEBASE QUANTITYDELIVERY MODEBY448GP-E3/540.42554400013" diameter paper tape and reelBY448GP-E3/730.425732000Ammo pack packaging BY448GPHE3/54 (1)0.42554400013" diameter paper tape and reelBY448GPHE3/73 (1)0.425732000Ammo pack packagingFigure 1. Forward Current Derating Curve Figure 2. Maximum Non-Repetitive Peak Forward Surge Current元器件交易网BY448GPVishay General SemiconductorDocument Number: 88543For technical questions within your region, please contact one of the following:PACKAGE OUTLINE DIMENSIONS in inches (millimeters)Figure 3. Typical Instantaneous Forward Characteristics Figure 4. Typical Reverse CharacteristicsFigure 5. Typical Junction Capacitance元器件交易网Disclaimer Legal Disclaimer NoticeVishayAll product specifications and data are subject to change without notice.Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product.Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay.The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.Product names and markings noted herein may be trademarks of their respective owners.元器件交易网Document Number: 。
