485总线制报警系统布线规范

大型485总线联网设备施工注意事项一、线材选择一定要用双绞线，在没有大的电磁干扰场合，可以不加屏蔽,但一定要双绞。

当用1.0mm平行线来传输485信号时，线材超过800m就会出现通讯不正常甚至有时根本就没法通讯，主要就是平行线的分布电容对信号的延迟加大，所以，工程商在用485总线报警主机时要注意的一个地方。

二、布线规范1、布线要符合RS485规范。

信号总线建议使用双绞屏蔽RVSP2*0.5，线材阻抗120欧姆最佳。

波特率2400Bps单路总线的最长控制距离可达1.2公里。

信号线切忌用平行线。

2、在同一个网络系统中，必须使用同一种电缆，尽量减少线路中的接点。

接点处确保焊接良好，包扎紧密，避免松动和氧化。

485总线一定要是手拉手式的总线结构,坚决杜绝星型连接和分叉连接。

3、布线尽量远离高压电线，不要与电源线并行，更不能捆扎在一起。

4、用屏蔽线将所有485设备的GND地连接起来。

5、当总线长度超过100米后，应在最后一台485设备的485+和485-上并接120欧姆的终端电阻，通讯稳定性增加。

6、当总线长度超过200米后，建议在最后一个设备的485+和485-上并接一个120欧姆的终端电阻。

若系统加了中继器，应该在中继器的进线端485+和485-上并接一个120欧姆的终端电阻，中继器出线端最后一个设备也要并接终端电阻。

7、接点处确保焊接良好，包扎紧密，避免松动和氧化。

第一章澄清几个概念:概念一: 485总线的通讯距离可以达到1200米.其实只是485总线结构理论上在理想环境的前提下才有可能使得传输距离达到1200米.一般是指通讯线材优质达标,波特率9600,只有一台485设备才能使得通讯距离达到1200米,而且能通讯并不代表每次通讯都正常.所以通常485总线实际的稳定的通讯距离远远达不到1200米. 负载485设备多,线材阻抗不合乎标准,线径过细,转换器品质不良,设备防雷保护,波特率的加高等等因素都会降低通讯距离.概念二: 485总线可以带128台设备进行通讯.其实并不是所有485转换器都能够带128台设备的.要根据485转换器内芯片采用的型号和485设备芯片采用的型号来判断的.谁低就谁的.一般485芯片负载能力有三个级别32台128台256台. 理论上的标称往往实际上是达不到的.通讯距离越长,波特率越高,线径越细,线材质量越差,转换器品质越差,转换器电能供应不足(无源转换器),防雷保护越强这些都会大大降低真实负载数量.概念三: 485总线是一种最简单最稳定最成熟的工业总线结构.这种概念是错误的.应该是: 485总线是一种用于设备联网的经济型的传统的工业总线方式. 通讯质量是需要根据施工经验进行测试和调试的. 485总线虽然简单,但必须严格安装施工规范进行布线.第二章严格几个施工规范:485+和485-条数据线一定要互为双绞.布线一定要布多股屏蔽双绞线,多股是为了备用,屏蔽是为了出现特殊情况时调试,双绞是因为485通讯采用差模通讯原理,双绞的抗干扰性最好.不采用双绞线,是极端错误的.485总线一定要是手牵手式的总线结构,坚决杜绝星型连接和分叉连接.设备供电的交流电及机箱一定要真实接地,而且接地良好.有很多地方表面上有三角插座,其实根本没有接地,要小心.接地良好时,可以确保设备被雷击浪涌冲击静电累计时可以配合设备的防雷设计较好地释放能量.保护485总线设备和相关芯片不受伤害.避免和强电走在一起,以免强电对其干扰.第三章几种常见的通讯故障:通讯不上,无反应.可以上传数据,但不可以下载数据.通讯时,系统提示受到干扰.或者不通讯时,通讯指示灯也不停地闪烁.有时能通讯上,有时通讯不上.有的指令可以通,有的指令不可以通.第四章推荐几个调试方法:首先要确保设备接线正确,且严格合乎规范.共地法: 用1条线或者屏蔽线将所有485设备的GND地连接起来,这样可以避免所有设备之间存在影响通讯的电势差.终端电阻法: 在最后一台485设备的485+和485-上并接120欧姆的终端电阻来改善通讯质量中间分段断开法: 通过从中间断开来检查是否是设备负载过多通讯距离过长某台设备损害对整个通讯线路的影响等原因单独拉线法: 单独简易暂时拉一条线到设备,这样可以用来排除是否是布线引起了通讯故障更换转换器法: 随身携带几个转换器,这样可以排除是否是转换器质量问题影响了通讯质量笔记本调试法: 先保证自己随身携带的电脑笔记本是通讯正常的设备,替换客户电脑,来进行通讯,如果可以,则表明客户的电脑的串口有可能被损害或者受伤第五章提出几个建议和忠告:建议用户使用和购买门禁厂家提供的485转换器或者厂家指定推荐品牌的485转换器.门禁厂家会对与其配套的485转换器做大量的测试工作,并且会单独要求485厂家安装其固定的性能参数进行生产和品质检测,所以和其门禁设备具备较好的兼容性.千万不要贪图便宜购买杂牌厂家的485转换器.严格按照485总线的施工规范进行施工,杜绝任何侥幸心理.对线路较长负载较多的情况采用主动科学的有预留的解决方案.如果通讯距离过长,建议如果超过500米就采用中继器或者485HUB来解决问题.如果负载数过多,建议如果一条总线上超过30台就采用485HUB来解决问题.现场调试带齐调试设备.现场调试一定要随身携带几个确保以前可以接长距离和多负载的转换器一台常用的电脑笔记本测试通路断路的万用表几个120欧姆的终端电阻.485总线应采用什么样的通讯线必须采用国际上通行的屏蔽双绞线。

78485总线的布线规范及调试方法一、布线规范1、控制器通讯线（包括485/422、232和韦根等通讯线）必须采用国际通用的8芯屏蔽双绞线,这样可有效防止和屏蔽干扰。

线径大于0.3mm总线长度不超过1200建议在1000米以内，如果更长请选用其它专用485/232转换器或者加中继器，并选用更粗的通讯电缆。

控制器GND 485- 485＋分别对应连接485转换器GND TD(A) TD(B)，通讯线路采用串联挂接式连接，请勿采用星型连接或者局部星型连接。

如果线路过长和设备过多，请在最后一台设备上增加终端电阻（有跳线加载）总线最多可挂接128台控制器。

2、其设备用线不得走强电凿或是强电线管。

如因环境所限，要平行走线，则要远离50CM以上。

二、安全事项注意1、虽然控制器已经具备了防静电和防雷击设计，但是请确保电源和机箱的良好接地，以保障电路不被静电、雷电和其他设备漏电所伤害，长时间稳定运行。

2、请勿带电拔插接线端子，或者带电焊接操作，焊接接线时应该先拔下所对应的接线座。

3、请勿私自拆卸控制器上的元器件，这样有可能会引起系统信息的丢失或芯片损害。

4、本控制器可以直接外挂UPS不间断电源，保证停电后系统仍然可以继续工作。

系统配备掉电保护装置，即使停电系统设置信息和记录也不会丢失。

5、尽量避免将控制器电源和其他大电流工作设备接在同一电源上。

485施工常见错误现象：485线路不使用双绞线，或者使用低档的无源转换器!485通讯线不能走星型连接，必须走规范的手牵手的总线模式。

如果485走线不规范或者超出通讯范围，会出现通讯不上或者有时通讯上有时通讯不上的现象。

485传输是差模传输模式，只有485＋和485- 互为双绞，才能使得485传输模式受到的干扰最小，传输最远，传输质量最好。

有些工程商不采用双绞线会使得干扰很大，有些工程商误以为线粗一些传输质量会好，将双绞线合成一股，另外一台双绞线也合成一股，这样适得其反，反而大幅度降低了通讯质量。

485总线布线规范及调试（485 bus routing specification anddebugging）485 bus routing specification and debugging485 bus because of its wiring is simple, reliable and widely used in video surveillance, access control intercom, alarm and other buildings in various fields, but in the 485 bus wiring process because there is not exactly the concept of causing a lot of problems. Some of the wrong ideas are now being clarified.The 1.485 signal line can go along with the strong current power line. In the actual construction, the line is through the pipeline to the construction side, sometimes for convenience, directly to the 485 signal line and power line tied together with strong signal due to the strong electromagnetic interference for the weak, resulting in 485 signal instability, lead to unstable communication.The 2.485 signal line may use parallel line as the wiring, may also use the non shielded line as the wiring. Since the 485 signal is transmitted by differential mode, the voltage difference between the 485+ and the 485- is used as the signal transmission. If there is an external interference source of the interference, when the use of twisted pair of 485 signal transmission, because of its twisted pair, interference for 485+, 485- jamming effect are the same, the voltage difference is still unchanged, for the 485 signal interference reduced to the minimum. In the same way, if the shielding line acts as a shield, the interference from the external interference sourcecan be reduced as much as possible.3., choose to use the ordinary super five shielded twisted pair, that is, the cable can be. Due to the rising prices of raw materials, lead wire on the market now have bad traders use some dragons and fishes jumbled together, to replace copper alloy to copper cable, on the outside to fudge customers. Specific differences: read the cable section, if it is copper, copper, such as white, is the use of shoddy alloy. Alloy is generally brittle, easy to break, and conductivity is far less than copper wire, it is easy to cause problems in construction. 485 line wire general recommendations on the selection criteria, the STP, the transmission line is not like that line is a single stranded copper, but copper wire twisted together to form a line, and even a small wire broken, will not affect the use.4.485 the wiring can be arbitrarily arranged as star connection and tree connection. The 485 wiring specification is a routing that must be held in hand. Once the 485 hub and 485 repeater are not directly configured as star connections and tree connections, it is easy to cause a signal to reflect and cause the bus to be unstable. A lot of construction in the 485 party in the process of routing, the use of star connection and tree connection, sometimes the whole system is very stable, but sometimes it always has the problem, it is difficult to find the reasons, usually because of irregularities caused by wiring. If the field limit, you must have a star connection or tree connection, you can use the 485 hub and 485 repeaters to solve related problems.The 5.485 bus must be grounded. In many technical documents,it is mentioned that the 485 bus must be grounded, but there is no detail about how to ground it. Strictly speaking, the 485 bus must have a single point and reliable grounding. The single point is the 485 bus is only one point grounding, not more ground, because the ground is because will wire (usually shielded wire for wire) on the voltage remains the same, to prevent common mode interference, if the grounding point backfire. Earth connection the 485 line must have good contact, so as to ensure that the voltage is consistent, because in the actual construction, in order to convenient wiring line will cut into segments connected, but not as good shielding line connection, so that the earth is divided into multiple segments, voltage is not consistent the common mode interference.In the field, 485 bus applications are very extensive, but the 485 bus is prone to malfunction, and now the 485 bus prone to failure, and can be excluded from these methods are listed below:1., since the 485 signal uses a pair of unbalanced differential signals, it means that each of the 485 devices in the network must be connected to the ground via a signal loop,In order to reduce the noise on the data line, the data line is preferably composed of twisted pairs, and a shield layer is added to the ground as a ground wire to connect the 485 devices in the 485 network and to reliably connect the ground at one point.2. in the industrial field, the situation is very complex, there is a high common mode voltage between each node, 485 interfaceusing a differential transmission, has the ability of anti common mode interference, but when the common mode voltage is greater than +12V or less than -9V, more than 485 receiver voltage limit. The receiver will not work, and may even burn chips and devices together. You can use the Shenzhen fuyongtong Technology Co. Ltd. on the 485 bus in 485 optical isolation repeaters, 485 signal and power completely isolated, so as to eliminate the influence of common mode voltage.3.485 bus with extend the transmission distance, will produce the echo signal, if the transmission distance of 485 bus if more than 100 meters, the end of the end of 120 ohm resistor in the beginning of the 485 communication terminal and construction suggestions. The related wiring method may refer to the homepage: 120 ohm resistance connectionIn the 4.485 bus, the 485 node wants to minimize the distance between the trunk, and it is generally recommended that the 485 bus uses hand in hand bus topology. The star shaped structure produces a reflected signal that affects the quality of the 485 communications. If you have 485 nodes from 485 bus backbone in the construction process of the distance beyond a certain distance, using Shenzhen fuyongtong bifurcation Technology Co. Ltd. the 485 repeater can make a 485 bus. If the construction process requires the use of a star topology, you can use the Shenzhen fuyongtong Technology Co. Ltd. the 485 hub can solve this problem.5., the factors affecting the load capacity of 485 bus: communication distance, wire quality, baud rate, converter power supply, lightning protection of 485 devices, 485 chipselection. If more than 485 devices on the 485 bus, it is recommended to use a 485 converter with a power supply, passive type 485 converter, due to the power stealing from the serial port, the power supply capacity is not enough, the load capacity is not enough. Select good wire, if possible to use the lowest possible baud rate, select the high load capacity of the 485 chip, can improve the load capacity of 485 buses. 485 the lightning protection tube in the lightning protection of the equipment will absorb the voltage, resulting in the reduction of the capacity of the 485 bus load, and removing the lightning protection can improve the load capacity of the 485 buses. If in the construction site, not factors change, recommend the use of Shenzhen fuyongtong Technology Co. Ltd. the 485 repeater or 485 hub to provide the load capacity of 485 bus.485 bus because of its wiring is simple, reliable and widely used in video surveillance, access control intercom, alarm and other buildings in various fields, but in the 485 bus wiring process because there is not exactly the concept of causing a lot of problems. Some of the wrong ideas are now being clarified.The 1.485 signal line can go along with the strong current power line. In the actual construction, the line is through the pipeline to the construction side, sometimes for convenience, directly to the 485 signal line and power line tied together with strong signal due to the strong electromagnetic interference for the weak, resulting in 485 signal instability, lead to unstable communication.The 2.485 signal line may use parallel line as the wiring, mayalso use the non shielded line as the wiring. Since the 485 signal is transmitted by differential mode, the voltage difference between the 485+ and the 485- is used as the signal transmission. If there is an external interference source of the interference, when the use of twisted pair of 485 signal transmission, because of its twisted pair, interference for 485+, 485- jamming effect are the same, the voltage difference is still unchanged, for the 485 signal interference reduced to the minimum. In the same way, if the shielding line acts as a shield, the interference from the external interference source can be reduced as much as possible.3., choose to use the ordinary super five shielded twisted pair, that is, the cable can be. The price of raw materials has gone up,Lead wire on the market now have bad traders use some dragons and fishes jumbled together, to replace copper alloy to copper cable, on the outside to fudge customers. Specific differences: read the cable section, if it is copper, copper, such as white, is the use of shoddy alloy. Alloy is generally brittle, easy to break, and conductivity is far less than copper wire, it is easy to cause problems in construction. 485 line wire general recommendations on the selection criteria, the STP, the transmission line is not like that line is a single stranded copper, but copper wire twisted together to form a line, and even a small wire broken, will not affect the use.4.485 the wiring can be arbitrarily arranged as star connection and tree connection. The 485 wiring specification is a routing that must be held in hand. Once the 485 hub and 485 repeaterare not directly configured as star connections and tree connections, it is easy to cause a signal to reflect and cause the bus to be unstable. A lot of construction in the 485 party in the process of routing, the use of star connection and tree connection, sometimes the whole system is very stable, but sometimes it always has the problem, it is difficult to find the reasons, usually because of irregularities caused by wiring. If the site restrictions must be connected in star or tree connection, can use Shenzhen fuyongtong Technology Co. Ltd. the 485 hubs and 485 repeaters to solve related problems, the relevant reference pages are as follows: 485 bus 485 bus connected in star, tree topology.The 5.485 bus must be grounded. In many technical documents, it is mentioned that the 485 bus must be grounded, but there is no detail about how to ground it. Strictly speaking, the 485 bus must have a single point and reliable grounding. The single point is the 485 bus is only one point grounding, not more ground, because the ground is because will wire (usually shielded wire for wire) on the voltage remains the same, to prevent common mode interference, if the grounding point backfire. Earth connection the 485 line must have good contact, so as to ensure that the voltage is consistent, because in the actual construction, in order to convenient wiring line will cut into segments connected, but not as good shielding line connection, so that the earth is divided into multiple segments, voltage is not consistent the common mode interference.。

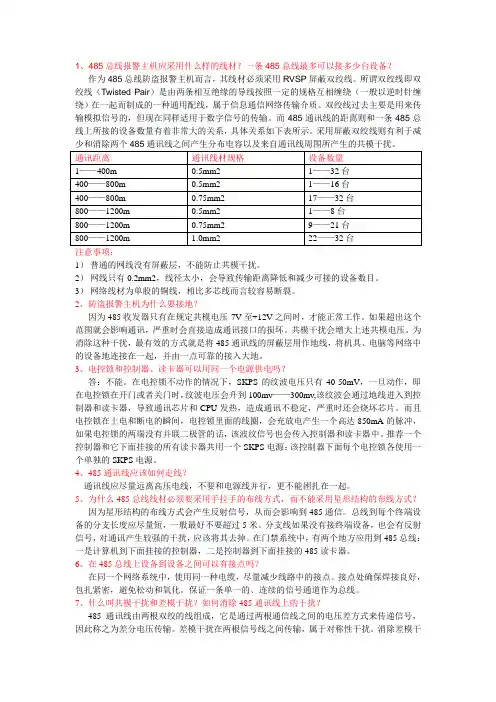

1、485总线报警主机应采用什么样的线材？一条485总线最多可以接多少台设备？注意事项：1）普通的网线没有屏蔽层，不能防止共模干扰。

2）网线只有0.2mm2，线径太小，会导致传输距离降低和减少可接的设备数目。

3）网络线材为单股的铜线，相比多芯线而言较容易断裂。

2、防盗报警主机为什么要接地？因为485收发器只有在规定共模电压-7V至+12V之间时，才能正常工作。

如果超出这个范围就会影响通讯，严重时会直接造成通讯接口的损坏。

共模干扰会增大上述共模电压。

为消除这种干扰，最有效的方式就是将485通讯线的屏蔽层用作地线，将机具、电脑等网络中的设备地连接在一起，并由一点可靠的接入大地。

3、电控锁和控制器、读卡器可以用同一个电源供电吗？答：不能。

在电控锁不动作的情况下，SKPS的纹波电压只有40-50mV，一旦动作，即在电控锁在开门或者关门时，纹波电压会升到100mv——300mv,该纹波会通过地线进入到控制器和读卡器，导致通讯芯片和CPU发热，造成通讯不稳定，严重时还会烧坏芯片。

而且电控锁在上电和断电的瞬间，电控锁里面的线圈，会充放电产生一个高达850mA的脉冲，如果电控锁的两端没有并联二极管的话，该波纹信号也会传入控制器和读卡器中。

推荐一个控制器和它下面挂接的所有读卡器共用一个SKPS电源；该控制器下面每个电控锁各使用一个单独的SKPS电源。

4、485通讯线应该如何走线？通讯线应尽量远离高压电线，不要和电源线并行，更不能困扎在一起。

5、为什么485总线线材必须要采用手拉手的布线方式，而不能采用星形结构的布线方式？因为星形结构的布线方式会产生反射信号，从而会影响到485通信。

总线到每个终端设备的分支长度应尽量短，一般最好不要超过5米。

分支线如果没有接终端设备，也会有反射信号，对通讯产生较强的干扰，应该将其去掉。

在门禁系统中，有两个地方应用到485总线：一是计算机到下面挂接的控制器，二是控制器到下面挂接的485读卡器。
