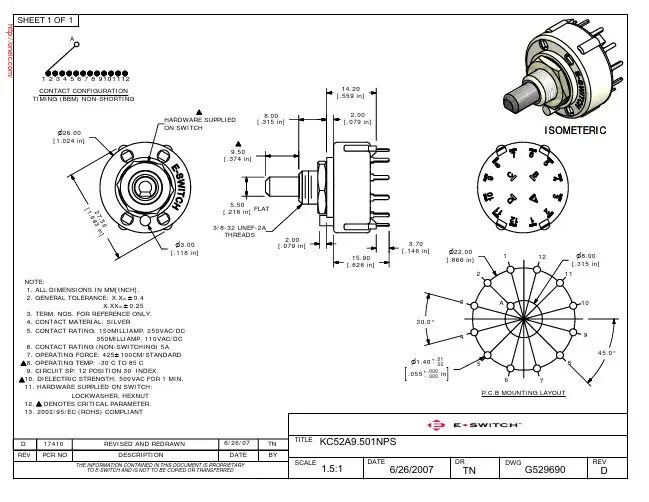

ISOMETERIC

TITLE

SCALEDATEDRDWGREVTHE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARYTO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERREDSHEET OF

REVPCR NODESCRIPTIONDATEBYKC52A9.501NPS

1.5:16/26/2007G529690DTN1 1

A

1 2 3 4 5 6 7 8 9101112

CONTACT CONFIGURATIONTIMING (BBM) NON-SHORTING

112

11

10

9

8

765432

A

P.C.B MOUNTING LAYOUT8.00[.315 in]14.20[.559 in]

2.00[.079 in]

9.50[.374 in]

2.00[.079 in]

15.90[.626 in]3.70[.146 in]27.50[1.083 in]n26.00[1.024 in]

NOTE: 1. ALL DIMENSIONS IN MM[INCH]. 2. GENERAL TOLERANCE: X.X=`0.4 X.XX=`0.25 3. TERM. NOS. FOR REFERENCE ONLY. 4. CONTACT MATERIAL: SILVER 5. CONTACT RATING: 150MILLIAMP, 250VAC/DC 350MILLIAMP, 110VAC/DC 6. CONTACT RATING (NON-SWITCHING) 5A 7. OPERATING FORCE: 425`100CM/STANDARD 8. OPERATING TEMP: -30~C TO 85~C 9. CIRCUIT SP: 12 POSITION 30~ INDEX.10. DIELECTRIC STRENGTH: 500VAC FOR 1 MIN.11. HARDWARE SUPPLIED ON SWITCH: LOCKWASHER, HEXNUT12. DENOTES CRITICAL PARAMETER.13. 2002/95/EC (ROHS) COMPLIANTHARDWARE SUPPLIEDON SWITCH

DESCO WEST - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178 • Fax (909) 627-7449DESCO EAST - One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Fax (781) 575-0172 • Website: TB-3046 Page 1 of 4© 2010 DESCO INDUSTRIES, INC.Employee OwnedMade in AmericaAnalog Surface Resistance Test KitOperation and Maintenance

DescriptionThe Desco Analog Surface Resistance Test Kit is a portable battery-powered instrument designed to measure resistance point-to-point (RTT) and surface to ground (RTG). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V should the measured resistance exceed 10E5 ohms.ESD protected area products should be tested:A. Prior to installation to qualify for listing in user’s ESD control plan. Approved ESD materials (see product qualification table at ANSI/ESD S20.20-2007 Table 3 EPA ESD control items)B. During initial installationC. For periodic checks of installed products as part of ANSI/ESD S20.20-2007 Compliance Verification testing per ESD pliance Verification Plan“A Compliance Verification Plan shall be established to ensure the Organization’s fulfillment of the technical requirements of the ESD Control Program Plan. Process monitoring (measurements) shall be conducted in accordance with a Compliance Verification Plan that identifies the technical requirements to be verified, the measurement limits and the frequency at which those verifications shall occur. The Compliance Verification Plan shall document the test methods and equipment used for process monitoring and measurements. If the test methods used by the Organization differ from any of the standards referenced in the document, then there must be a tailoring statement that is documented as part of the ESD Control Program Plan. Compliance verification records shall be established and maintained to provide evidence of conformity to the technical requirements.The test equipment selected shall be capable of making the measurements defined in the Compliance Verification Plan.” (ANSI/ESD S20.20-2007 section 7.3)The Analog Surface Resistance Meter and its accessories are available as the following item numbers:Figure 1. Desco 19784 Analog Surface Resistance Test Kit

E-mail: info@Page 1 of 2

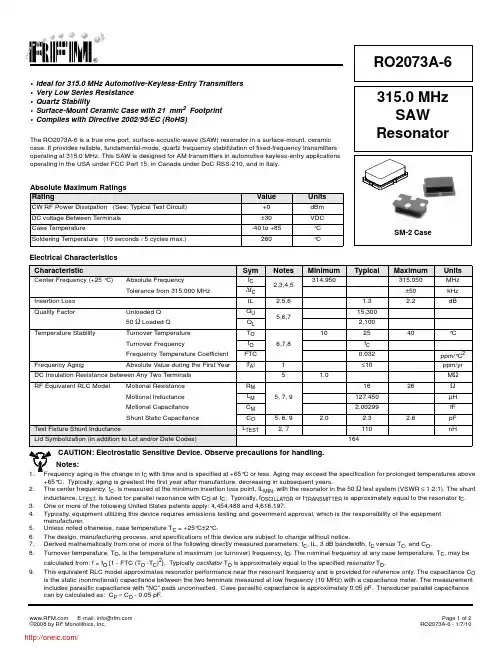

©2008 by RF Monolithics, Inc.

RO2073A-6 - 1/7/10

Electrical Characteristics

CharacteristicSym

NotesMinimumTypicalMaximumUnits

Center Frequency (+25 °C)Absolute Frequencyf

C

2,3,4,5314.950315.050MHz

Tolerance from 315.000 MHz∆f

C±50kHz

Insertion LossIL2,5,61.32.2dB

Quality FactorUnloaded QQ

U

5,6,715,300

50 Ω Loaded QQ

L2,100

Temperature StabilityTurnover TemperatureT

O

6,7,8102540°C

Turnover Frequencyf

Of

C

Frequency Temperature CoefficientFTC0.032ppm/°C2

Frequency AgingAbsolute Value during the First Year|f

A|1≤10ppm/yr

DC Insulation Resistance between Any Two Terminals51.0MΩ

RF Equivalent RLC ModelMotional ResistanceR

M

5, 7, 91626Ω

Motional InductanceL

M127.450µH

Motional CapacitanceC

M2.00299fF

Shunt Static CapacitanceC

O5, 6, 92.02.32.6pF

Test Fixture Shunt InductanceL

TEST2, 7110nH

Lid Symbolization (in addition to Lot and/or Date Codes)164•Ideal for 315.0 MHz Automotive-Keyless-Entry Transmitters

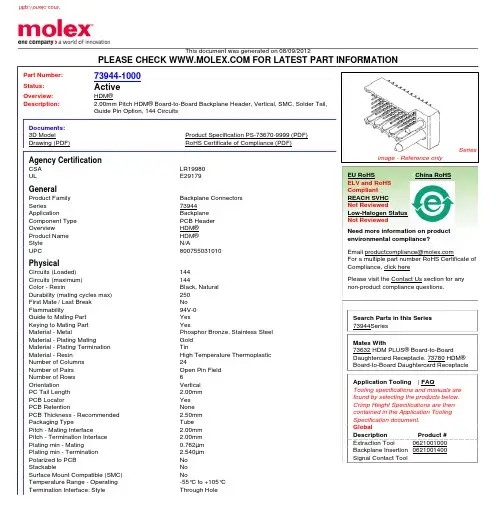

This document was generated on 08/09/2012PLEASE CHECK FOR LATEST PART INFORMATION

Part Number:73944-1000Status:ActiveOverview:HDM®Description:2.00mm Pitch HDM® Board-to-Board Backplane Header, Vertical, SMC, Solder Tail,Guide Pin Option, 144 Circuits

Documents:3D ModelProduct Specification PS-73670-9999 (PDF)Drawing (PDF)RoHS Certificate of Compliance (PDF)

Agency CertificationCSALR19980ULE29179GeneralProduct FamilyBackplane ConnectorsSeries73944ApplicationBackplaneComponent TypePCB HeaderOverviewHDM®Product NameHDM®StyleN/AUPC800755031010PhysicalCircuits (Loaded)144Circuits (maximum)144Color - ResinBlack, NaturalDurability (mating cycles max)250First Mate / Last BreakNoFlammability94V-0Guide to Mating PartYesKeying to Mating PartYesMaterial - MetalPhosphor Bronze, Stainless SteelMaterial - Plating MatingGoldMaterial - Plating TerminationTinMaterial - ResinHigh Temperature ThermoplasticNumber of Columns24Number of PairsOpen Pin FieldNumber of Rows6OrientationVerticalPC Tail Length2.00mmPCB LocatorYesPCB RetentionNonePCB Thickness - Recommended2.50mmPackaging TypeTubePitch - Mating Interface2.00mmPitch - Termination Interface2.00mmPlating min - Mating0.762µmPlating min - Termination2.540µmPolarized to PCBNoStackableNoSurface Mount Compatible (SMC)NoTemperature Range - Operating-55°C to +105°CTermination Interface: StyleThrough HoleSeriesimage - Reference only
