SPTECH 2SC2246

1SPTECHSiliconNPNPowerTransistor2SC2246

DESCRIPTION·HighCollector-EmitterSustainingVoltage-:VCEO(SUS)=400V(Min)·HighSwitchingSpeedAPPLICATIONS·Powerswitching·Poweramplification·PowerdriverABSOLUTEMAXIMUMRATINGS(Ta=25℃)SYMBOLPARAMETERMAXUNITVCBOCollector-BaseVoltage450V

VCEOCollector-EmitterVoltage400V

V

EBOEmitter-BaseVoltage5VICCollectorCurrent-Continuous15AICMCollectorCurrent-Peak30AIBBaseCurrent-Continuous6APCCollectorPowerDissipation@TC=25℃100WTjJunctionTemperature200℃TstgStorageTemperatureRange-65~200℃

THERMALCHARACTERISTICSSYMBOLPARAMETERMAXUNITRthj-cThermalResistance,JunctiontoCase1.0℃/W

2SPTECHSiliconNPNPowerTransistor2SC2246

ELECTRICALCHARACTERISTICSTC

=25℃unlessotherwisespecifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNIT

VCEO(SUS)Collector-EmitterSustainingVoltageIC=50mA;L=25mH400V

VCE(sat)Collector-EmitterSaturationVoltageIC=6A;IB=1.2A1.2V

高频三级管代换资料

号 功率 增益 电压 频率 工作状态 封装 123脚

国外三极管

2N3375 10W 5dB 28V 400MHz FM/AM/SSB TO-60

2N3553 2.5W 10dB 28V 175MHz FM/AM TO-39 C B E

2N3632 20W 7dB 28V 175MHz FM TO-60

2N3866 5W 10dB 28V 400MHz WINTransceiver TO-39 C B E

2N3924 4W 6dB 13.6V 175MHz WINTransceiver TO-39

2N4427 2W 10dB 12V 175MHz WINTransceiver TO-39

2N5108 1W 5dB 24V 1200MHz WINTransceiver TO-39

2N5109 3.5W 11dB 15V 200MHz WINTransceiver TO-39

2N5421 3W 9dB 13.5V 175MHz WINTransceiver TO-39

2N5913 2W 7dB 12.5V 175MHz WINTransceiver TO-39

2N5943 1W 8dB 15V 400MHz FM TO-39

2SC730 0.8W 10dB 13.5V 175MHz FM TO-39 C B E

下表是常用三极管的一些参数以及替换型号

器件型号 电压 电流 代换型号

3DG9011 50V 0.3A 2N4124 CS9011 JE9011

9011 50V 0.03A LM9011 SS9011

9012 40V 0.5A LM9012

9012(HH) 40V 0.5A SS9012

9012LT1 40V 0.5A A1298

3DG9013 40V 0.5A CS9013 JE9013

9013 40V 0.5A LM9013

9013(HH) 40V 0.5A SS9013

9013LT1 40V 0.5A C3265

3DG9014 50V 0.15A CS9014 JE9014

9014 50V 0.1A LM9014 SS9014

9014LT1 50V 0.1A C1623

9015 50V 0.1A LM9015 SS9015

TEC9015 50V 0.15A BC557 2N3906

TEC9015A 50V 0.15A BC557 2N3906

TEC9015B 50V 0.15A BC557 2N3906

TEC9015C 50V 0.15A BC557 2N3906

3DG9016 30V 0.025A JE9016

9016 30V 0.25A SS9016

TEC9016 40V 0.025A BF240 BF254 BF594

8050 40V 1.5A SS8050

8050LT1 40V 1.5A KA3265

ED8050 50V 0.8A BC337

SDT85501 60V 10A 3DK104C

SDT85502 80V 10A 3DK104C

SDT85503 100V 10A 3DK104D

SDT85504 140V 10A 3DK104E

SDT85505 170V 10A 3DK104F

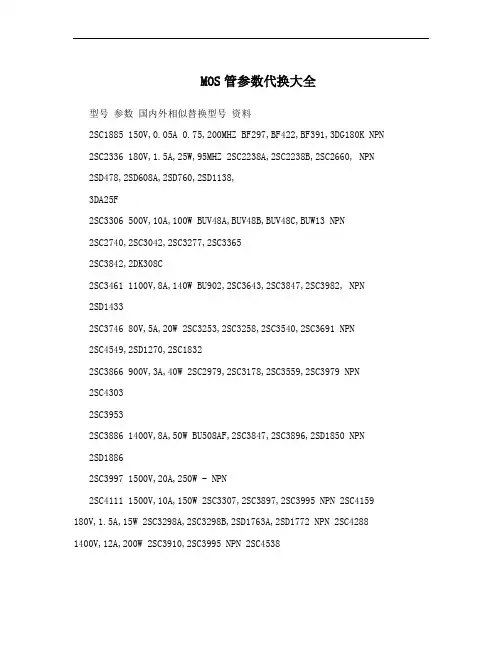

MOS管参数代换大全

型号 参数 国内外相似替换型号 资料

2SC1885 150V,0.05A 0.75,200MHZ BF297,BF422,BF391,3DG180K NPN

2SC2336 180V,1.5A,25W,95MHZ 2SC2238A,2SC2238B,2SC2660, NPN

2SD478,2SD608A,2SD760,2SD1138,

3DA25F

2SC3306 500V,10A,100W BUV48A,BUV48B,BUV48C,BUW13 NPN

2SC2740,2SC3042,2SC3277,2SC3365

2SC3842,2DK308C

2SC3461 1100V,8A,140W BU902,2SC3643,2SC3847,2SC3982, NPN

2SD1433

2SC3746 80V,5A,20W 2SC3253,2SC3258,2SC3540,2SC3691 NPN

2SC4549,2SD1270,2SC1832

2SC3866 900V,3A,40W 2SC2979,2SC3178,2SC3559,2SC3979 NPN

2SC4303

2SC3953

2SC3886 1400V,8A,50W BU508AF,2SC3847,2SC3896,2SD1850 NPN

2SD1886

2SC3997 1500V,20A,250W - NPN

2SC4111 1500V,10A,150W 2SC3307,2SC3897,2SC3995 NPN 2SC4159

180V,1.5A,15W 2SC3298A,2SC3298B,2SD1763A,2SD1772 NPN 2SC4288

1400V,12A,200W 2SC3910,2SC3995 NPN 2SC4538

2SC4633 1500V,0.03A,7W 2SC4451,2SC4576 NPN 2SC4686A 1500V,0.05A,10W
