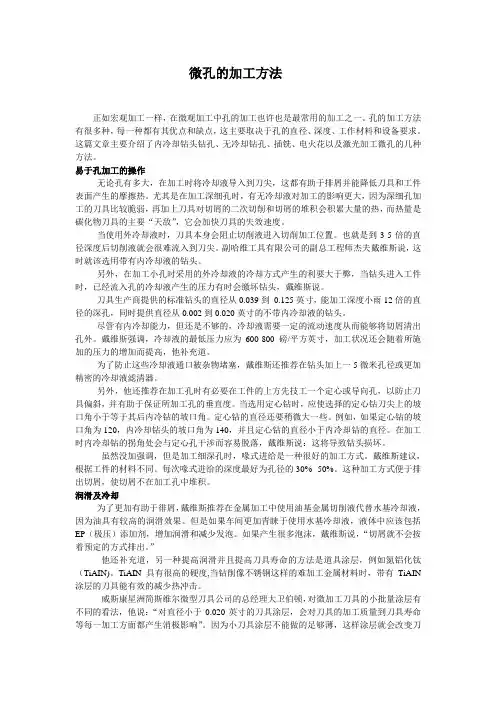

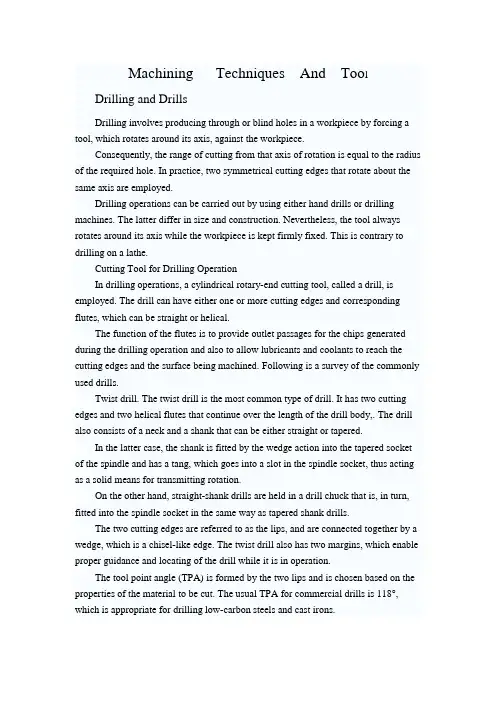

微孔的加工方法正如宏观加工一样，在微观加工中孔的加工也许也是最常用的加工之一。

孔的加工方法有很多种，每一种都有其优点和缺点，这主要取决于孔的直径、深度、工作材料和设备要求。

这篇文章主要介绍了内冷却钻头钻孔、无冷却钻孔、插铣、电火花以及激光加工微孔的几种方法。

易于孔加工的操作无论孔有多大，在加工时将冷却液导入到刀尖，这都有助于排屑并能降低刀具和工件表面产生的摩擦热。

尤其是在加工深细孔时，有无冷却液对加工的影响更大，因为深细孔加工的刀具比较脆弱，再加上刀具对切屑的二次切削和切屑的堆积会积累大量的热，而热量是碳化物刀具的主要“天敌”，它会加快刀具的失效速度。

当使用外冷却液时，刀具本身会阻止切削液进入切削加工位置。

也就是到3-5倍的直径深度后切削液就会很难流入到刀尖。

副哈维工具有限公司的副总工程师杰夫戴维斯说，这时就该选用带有内冷却液的钻头。

另外，在加工小孔时采用的外冷却液的冷却方式产生的利要大于弊，当钻头进入工件时，已经流入孔的冷却液产生的压力有时会缴坏钻头，戴维斯说。

刀具生产商提供的标准钻头的直径从0.039到0.125英寸，能加工深度小雨12倍的直径的深孔，同时提供直径从0.002到0.020英寸的不带内冷却液的钻头。

尽管有内冷却能力，但还是不够的，冷却液需要一定的流动速度从而能够将切屑清出孔外。

戴维斯强调，冷却液的最低压力应为600-800磅/平方英寸，加工状况还会随着所施加的压力的增加而提高，他补充道。

为了防止这些冷却液通口被杂物堵塞，戴维斯还推荐在钻头加上一5微米孔径或更加精密的冷却液滤清器。

另外，他还推荐在加工孔时有必要在工件的上方先技工一个定心或导向孔，以防止刀具偏斜，并有助于保证所加工孔的垂直度。

当选用定心钻时，应使选择的定心钻刀尖上的坡口角小于等于其后内冷钻的坡口角。

定心钻的直径还要稍微大一些。

例如，如果定心钻的坡口角为120，内冷却钻头的坡口角为140，并且定心钻的直径小于内冷却钻的直径。
