MSDS PA66

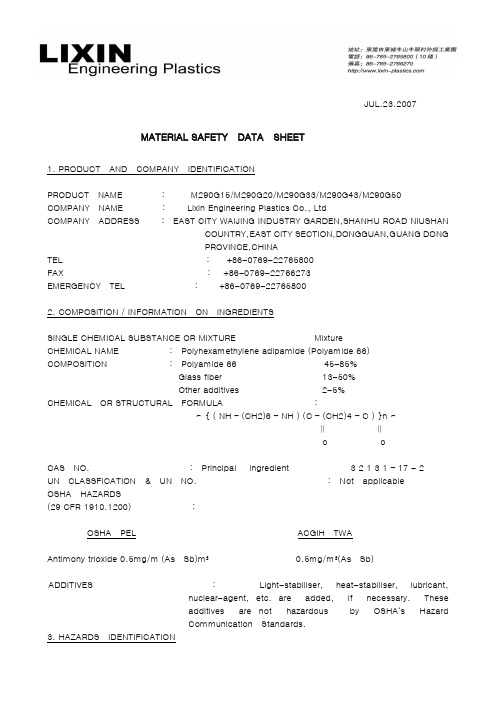

JUL.23.2007MATERIAL SAFETY DATA SHEET1. PRODUCT AND COMPANY IDENTIFICATIONPRODUCT NAME : M290G15/M290G20/M290G33/M290G43/M290G50 COMPANY NAME : Lixin Engineering Plastics Co., LtdCOMPANY ADDRESS : EAST CITY WAIJING INDUSTRY GARDEN,SHANHU ROAD NIUSHANCOUNTRY,EAST CITY SECTION,DONGGUAN,GUANG DONGPROVINCE,CHINATEL : +86-0769-********FAX : +86-0769-********EMERGENCY TEL : +86-0769-********2. COMPOSITION / INFORMATION ON INGREDIENTSSINGLE CHEMICAL SUBSTANCE OR MIXTURE MixtureCHEMICAL NAME : Polyhexamethylene adipamide (Polyamide 66)COMPOSITION : Polyamide 66 45-85%Glass fiber 13-50%Other additives 2-5%CHEMICAL OR STRUCTURAL FORMULA :~ { ( NH – (CH2)6 – NH ) (C – (CH2)4 – C ) }n ~‖‖o oCAS NO. : Principal ingredient 3 2 1 3 1 – 17 - 2UN CLASSFICATION & UN NO. : Not applicableOSHA HAZARDS(29 CFR 1910.1200) :OSHA PEL ACGIH TWAAntimony trioxide 0.5mg/m (As Sb)m³ 0.5mg/m³(As Sb)ADDITIVES : Light-stabiliser, heat-stabiliser, lubricant,nuclear-agent, etc. are added, if necessary. Theseadditives are not hazardous by OSHA‘s HazardCommunication Standards.EMERGENCY OVERVIEW :- Skin contact of molten resin causes thermal burn.- Inhalation of gas from molten resin causes nausea.- Gas generated during drying and melting causes eye and skin irritation.POTENTIAL HEALTH EFFECTS:EYE : Contact with molten resin causes thermal burn.SKIN : Contact with molten resin causes thermal burn.INHALATION : Inhalation of gas from molten resin may causenausea.INGESTION : In antimony trioxide, the oral LD50 in rats is over20g/kg. Swallowing may cause injury.CARCINOGENICITY : Antimony trioxide is listed by IARC 2B possiblycarcinogenic to humans.4.FIRST-AID MEASURESEYE CONTACT : If the material is in a molten state, immediately cool and wash with clean water for at least 15 minutes. Remove contact lenses, if worn, unless they haveadhered to eyes, and seek medical attention.SKIN CONTACT: If the material is in a molten state, cool with clean water immediately. Do not forcibly remove any solidified resin stuck to the skin, but continue cooling until itbecomes readily removable. Get medical attention for thermal burn. INHALATION : If inhalation of gas from molten resin causes nausea, remove the individual to fresh air and keep him at rest for recovery. If he does not recover, seek medicalattention.INGESTION : Induce vomiting only if the victim is conscious. In case of heavy ingestion, seek medical attention.5.FIRE-FIGHTING MEASURESEXTINGUISHING METHOD AND SPECIFIC HAZARDS:- Extinguishing with water is the preferred method.- Hazardous gases (CO2,CO, a trace of HCN,NH3,halide etc. ) may be produced during a fire.EXTINGUISHING MEDIA: Water, foam, powder.6.ACCIDENTAL RELEASE MEASURESdisposed of properly. (Method of disposal must be in compliance with the section 14. DISPOSAL CONSIDERATIONS below. )7.HANDLING AND STORAGEHANDLING:-Take care so as not to inhale gas during processing of the material.-Do not hold the material at high temperatures over an extended time.STORAGE :-Store the material away from heat and ignition sources.8.EXPOSURE CONTROL / PERSONAL PROTECTIONEXPOSURE LIMITS : Not establish for product as whole. Refer to Section 2for a hazardous component.TLVS ACGIH (1993-1994) : Nuisance Dust 10mg/m³ENGINEERING MEASURE : In cases where possibilities of dust formation,gas generation, or vapor emission exist, it is desirable toprovide local ventilation.PERSONAL PROTECTIVE EQUIPMENT :RESPIRATORY PROTECTION : Wear as needed.EYE PROTECTION : Wear as needed.HAND PROTECTION : Wear as needed.SKIN PROTECTION : Wear as needed.9.PHYSICAL & CHEMIICAL PROPERTIESAPPEARANCE : PelletsVOLATILITY : NoneSPECIFIC GRAVITY : 1.4-1.6MELTING POINT : ≥ 240°CSOLUBILITY IN WATER : Insoluble10.STABILITY & REACTIVITYAUTOIGNITION TEMPERATURE : ≥ 400°CFLAMMABILITY : flammableSTORAGE STABILITY : Stable at room temperatureREACTIVITY WITH WATER : NoneOXIDIZING PROPERTY : NoneSELF-REACTIVITY / POTENTIAL FOR EXPLOSION: None11.TOXICOLOGICAL INFORMATIONIRRITANT PROPERTY : Gas generated during drying and melting is irritant to eyes and skin. OTHER INFORMATION : Not available for product as whole. Refer to Section 3.12.ECOLOGICAL INFORMATIONNever dump or discharge this material into ocean or any other body of water to avoid ingestion by marine life or birds.13.DISPOSAL CONSIDERATIONSDisposal of this material, whether by landfill or by incineration, must be in compliance with the laws and regulations for environmental protection which are applicable to this material in the users’ countries.Hazardous gases ( CO2, CO, a trace of HCN, NH3, halide, etc. )may be generated during incineration.14.TRANSPORT INFORMATIONAvoid water contact and violent handling to prevent bag rupture.In the event of bag rupture and pellet spill, be careful not to slip and fall.15.REGULATORY INFORMATIONUS Federal Regulations:OSHA : Antimony trioxide is hazardous by definition of Hazard Communication Standards ( 29 CFR 1910.1200 ) .CERCLA : SECTION 313This product contains NONE of the substances subject to the reporting requirements of SECTION 313 of Title Ⅲ of the superfund Amendments and Reauthorization ACT of 1986 and 40 CFR 372.SECTION 311 / 102This product contains Reportable Quantity ( RQ ) Substance subject to the reporting requirements of SECTION 311 of THE CLEAN WATER ACT and 40 CFR 117, and of SECTION 102 of CERCLA and 40 CFR 302.RQ (Final) of this substance is 1000 pounds.16.OTHER INFORMATIONFor further information, please contact:Lixin Engineering Plastics Co.Phone: +86-0769-******** FAX: +86-0769-********NOTE :This information is furnished without warranty expressed or implied, expect that it is accurate to the best knowledge of Lixin Engineering Plastics Co. The data on this sheet related only to the specific material designated herein. Lixin Engineering Plastics Co. Assumes no legal responsibility for use or reliance upon these data.。

PA66-G30 是一种尼龙66的特殊型号，其标准包括以下部分：
1. 物理特性：PA66-G30的物理特性包括高刚性，高流动，以及优良的耐热性、抗化学腐蚀性等。

其缺口冲击强度较高，拉伸强度一般在30MPa左右。

2. 应用领域：PA66-G30被广泛应用于汽车部件、电子电器等领域，还可用于制作精密齿轮、轴承、泵件等。

3. 生产标准：广州金发科技股份有限公司生产PA66-G30尼龙66，并提供了相应的MSDS SGS 物性表格等资料。

需要注意的是，对于PA66-G30的具体标准可能会因生产商、批次等不同而有所差异。

如有需要，建议您联系生产商获取更详细的信息。

一、物品与厂商资料(Item And Manufacture Information )物品名称 Item Name:PA66 塑胶料（D206）物品编号 Item No.:PA66 G30 V0制造商名称 Company Name: 地址 Address:紧急联络电话 Emergency Tel: 传真 Fax:二、危害物质分类(Hazardous Ingredients)危害物质成分 Hazardous Components 化学文摘社登记号码化学式 Chemical Formula 比率 Weight%CAS.No.52～60 32131-17-215～18 25713-60-43～5 1309-64-415～30 65997-17-30.5 ------0.3 6683-19-80.39002-88-4三、危害物质定义（Hazards Identification)物质状况及外观 Physical State And Appearance ：固体颗粒紧急情况概要 Emergency Overview潜入人体的途经 Route of Entry: 吸入 吞食 吸入 Inhalation:喉咙疼痛，咳嗽 吞食 Ingestion:腹痛潜在的慢性健康影响 Potential Chronic Health Effects: 无暴露过度所造成的重大医学疾病 Medical Conditions Aggravated by overexposure：无暴露过度/症候/微状 Overexposure/Signs/Symptoms: 无四、急救措施（First Aid Measure)不同暴露途经之急救方法：若吸入熔融树脂逸出之气体，将患者移到通风处，若有不适立即送医吞食 Ingestion: 催吐，以清水漱口，若有不适立即送医有害物质的吸入 Hazardous Inhalation: CO NO NH 3有害物质的吞食 Hazardous Ingestion: 无对医师之提示 Notes to Physcian: 带好个人防护用品五、灭火措施（ Fighting Measure)产品的自然性 Flammability of the product:无自然温度 Natural Temperature: N/A 闪火点 Flash Points: N/A抗氧剂C 73H 108O 12 润滑剂(CH 2-CH 2)n 其 它Confidential阻燃剂②Sb 2O 3玻璃纤维SiO 2·CaO ·Al 2O 3 色母/色粉----- 物质安全资料表 Material Safety Data Sheet名称 Name 树 脂[NH(CH 2)6NHCO(CH 2)4CO]n 阻燃剂①C 21H 6Br 9N 3O 3易燃的极限 Flammable Limits:N/A 产品的燃烧 Combustion Of Products:N/A呈现于各种物质下火灾危害 Fire Hazards in Presence of Various Substances:移除可燃物呈现于各种物质下爆炸危害 Explosion Hazards in Presence of Various Substances: 无静态物质排出的爆炸现象 Risk of explosion of the product in presence of static discharge: 无火警的媒介与指示 Fire Fighting Media and Instructions: 小火 Small Fire 大火 Large Fire 防火衣 Fire Clothing :火灾危害的特殊注解 Special Remark On Fire Hazards:爆炸危害的特殊注解 Special Remark on Explosion Hazards:六、泄露处理方法( Release Treatment)溢出和泄露 Spill and Leak：回收或废失环保措施 Anti-Pollution Measures ：七、操作与储存(Handling and Storage)操作 Handling: 采用一般预防措施储存 Storage：常温储存防水防潮防火工程控制 Engineering Protection：通风设备：排除粉尘、烟及气体个人安全保护 Personal Protection：眼睛防护 Eye Protection：工作时戴好安全眼镜 身体防护 Body Protection：工作时穿好防护服 呼吸防护 Respiratory Protection：工作时戴好口罩 手防护 Hands Protection：工作时戴好皮手套 脚防护 Feet protection：工作时穿好工作鞋注解 Note:九、物理及化学性质(Physical and Chemical Properties)物质状态与外观 Physical State and Appearance:固体颗粒分子量 Molecular Weight:化学式 Chemical Formula:颜色 Color:黑色、本色 彩色气味 Odor: 刺激性气味酸碱值 PH value:6.8酸价 Acid Value:熔点/冰点 Melting/Freezing Point:临界温度 Critical Temperature:N/A 挥发度 Volatility: 无自然温度 Natural Temperature:N/A 爆炸界限 Explosion Limits:4.0g/m 3蒸气压 Vapor pressure:蒸气密度 Vapor Density:比重 Specific Gravity:1.62～1.68溶解度 Solubility: 无十、安定性及反应性(Stability and Reactivity)安定性与反应性 Stability and Reactivity:常温下为固体颗粒不安定的状态 Conditions of Instability:高温下为液态八、暴露的控制、个人的保护措施(Exposure Control,Personal Protection Measures)沸点/凝结点 Boiling/Condensation point:各种物质的不相容性 Incompatibility with Various Substances: CO NO 危害分解物 Hazardous Decomposition Product:危害的聚合作用 Hazardous Poly: 无十一、毒性资料(Toxicological Information)急毒性 Acute toxicity:眼睛及皮肤有轻微刺激局部效应 Local effects:：LD50(皮肤、鼠）＞2000㎎/㎏致敏感性 Sensitization: LD50（口服）﹥5000mg/kg对人类的毒物及慢性影响 Toxic and Chronic Effects on Humans:无 诱导突变的影响 Mutagenic Effects: 无 畸形的影响 Teratogenic Effects: 无 毒性的发展 Developmental Toxicity: 无对人类的毒物特殊注解 Special Remarks on Chronic Effects on Humans: 无其它毒性对人类的影响特殊注解 9-十二、生态资料环境毒性 Ecotoxicity:无生化需氧量 BOD5 and COD:无生物分解性 Biodegradable/OECD:无流动性 Mobility:无产品的生物分解毒性 Toxicity of the Products of Biodegration:无对产品生物分解的特殊注解 Special Remarks on the products of Biodegradation:无十三、废弃处理方法废弃物资讯Waste Information:为防止鸟类或鱼类由排水系统摄食，严禁丢失到海洋或其它水域废弃物流向Waste Stream:适当之焚化燃烧，或掩埋法，不适当之焚化可能会产生有毒氧体，CO NO等资询当地或地区性专家 Consult your local or regional authorities.十四、运送资料运输部分类DOT Classification:国际民航组织/国际空运协会分类ICAO/IATA Classification:无海运的污染Marine Pollution:无特殊运送条款Special Provisions for Transportation:无十五、法规资料十六、其它资料地址及電話: 製表人:職稱: 製表日期: 年 月 日姓名：製表單位:适用法规：None參考文獻:名稱:。

PA66物性数据PA66（聚酰胺66）是一种高性能的工程塑料，具有优异的物理和化学性质。

以下是PA66的物性数据，包括密度、熔点、热膨胀系数、机械性能等方面的信息。

1. 密度：PA66的密度通常在1.13-1.15 g/cm³之间，具体数值取决于材料的配方和加工工艺。

2. 熔点：PA66的熔点约为250-260°C，这使得它具有良好的耐高温性能。

3. 热膨胀系数：PA66的热膨胀系数约为5-6×10^-5/°C，这意味着它在温度变化时的尺寸变化相对较小。

4. 机械性能：PA66具有优异的机械性能，具体数值如下：- 抗拉强度：通常在60-80 MPa之间。

- 弯曲强度：通常在80-120 MPa之间。

- 压缩强度：通常在100-150 MPa之间。

- 弹性模量：通常在2000-3000 MPa之间。

- 冲击强度：通常在50-100 kJ/m²之间。

5. 热性能：PA66具有良好的耐高温性能，可以在较高的温度下使用。

其热变形温度通常在200-220°C之间。

6. 耐化学性：PA66对许多化学物质具有良好的耐腐蚀性能，包括酸、碱和溶剂。

然而，它对强酸和强碱可能会有一定的腐蚀作用。

7. 电气性能：PA66具有良好的绝缘性能和耐电弧性能，适合于电气和电子领域的应用。

8. 吸水性：PA66具有一定的吸水性，长期浸泡在水中可能会导致尺寸变化和力学性能下降。

因此，在湿度环境下使用时需要注意。

9. 燃烧性能：PA66具有良好的阻燃性能，不易燃烧，并且满足UL94 V-2级别的阻燃要求。

总结：PA66是一种高性能的工程塑料，具有优异的物理和化学性质。

它的物性数据包括密度、熔点、热膨胀系数、机械性能等方面的信息。

PA66具有良好的耐高温性能、优异的机械性能和耐化学性，适合于各种领域的应用。

然而，它对水的吸收和长期浸泡可能会影响其性能，需要在湿度环境下使用时注意。

MSDS NO.: JYFY-0713Nylon-66CHEMICAL PRODUCT AND COMPANY IDENTIFICATIONProduct Identifier: Polyamide 66 commonly known as Nylon 66 or PA66Product Description: Nylon 66 with Flame Retardant, Rubber, Glass Fiber and/or MicaProduct Grades: DGAXXX, DTGXXX, DTTXXX, DGGXX, DOGXXX, DOAXXX,DGKXXX, DGEXXX(XXX=3 digit number) example: DGA606 or DOA007Product Use: May be used to produce molded or extruded articles or as acomponent of other industrial products.MANUFACTURER:Wuhan Jiayifuye Imp. and Exp. Company LimitedADDRESS: The 12nd yard,High-tech Industrial Zone,Wuchang District,WuhanCity,Hubei,China .FAX: +86-27-824615EMERGENCY TELEPHONE: : +86-158********COMPOSITION / INGREDIENT INFORMATION% Materials CAS Number> 45-85 Polyamide 66 commonly known as Nylon 66 or PA66 032131-17-2<45 Glass Fiber 065997-17-3<25 Mica 014808-60-7<25 Non-Regulated: Rubber / Toughener / Impact modifiers NA<20 Bis-(hexachlorocyclopentadieno) Cyclo-octane (Declorane Plus) 013560-89-9<10 Antimony Trioxide 001309-64-4<12 Non-Regulated: Lubricators, Colorants, And Stabilizers NATitanium dioxide 013463-67-7<3 Carbon Black 001333-86-4<3 Polycaprolactam 025038-54-4 Note: (> = Greater then) and (< = Less then) the number following the < or > symbol.Material is not known to contain Toxic Chemicals under Section 313 of Title III of theSuper fund Amendments and Reauthorization Act of 1986 and 40 CFR part 372.HAZARDS IDENTIFICATIONEmergency Overview:Solid pellets with slight or no odor. Spilled pellets create slipping hazard. Can burn in a fire creating dense toxic smoke. Molten plastic can cause severe thermal burns. Fumes produced during meltprocessing may cause eye, skin and respiratory tract irritation. Secondary operations, such as grinding, sanding or sawing, can produce dust which may present a respiratory hazard. Product in pellet form is unlikely to cause irritation.Chronic/Carcinogenicity: None of the components present in this material are listed byIARC, NTP, OSHA, or ACGIA as a carcinogen.Melt Processing Health Effects:Molten plastic can cause severe burns.Processing fumes may cause irritation to the eyes, skin and respiratory tract, and in cases of severe overexposure, nausea and headache.Medical Restrictions:There are no known human health effects aggravated by exposure to this product. However, certain sensitive individuals and individuals with respiratory impairments may be affected by exposure to components in the processing fumes.FIRST AID MEASURESEyes: Immediately flush eyes with plenty of water for at least 15 minutes. Call a physician.Skin: The compound is not likely to be hazardous by skin contact, but cleansing the skin after use is advisable. If molten polymer gets on skin, cool rapidly with cold water. do not attempt to peel polymer from skin. Obtain medical treatment for thermal burn.Ingestion: No specific intervention is indicated as compound is not likely tobe hazardous by ingestion. Consult a physician if necessary.Inhalation: No specific intervention is indicated as the compound is not likely to be hazardous by inhalation. Consult a physician if necessary. If exposed to fumes from overheating or combustion,move to fresh air.Consult a physician if symptoms persist.For processing fume inhalation irritation, leave contaminated area and breathe fresh air. If coughing, difficult breathing or any other symptoms develop, seek medical attention at once, even if symptoms develop at a later time.For skin contact with fume condensate, immediately wash thoroughly with soap and water.If irritation develops, seek medical attention.FIRE FIGHTING MEASURESFire Fighting: Keep personnel removed and upwind of fire. Wear self-contained breathing apparatus. Extinguishing Media:Water, Foam, Dry Chemical, CO2Hazardous Combustion Products:Hazardous gases/vapors produced in fire are: ammonia, carbon monoxide; small amounts of hydrogen cyanide and aldehydes.Flash Point: >700ºF (371ºC)ACCIDENTAL RELEASE MEASURESGeneral: Review FIRE FIGHTING MEASURES and HANDLING Sections.HANDLING AND STORAGEHandling: See FIRST AID and PERSONAL PROTECTIVE EQUIPMENT SECTIONS.Storage: Store in a cool, dry place. Keep containers tightly closed to prevent moisture absorption and contaminationEXPOSURE CONTROLS/PERSONAL PROTECTIONEngineering Controls:Use local ventilation to control fumes from hot processing.Personal Protection:Eye/Face: Wear safety glasses. Wear coverall chemical splash goggles and face shield when possibility exists for eye and face contact due to splashing or spraying of molten material. A full face mask respirator provides protection from eye irritation.Skin: If there is potential contact with hot/molten material, wear heat resistant clothing and footwear. Respiratory: A NIOSH/MSHA approved air purifying respirator with an organic vapor cartridge with a dust/mist filter may be permissible under certain circumstances where airborne concentrations are expected to exceed exposure limits. Protection provided by air purifying respirator if there is any potential for an uncontrolled release,exposure levels are not known, or any other circumstances where air purifying respirators may not provide adequate protection.PHYSICAL AND CHEMICAL PROPERTIESPhysical State: SolidOdor: Possibly a slight organic odorMelting Point: 220ºC (428ºF) - 250ºC (482Fº)Specific Gravity (water=1): >1.1Water Solubility: Insoluble%Volatiles: Not DeterminedSTABILITY AND REACTIVITYStability: StablePolymerization: Polymerization will not occurConditions To Avoid: Expoxure to open flame or temperatures >570ºF for pro-longed time. Incompatabilities: Other MaterialsHazardous Decomposition: Hazardous gases or vapors can be released, including:hydrogen cyanide, carbon monoxide, ammonia.ECOLOGICAL INFORMATIONAQUATIC TOXICITY: No information is available. Toxicity is expected to be low basedon insolubility in water.DISPOSAL INFORMATIONWaste Disposal: Preferred options for disposal are (1) recycling, (2) incineration with energy recovery, and (3) landfill. The high fuel value of this product makes option 2 very desirable for material that cannot be recycled, but incinerator must be capable of scrubbing out acidic combustion products. Treatment, storage, transportation, and disposal must be in accordance with applicable federal,state/provincial, and local regulations.TRANSPORTATION INFORMATIONDOT Hazard Class: Not RegulatedProper Shipping Name:Not RegulatedIdentification Number:Not ListedREGULATORY INFORMATIONFederal RegulationsTSCA Status: In compliance with TSCA Inventory requirements for commercialPurposes.WHMIS Classification:Not a controlled product.This product does not contain reportable quantities of substances subject tosupplier notification.State RegulationsChemical Name CAS number State RTKPolycaprolactam 025038-54-4 MA, NJ, PATitanium dioxide 013463-67-7 MA, NJ, PAOTHERMedical Use: CAUTION: Do not use in medical applications involving permanent implantation in the human body.User Responsibility: Each user should read and understand this information and incorporate it into individual site safety programs in accordance with applicable hazard communication standards and regulations.。

pa66成分表PA66成分表PA66，也称为聚酰胺66，是一种高性能合成材料，具有优异的力学性能、热稳定性和耐化学腐蚀性能。

下面将详细介绍PA66的成分表及其性能特点。

一、成分表PA66的主要成分是聚酰胺，其化学结构中含有酰胺基（-CONH-）。

聚酰胺的分子结构中的酰胺基团与酰胺基团相互连接，形成了线性聚合物链。

PA66的化学式为[-NH-(CH2)6-NH-CO-(CH2)4-CO-]n，其中n代表聚合物中酰胺基团的重复次数。

二、性能特点1.力学性能优异：PA66具有较高的强度和刚度，其拉伸强度可达到60-80MPa，比重可达到1.14-1.15g/cm³。

这使得PA66在各种应用领域中具有广泛的用途。

2.热稳定性良好：PA66具有较高的熔点（约250℃），能够在高温环境下保持良好的力学性能。

同时，PA66还具有较低的热膨胀系数和优异的耐热老化性能。

3.耐化学腐蚀性能强：PA66对许多溶剂和化学品具有良好的耐腐蚀性能，如酸、碱、醇等。

这使得PA66广泛应用于化工、电子、汽车等领域。

4.摩擦性能好：PA66具有良好的自润滑性能和低摩擦系数，可用于制造轴承、齿轮等机械零件，降低摩擦损失，提高机械效率。

5.耐磨性强：PA66具有良好的耐磨性和耐疲劳性，可用于制造耐磨零件，如刷子毛、滑轨等。

6.电绝缘性能优异：PA66具有良好的绝缘性能，可用于制造电器、电子产品的绝缘件和连接件。

7.尺寸稳定性好：PA66具有较低的水吸收率，尺寸变化较小，可用于制造精密机械零件。

三、应用领域PA66由于其优异的性能特点，在各个领域有广泛的应用：1.汽车工业：PA66可用于制造汽车零部件，如进气歧管、汽车盖板、水箱、油箱等。

2.电子电气：PA66可用于制造插座、连接器、绝缘子、开关等电子电器产品。

3.家具装饰：PA66可用于制造家具配件、地板材料、装饰板等。

4.机械制造：PA66可用于制造轴承、齿轮、链条等机械零件。

物質安全資料表(MSDS)一､物品與廠商資料物品名稱﹕塑殼物品編號﹕A0-5933-08 A0-5933-09制造商或供應商名稱､地址及電話﹕緊急聯絡電話/傳真電話﹕二､成份辨識資料中英文名稱﹕同義名稱﹕改性PA66 工程塑料化學文摘社登記號碼(CAS No)﹕危害物質成分(成分百分比)﹕無4化學性質:物質成分之中英文名稱 濃度或濃度范圍(成分百分比) CAS NO.Polyamide 47.5%-50.5%GF 30% 628-02-4三､危害辨識資料最重要危害效應 健康危害效應﹕無環境影響﹕無物理性及化學性危害﹕無 特殊危害﹕無主要症狀﹕無物品危害分類﹕無四､急救措施不同暴露途徑之急救方法﹕● 吸入﹕吸入加熱所產生氣體時，應立即移至通風良好之處，如有必要則送醫治療。

● 皮膚接觸﹕若被高溫的液體產物濺到皮膚，應立即沖水，冷卻後變硬之體不可從傷處任意移走，經一段時間後會自選脫落，若情況危急應送醫治療。

● 眼睛接觸﹕若被高溫的液體產物濺到眼睛，以大量的冷水沖洗並立即送醫。

● 食入﹕若被高溫的液體產物濺到嘴內，以大量的冷水沖洗並立即送醫。

最重要症狀及危害效應﹕高溫熔溶液體接觸皮膚，致使紅腫脫皮.對急救人員之防護﹕無對醫師之提示﹕無五､滅火措施適用滅火劑﹕水、乾粉、泡沫、二氧化碳滅火時可能遭遇之特殊危害﹕無特殊滅火程序﹕依B級為災處理。

消防人員之特殊防護設備﹕穿著個人防護裝備。

六､洩漏處理方法個人應注意事項﹔處理時應穿著個人防護裝備環境應注意事項：包裝袋洩露造成環境污染清理方法﹕直接以掃帚清理作為回收料使用七､安全處置與儲存方法處置﹕避免靠近火源處儲存﹕應存放於乾燥及通風良好之處八､暴露預防措施工程控制﹕不需控制參數﹕●八小時日進量平均容許濃度/短時間時量平均濃度/最高容許濃度﹕依無毒粉鹿標准8HR容許量10mg/m3● 生物指標﹕無個人防護設備﹕● 呼吸防護﹕防粉塵用防護口罩● 手部防護﹕隔熱手套● 眼睛防護﹕安全護目眼鏡● 皮膚及身體防護﹕長袖工作服及安全鞋衛生措施﹕九､物理及化學性質物質狀態﹕固體 形狀﹕顆粒狀固體顏色﹕黑色 氣味﹕無臭PH值﹕ 沸點/沸點范圍﹕ND分解溫度﹕＞320℃ 閃火點﹕ 250-260℃測試方法﹕ND自然溫度﹕ND 爆炸界限;ND蒸氣壓﹕ND 蒸氣密度﹕ND密度﹕1.5~1.6 溶解度﹕不溶於水十､安定性及反應性安定性﹕優特殊狀況下可能之危害反應﹕粉塵危害應避免之狀況﹕勿加熱至330℃以上應避免之物質﹕強鹼， 強氧化劑危害分解物﹕化合物十一､毒性資料急毒性﹕無局部效應﹔無致敏感性﹔無慢毒性或長期毒性﹔無特殊效應﹕無十二､生態資料可能之環境影響/環境流佈﹕洩 漏污染環境十三､廢氯處置方法廢氯處置方法﹕視為工業廢物於合格焚化爐焚化處理十四､運送資料國際運送規定﹕無聯合國編號﹕無國內運送規定﹕無特殊運送方法及注意事項﹕無十五､法規資料適用法規﹕無十六､其他資料參考文獻 CSA制表單位 名稱：地址/電話：品管 姓名(簽章)： 制表人制表日期 2019.07.27。

Page:1/5Version：1.3MSDS 材料安全说明书PA66 T303 30GF V0 285C1.Substance/preparation and company identification(样品准备与公司标识)Company（公司）Contact us（联系方式）p yMolecular formula（分子式）: (C12 H22 N2 O2)Synonyms（又名）:Nylon 66 (PA66)S N l66(PA66)position/information on ingredients（产品成分）CAS Number Content (含量)%Chemical name（化学名称）32131-17-2≥50.0%polyamide(PA66)88497-56-7≤25%brominated flame-retardants 65997-17-3≤35.0glass，oxide，chemicals 3.Hazard identification（危害辨识）Emergency紧急情况概览)overview(Caution(警告)：May cause eye,skin and respiratory tract irritation.可能会造成眼睛、皮肤和呼吸道的损害。

Avoid contact with the skin,eyes and clothing避免与皮肤、眼睛和衣物接触。

Avoid inhalation of dusts/mists/vapours.避免吸入灰尘迷雾和蒸汽避免吸入灰尘、迷雾和蒸汽。

Use with local exhaust ventilation.在有通气排风的环境中使用。

Wear chemical resistant protective gloves.佩戴具有抗化学保护功能的手套。

Eye wash fountains and safety showers must be easily accessible附近必须有喷水洗眼器和安全淋浴室。

PA66物性数据PA66（聚酰胺66）是一种常用的工程塑料，具有优异的力学性能、耐热性和耐化学腐蚀性。

在工业领域中广泛应用于汽车、电子、电器、机械等领域。

为了更好地了解PA66的物性数据，以下是一份详细的PA66物性数据报告。

1. 密度（Density）:- 单位: g/cm³- 典型数值: 1.14 g/cm³2. 熔融温度（Melting Temperature）:- 单位: °C- 典型数值: 255-260°C3. 玻璃化转变温度（Glass Transition Temperature）:- 单位: °C- 典型数值: 50-60°C4. 热膨胀系数（Thermal Expansion Coefficient）:- 单位: 1/°C- 典型数值: 80-90 x 10^-6/°C5. 弯曲强度（Flexural Strength）:- 单位: MPa- 典型数值: 180-200 MPa6. 拉伸强度（Tensile Strength）:- 单位: MPa- 典型数值: 75-85 MPa7. 弯曲模量（Flexural Modulus）:- 单位: GPa- 典型数值: 2.5-3 GPa8. 拉伸模量（Tensile Modulus）:- 单位: GPa- 典型数值: 2.5-3 GPa9. 冲击强度（Impact Strength）:- 单位: kJ/m²- 典型数值: 70-80 kJ/m²10. 硬度（Hardness）:- 单位: Shore D- 典型数值: 80-85 Shore D11. 热导率（Thermal Conductivity）: - 单位: W/(m·K)- 典型数值: 0.25-0.3 W/(m·K) 12. 电绝缘性（Electrical Insulation）:- 体积电阻率（Volume Resistivity）:- 单位: Ω·cm- 典型数值: 10^14-10^15 Ω·cm- 表面电阻率（Surface Resistivity）:- 单位: Ω- 典型数值: 10^13-10^14 Ω以上数据仅为典型数值，实际数值可能会因不同生产工艺、添加剂和使用条件而有所变化。
