This document was generated on 08/21/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:43650-0927

Status:Active

Overview:Micro-Fit 3.0™ Connectors

Description:3.00mm Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row, Vertical,

with PCB Polarizing Peg, 9 Circuits, Tin (Sn) Plating, Glow Wire Compatible

Documents:

3D ModelRoHS Certificate of Compliance (PDF)

Drawing (PDF)Product Literature (PDF)

Product Specification PS-43650 (PDF)

Agency Certification

CSALR19980

TUVR72081037

ULE29179

General

Product FamilyPCB Headers

Series43650

ApplicationPower, Wire-to-Board

Comments"High Temperature|Square Pin|Solder Type

This

Molex product is manufactured from material that has

the following ratings, tested by independent agencies:.

a) A Glow Wire Ignition Temperature (GWIT) of at

least 775 deg C per IEC 60695-2-13.. b) A Glow

Wire Flammability Index (GWFI) above 850 deg C

per IEC 60695-2-12.and hence complies with the

requirements set out in the International Standard IEC

60335-1 5th edition - household and similar electrical

appliances - safety, section 30 Resistance to heat

and fire.

The customers using this product

must determine its suitability for use in their particular

application through testing or other acceptable means

as described in end-product glow-wire flammability test

standard IEC 60695-2-11 and any applicable product

end-use standard(s).

If it is determined during

the customer’s evaluation of suitability, that higher

performance is required, please contact Molex for

possible product options."

OverviewMicro-Fit 3.0™ Connectors

Product Literature Order No987650-5984

Product NameMicro-Fit 3.0™

UPC800753008007

Physical

BreakawayNo

Circuits (Loaded)9

Circuits (maximum)9

Color - ResinBlack

Durability (mating cycles max)30

Flammability94V-0

Glow-Wire CompliantYes

Lock to Mating PartYes

Mated Height17.27mm

Material - MetalBrass

Material - Plating MatingTinSeries

image - Reference only

EU RoHSChina RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

43650Series

Mates With

43645 Micro-Fit 3.0™ Receptacle Housinghttp://oneic.com/Material - Plating TerminationTin

Material - ResinHigh Temperature Thermoplastic

Net Weight1.456/g

Number of Rows1

OrientationVertical

PC Tail Length3.18mm

PCB LocatorYes

PCB RetentionNone

PCB Thickness - Recommended1.60mm

Packaging TypeTray

Pitch - Mating Interface3.00mm

Plating min - Mating2.540µm

Plating min - Termination2.540µm

Polarized to PCBYes

ShroudedFully

StackableNo

Surface Mount Compatible (SMC)Yes

Temperature Range - Operating-40°C to +105°C

Termination Interface: StyleThrough Hole

Electrical

Current - Maximum per Contact5A

Voltage - Maximum250V

Solder Process Data

Duration at Max. Process Temperature (seconds)30

Lead-free Process CapabilitySMC & Wave Capable (TH only)

Max. Cycles at Max. Process Temperature3

Process Temperature max. C260

Material Info

Reference - Drawing Numbers

Product SpecificationPS-43650

Sales DrawingSD-43650-010

This document was generated on 08/21/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONhttp://oneic.com/ 分销商库存信息:

MOLEX

0436500927

合集下载

3296;中文规格书,Datasheet资料

3296;中文规格书,Datasheet资料

Pomona®

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm). All specifications are to the latest revisions. Specifications are subject to change without notice. Registered trademarks are the property of their respective companies. Made in USA 6/9/99 PomonaACCESS 90761 (800) 444-6785 or (425) 446-6010 SY/EH/LS More drawings available at S:\Engineering\Release\DataSheets\FlukeDataSheet\d3296_1_01.doc

Page 1 of 2

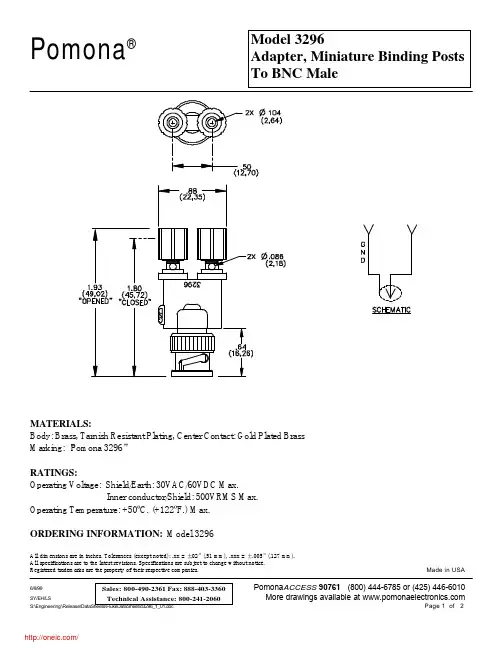

Model 3296 Adapter, Miniature Binding Posts To BNC Male

Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060 MATERIALS: Body: Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Brass Marking: “Pomona 3296” RATINGS: Operating Voltage: Shield/Earth: 30VAC/60VDC Max. Inner conductor/Shield: 500VRMS Max. Operating Temperature: +50ºC. (+122ºF.) Max. ORDERING INFORMATION:

0436500229;中文规格书,Datasheet资料

0436500229;中文规格书,Datasheet资料

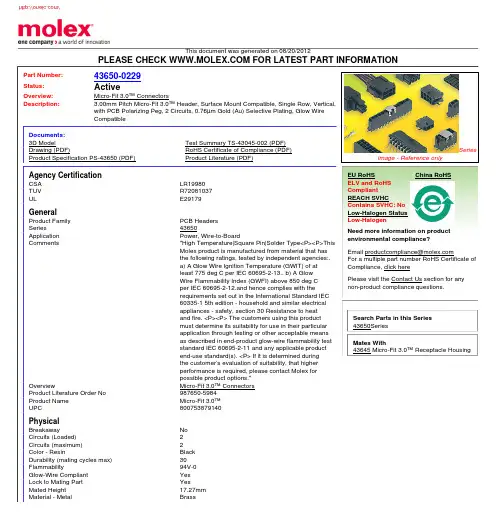

This document was generated on 08/20/2012PLEASE CHECK FOR LATEST PART INFORMATIONPart Number:43650-0229Status:ActiveOverview:Micro-Fit 3.0™ ConnectorsDescription:3.00mm Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row, Vertical,with PCB Polarizing Peg, 2 Circuits, 0.76µm Gold (Au) Selective Plating, Glow WireCompatibleDocuments:3D ModelTest Summary TS-43045-002 (PDF)Drawing (PDF)RoHS Certificate of Compliance (PDF)Product Specification PS-43650 (PDF)Product Literature (PDF)Agency CertificationCSALR19980TUVR72081037ULE29179GeneralProduct FamilyPCB HeadersSeries43650ApplicationPower, Wire-to-BoardComments"High Temperature|Square Pin|Solder Type
