Pomona®

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm). All specifications are to the latest revisions. Specifications are subject to change without notice. Registered trademarks are the property of their respective companies. Made in USA 6/9/99 PomonaACCESS 90761 (800) 444-6785 or (425) 446-6010 SY/EH/LS More drawings available at S:\Engineering\Release\DataSheets\FlukeDataSheet\d3296_1_01.doc

Page 1 of 2

Model 3296 Adapter, Miniature Binding Posts To BNC Male

Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060 MATERIALS: Body: Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Brass Marking: “Pomona 3296” RATINGS: Operating Voltage: Shield/Earth: 30VAC/60VDC Max. Inner conductor/Shield: 500VRMS Max. Operating Temperature: +50ºC. (+122ºF.) Max. ORDERING INFORMATION:

Pomona®

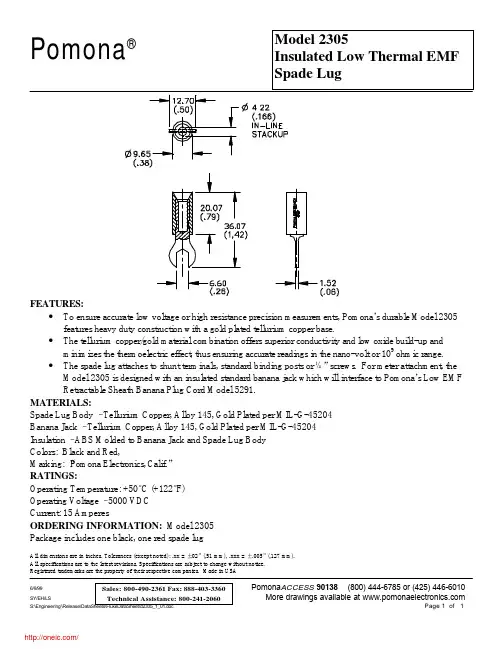

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm). All specifications are to the latest revisions. Specifications are subject to change without notice. Registered trademarks are the property of their respective companies. Made in USA 6/9/99 PomonaACCESS 90138 (800) 444-6785 or (425) 446-6010 SY/EH/LS More drawings available at S:\Engineering\Release\DataSheets\FlukeDataSheet\d2305_1_01.doc Page 1 of 1 Model 2305 Insulated Low Thermal EMF Spade Lug

Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060 FEATURES: • To ensure accurate low voltage or high resistance precision measurements, Pomona’s durable Model 2305 features heavy duty construction with a gold plated tellurium copper base. • The tellurium copper/gold material combination offers superior conductivity and low oxide build-up and minimizes the thermoelectric effect, thus ensuring accurate readings in the nano-volt or 109 ohmic range. • The spade lug attaches to shunt terminals, standard binding posts or ¼” screws. For meter attachment, the Model 2305 is designed with an insulated standard banana jack which will interface to Pomona’s Low EMF Retractable Sheath Banana Plug Cord Model 5291. MATERIALS: Spade Lug Body – Tellurium Copper, Alloy 145, Gold Plated per MIL-G-45204 Banana Jack – Tellurium Copper, Alloy 145, Gold Plated per MIL-G-45204 Insulation – ABS Molded to Banana Jack and Spade Lug Body Colors: Black and Red, Marking: “Pomona Electronics, Calif.” RATINGS: Operating Temperature: +50°C (+122°F) Operating Voltage – 5000 VDC Current: 15 Amperes ORDERING INFORMATION: Model 2305 Package includes one black, one red spade lug / 分销商库存信息:POMONA2305

MB10S — Bridge Rectifier

© 2010 Fairchild Semiconductor Corporation

MB10S Rev. A01 July 2010

MB10S

Bridge Rectifier

Features

•Low leakage

•Surge overload rating : 35 amperes peak.

•Ideal for printed circuit board.

•UL certified, UL #E111753 and E326243.

Absolute Maximum Ratings * T

A = 25°C unless otherwise noted

* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.

Thermal Characteristics

* Device mounted on PCB with 0.5" x 0.5" (13 x 13 mm) lead length

Electrical Characteristics T

A = 25°C unless otherwise notedSymbolParameterValueUnits

V

RRMMaximum Repetitive Reverse Voltage1000V

V

RMSMaximum RMS Bridge Input Voltage700V

V

RDC Reverse Voltage (Rated V

R)1000V

I

F(AV)Average Rectified Forward Current, @ T

A = 50°C

On Glass-epoxy P.C.B.

On Aluminum substrate0.5

SymbolVDSVGSIDMTJ, TSTGSymbolTypMax360415400460RθJL300350Maximum Junction-to-Lead CSteady-State°C/WThermal CharacteristicsParameterUnitsMaximum Junction-to-Ambient At ≤ 10sRθJA°C/WMaximum Junction-to-Ambient ASteady-State°C/WWTA=70°C0.19Junction and Storage Temperature Range-55 to 150°CPower Dissipation ATA=25°CPD0.3ATA=70°C0.7Pulsed Drain Current B5Continuous Drain Current ATA=25°CID0.9Drain-Source Voltage20VGate-Source Voltage±8VAbsolute Maximum Ratings TA=25°C unless otherwise notedParameterMaximumUnitsAO7800Dual N-Channel Enhancement Mode Field Effect TransistorFeaturesVDS (V) = 20VID = 0.9 A (VGS = 4.5V)RDS(ON) < 300mΩ (VGS = 4.5V)RDS(ON) < 350mΩ (VGS = 2.5V)RDS(ON) < 450mΩ (VGS = 1.8V)General DescriptionThe AO7800 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V, in the small SOT323 footprint. It can be used for a wide variety of applications, including load switching, low current inverters and low current DC-DC converters.It is ESD protected. Standard Product AO7800 is Pb-free (meets ROHS & Sony 259 specifications). AO7800L is a Green Product ordering option. AO7800 and AO7800L are electrically identical.SC-70-6(SOT-323)Top ViewD1
