S N K 型热电偶分度表

  • 格式：docx
  • 大小：51.32 KB
  • 文档页数：6

铂铑10—铂热电偶(S型)E(t)分度表

T/℃ 0 10 20 30 40 50 60 70 80 90

-100 -0.236 -0.194 -0.150 -0.103 -0.053

0 0.000 0.055 0.113 0.173 0.235 0.299 0.365 0.433 0.502 0.573

100 0.646 0.720 0.795 0.872 0.950 1.029 1.110 1.191 1.273 1.357

200 1.441 1.526 1.612 1.698 1.786 1.874 1.962 2.052 2.141 2.232

300 2.323 2.415 2.507 2.599 2.692 2.786 2.880 2.974 3.096 3.164

400 3.259 3.355 3.451 3.548 3.645 3.742 3.840 3.938 4.036 4.134

500 4.233 4.332 4.432 4.532 4.632 4.732 4.833 4.934 5.035 5.137

600 5.239 5.341 5.443 5.546 5.649 5.753 5.857 5.961 6.065 6.170

700 6.275 6.381 6.486 6.593 6.699 6.806 6.913 7.020 7.128 7.236

800 7.345 7.454 7.563 7.673 7.783 7.893 8.003 8.114 8.226 8.337

900 8.449 8.562 8.674 8.787 8.900 9.014 9.128 9.242 9.357 9.472

1000 9.587 9.703 9.819 9.935 10.051 10.168 10.285 10.403 10.520 10.638

1100 10.757 10.875 10.994 11.113 11.232 11.351 11.471 11.590 11.710 11.830

1200 11.951 12.071 12.191 12.312 12.433 12.554 12.675 12.796 12.917 13.038

1300 13.159 13.280 13.402 13.523 13.644 13.766 13.887 14.009 14.130 14.251

1400 14.373 14.494 14.615 14.736 14.857 14.978 15.099 15.220 15.341 15.461

1500 15.582 15.702 15.822 15.942 16.062 16.182 16.301 16.420 16.539 16.658

1600 16.777 16.895 17.013 17.131 17.249 17.366 17.600 17.717 17.832 17.947

1700 17.947 18.061 18.174 18.285 18.395 18.503 18.609

镍铬硅—镍硅热电偶(N型)E(t)分度表

T/℃ 0 10 20 30 40 50 60 70 80 90

-300 -4.345 -4.336 -4.313 -4.277 -4.226 -4.162 -4.083

-200 -3.990 -3.884 -3.766 -3.634 -3.491 -3.336 -3.171 -2.994 -2.808 2.612

-100 -2.407 -2.193 -1.972 -1.744 1.509 -1.269 -1.023 -0.772 -0.518 -0.260 0 0.000 0.261 0.525 0.793 1.065 1.340 1.619 1.902 2.189 2.480

100 2.774 3.072 3.374 3.680 3.989 4.302 4.618 4.937 5.259 5.585

200 5.913 6.245 6.579 6.916 7.255 7.597 7.941 8.288 8.637 8.988

300 9.341 9.696 10.054 10.413 10.774 11.136 11.501 11.867 12.234 12.603

400 12.974 13.346 13.719 14.094 14.469 14.846 15.225 15.604 15.984 13.366

500 16.748 171.13 17.515 17.900 18.286 18.672 19.059 19.447 19.835 20.224

600 20.613 21.003 21.393 21.784 22.175 22.566 22.958 23.350 23.742 24.134

700 24.527 24.919 25.312 25.705 26.098 26.491 26.883 27.276 27.669 28.062

800 28.455 28.847 29.239 29.632 30.024 30.416 30.807 31.199 31.590 31.981

900 32.371 32.761 33.151 33.541 33.930 34.319 34.707 35.095 35.482 35.869

1000 36.256 36.641 37.027 37.411 37.795 38.179 38.562 38.944 39.326 39.706

1100 40.087 40.466 40.845 41.223 41.600 41.976 42.352 42.727 43.101 43.474

1200 43.846 44.218 44.588 44.958 45.326 45.694 46.060 46.425 46.789 47.152

1300 47.513

K型分度表 第一页

T 0 -1 -2 -3 -4 -5 -6 -7 -8 -9

0 0 -0.039 -0.079 -0.118 -0.157 -0.197 -0.236 -0.275 -0.314 -0.353

-10 -0.392 -0.431 -0.47 -0.508 -0.547 -0.586 -0.624 -0.663 -0.701 -0.739

-20 -0.778 -0.816 -0.854 -0.892 -0.93 -0.968 -1.006 -1.043 -1.081 -1.119

T 0 1 2 3 4 5 6 7 8 9

0 0 0.039 0.079 0.119 0.158 0.198 0.238 0.277 0.317 0.357

10 0.397 0.437 0.477 0.517 0.557 0.597 0.637 0.677 0.718 0.758

20 0.798 0.838 0.879 0.919 0.96 1 1.041 1.081 1.122 1.136

30 1.203 1.244 1.285 1.326 1.366 1.407 1.448 1.489 1.53 1.571

40 1.612 1.653 1.694 1.735 1.776 1.817 1.858 1.899 1.941 1.982

50 2.023 2.064 2.106 2.147 2.188 2.23 2.271 2.312 2.354 2.395

60 2.436 2.478 2.519 2.561 2.602 2.644 2.685 2.727 2.768 2.81

70 2.851 2.893 2.934 2.976 3.017 3.059 3.1 3.142 3.184 3.225

80 3.267 3.308 3.35 3.391 3.433 3.474 3.516 3.557 3.599 3.64

90 3.682 3.723 3.765 3.806 3.848 3.889 3.931 3.972 4.013 4.055

100 4.096 4.138 4.179 4.22 4.262 4.303 4.344 4.385 4.427 4.468

110 4.509 4.55 4.591 4.633 4.674 4.715 4.756 4.797 4.838 4.879

120 4.92 4.961 5.002 5.043 5.084 5.124 5.165 5.206 5.247 5.288

130 5.328 5.369 5.41 5.45 5.491 5.532 5.572 5.613 5.653 5.694

140 5.735 5.775 5.815 5.856 5.896 5.937 5.977 6.017 6.058 6.098 150 6.138 6.179 6.219 6.259 6.299 6.339 6.38 6.42 6.46 6.5

160 6.54 6.58 6.62 6.66 6.701 6.741 6.781 6.821 6.861 6.901

170 6.941 6.981 7.021 7.06 7.1 7.14 7.18 7.22 7.26 7.3

180 7.34 7.38 7.42 7.46 7.5 7.54 7.579 7.619 7.659 7.699

190 7.739 7.779 7.819 7.859 7.899 7.939 7.979 8.019 8.059 8.099

200 8.138 8.178 8.218 8.258 8.298 8.338 8.378 8.418 8.458 8.499

210 8.539 8.579 8.619 8.659 8.699 8.739 8.779 8.819 8.86 8.9

220 8.94 8.98 9.02 9.061 9.101 9.141 9.181 9.222 9.262 9.302

230 9.343 9.383 9.423 9.464 9.504 9.545 9.585 9.626 9.666

9.707

240 9.747 9.788 9.828 9.869 9.909 9.95 9.991 10.031 10.072 10.113

250 10.153 10.194 10.235 10.276 10.316 10.357 10.398 10.439 10.48 10.52

260 10.561 10.602 10.643 10.684 10.725 10.766 10.807 10.848 10.889 10.93

270 10.971 11.012 11.053 11.094 11.135 11.176 11.217 11.259 11.3 11.341

280 11.382 11.423 11.465 11.506 11.547 11.588 11.63 11.671 11.712 11.753

合集下载

K型热电偶分度表

K型热电偶分度表

K型热电偶分度表

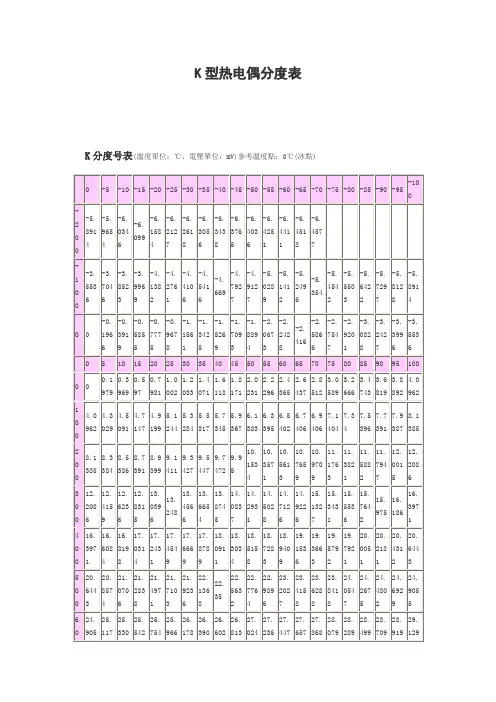

K分度号表(溫度單位：℃、電壓單位：mV)參考溫度點：0℃(冰點)

0 -5 -10 -15 -20 -25 -30 -35 -40 -45 -50 -55 -60 -65 -70 -75 -80 -85 -90 -95 -100

-200 -5.8914 -5.9654 -6.0346 -6.099 -6.1584 -6.2127 -6.2618 -6.3056 -6.3438 -6.3765 -6.4036 -6.4251 -6.4411 -6.4518 -6.4577

-100 -3.5536 -3.7046 -3.8523 -3.9969 -4.1382 -4.2761 -4.4106 -4.5416 -4.669 -4.7927 -4.9127 -5.0289 -5.1412 -5.2496 -5.354 -5.4542 -5.5503 -5.6422 -5.7297 -5.8128 -5.8914

0 0 -0.1966 -0.3919 -0.5855 -0.7775 -0.9678 -1.1561 -1.3425 -1.5269 -1.7093 -1.8894 -2.0673 -2.2428 -2.416 -2.5866 -2.7547 -2.9201 -3.0828 -3.2427 -3.3996 -3.5536

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

0 0 0.1979 0.3969 0.597 0.7981 1.0002 1.2033 1.4071 1.6118 1.8171 2.0231 2.2296 2.4365 2.6437 2.8512 3.0589 3.2666 3.4743 3.6819 3.8892 4.0962

100 4.0962 4.3029 4.5091 4.7147 4.9199 5.1244 5.3284 5.5317 5.7345 5.9367 6.1383 6.3395 6.5402 6.7406 6.9406 7.1404 7.34 7.5396 7.7391 7.9387 8.1385

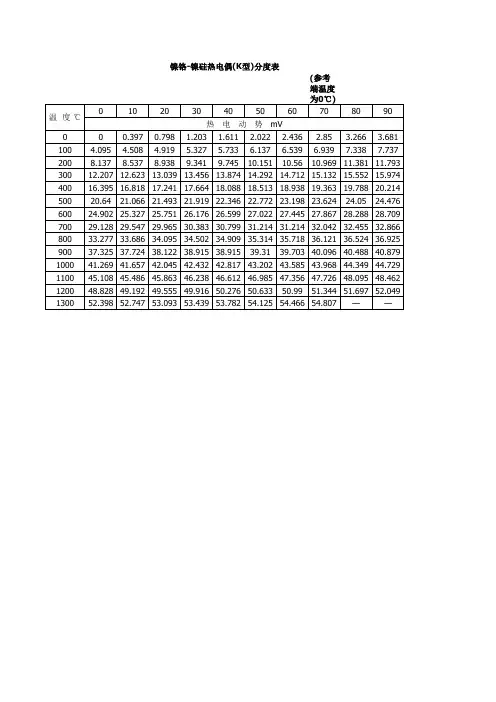

K型热电偶分度表 2

K型热电偶分度表 2

(参考端温度为0℃)0102030405060708090000.3970.7981.2031.6112.0222.4362.853.2663.6811004.0954.5084.9195.3275.7336.1376.5396.9397.3387.7372008.1378.5378.9389.3419.74510.15110.5610.96911.38111.79330012.20712.62313.03913.45613.87414.29214.71215.13215.55215.97440016.39516.81817.24117.66418.08818.51318.93819.36319.78820.21450020.6421.06621.49321.91922.34622.77223.19823.62424.0524.47660024.90225.32725.75126.17626.59927.02227.44527.86728.28828.70970029.12829.54729.96530.38330.79931.21431.21432.04232.45532.86680033.27733.68634.09534.50234.90935.31435.71836.12136.52436.92590037.32537.72438.12238.91538.91539.3139.70340.09640.48840.879100041.26941.65742.04542.43242.81743.20243.58543.96844.34944.729110045.10845.48645.86346.23846.61246.98547.35647.72648.09548.462120048.82849.19249.55549.91650.27650.63350.9951.34451.69752.049130052.39852.74753.09353.43953.78254.12554.46654.807——热 电 动 势 mV镍铬-镍硅热电偶(K型)分度表温 度 ℃

K型热电偶分度表 3

K型热电偶分度表 3

℃0123456`789

003979119158198238277317357

10397437477517557597637677718758

2079883887991996010001041108111221162

301203124412851325136614071448148915291570

401611165216931734177618171858189919401981

5020222064210521462188222922702312223532394

602436247725192560260126432684272627672809

702850289229332975301630583100314131833224

803266330733493390343234733515355635983639

903681372237643805384738883930397140124054

1004095413741784219426143024343438444264467

1104508454945904632467347144755479648374878

1204919496050015042508351245164520552465287

1305327536854095450549055315571561256525693

1405733577458145855589559365976601660576097

1506137617762186258629863386378641964596499

1606539657966196659669967396779681968596899

1706939697970197059709971397179721972597299

1807338737874187458749875387578761876587697

1907737777778177857789779377977801780578097

热电偶分度表大全

热电偶分度表大全

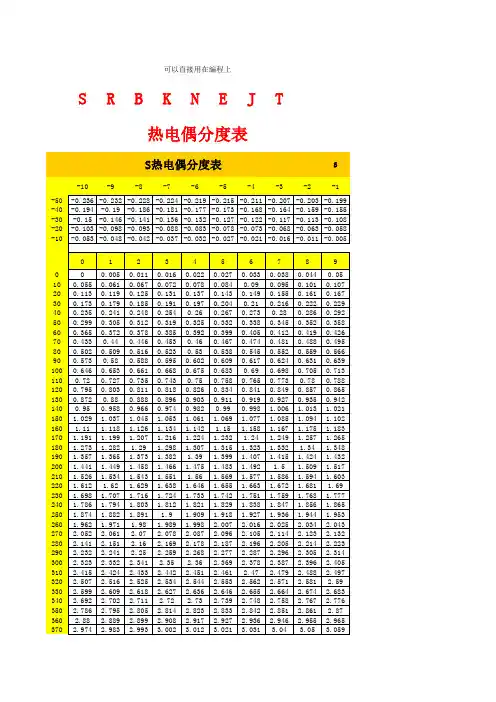

SRBKNEJT

-10-9-8-7-6-5-4-3-2-1

-50-0.236-0.232-0.228-0.224-0.219-0.215-0.211-0.207-0.203-0.199

-40-0.194-0.19-0.186-0.181-0.177-0.173-0.168-0.164-0.159-0.155

-30-0.15-0.146-0.141-0.136-0.132-0.127-0.122-0.117-0.113-0.108

-20-0.103-0.098-0.093-0.088-0.083-0.078-0.073-0.068-0.063-0.058

-10-0.053-0.048-0.042-0.037-0.032-0.027-0.021-0.016-0.011-0.005

0123456789

000.0050.0110.0160.0220.0270.0330.0380.0440.05

100.0550.0610.0670.0720.0780.0840.090.0950.1010.107

200.1130.1190.1250.1310.1370.1430.1490.1550.1610.167

300.1730.1790.1850.1910.1970.2040.210.2160.2220.229

400.2350.2410.2480.2540.260.2670.2730.280.2860.292

500.2990.3050.3120.3190.3250.3320.3380.3450.3520.358

600.3650.3720.3780.3850.3920.3990.4050.4120.4190.426

700.4330.440.4460.4530.460.4670.4740.4810.4880.495

800.5020.5090.5160.5230.530.5380.5450.5520.5590.566

900.5730.580.5880.5950.6020.6090.6170.6240.6310.639
