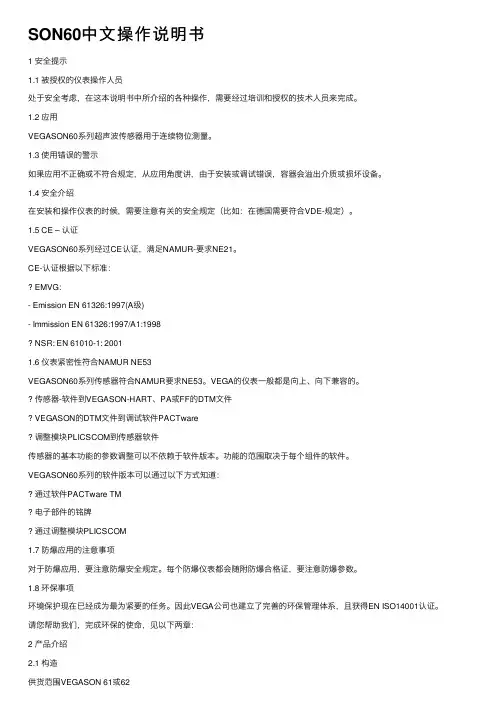

SON60中⽂操作说明书1 安全提⽰1.1 被授权的仪表操作⼈员处于安全考虑，在这本说明书中所介绍的各种操作，需要经过培训和授权的技术⼈员来完成。
1.2 应⽤VEGASON60系列超声波传感器⽤于连续物位测量。
1.3 使⽤错误的警⽰如果应⽤不正确或不符合规定，从应⽤⾓度讲，由于安装或调试错误，容器会溢出介质或损坏设备。
1.4 安全介绍在安装和操作仪表的时候，需要注意有关的安全规定（⽐如：在德国需要符合VDE-规定）。
1.5 CE – 认证VEGASON60系列经过CE认证，满⾜NAMUR-要求NE21。
CE-认证根据以下标准：EMVG：- Emission EN 61326:1997(A级)- Immission EN 61326:1997/A1:1998NSR: EN 61010-1: 20011.6 仪表紧密性符合NAMUR NE53VEGASON60系列传感器符合NAMUR要求NE53。
VEGA的仪表⼀般都是向上、向下兼容的。
传感器-软件到VEGASON-HART、PA或FF的DTM⽂件VEGASON的DTM⽂件到调试软件PACTware调整模块PLICSCOM到传感器软件传感器的基本功能的参数调整可以不依赖于软件版本。
功能的范围取决于每个组件的软件。
VEGASON60系列的软件版本可以通过以下⽅式知道：通过软件PACTware TM电⼦部件的铭牌通过调整模块PLICSCOM1.7 防爆应⽤的注意事项对于防爆应⽤，要注意防爆安全规定。
每个防爆仪表都会随附防爆合格证，要注意防爆参数。
1.8 环保事项环境保护现在已经成为最为紧要的任务。
因此VEGA公司也建⽴了完善的环保管理体系，且获得EN ISO14001认证。
请您帮助我们，完成环保的使命，见以下两章：2 产品介绍2.1 构造供货范围VEGASON 61或62超声波传感器VEGASON61或62⽂件资料- 此操作说明书- 您订购的各类相应的许可证，⽐如：如果您购买的是防爆型的仪表，随附防爆许可证VEGASON63超声波传感器VEGASON63可选安装龙门框或锁紧法兰⽂件资料- 此操作说明书- 您订购的各类相应的许可证，⽐如：如果您购买的是防爆型的仪表，随附防爆许可证VEGASON64\65\66超声波传感器VEGASON64\65\66⽂件资料- 此操作说明书- 您订购的各类相应的许可证，⽐如：如果您购买的是防爆型的仪表，随附防爆许可证组件VEGASON 61、62过程连接和探头外壳带电⼦部件，可选带插头连接外壳罩盖，可选带调整显⽰模块PLICSCOM1 外壳罩盖和下⾯的调整显⽰模块PLICSCOM（可选）VEGASON63过程连接和探头外壳带电⼦部件，可选带插头连接外壳罩盖，可选带调整显⽰模块PLICSCOM1 外壳罩盖和下⾯的调整显⽰模块PLICSCOM（可选）2 外壳，带电⼦部件，可选插头连接3 过程连接，带探头VEGASON64、65、66过程连接，带探头（法兰连接，万向节连接或螺纹连接）? 外壳和电⼦部件（可以分装）外壳罩盖，可选带调整显⽰模块PLICSCOM可以有以下不同类型：A型：⼀体式，法兰连接B型：⼀体式，万向节连接C型：分体式，万向节连接D型：分体式，螺纹连接1 外壳罩盖和下⾯的调整显⽰模块PLICSCOM（可选）2 外壳，带电⼦部件，可选插头连接3 万向节，带法兰4 探头2.2 ⼯作原理测量原理35kHz⾄70kHz范围内的短的超声波脉冲通过探头被发射，遇到被测介质后被反射回来，同样通过探头接收。
WM_W60X_SDK用户手册V1.2北京联盛德微电子有限责任公司 (winner micro)地址：北京市海淀区阜成路67号银都大厦18层电话：+86-10-62161900公司网址：文档修改记录目录文档修改记录 (2)目录 (3)1引言 (5)1.1概述 (5)1.2芯片简介 (5)1.3SDK基本特征 (8)2SDK使用说明 (11)2.1软件架构 (11)2.2目录结构 (11)2.3编译连接 (12)2.3.1KEIL工程编译 (12)2.3.2GCC编译 (12)2.3.3编译结果 (12)2.4烧录固件 (13)2.4.1通过ROM烧录 (13)2.4.2通过SecBoot烧录 (13)2.5程序调试 (14)2.5.1固件调试信息 (14)2.5.2JTAG/SWD调试 (14)2.5.3AT指令调试 (14)3开发工具 (15)3.1编译工具 (15)3.1.1KEIL (15)3.1.2GCC (15)3.2IMG生成工具 (15)3.3下载工具 (16)3.4调试工具 (16)4开发指南 (17)4.1WM_SDK启动方式 (17)4.2用户程序入口 (17)4.3内存使用 (18)4.4FLASH布局 (18)4.5用户参数管理 (18)4.6系统参数管理 (19)1引言1.1概述本文主要描述W60X软件开发包（SDK）的功能和使用方法，该SDK集成了W60X硬件驱动（BSP）、实时操作系统、TCP/IP协议栈、WiFi协议栈以及其它公共模块，能够满足大部分应用软件的需求。
1.2芯片简介Figure 1 W600芯片架构●芯片外观QFN32封装●芯片集成度集成Cortex-M3处理器，80MHz频率集成288KB SRAM集成1MB FLASH集成8通道DMA控制器，支持任意通道分配给硬件使用或是软件使用，支持16个硬件申请，支持软件链表管理片上集成2.4G射频收发器，满足IEEE802.11规范集成PA/LNA/TR-Switch集成32.768KHz时钟振荡器集成电压检测电路集成LDO集成电源控制电路集成上电复位电路●芯片接口集成1个SDIO2.0 Device控制器，支持SDIO 1位/4位/SPI三种操作模式，工作时钟范围0~50MHz集成2个UART接口，支持RTS/CTS，波特率范围1200bps~2Mbps集成1个高速SPI从设备接口，工作时钟范围0~50MHz集成1个SPI主/从接口，主设备工作时钟最高为20MHz，从设备支持最高6Mbps数据传输速率集成一个I2C控制器，支持100/400Kbps速率集成GPIO控制器集成PWM控制器，支持5路PWM单独输出或者2路PWM输入。
Air602 Hardware Design ManualV1.0Creat by Luat, translated by seeedVersion Change log DataAuthorV1.0.0Initial2018‐8‐3LuXiangchengLuatV1.0.0_EN 2018‐11‐01JellyTranslate to EnglishContentsContent (3)1 Overview (4)2 Feature (4)2.1 Interface (4)2.2 Wireless (4)2.3 Others (5)3 Specification (6)4 External antenna specifications (7)5 Pin Out (7)6 Environmental adaptability (8)6.1 Low temperature working test (8)6.2Low temperature storage test (8)6.3 High temperature working test (8)6.4 High temperature storage test (9)6.5 Vibration test (9)6.6 Environmental certification (9)7 Module reference circuit design (9)Luat1OverviewThe Air602 is a Wi‐Fi reference design module based on the embedded Wi‐Fi SoC chip (W600). Stamp hole interface, small size, easy to develop. This module is suitable for IoT applications such as smart home appliances, wireless audio and video, smart toys, medical monitoring, industrial control. This specification specifies the technical standards for the physical characteristics, technical specifications, communication protocols, product functions, performance, stability, environmental adaptability, and safety of the module.Luat2Features2.1Interface•Stamp hole interface, spacing 2mm•2 UART interfaces, support RTS/CTS, baud rate range 1200bps ~ 2Mbps •1 high speed SPI device controller with operating clock range 0 ~ 50MHz •Integrated GPIO controller2.2 Wireless•Support IEEE802.11 b/g/e/i/d/k/r/s/w/n •Support frequency range ：2.4~2.4835GHz •Support Wi‐Fi WMM/WMM‐PS/WPA/WPA2/WPS •Support Wi‐Fi Direct•Support EDCA channel access method •Support 20/40M bandwidth working mode•Support STBC, GreenField, Short‐GI, support reverse transmission •Support RIFS frame interval•Support AMPDU 、AMSDU•Support IEEE802.11n MCS 0~7, MCS32 physical layer transmission rate, transmission rate up to 150Mbps •Short Preamble support at 2/5.5/11 Mbps rate transmission•Support HT‐immediate Compressed Block Ack 、Normal Ack 、No Ack response method •Support CTS to self•Support STA/AP/AP+STA function•In the BSS network, multiple multicast networks are supported, and each multicast network is supported in different encryption modes. It can support up to 32 multicast networks and incoming STA encryption.•When the BSS network is used as an AP, the total number of supported sites and groups is 32, and 16 sites are supported in the IBSS network.Luat3.Others•Support for user‐programmable GPIO control•Supports AT+ instruction protocol based on ASCII encoding (UART interface)•Support multiple network protocols ：TCP/UDP/ICMP/DHCP/DNS/HTTP •Support DHCP Server 、DNS Server•Support for scalable WEB servers •Support firmware online upgradeItem Parameter NoteWireless SupportWi‐Fi ModeIEEE802.11b/g/nRF system impedance50ΩSWR<‐10dBFrequency Range 2.4~2.4835GHzReceiving sensitivity20MHz MCS7@‐71dBm；40MHz MCS7@‐68dBm；54Mbps@‐73dBm；11Mbps@‐86dBm；1Mbps@‐95dBm；Physical layer data rate802.11n MCS 0~7 150MbpsModulation DSSS、OFDM、DBPSK、DQPSK、CCK、QAM16/64 Output PowerIEEE802.11b,DSSS1Mbps,POUT = +17dBm；IEEE802.11g,OFDM54Mbps, POUT=+10dBm；IEEE802.11n,OFDM MCS7, POUT =+10dBm；Antenna interface Stamp holeHardware Interface Type UART、SPI、GPIOInterface rate2Mbps@UART (Max)50Mbps@SPI (Max)Operating Voltage 3.3VOperating current110mA（PS Mode35mA，DTIM= 1）Operating humidity5%~90%（No condensation ）storage temperature‐40~+125 ℃Operating temperature‐40~+85℃Dimensions10mm×12mmSoftware Network Type STA/AP/AP+STA/Wi‐Fi Direct Verification WEP/WPA‐PSK/WPA2‐PSK Encryption WEP64/WEP128/TKIP/CCMP(AES) WPS Function WPSEnergy saving PS‐POLL/StandbyNetwork protocol TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP Interface Protocol AT+ instruction set3 SpecificationTable3‐1 Product specification list Luat4 External antenna specificationsTable 4‐1 Recommended specifications for purchased antennasItem descriptionFrequency Range 2.4~2.4835GHzimpedance50 ΩVoltage standing wave ratio≦1.5Polarization mode Linear polarizationInterface IPX5 Pin OutThe module Air602 is shown in Figure 5‐1:Figure5‐1LuatThe module pin description is shown in Table 5‐1:Table5‐1Pin Number Pin Name Type Default pin function Pin multiplexing1GND P GND2ANT ANT antenna3GND P GND4VCC P 3.3V power supply5PA_4I/O UART0_TX6PA_5I/O UART0_RX7PB_8I/O GPIOPB_8H_SPI_CK8PB_9I/O UART1_CTS H_SPI_INT9PB_10I/O UART1_RTS H_SPI_CS10PB_11I/O UART1_RX H_SPI_DI11PB_12I/O UART1_TX H_SPI_DO12RST I Low level reset6 Environmental adaptability6.1 Low temperature working test•Reference standard ：GB/T2423.1‐2001；•Under the condition of ambient temperature of ‐40±1°C, the NIC module sample can work continuously for 72 hours, and the performance and function remain good after the test.6.2 Low temperature storage test•Reference standard ：GB/T2423.1‐2001•The NIC module sample was placed for 72 hours at an ambient temperature of ‐40 °C. The performance and function remained good after the test.6.3 High temperature working test•Reference standard ：GB/T2423.2‐2001Luat•At an ambient temperature of 85 ±1 °C, the NIC module sample can work continuously for 72 hours, and the performance and function remain good after the test.6.4 High temperature storage test•Reference standard ：GB/T2423.2‐2001•The NIC module sample was placed for 72 hours at an ambient temperature of 125 °C. The performance and function remained good after the test.6.5Vibration test•Reference standard ：GB/T4798.5‐2007•Random vibration, vibration direction: X, Y, Z axis, displacement, frequency refer to GBM 4798.5‐2007 5M3 grade, vibration time: 60min per axis. For detailed test methods, please refer to the 5M3 rating in GB/T4798.5‐2007.6.6Environmental certification•Compliant with RoHS IEC62321‐1:2013 standard7Module reference circuit designFigure 7‐1 Air602 reference circuit designAir602Luat。
目录2389102431使用须知产品简介7产品清单首次使用设置锁3234使用锁菜单介绍11操作说明售后服务支持添加到“萤石云视频”维护与保养41附录使用须知. . . . . . . . . . 萤石智能门锁（以下简称为“锁”）作为高科技产品，安装的好坏直接影响到门锁的正常操作及使用寿命，建议您请有智能锁安装经验的师傅进行安装，并根据产品附件中门板开孔图样板进行开孔，凿支承窝，确认所开凿的孔准确无误，然后严格按照本手册中的步骤进行操作，如果安装后发现锁有任何异常，请及时和当地的经销商或本公司的售后服务部门联系，以便快速解决问题。
如果您的房间正在装修，我们建议您将产品卸下，待装修完成后再把产品重新装上，这样做的目的是：①.避免装修过程中腐蚀性物质或腐蚀性气体腐蚀锁体，影响外观及降低产品使用寿命；②.避免门的油漆未干会影响锁的灵活传动；③.为避免对锁外观面造成腐蚀，请勿使用消毒液等腐蚀性液体擦拭锁外表面。
门锁在恢复出厂设置后会清空所有用户信息，在门锁安装调试完成后，请您尽快将锁恢复出厂设置并重新添加人脸、密码、感应卡、指纹等开锁信息。
门锁使用一段时间后，电池电量偏低时，门锁会发出低电压警报，每次开门会语音提示电量不足，此时请及时给电池充电。
若您要出远门或长期不使用锁，请将机械钥匙随身携带。
锁的人脸识别仅作为开锁方式的一种，仅针对您以事先录入方式做出授权的人脸进行分析比对。
您所录入的人脸图像及其处理过程均在您自行控制管理的设备本地进行。
鉴于锁产品本身置于开放环境等特点，我们建议您注意隐私安全，请妥善保管机械钥匙等配套解锁部件，开锁前核查周围环境，定期更新密码设置等，避免您的开锁信息被非法盗取、复制，造成安全隐患。
请在使用前安装把手挡条，装在靠近锁舌一侧。
请您在日常使用及开关门过程中，注意自身安全及提醒他人注意安全。
支持人脸或指纹识别开锁的电子锁，将涉及您的人脸、指纹信息的处理。
萤石仅为向您提供开锁功能之必要，仅针对您以事先录入方式做出授权的人脸或指纹进行分析比对，您所录入的原始信息及其处理过程均在您自行控制管理的设备本地进行，不会在云端存储。

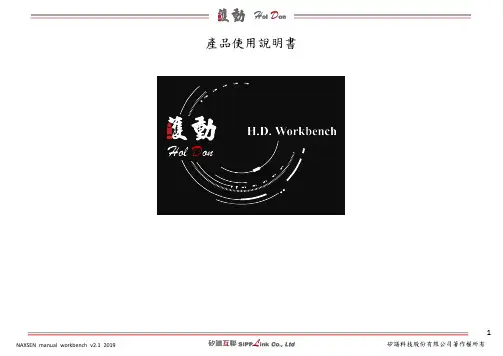

產品使用說明書1.內容1. 介紹 (3)2. 下載方式 (3)3. 登入 (3)4. 軟體佈局一覽 (4)5. 功能介紹 (5)6. 檔案匯入匯出 (6)7. 資料處理 (7)7.1. 連接裝置 (7)7.2. 資料讀取 (8)7.3. 資料操作 (9)7.4. 圖表顏色調整 (11)7.5. 資料分列顯示 (12)8. 圖表檢視 (13)8.1. 放大曲線圖(Zoom In) (13)8.2. 縮小曲線圖(Zoom Out) (13)8.3. 尺寸回復全版尺寸(Fit Plot) (14)9. 資料標記 (15)9.1. 游標(Cursor) (15)9.2. 選取區域(Select Region) (15)9.3. 標記(Marker) (16)10. 濾波器(Filter) (17)10.1. 示範Butterworth Filter 的低通濾波器 (17)11. AI Algorithm Plugin (進階) (19)1. 介紹HD-Workbench 意在提供感測資料處理與分析之Windows 應用程式。
AI 增益集可方便的與現有程式整合。
2. 下載方式請至/workbench 網頁 1. 軟體 ->選擇 HD-Workbench2. 下拉至網頁底部，選擇Download3. 登入必填項目 1. 名字 2. 姓氏 3. E-mail 4. 連絡電話 5. 密碼 6.選填項目 1. 性別 2. 身高 3. 體重 4. 生日4.軟體佈局一覽圖表標籤(Tab)以及Design Algorithm(常駐) 資料曲線圖區(Plot)工具列(Tool) Display(資料列)File manager (檔案管理)5. 功能介紹工具列詳細功能介紹以及中英對照表 圖示功能英文功能中文Design Algorithm即為Block Diagram可以顯示資料(Sensor Data)與圖表(Plot)連接關係圖Create New Project 開啟新視窗Open Sensor Data開啟CSV 檔Save Data 將NAXSEN 資料存成CSV 檔 Scan Device fromUSBNAXSEN 連結至電腦USB 後 須點功能鍵連結資料至WorkbenchZoom in 放大資料曲線圖Fit Plot 將資料曲線圖回復成全部顯示狀態Zoom out 縮小資料曲線圖 Design Algorithm 查看Block DiagramLoad AlgorithmPlugin 讀取演算法Help manual幫助、說明手冊6.檔案匯入匯出1.透過USB連結NAXSEN至電腦點選USB連結功能2.在檔案管理裡選擇欲匯出的資料點選匯出功能3.選擇輸出位置，匯出CSV檔。
2021ContentsCopyright,trademarks,and disclaimer3 Overview4 Introduction4 How XProtect Screen Recorder works4 Licensing5 Licensing5 Installation6 Installing and configuring on computer6 Set password7 Set port number7 Set MAC address8 Configuration10 Configuring after installing on computer10 Change password10 Change port number10 Change MAC address10 Installing on recording server11 Set frames per second/live frame rate11 Set quality11 Set capture mode11 Optimization13 Security13 Maintenance14 Uninstalling from computer14 Troubleshooting15 Troubleshooting15Copyright,trademarks,and disclaimerCopyright©2021Milestone Systems A/STrademarksXProtect is a registered trademark of Milestone Systems A/S.Microsoft and Windows are registered trademarks of Microsoft Corporation.App Store is a service mark of Apple Inc.Android is a trademark of Google Inc.All other trademarks mentioned in this document are trademarks of their respective owners.DisclaimerThis text is intended for general information purposes only,and due care has been taken in its preparation. Any risk arising from the use of this information rests with the recipient,and nothing herein should be construed as constituting any kind of warranty.Milestone Systems A/S reserves the right to make adjustments without prior notification.All names of people and organizations used in the examples in this text are fictitious.Any resemblance to any actual organization or person,living or dead,is purely coincidental and unintended.This product may make use of third-party software for which specific terms and conditions may apply.When that is the case,you can find more information in the file3rd_party_software_terms_and_conditions.txt located in your Milestone system installation folder.OverviewIntroductionThis manual describes the Milestone XProtect Screen Recorder feature.It allows a Windows computer to act as an IP video camera,sending the contents of its desktop to the recording server it is connected to.The XProtect Screen Recorder feature is a small application to be installed on one or more Windows computers where you want to record desktop contents,and a camera driver included in XProtect Device Pack6.0and later versions. XProtect Screen Recorder works with all XProtect products on the following Windows platforms in both32-and 64-bit versions:l Client operating systems:Microsoft Windows8.1or newerl Server operating systems:Microsoft Windows Server2008R2or newerIn this document,when the term"recording server"is used,it refers to XProtect recording servers.How XProtect Screen Recorder worksOnce installed,XProtect Screen Recorder is automatically controlled from the startup menu of the computer where it is installed and runs in the context of the user logged into this computer.This means that XProtect Screen Recorder automatically and invisibly starts up every time the user logs in to the computer and closes down every time the user closes down.If online user-switching is done via Window's Fast User Switching feature,the XProtect Screen Recorder will continue to record in the context of the new user,however any other type of user-switching/-logging in or out will result in discontinuation of the feature.Read more about switching users without logging off onhttps:///windows-10-enable-or-disable-fast-user-switching/.This is possible because it is a service running in the background,capturing the computer’s screen at a set frame rate.It is also this service that provides the interface that your XProtect surveillance system can connect to and retrieve images from similarly as any other camera.LicensingLicensingWhen you add a screen recorder device in Management Client,you need a device license,just like with any other device.However,downloading and installing the XProtect Screen Recorder software is free of charge and you can install it as many times as required.XProtect Screen Recorder can and may only be used with Milestone software.InstallationInstalling and configuring on computerBefore you can start using the XProtect Screen Recorder feature,you must first download and install it on one or more Windows computer(s)where you want to receive desktop images.The application part of XProtect Screen Recorder consists of a Windows service and a desktop capture process. When installing the feature,you must have administrator rights to the computer you are using.Uninstalling or stopping the Windows service also requires administrator rights.Locate the file(https:///downloads/)named MilestoneXProtectScreenRecorderInstaller.exe and follow the download and installation procedure.When complete,the computer will work as an IP camera.From Management Client,you can add the XProtect Screen Recorder device,similar to adding a camera,to connect to it.Towards the end of the installation,the Milestone XProtect Screen Recorder-Administrator window appears. Address the configuration parameters below and click OK to save and finish the installation process.Set passwordIt is important that only the relevant recording server connects to and request video from a computer with XProtect Screen Recorder installed.You do this by entering a password of your choice in the text fields displayed in the illustration below.Milestone recommends that you fill in the password fields.In addition,there is no way to be reminded of the password,so it is important to remember the password.You must enter the password in Management Client on the recording server side.Set port numberFor the relevant recording server to connect to a computer with XProtect Screen Recorder installed,you must specify a Transmission Control Protocol(TCP)port.TCP ports are identified by their number.The default number is52111.If this port is already in use by another program,change it.Make sure that the selected port is open on your firewall so the recording server canconnect to it.Set MAC addressFor licensing purposes,you must also select a MAC address.You can choose between all MAC addresses available on the computer with XProtect Screen Recorder installed.1.Make a selection in the MAC address available list.2.Click Set.3.The selected MAC address is displayed in the MAC address used field.When you configure the screen recorder device in Management Client,you must provide a license key that matches the selected MAC address.ConfigurationConfiguring after installing on computerAfter installing,it possible to change all XProtect Screen Recorder configurations.This is done from the Milestone XProtect Screen Recorder-Administrator’s window which can be reached in the following way:1.Open Windows’Start menu.2.Click Milestone XProtect Screen Recorder Administrator.3.Confirm that the XProtect Screen Recorder is allowed to make changes to your hard drive.Next,theXProtect Screen Recorder-Administrator’s window will open.4.From the left-hand menu of the window,click Password,Port Number or MAC Address(depending onwhat you want to do).Change password1.In the Administrator’s window,on the Password tab,move focus to either text field to clear them both.2.Next,click OK to delete the old password(you will be presented with a warning).3.Enter a new password and click OK.This saves changes and restarts the XProtect Screen Recorder.4.Close the window.Change port number1.In the Administrator’s window,go to the Port Number tab.2.Fill in the port number(see Set port number on page7).3.When done,click OK.This saves changes and restarts the XProtect Screen Recorder.4.Close the window.Change MAC addressMAC addresses relate to hardware.If you change your network adapter,the selected MAC address may no longer be available.You must then select another valid address.This also requires that you enter a new license on the recording server side.1.In the Administrator’s window,go to the MAC Address tab.2.Set the MAC addresses(see Set MAC address on page8).3.When done,click OK.This saves changes and restarts the XProtect Screen Recorder.4.Close the window.Installing on recording serverIn Management Client,you must add a screen recorder device that connects to the XProtect Screen Recorder service.It is added and configured like any other IP video camera(see relevant documentation of your surveillance system for details on how to add and configure a camera).When you add a screen recorder device,the user name must be videoos and the device type Screen Recorder.A screen recorder device has the following configurable parameters:l Frames per second/live frame ratel Qualityl Capture modeWhen adding a screen recorder device,you must provide the IP address of the device.Inthis case,the device is a computer.But when adding a device of the Screen Recorder type,you may be in a situation where the computer does not have a permanent IP address.Inthat case,you can use the Domain Name System(DNS)name of the computer.Set frames per second/live frame rateFrames per second in XProtect Corporate/Live frame rate in other Milestone surveillance products.A low frame rate is recommended because high frame rates may cause heavy CPU usage on the computer with XProtect Screen Recorder installed.For this reason,the XProtect Screen Recorder feature never yields more than4frames per second.Two frames per second offers a nice impression of screen activity and causesapproximately5-8%extra CPU usage on an average Windows7computer anno2010.Thus,2or3frames per second is the recommended daily setting.Set qualityVideo frames are sent to the recording server as a series of JPEGs.It is possible to lower network and storage consumption by configuring a lower quality.However,this will result in a more blurred image.The effective valid range is0(poorest quality)to100(best quality).Default is75,which reduces the amount of data nicely without reducing the visual quality too much.However,the JPEG algorithm is not optimized for computer images with many rectangles.So even with a high quality you will still observe glitches around straight lines.Set capture modeWith regards to capture mode,there is a choice of:l Primary screen only:the primary screen onlyl All screens(if there is more than one screen):a mosaic of all screens setup for the computer in question l Screen1,Screen2,etc.(if there is more than one screen):The selected screen onlyOptimizationSecurityAs mentioned earlier,XProtect Screen Recorder’s recording process is controlled from the computer startup menu and runs in the context of the logged in user.This means that the user can use the Windows Task Manager to shut down the process.To prevent that,Windows must be configured so that the user has no access to Windows Task Manager or other programs with similar capabilities.Disabling XProtect Screen Recorder results in the device connecting to the XProtect Screen Recorder service showing a red screen with a cross over it.The TCP based protocol used between the recording server and the computer withXProtect Screen Recorder installed utilizes Digest Authentication(RFC7616)with SHA256as a hashing algorithm.The risk of other products intercepting a desktop is thereforeminimal,but you are urged to define a password in the Milestone XProtect ScreenRecorder-Administrator’s window.MaintenanceUninstalling from computerThe following procedure describes standard system component removal in recentWindows versions;the procedure may be slightly different in older Windows versions.1.In Windows'Start menu,select Control Panel,and:l If using Category view,find the Programs category,and click Uninstall a programl If using Small icons or Large icons view,select Programs and Features2.In the list of currently installed programs,right-click the required Milestone program or service.3.Select Uninstall if you wish to uninstall all components.Select Change if you only wish to uninstall somecomponents.4.Follow the removal instructions.TroubleshootingTroubleshootingA problem which may occur with XProtect Screen Recorder is that the recording server and the computer with XProtect Screen Recorder installed cannot connect.These are probable causes:l The configured TCP port is not open on the firewall that the XProtect Screen Recorder is installed on.Or if communication runs through a router,the router may also have a firewall that causes problemsl The IP address defined on the recording server is different from the IP address on the computer withXProtect Screen Recorder installedl The IP port defined on the recording server is different from the one configured on the computer with XProtect Screen Recorder installedl The password defined on the recording server is different from the one configured on the computer with XProtect Screen Recorder installedl The Device Pack and XProtect Screen Recorder versions are incompatibleXProtect2019R3includes Device Pack10.5.Connection will fail if you are runningDevice Pack10.4(or earlier)and using the XProtect Screen Recorder version2019R3(or later).To investigate other problem scenarios,you can enable the tracing of relevant desktop recordings:1.In Windows Explorer,in the directory:%PROGRAMFILES%\Milestone\XProtect Screen Recorder,locate thefile:ScreenRecorderService.exe.config.ing an editor,for example,Microsoft©Notepad,change the value of the attribute"Log"to"yes"asillustrated below:<?xml version="1.0"?><configuration><startup><supportedRuntime version="v2.0.50727"/></startup><appSettings><add key="Log"value="yes"/></appSettings></configuration>4.Save the file under the same name and in the same location.5.Start Milestone XProtect Screen Recorder Administrator(see Configuring after installing on computer onpage10).6.Click OK to restart XProtect Screen Recorder.Logging is now enabled.7.In the AllUsers ProgramData folder,in the subdirectory:Milestone\XProtect Screen Recorder,two logfiles are now available:Servicelog.txt and Desktoplog.txt.l Servicelog.txt is a log of all network traffic and communication between the recording server andthe computer with XProtect Screen Recorder installedl Desktoplog.txt is a log of the process running on the computer with XProtect Screen Recorderinstalled,capturing desktop images and sending them to the Windows service as JPEG images 8.To avoid that the two log files grow extensively,it is important to reset the"Log"attribute to"no"whendone.See step2.9.Restart Milestone XProtect Screen Recorder Administrator(see Configuring after installing on computeron page10).open platform video management software;technology that helps assets and increase business estone Systemscollaboration and innovation in the development and use of scalable solutions that are proven in more than 150,000sitesis a stand-alone company in the Canon Group.For more *************************。
Sun Microsystems, 請將您對本文件的意見提交至： /hwdocs/feedbackSun StorEdge ™ 6920 系統版本說明文件編號 817-5395-132004 年 11 月，修訂版 A請回收Copyright 2004 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. 版權所有。
Sun Microsystems, Inc. 對於本文件所述技術擁有智慧財產權。
具體而言，這些智慧財產權可能包括但不限於 /patents 上所列的一項或多項美國專利權，以及在美國及其他國家擁有的一項或多項其他專利權或申請中專利權 。
本文件及相關產品在限制其使用、複製、發行及反編譯的授權下發行。
未經 Sun 及其授權人 (如果適用) 事先的書面許可，不得使用任何方法以任何形式來複製本產品或文件的任何部分。
協力廠商軟體，包含字型技術，其著作權歸 Sun 供應商所有，經授權後使用。
本產品中的某些部分可能衍生自加州大學授權的 Berkeley BSD 系統的開發成果。
UNIX 是美國及其他國家的註冊商標， 已獲得 X/Open Company, Ltd. 專屬授權。
Sun 、Sun Microsystems 、Sun 標誌、AnswerBook2、 、Solaris 、Solstice DiskSuite 、Sun Cluster 和 Sun StorEdge 是 Sun Microsystems, Inc. 在美國及其他國家的商標或註冊商標 。
所有 SPARC 商標都是 SPARC International, Inc. 在美國及其他國家的商標或註冊商標，經授權後使用 。
凡帶有 SPARC 商標的產品都是以 Sun Microsystems, Inc. 所開發的架構為基礎。
Legato 、Legato 標誌及 Legato NetWorker 是 Legato Systems, Inc. 的註冊商標。

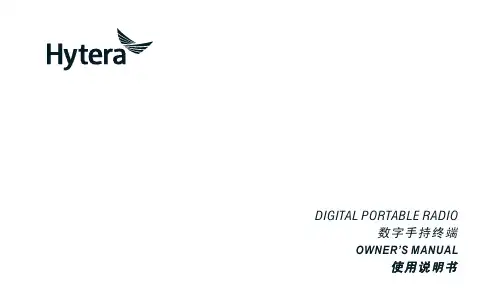

DIGITAL PORTABLE RADIO数字手持终端OWNER’S MANUAL使用说明书Instructional IconsIndicates functions that are available on digital channel only.Indicates functions that are available on analog channel only.Functions marked with no function icons are available on both analog and digital channels.DisclaimerThe Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of us.We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the Third Party products and contents involved in this manual.If you have any suggestions or would like to learn more details, please visit our website at:.RF Radiation InformationThis product must be restricted to operations in an Occupational/Controlled RF exposure Environments. Users must be fully aware of the hazards of the exposure and able to exercise control over their RF exposure to qualify for the higher exposure limits.RF Radiation ProfileRadio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in communication, medicine, food processing and other fields. It may generate radiation during use.RF Radiation SafetyIn order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to●United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J;●American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992;●Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999;●International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998.FCC RegulationsFederal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy.Operational Instructions and Training GuidelinesTo ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit not more than 50% of the time and always adhere to the following procedures:●RF energy will be generated only when the radio is transmitting.●The radio must be 2.5 centimeters away from human body when transmitting.EU Regulatory ConformanceAs certified by the qualified laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/ EC.Please note that the above information is applicable to EU countries only.Contents1. Items in the Package ------------------------------------12. Product Overview -----------------------------------------2Product Controls ---------------------------------------------------2 Programmable Keys ----------------------------------------------3 3. Before Use --------------------------------------------------3Assembling the Radio --------------------------------------------3 Charging the Battery ----------------------------------------------4 Checking the Battery Power ------------------------------------5 4. Status Indication ------------------------------------------5LED Indicator -------------------------------------------------------55. Basic Operations -----------------------------------------6Powering On/Off ---------------------------------------------------6 Adjusting the Volume ---------------------------------------------6 Selecting a Zone ---------------------------------------------------6 Selecting a Channel -----------------------------------------------66. Call Services------------------------------------------------7Calling on Digital Channel ----------------------------------7 Calling on Analog Channel (No Signaling) --------------8 Emergency Alarm -------------------------------------------------87. Feature Description --------------------------------------88. Troubleshooting -------------------------------------------109. Care and Cleaning ----------------------------------------1110.Optional Accessories -----------------------------------12Product ControlsProgrammable KeysFor enhanced convenience, you may request your dealer to program the SK1 key as shortcut to certain feature. Please refer to the corresponding Feature Book for feature details.Assembling the Radio●To remove the battery, please turn off the radio first. Then slide the battery latch upwards to unlock the battery. ●If not assembled with battery specified by Hytera, the radio will give an alarm tone to remind you when powering on. Afterwards, it will operate normally.”Assemble DisassembleNote3. Assembling the Belt Clip12Remove the screws Assemble the Belt Clip Charging the Battery Please use the charger specified by the Company, and follows thecharging steps as shown below.Read the Safety Information Booklet in advance to get necessary safety information. ●To achieve optimal battery performance, please charge Do not swing the radio when holding it by the antenna, so as to avoid lowering the performance and shortening the life span of the antenna.CautionChecking the Battery PowerYou may check the current battery power by holding the programmed Battery Power Indicator key preset by your dealer. Release the key to exit.LED IndicatorPowering On/Off Adjusting the Volume Selecting a ZoneYou can include a group of channels with the same property in to a zone for convenient management. The radio supports three zones, each of which consists of up to 16 channels. You can switch to the appropriate zone by pressing the programmed Zone Up or Zone Down key presetSelecting a ChannelAfter the radio is powered on, you can rotate the Channel Selector knob to select an appropriate channel. You can also switch to the designated channel directly by pressing the programmed Preset Channel key preset by your dealer.If the Channel Notify feature is enabled by your dealer, the radio will play the channel number upon channel switching.Selecting a Zone Selecting a ChannelAfter the radio is powered on, you can make different kinds of calls. To ensure optimal volume of the receiving radio, keep the microphone about 2.5 to 5 centimeters away from your mouth when transmitting.The types of calls you may initiate are listed below:●Private call: A call made to a private contact.●Group call: A call made to the group contacts.●All call: A call made to all the contacts on the current channel.Calling on Digital ChannelYou can initiate a private call, group call or all call (your radio must be programmed to allow you to use the all call service) through the same operations on digital channel. When calling back, the radio will make programmed to allow you to call back in an all call); but in group call, the radio will make a call to all parties involved when calling back.Here we take the private call as example to illustrate the call process:1. User A and B select the same digital channel.2. User A holds down the PTT key to initiate a call.You preset a regular private call/group call/all call contact for each digital channel via your dealer.3. User A can talk to the microphone when the LED indicator on theradio glows red.4. User A releases the PTT key to finish talking.User A can hold down the PTT key to talk when the LED indicator on the radio is glowing orange.When receiving, the LED indicator on the radio glows green.5. User B can receive the call without any operation. When receiving,the LED indicator glows green.6. User B can hold down the PTT key to talk when the LED indicator onthe radio is glowing orange.The duration of LED indicator glowing orange (Call HoldTime) is preset by your dealer. If neither one talks beforethis duration expires, the call will end.NoteCalling on Analog Channel (No Signaling)On the analog channel without signaling, the calling operations are the same as on the digital channel. The difference is that the called parties are all the users on the channel, rather than the preset contact for the channel.Please refer to the corresponding Feature Book for calling operations on the analog channel with signaling.Emergency AlarmIn case of emergency, you can use this feature to inform your colleagues or control center for help. The Emergency Alarm has the highest priority which can terminate the ongoing activities on the current channel. You can make emergency call even when your radio is transmitting or receiving.Emergency Alarm feature needs to be configured and enabled by your dealer. Please refer to the corresponding Feature Book for details. Available features of this radio are listed below. Please refer to the corresponding Feature Book for details.Feature Type Detailed FeatureRadio Features●Radio setting: Power Level, Covert Mode●Convenient functionality: Shortcuts, One TouchCall and VOX●Security: Man Down (Optional) and LoneWorker●Rent●Audio OptimizationConventionalCommon Features●Scan●Talk AroundTo guarantee optimal performance as well as a long service life of theproduct, please follow the tips below.Product CareKeep the product far away from substances that cancorrode the circuit.Product Cleaning●Clean up the dust and fine particles on the product surface andcharging piece with a clean and dry lint-free cloth or a brush regularly.●Use neutral cleanser and a non-woven fabric to clean the keys,control knobs and front case after long-time use. Do not usechemical preparations such as stain removers, alcohol, sprays or oilpreparations, so as to avoid surface case damage.●Make sure the product is completely dry before use.CautionH M N O4X1 series programming cable with USBportThe following items are the main optional accessories for the radio. Formore information of other accessories, please consult your local dealer.Use the accessories specified by Hytera only. If not, theCompany shall not be liable for any losses or damagesarising out of use of unauthorized accessories.CautionMCA08 MCU Multi-unit Rapid-rate Charger (forLi-Ion/Ni-MH batteries),CH10A06 Dual-Pocket MCU Charger Kit(forLi-Ion/Ni-MH battery, including Dual-PocketCharger and Switching Power),PS7501 AC/DC Adaptor,MCA05 Battery Optimizing SystemX1 series 3-wire Surveillance Earpiece with TransparentAcoustic Tube (Beige),X1 series Remote Earbud,X1 series Remote Swivel Earset,X1 series Remote C-Earset,X1 series Remote Earpiece with Transparent AcousticTubeNCN011 Nylon Carrying Case图标说明：表示数字信道独有的功能，只能在数字信道上使用。
