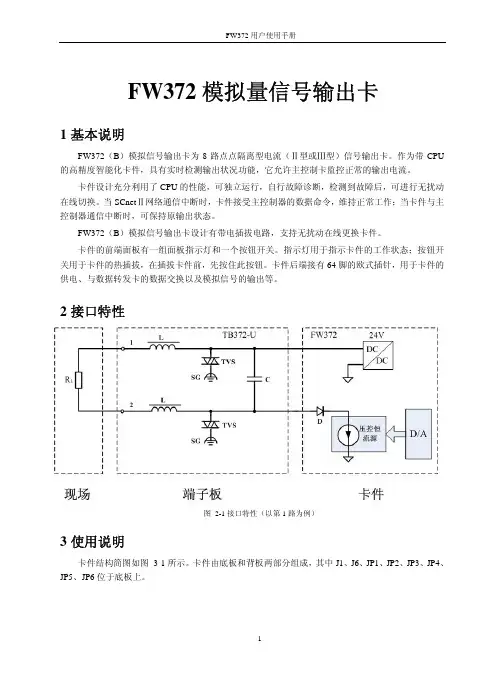

FW372模拟量信号输出卡1基本说明FW372（B）模拟信号输出卡为8路点点隔离型电流（Ⅱ型或Ⅲ型）信号输出卡。

作为带CPU 的高精度智能化卡件，具有实时检测输出状况功能，它允许主控制卡监控正常的输出电流。

卡件设计充分利用了CPU的性能，可独立运行，自行故障诊断，检测到故障后，可进行无扰动在线切换。

当SCnetⅡ网络通信中断时，卡件接受主控制器的数据命令，维持正常工作；当卡件与主控制器通信中断时，可保持原输出状态。

FW372（B）模拟信号输出卡设计有带电插拔电路，支持无扰动在线更换卡件。

卡件的前端面板有一组面板指示灯和一个按钮开关。

指示灯用于指示卡件的工作状态；按钮开关用于卡件的热插拔，在插拔卡件前，先按住此按钮。

卡件后端接有64脚的欧式插针，用于卡件的供电、与数据转发卡的数据交换以及模拟信号的输出等。

2接口特性图 2-1接口特性（以第1路为例）3使用说明卡件结构简图如图 3-1所示。

卡件由底板和背板两部分组成，其中J1、J6、JP1、JP2、JP3、JP4、JP5、JP6位于底板上。

图 3-1 FW372（B）结构简图3.1LED指示灯说明表 3-1指示灯说明3.2跳线表3-2 FW372（B）跳线设置跳1-2 正常工作状态JP1跳2-3 标定状态（用户禁止使用）跳1-2 单卡配置JP6跳2-3 冗余配置跳1-2 （HART通信保留）JP2，JP3跳2-3 （HART通信保留）跳1-2 （HART通信保留）JP4，JP5跳2-3 （HART通信保留）J1 跳7-8 IC1的下载接口，下载时连接下载线。

在正常工作中使用短路块连接7、8脚，其余引脚全部断开。

J6 IC2的下载接口，下载时连接下载线。

正常工作中全部断开跳1-2跳2-3J1跳7-8图 3-2 FW372（B）卡跳线示意图3.3端子板选择FW372（B）模拟信号输出卡在使用时必须与对应的端子板配合使用，端子板提供接线通道以及信号前级抗扰动处理。
