January 2010Doc ID 12569 Rev 61/27STP16CPS05Low voltage 16-bit constant current LED sink driverwith auto power savingFeatures■Low voltage power supply down to 3 V ■16 constant current output channels ■Adjustable output current through external resistor■Serial data IN / parallel data OUT■Auto power-saving feature minimizes thequiescent current if no active data is detected on the latches■Can be driven by a 3.3 V microcontroller ■Output current: 5-100 mA ■Max clock frequency 30 MHz■ESD protection 2.5 kV HBM, 200 V MMDescriptionThe STP16CPS05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CPS05 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources provide from 5 mA to 100 mA constant current to drive the LEDs.The auto power shut-down and auto power-ON feature allows the device to save power without any external intervention.The output current setup time is 40 ns (typ), thus improving the system performance.The LEDs' brightness can be controlled by using an external resistor to adjust the STP16CPS05 output current.The STP16CPS05 guarantees a 20 V output driving capability, allowing users to connect more LEDs in series. The high clock frequency,30 MHz, makes the device suitable for high data rate transmission. The 3.3 V voltage supply is useful in applications that interface with a 3.3 V microcontroller.Table 1.Device summaryOrder codes Package Packaging STP16CPS05MTR SO-241000 parts per reel STP16CPS05TTR TSSOP242500 parts per reel STP16CPS05XTTR TSSOP24 Exposed Pad2500 parts per reel STP16CPS05PTRQSOP-242500 parts per reelContents STP16CPS05Contents1Summary description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.1Pin connection and description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42.1Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42.2Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42.3Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 4Equivalent circuit and outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 5Timing diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6Typical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 7Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 8Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 9Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262/27Doc ID 12569 Rev 6STP16CPS05Summary descriptionDoc ID 12569 Rev 63/271 Summary description1.1 Pin connection and descriptionNote:The exposed pad should be electrically connected to a metal land electrically isolated orconnected to GNDTable 2.Typical current accuracyOutput voltageCurrent accuracy Output currentV DD TemperatureBetween bits Between ICs≥ 1.3 V± 1.5 %± 5 %≥ 20 to 100 mA3.3 V to 5 V25 °CTable 3.Pin descriptionPin N°Symbol Name and function1GND Ground terminal 2SDI Serial data input terminal 3CLK Clock input terminal 4LE Latch input terminal 5-20OUT 0-15Output terminal21OE Input terminal of output enable (active low)22SDO Serial data out terminal23R-EXT Input terminal of an external resistor for constant current programing 24V DDSupply voltage terminalElectrical ratings STP16CPS054/27Doc ID 12569 Rev 62 Electrical ratings2.1Absolute maximum ratingsStressing the device above the rating listed in the “absolute maximum ratings” table maycause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.2.2 Thermal dataTable 4.Absolute maximum ratingsSymbol ParameterValue Unit V DD Supply voltage 0 to 7V V O Output voltage -0.5 to 20V I O Output current 100mA V I Input voltage -0.4 to V DDV I GND GND terminal current 1600mA f CLK Clock frequency50MHz T JJunction temperature range (1)1.Such absolute value is achieved according the thermal shutdown-40 to+170°CTable 5.Thermal dataSymbol ParameterValue Unit T OPR Operating temperature range -40 to +125°C T STGStorage temperature range-55 to +150°C R thJAThermal resistance junction (1)1.According to jedec standard 51-7BSO-2442.7°C/W TSSOP2455°C/W TSSOP24(2)Exposed Pad 2.The exposed pad should be soldered directly to the PCB to realize the thermal benefits.37.5°C/W QSOP-2455°C/WSTP16CPS05Electrical ratingsDoc ID 12569 Rev 65/272.3 Recommended operating conditionsTable 6.Recommended operating conditions at 25 °CSymbol Parameter Test conditionsMin TypMax Unit V DD Supply voltage 3.05.5V V O Output voltage 20V I O Output current OUTn 5100mA I OH Output current SERIAL-OUT +1mA I OL Output current SERIAL-OUT-1mA V IH Input voltage 0.7V DD V DD V V IL Input voltage -0.30.3V DDV t wLA T LE pulse width V DD = 3.3 V to 5.0 V 10ns t wCLK CLK pulse width 8ns t wENOE pulse width100ns t SETUP(D)Setup time for DA T A 14ns t HOLD(D)Hold time for DA TA 5ns t SETUP(L)Setup time for LA TCH 15ns f CLKClock frequencyCascade operation (1)1.If the device is connected in cascade, it may not be possible achieve the maximum data transfer. Pleaseconsidered the timings carefully.30MHzElectrical characteristics STP16CPS056/27Doc ID 12569 Rev 63 Electrical characteristicsTable 7.Electrical characteristics (V DD = 3.3 V to 5 V, T = 25 °C, unless otherwise specified)Symbol Parameter Test conditionsMin TypMax Unit V IH Input voltage high level 0.7V DD V DD V V IL Input voltage low level GND0.3V DD V I OH Output leakage current V OH = 20 V 10μA V OL Output voltage (Serial-OUT)I OL = 1 mA 0.4V V OH Output voltage (Serial-OUT)I OH = -1 mAV DD -0.4V VI OL1Output currentV O = 0.3 V , R ext = 3.9 k Ω 4.255 5.75mAI OL2V O = 0.3 V , R ext = 970 Ω192021I OL3V O = 1.3 V , R ext = 190 Ω96100104ΔI OL1Output current error between bit (All Output ON)V O = 0.3 VR EXT = 3.9 k Ω± 5± 8%ΔI OL2V O = 0.3 VR EXT = 970 Ω± 1.5± 3ΔI OL3V O = 1.3 VR EXT =190 Ω± 1.2± 3R SIN(up)Pull-up resistor 150300600k ΩR SIN(down)Pull-down resistor 100200400k ΩI DD(SH)Shut-down current All Latched Data = LV DD = 3.3 V 120170μA V DD = 5 V140200μA I DD(OFF1)Supply current (OFF)R EXT = 970OUT 0 to 15 = OFF 5mAI DD(OFF2)R EXT = 240OUT 0 to 15 = OFF 12.5I DD(ON1)Supply current (ON)R EXT = 970OUT 0 to 15 = ON 5.5I DD(ON2)R EXT = 240OUT 0 to 15 = ON13ThermalThermal protection 170°CSTP16CPS05Electrical characteristicsDoc ID 12569 Rev 67/27Table 8.Switching characteristics (V DD = 3.3 to 5 V, T = 25 °C)Symbol ParameterTest conditionsMinTyp Max Unit t PLH1Propagation delay time, CLK-OUTn, LE = H, OE = L V IH = V DD V IL = GND C L = 10 pFI O = 20 mAV L = 3.0 V R EXT = 1 K ΩR L = 60 ΩV DD = 3.3 V 3555nsV DD = 5 V 17.526t PLH2Propagation delay time,LE-OUTn, OE = L V DD = 3.3 V 33.552nsV DD = 5 V 1720t PLH3Propagation delay time,OE-OUTn, LE = H V DD = 3.3 V 53.584.5nsV DD = 5 V 28.540.5t PLHPropagation delay time, CLK-SDOV DD = 3.3 V 1927.5nsV DD = 5 V 1318.5t PHL1Propagation delay time, CLK-OUTn, LE = H, OE = LV DD = 3.3 V1319ns V DD = 5 V 8.512t PHL2Propagation delay time,LE-OUTn, OE = L V DD = 3.3 V 1014.5nsV DD = 5 V 6.59t PHL3Propagation delay time,OE-OUTn, LE = H V DD = 3.3 V 10.515nsV DD = 5 V 7.510.5t PHLPropagation delay time, CLK-SDOV DD = 3.3 V 2333nsV DD = 5 V 15.521.5t ONOutput rise time 10~90 % of voltage waveformV DD = 3.3 V 23.531.5ns V DD = 5 V 910.5t OFF Output fall time90~10 % of voltage waveform V DD = 3.3 V 4.6 5.5ns V DD = 5 V3.55t r CLK rise time (1)5000ns t fCLK fall time (1)5000ns 1.In order to achieve high cascade data transfer, please consider tr/tf timings carefully.Equivalent circuit and outputs STP16CPS05 4 Equivalent circuit and outputsOE terminal8/27Doc ID 12569 Rev 6STP16CPS05Equivalent circuit and outputsDoc ID 12569 Rev 69/27Timing diagrams STP16CPS0510/27Doc ID 12569 Rev 65 Timing diagramsNote:OUTn = ON when Dn = H OUTn = OFF when Dn = LNote:1Latch and output enable terminals are Level-sensitive and are not synchronized with rising or falling edge of CLK signal2When LE terminal is at low level, the latch circuit holds previous set of data3When LE terminal is at high level, the latch circuit refreshes new set of data from SDI chain 4When OE is at low level the output terminals Out 0 to Out 15 respond to data in the latch circuits, either '1' for ON or '0' for OFF .5When OE is at high level, all output terminals are switched OFF .STP16CPS05Timing diagramsNote:At the power-up the device starts in shut-down mode.Doc ID 12569 Rev 611/27Timing diagrams STP16CPS0512/27Doc ID 12569 Rev 6STP16CPS05Typical characteristicsDoc ID 12569 Rev 613/276 Typical characteristicsFigure 11.Output current-R EXT resistorTable 11.Output current-R EXT resistorRext (Ω)Output current (mA)976207802565230560354884043345389503545532560300652787025975241802298521590Typical characteristics STP16CPS0514/27Doc ID 12569 Rev 6Figure 12.Output current vs ± ΔI OL(%)Figure 13.I SET vs drop out voltage (V drop )STP16CPS05Typical characteristicsDoc ID 12569 Rev 615/27Note:Auto power-saving feature minimizes the quiescent current if no active data is detected on the latches and auto-power-up the device at fist active data latched.Figure 15.Auto power savingTypical characteristics STP16CPS0516/27Doc ID 12569 Rev 6Note:When the device goes from auto power saving to normal operative condition, the first output that switch ON shows TON condition as seen in the plot above.Figure 16.First output ON after switching from auto power saving to normal modeoperating conditionSTP16CPS05Test circuitDoc ID 12569 Rev 617/277 Test circuitTest circuitSTP16CPS0518/27Doc ID 12569 Rev 6Note:V L will be determined by the V F of the LEDsTable 12.Turn ON output current characteristics (1)Table 13.Turn OFF output current characteristics (2)1.Reference level for the T ON characteristics is 50% of OE signal to 90% of output current2.Reference level for the T OFF characteristics is 50% of OE signal to 10% of output currentSTP16CPS05Package mechanical data8 Package mechanical dataIn order to meet environmental requirements, ST offers these devices in different grades ofECOPACK® packages, depending on their level of environmental compliance. ECOPACK®specifications, grade definitions and product status are available at: .ECOPACK® is an ST trademark.Table 14.QSOP-24 mechanical datamm. inch Dim.Min Typ Max Min Typ MaxA 1.54 1.62 1.730.0610.0640.068A1 0.10.150.250.0040.0060.010A2 1.470.058b 0.310.2 0.0120.008c 0.2540.170.0100.007D 8.568.668.760.3370.3410.345E 5.86 6.20.2280.2360.244E1 3.8 3.91 4.010.1500.1540.158e 0.6350.025L 0.40.6350.890.0160.0250.035h 0.250.330.410.0100.0130.016< 8° 0°Doc ID 12569 Rev 619/27Package mechanical data STP16CPS0520/27Doc ID 12569 Rev 6STP16CPS05Package mechanical dataDoc ID 12569 Rev 621/27Table 15.TSSOP24 mechanical dataDim.mm. inchMinTyp MaxMinTypMaxA 1.1 0.043 A1 0.050.15 0.0020.006A2 0.9 0.035b 0.19 0.30 0.0075 0.0118c 0.09 0.20 0.0035 0.0079 D 7.7 7.9 0.303 0.311 E 4.34.5 0.1690.177e 0.65 BSC 0.0256 BSCH 6.25 6.5 0.246 0.256 K 0° 8° 0° 8° L 0.500.70 0.0200.028Figure 21.TSSOP24 package dimensionsPackage mechanical data STP16CPS0522/27Doc ID 12569 Rev 6Table 16.Tape and reel TSSOP24Dim.mm. inchMinTyp MaxMinTypMaxA 330 2.992 C 12.8 13.2 0.5040.519D 20.2 0.795 N 602.362T 22.4 0.882 Ao 6.8 7 0.268 0.276 Bo 8.2 8.4 0.323 0.331 Ko 1.7 1.9 0.067 0.075 Po 3.9 4.1 0.153 0.161 P 11.912.1 0.4680.476Figure 22.Reel dimensionsSTP16CPS05Package mechanical dataDoc ID 12569 Rev 623/27Table 17.SO-24 mechanical dataDim.mm. inchMinTypMaxMinTypMaxA 2.65 0.104 a1 0.10.2 0.0040.008a2 2.45 0.096 b 0.35 0.49 0.014 0.019 b1 0.230.32 0.0090.012C 0.5 0.020c1 45°(typ.) D 15.20 15.60 0.598 0.614 E 10.0010.65 0.3930.419e 1.27 0.050 e3 13.97 0.550F 7.40 7.60 0.291 0.300 L 0.501.27 0.0200.050S °(max.) 8Figure 23.SO-24 package dimensionsPackage mechanical dataSTP16CPS0524/27Doc ID 12569 Rev 6Table 18.Tape and reel SO-24Dim.mm. inchMinTypMaxMinTypMaxA 330 12.992 C 12.8 13.2 0.5040.519D 20.2 0.795 N 602.362T 30.4 1.197 Ao 10.8 11.0 0.425 0.433 Bo 15.7 15.9 0.618 0.626 Ko 2.9 3.1 0.114 0.122 Po 3.9 4.1 0.153 0.161 P 11.912.1 0.4680.476Figure 24.Reel dimensionsSTP16CPS05Package mechanical dataDoc ID 12569 Rev 625/27Table 19.TSSOP24 exposed padDim.mm inchMinTypMaxMinTypMaxA 1.2 0.047A1 0.15 0.004 0.006A2 0.8 1 1.05 0.031 0.039 0.041 b 0.19 0.30 0.007 0.012 c 0.090.20 0.0040.0089D 7.7 7.8 7.9 0.303 0.307 0.311 D1 4.75.05.30.1850.1970.209E 6.2 6.4 6.6 0.244 0.252 0.260 E1 4.3 4.4 4.5 0.169 0.173 0.177 E2 2.93.23.50.1140.1260.138e 0.65 0.0256K 0°8° 0°8°L 0.45 0.60 0.75 0.018 0.024 0.030Figure 25.TSSOP24 dimensionsRevision history STP16CPS0526/27Doc ID 12569 Rev 69 Revision historyTable 20.Document revision historyDate RevisionChanges28-Jul-20061First release 22-Dec-20062Final datasheet17-May-20073Updated T able 8 on page 710-Jul-20074Updated T able 9: Truth table on page 1028-Feb-20085Updated T able 19: TSSOP24 exposed pad on page 25Added QSOP-24 package information Table 14 and Figure 20 on page 2019-Jan-20106Updated T able 6 on page 5STP16CPS05Please Read Carefully:Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.All ST products are sold pursuant to ST’s terms and conditions of sale.Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.UNLESS OTHERWI SE SET FORTH I N ST’S TERMS AND CONDI TI ONS OF SALE ST DI SCLAI MS ANY EXPRESS OR I MPLI ED WARRANTY W TH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS NCLUD NG W THOUT L M TAT ON MPL ED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED I N WR I T I NG BY AN AUTHOR I ZED ST REPRESENTAT I VE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.ST and the ST logo are trademarks or registered trademarks of ST in various countries.Information in this document supersedes and replaces all information previously supplied.The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.© 2010 STMicroelectronics - All rights reservedSTMicroelectronics group of companiesAustralia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of AmericaDoc ID 12569 Rev 627/27。

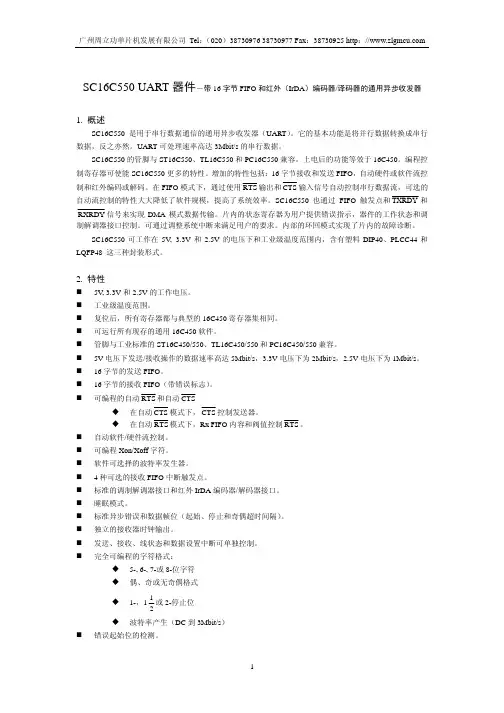

SC16C550 UART 器件－带16字节FIFO 和红外（IrDA ）编码器/译码器的通用异步收发器1. 概述SC16C550是用于串行数据通信的通用异步收发器（UART ）。

它的基本功能是将并行数据转换成串行数据，反之亦然。

UART 可处理速率高达3Mbit/s 的串行数据。

SC16C550的管脚与ST16C550、TL16C550和PC16C550兼容。

上电后的功能等效于16C450。

编程控制寄存器可使能SC16C550更多的特性。

增加的特性包括：16字节接收和发送FIFO ，自动硬件或软件流控制和红外编码或解码。

在FIFO 模式下，通过使用RTS 输出和CTS 输入信号自动控制串行数据流，可选的自动流控制的特性大大降低了软件规模，提高了系统效率。

SC16C550也通过FIFO 触发点和TXRDY 和RXRDY 信号来实现DMA 模式数据传输。

片内的状态寄存器为用户提供错误指示，器件的工作状态和调制解调器接口控制。

可通过调整系统中断来满足用户的要求。

内部的环回模式实现了片内的故障诊断。

SC16C550可工作在5V , 3.3V 和2.5V 的电压下和工业级温度范围内，含有塑料DIP40、PLCC44和LQFP48 这三种封装形式。

2. 特性5V , 3.3V 和2.5V 的工作电压。

工业级温度范围。

复位后，所有寄存器都与典型的16C450寄存器集相同。

可运行所有现存的通用16C450软件。

管脚与工业标准的ST16C450/550、TL16C450/550和PC16C450/550兼容。

5V 电压下发送/接收操作的数据速率高达5Mbit/s ，3.3V 电压下为2Mbit/s ，2.5V 电压下为1Mbit/s 。

16字节的发送FIFO 。

16字节的接收FIFO （带错误标志）。

可编程的自动RTS 和自动CTS在自动CTS 模式下，CTS 控制发送器。

在自动RTS 模式下，Rx FIFO 内容和阀值控制RTS 。
