西门子超声波液位计说明书

Level measurement guide/levelEmbrace the proven, welcome the newComplete level solutions from your trusted partner.Process Technology, Inc. | 801-264-1114 | Connect. Control. Save.The front lines of digitalizationEnormous potential benefits await your operations with Industry4.0. With unparalleled control and access, you now have completeknowledge of what’s happening in your plant at all times.But even in the age of digital, you still need accurate, reliable,and rugged process instrumentation. Because if field instrumentscan't supply the right data, even the most sophisticated digitaliza-tion plans will fail.Intelligent level monitoring brings intelligent operations:• Connect devices to Siemens MindSphere Cloud for Industry anduse SITRANS IQ apps to see your plant open up before you.• Commission, monitor, and diagnose operations with the touchof your smartphone through the SITRANS mobile IQ app.• Save operators' time and eliminate inefficiencies throughoptimized processes, delivering cost savings directly to yourbottom line.With the knowledge that no single technology can address theneeds of all industrial applications, Siemens provides a completerange of level measurement devices. All backed by our globalsupport network, providing experienced sales and technicalassistance when and where you need it.2Process Technology, Inc. | 801-264-1114 | Table of contentsLevel technology selector 5Siemens level measurement 6Level controllers8Ultrasonics10Radar for liquids and slurries12Radar for solids14Continuous contact level16Point level18Hydrostatic20Level by weight22Load cells for level weighing24Remote monitoring and displays 26Go the distance with digitalization28Sales and support, training, and TIA303 Process Technology, Inc. | 801-264-1114 | SITRANS LUT400 MultiRanger4Process Technology, Inc. | 801-264-1114 | Level technology selectorn n preferred condition dependentContinuous level Point level* Check chemical compatibility.5 Process Technology, Inc. | 801-264-1114 | The right instrument for your applicationSiemens level measurement instruments let you get on with your day. Easy4-button programming and graphical Quick Start Wizards deliver headache-freeinstallation and setup. Advanced processing means that operators aren’t spendingvaluable time repeatedly troubleshooting devices—instead they can be confidentthat these instruments are delivering reliable, accurate results.Complementing our level technology is Siemens' complete suite of processinstruments, gas analytics, automation, and drives for industries aroundthe globe:• Flow• Weighing• Pressure• Temperature• Positioning• Power supplies• Process protection• Process controllers• Remote displays• Process recorders• Gas analytics• Gear reducers• Motors• Control systems• Industrial communication• PLCs• HMIs• Drives• Motion control6Process Technology, Inc. | 801-264-1114 | SITRANS PSITRANS LVL200SITRANS CLS100SITRANS LC300POINTEK CLS200SITRANS LR250SITRANS LG250SITRANS LU240ECHOMAX TRANSDUCERHI LOSITRANS RD500CellularSITRANS RD300HI LOMULTIRANGERSITRANS SCSC(SINGLE INPUT)SITRANS T3CS(DUAL INPUT)SIWAREX WP231SIWAREX WL200SIWAREX WL200SITRANS LPS200SITRANS LVS200SITRANS LVS300POINTEK CLS300SITRANS LR5607Process Technology, Inc. | 801-264-1114 | Level controllersAfter driving the market in ultrasonic level controllers for the past 40 years,Siemens has evolved its industry-leading solutions to include control for 80 GHzradar sensors.Need high-accuracy open channel monitoring? How about flexible control withmultiple relays and ultrasonic level? Or perhaps you need a reliable controller forlong-range, high-frequency radar?Siemens level controller portfolio answers all these questions—and more.The new SITRANS LT500 level, flow, and pump controllers for radar transmit-ters—or any two-wire 4-20 mA devices—offers everything from basic levelcontrol to complex pumping routines. Easily retrofit older equipment withSITRANS LT500 and see how improved system control delivers savings directlyto your company’s bottom line.8Process Technology, Inc. | 801-264-1114 | 9 Process Technology, Inc. | 801-264-1114 | UltrasonicsSiemens non-contacting ultrasonic sensors and transmitters have active facetechnology which reduces material buildup and provides trouble-free, reliableperformance. Both our transmitters and transducers (when combined with aSiemens controller) feature Process Intelligence, our field-proven echo process-ing algorithms, to guarantee the most reliable performance possible.SITRANS Probe LU240 transmitters are a great solution, where value and perfor-mance meet. These cost-effective, compact intelligent level transmitters give youthe level, volume, and flow measurement you need with field-proven echoprocessing. For ultrasonic non-contacting point level detection, Pointek ULS200is a reliable transmitter.Siemens Echomax ultrasonic level transducers are impervious to buildup, mois-ture, vibrations, and flooding. With the ability to detect submergence – whenpaired with a submergence shield – these transducers are a perfect fit for a rangeof industrial applications. Siemens transducers are easy to install and require littleto no maintenance. The unmatched beam angle – stronger pulse and sensitivityin a compact beam – make our transducers the most powerful in the industry. 10Process Technology, Inc. | 801-264-1114 | Radar for liquidsand slurriesLiquid level measurement challenges are no match for Siemens' complete range of radar transmitters. Whether it's turbulent process vessels, hazardous chemi-cals, or slurries with a tendency to build up, our portfolio has the solution. Take the 80 GHz SITRANS LR100 series: these transmitters operate far above most application requirements, easily handling whatever liquid or slurry you've got. Zero blanking distance allows you to measure right up to the sensor, avoid-ing costly overfilling.SITRANS LR250 is an excellent choice for liquid level measurement in storage and process vessels to 20 meters (66 ft). With its range of antennas, this transmitter can handle whatever you need it to. Its class-leading range of process connec-tions mean that hygienic applications are no problem for this instrument.And for monitoring the level of sea or river water, SITRANS LR560 can effectively provide accurate measurements with its long range and narrow beam.Radar for solidsStrong signals over long distances, reliable measurements unaffected by tem-perature change, and clear echo profiles in dusty environments—Siemens high-frequency 80 GHz radar means application troubles are a thing of the past. SITRANS LR560 is the easiest-to-use solids radar transmitter on the market. With its 4-degree narrow beam and short wavelength, it performs reliably on solids material from practically any installation location.SITRANS LR100 series radar transmitters are compact instruments with a narrow beam for flexible installations. Simple setup delivers readings via Bluetooth wireless technology directly to the SITRANS mobile IQ app on a user’s mobile device—or through connection to a remote display. Custom microchip technology delivers extremely high sensitivity to detect even the weakestof signals.Continuous contactlevelSITRANS LG guided wave radar transmitter is the solution for your easiest level or interface application to your most demanding—and everything in between. With simple, reliable installation and little to no configuration, you’ll be operational in minutes, saving you time and money.Extreme process conditions don’t stand a chance, and these transmitters feature SIL options for applications requiring functional safety. Advanced diagnostics including trending, profiles, and event logging give you the data you need at every step of your process. Rapid response times and superior echo processing deliver accurate and reliable readings over the full application range, even in small containers and in low dielectric constant material. And with field- replaceable and adjustable probes, if your process changes, your measurement device can too.SITRANS LC300 is ideal for a range of liquids, solids, and interface applications in the chemical, hydrocarbon processing, and food and beverage industries. Capacitance instruments use active-shield technology to ensure true and accurate level readings are recorded.Point LevelWith options as simple or sophisticated as you need them to be, Siemens point level devices are your answer.Whether you’re looking for backup high- or low-level detection, interface, or dry run protection – these switches will reduce your maintenance, downtime, and equipment replacement costs.Remote testing? Not a problem. A range of Siemens point level instruments now feature convenient remote testing via single or two-channel remote test signal conditioners or your control system.Product buildup? Rotating point level devices specialize in low bulk density applications, ensuring accurate readings even in dusty, turbulent, and vaporous environments. And because even a small level change creates a large and detect-able change in frequency, Siemens capacitance switches provide excellent reso-lution while consistently demonstrating immunity to buildup.Need functional safety in your application? Siemens offers the world’s first rotary paddle switch with SIL options in addition to a series of SIL instruments in all our point level lines.Whatever your requirement, Siemens has a switch solution.HydrostaticHydrostatic level measurement with Siemens gauge, absolute, and differential pressure transmitters is a low cost option for direct mounting or mounting with remote seals on tanks and vessels. These instruments can handle extreme chemical and mechanical loads as well as electromagnetic interference. Theyare widely applied in chemical and petrochemical industries.SITRANS LH300SITRANS P500SITRANS LH100SITRANS P320/420Level by weightWith SIWAREX electronics and load cells, not only are you choosing the highest quality in construction, long-lasting performance, and easy integration into your weighing systems, you are also opening the doors to Siemens’ comprehensive spectrum of instrumentation.Automate all of your scales with SIWAREX weighing modules. Part of Siemens Totally Integrated Automation (TIA), SIWAREX modules can be integrated intoSIMATIC and expanded as required to meet your individual requirements.SIWAREX WP231SIWAREX WT231Load cells for levelweighingSIWAREX load cells have high precision and repeatability of weighing and batching processes. They are designed for a range of applications, especially when accuracy is a must. With Siemens, you can source both your load cells and electronics. Choose from our extensive, performance-graded line of weighing systems – with everything you need for the whole range of tasks in your industry.SIWAREX load cells are ideal in almost any industrial sector – food-processing, steel-making, chemical and pharmaceutical, to name a few. With the diverse construc t ion types and comprehensive, graded load classes ranging from 300 grams to 500 tons (6.6 pounds to 551 short tons), you are sure to find the right load cell for your application.SIWAREX WL270SIWAREX WL250SIWAREX WL230SIWAREX WL230SIWAREX WL260For comprehensive monitoring of the weighing process down to each single load cell, we offer our digital junction box SIWAREX DBRemote monitoringand displaysIdeal for remote monitoring applications including inventory levels, regulatory monitoring, remote maintenance alarming, or process and environmental moni-toring, SITRANS RTU3000C family remote data manager helps you stay connected and informed.SITRANS RD100, SITRANS RD150, SITRANS RD200, and SITRANS RD300 remote displays bring you the flexibility of seeing instrumentation readings in a conve-nient location for your operators.Our family of displays offer options for integrated pump control, totalizing, dual input, remote communication and monitoring via HART or Modbus and remote configuration of connected sensors. Siemens’ selection of displays gives you an inexpensive view into your processes.And the compact SIMATIC RTU3000C remote terminal units are energy-self- sufficient, low-power devices with flexible power supplies. Easily configured,they operate reliably even under harsh conditions and in areas prone to flooding.SITRANS RD150Go the distance with digitalizationPut your plant's data to work and see your operations open up before you with intuitive digital solutions from Siemens.Combined with our digitalization-ready instruments, apps like SITRANS mobile IQ and SITRANS SAM IQ bring usable device data directly to operators' smart-phones or tablets, giving your staff the ability to examine trends, analyze per-formance, and even commission devices.SITRANS Library provides visualized device functions to help in both the engineering phase and with process control. The measurement range on the transmitter and in the control system can be synchronized with one click, ensuring consistency between the field device and DCS system, higher reliability, and transparency.With the ability to connect your products, instruments, systems, and machines, only a complete automation and instrumentation supplier like Siemens puts the information your operators need directly in their hands. With new customer-driven apps coming to market from our world-class R&D teams, the possibilities truly are endless.SITRANS SAM IQ – Smart Asset ManagementInsight into your field devices' health status, detailed trending of process values, and access to device-specific diagnostic data: SITRANS SAM IQ delivers smart asset management directly in the app.SITRANS mobile IQThe SITRANS mobile IQ app gives you easy access to field instrumentation from your smartphone or tablet. Via a Bluetooth connection, supported field devices in the environment can be easily and quickly commissioned, parameterized and monitored.PIA Life Cycle PortalThis portal helps you select, size and configure your ideal piece of instrumentation. The portal interfaces with COMOS and exports to Siemens Industry Mall (). You are able to track the lifecycle of your instrument, see warranty and extended exchange option information as well additional informa-tion such as factory certificates (e.g., for calibration or validation).COMOSCOMOS is the engineering tool from Siemens for the entire lifecycle of your plant. With the direct integration of our PIA Lifecycle Portal, we guarantee the seamless integration of our field devices in the engineering environment. We can offer field devices best suited to your processes, properties, and measuring requirements.SIMATIC Process Device Management (PDM)Simatic Process Device Manager (PDM) is one of the most widely used tools for access of a device's parameters, diagnostic and maintenance information. More than 4,500 devices from more than 200 different manufacturers can be commissioned, parametrized, or serviced using a single program with a uniform user interface.SITRANS Library• Easy use of device-specific functions and data from devices of the SITRANS and SIPART product f amilies, such as dosing or totalizer functions in solutions with SIMATIC PCS 7• Library with device-specific function blocks, block symbols, and faceplates • Fully compatible with SIMATIC PCS 7 Standard Advanced Process Library (APL)through the entire lifecycle, from engineering to running of the plantSales and supportCustom engineeringSiemens provides custom-engineered products to solve your special application needs. From material compatibility challenges to unique size requirements, Siemens custom engineering team can help.Service around the worldPlants must function reliably at all times. Efficient and effective process instrumentation and analytics are an indispensable requirement to this end. You also need to be certain of fast and competent service from your supplier. Siemens is a global company that reacts locally. Whether you require consulting, quick delivery, or installation of new devices, the Siemens network of specialists is available to you around the world, wherever your location.Service around the clockOur online support system offers rapid, comprehensive assistance regardless of time or location. From product support to service information, Siemens Industry online support is your first choice – around the clock, 365 days a year./automation/service&supportTotally integrated automation Products from the controller level to the field levelWith Totally Integrated Automation (TIA), Siemens is the only provider of an end-to-end integrated portfolio of products and systems for the automation of the entire production workflow. From the goods receiving area to the finished goods warehouse.Totally Integrated Automation reduces the complexity of the automation solution and enables what really counts: the practical combination of optimally coordinated individual components without interface problems.Totally Integrated Automation integrates not only the production process but all parts of the company from the field level to the management level. The result: a perfectly coordinated overall concept that delivers higher productivity.Communication flexibilitySiemens TIA approach offers ease of connection to a DCS systemsuch as SIMATIC PCS 7 using industrial standards. Siemensprovides communication flexibility, supporting:• SIMATIC PDM• PROFIBUS• HART• FOUNDATION Fieldbus• Model 375/475 HART field communicatorand Emerson AMS• SmartLinx (cards are available for PROFIBUS DP,Modbus RTU, and DeviceNet)• FDT Software via SITRANS DTM31 Process Technology, Inc. | 801-264-1114 | Published by Siemens AG 2020Process Industries and Drives Östliche Rheinbrückenstr. 5076187 Karlsruhe GermanyArticle No.: DIPA-B10146-00-7600 Dispo 27900WS 01182.0Printed in Germany © Siemens AG 2020Subject to changes and errors. The information given in this document only contains general descriptions and/or performance features which may not always specifically reflect those described, or which may undergo modification in the course of further development of the products. The requested performance features are binding only when they are expressly agreed upon in the concluded contract.All product designations may be registered trademarks of Siemens AG. All other designations in this document may represent trademarks whose use by third parties for their own purposes may violate the proprietary rights of the owner.Follow us on:/siemenssensors /siemenssensors/siemensMeasuring everything that matters:/processinstrumentation Siemens Process Instrumentation offers best-in-class measurement and seamless integration into your automation system. We are the total solution provider for flow, level, pressure, temperature, weighing, positioners and more.Process Technology, Inc. | 801-264-1114 | 。

西门子超声波液位计说明书连续测量 - 一体化液位变送器SITRANS Probe LU■ 概述■ 组态SITRANSProbe LU 二线制回路供电超声波变送器，测量储罐和简单过程容器中液体的液位、体积，同时也可用于明渠测量。

■ 产品特点连续液位测量，测量范围可达 12 m ? 易于安装，启动简单 ? 通过红外线本安手持编程器，SIMATIC PDM 或 HART? 手操器编程 ? 独一无二的高精度 ? 使用 HART 或 PROFIBUS PA 进行通讯 ? ETFE 或PVDF 传感器抗化学腐蚀能力强? 带专利的声智能回波处理技术? 极高的信 / 噪比 ? 对于固定干扰目标自动虚假回波抑制■ 应用SITRANS Probe LU 是供水和水处理行业和化工储罐液位测量的最佳解决方案。

SITRANS Probe LU 量程为 6m 或 12m。

使用自动虚假回波抑制技术可避免固定物体的影响，提高信/ 噪比，使精度到达量程的0.15% 或6mm，Probe LU 可提供很高的可靠性。

SITRANS Probe LU 内置了经过无数现场实践证明的声智能? 回波处理技术，结合了新的回波处理特性和最新的微处理器和通讯技术。

Probe LU 提供两种通讯选件：HART 或 PROFIBUS PA (3.0 型， B级) Probe LU 的传感器为 ETFE 或 PVDF 材质，可抗化学腐蚀。

另外，对于材料和过程温度变化的应用， Probe LU 还集成一个内置传感器，以补偿温度变化。

? 主要应用：化学储罐，滤池，液体储罐SITRANS Probe LU 安装8连续测量 - 一体化液位变送器SITRANS Probe LU■ 技术规格操作模式测量原理典型应用输入测量范围 ? 6m 型 ? 12 m 型频率输出 mA/HART ? 范围 ? 精度 PROFIBUS PA 性能分辨率精度重复性盲区刷新时间 ? 4/20 mA/HART 型 ? PROFIBUS 型温度补偿波束角额定工作条件 ? 环境条件 - 地点 - 环境温度 - 相对湿度 / 入口保护 - 安装等级 - 污染等级 ? 介质条件 - 法兰或螺纹处温度 - 压力（容器）设计外壳材质防护等级重量电缆入口传感器 (2 个选件 ) 过程连接 ? 螺纹连接 ? 法兰连接 ? 其它连接 2" NPT， BSP 或 G/PF 3" 通用法兰（见 60 页 ) 或用 FMS200 安装套件户提供的安装套件 PBT （聚对苯二甲酸丁二醇酯）Type 4X/NEMA 4X, Type 6/NEMA 6/IP67/IP68 外壳 2.1 kg 2 x M20 x 1.5 电线接头或 2 x?" NPT 螺纹ETFE 或 PVDF -40 ~ +85 °C 0.5 bar 室内 / 室外 -40 ~ +80 °C 适于室外I 4 ≤ 3 mm 量程的 0.15% 或 6mm，取其较大值≤ 3 mm 0.25 m ≤ 5s ≤ 5s，4mA ≤ 4s， 15 mA 电流回路整个温度范围内的补偿功能10 ° 4 ~ 20 mA ± 0.02 mA 型式 3 ， B 级 0.25 ~ 6m 0.25 ~ 12m 54 KHz 超声波液位测量测量储罐和简单过程容器的液位显示和控制接口组态本地：LCD 带棒状图远程：通过 HART 或Profibus PA 使用西门子 SIMATIC PDM 软件（PC 机）或 HART 手操器或西门子红外线手操器 EEPROM 可在断电时保持信息，无需备用电池额定 24VDC， 550? 最大，最大 30 V DC 4 ~ 20 mA 12，13， 15 或 20 mA 取决于组态（一般用途或本安型）符合标准 IEC 61158-2 认证总则船用（只应用于 HART 通讯选件）危险区 ? 本安（欧洲） ? 本安（美国 / 加拿大 ) ATEX II 1G EEx ia IIC T4 FM/CSA （需安全栅） T4， I 类， 1 区， A ， B， C， D，组； II 类， E， F，G，组； III 类； FM ( 无需安全栅 ) T5：I 类， 2 区， A， B， C 和 D 组红外手操器具有 ATEX EEx ia IIC T4 的 IS 模件 FM/CSA I 类，1 区，A，B ，C，D 组 -20 ~ +40 °C 专有红外脉冲信号 3V 锂电池（不可换） CSAUS /C ， FM， CE ? 英国劳氏船用认证 ? ABS 形式认证存储器电源 4 ~ 20 mA/HARTPROFIBUS PA非易燃（美国）编程 ? 本安西门子红外手操器 - 用于红外手操器的认证 ? 环境温度 ? 接口 ? 功率9连续测量 - 一体化液位变送器SITRANS Probe LU选型和订货数据 SITRANS Probe LU 2 线制回路供电超声波变送器，用于测量液体的液位、体积和流量外壳塑料(PBT)，Qty 2 x M20 x 1.5 塑料 (PBT)， Qty 2 x 1/2"NPT 量程 / 传感器材质 6 m，ETFE 6 m， PVDF 共聚物 12 m， ETFE 12 m， PVDF 共聚物过程连接 2" NPT (ASME/ASME B1.20.1) 2" BSPT (EN 10226-1) 2” G (EN ISO 228-1) / PF2 (JIS B 0202) 通讯/ 输出4 ~ 20 mA，HART PROFIBUS PA 认证一般用途， FM， CSA ， CE 本安，FM I 类，1 区， A、B、C、D 组 ( 需安全栅 ); II 类， 1 区， E， F， G 组； III 类； ATEX II 1G EEx ia IIC T4 （仅 HART 模件）本安，CSA I 类，1 区， A，B ，C，D 组 ( 需安全栅 ); II 类， 1 区， G 组； III 类（仅HART 模件） FM， l 类， 2 区（只外壳选件 2 ）本安，FM/CSA I 类，1 区， A，B，C，D 组（需安全栅）； II 类， 1 区， E、 F、 G 组； III 类（仅 PROFIBUS PA 模件）本安， ATEX II 1G EEx ia IIC T4 （仅 PROFIBUS PA 模件） 1)C)订货号7 ML 5 2 2 1 ■■■■■选型和订货数据其它设计请在订货号上加“-Z”并规定订货代码不锈钢标牌：测量点数 / 识别（最多 16 个字符）订货号Y151 2 A B C D A B C 1 2 1 2 3 4 5 6用于 HART/mA 设备的使用手册 C) 7ML1998-5HT01 英文版注意：使用手册在订货中要单独订货。

l4660sc超声波液位计说明书L4660SC超声波液位计是一种应用于工业领域的液位测量设备，它采用声波脉冲技术来测量液体的高度。

本说明书将详细介绍L4660SC超声波液位计的特点、工作原理、安装与使用方法以及注意事项。

一、特点：1.高精度：L4660SC超声波液位计采用先进的声波脉冲测量技术，具有高精度和稳定性，可精确测量液体的高度。

2.多功能：本液位计具有多种测量模式，可根据实际需求选择合适的模式，如连续测量模式、点测量模式等。

3.长寿命：采用优质材料和先进工艺制造，具有耐腐蚀、耐高温、抗压强等特点，可在恶劣环境下长期使用。

4.无污染：超声波液位计无需直接接触被测液体，不会对被测介质产生污染，适用于各种液体的测量。

二、工作原理：L4660SC超声波液位计利用声波的传播速度差来测量液体的高度。

当液体介质存在于液位计的测量范围内时，超声波发射器会向下发射一束频率和幅度稳定的声波信号。

声波信号在液体和传感器之间传播，当遇到液体表面时，部分能量被液体吸收，而另一部分能量反射回来。

超声波接收器接收到反射回来的信号，并计算从发射器到液体表面的时间间隔，根据声速和时间间隔的关系，即可计算出液体的高度。

三、安装与使用方法：1.安装：将L4660SC超声波液位计安装在液体容器的顶部，确保传感器与液体表面垂直，在安装过程中需注意避免振动和干扰源等对测量精度的影响。

2.连接：将液位计的输出信号线连接至测量仪表或控制系统，确保连接正确、牢固可靠。

3.参数设置：根据实际需要，通过仪表或控制系统对液位计的参数进行设置，包括单位、测量范围、测量模式等。

4.校准：在使用前，需要对液位计进行校准，确保测量结果的准确性。

具体校准方法可参考本产品的校准说明书。

四、注意事项：1.在安装、使用和维护过程中，请务必参考本说明书，并按照操作规程进行操作。

2.请确保电源的稳定，并遵循相关的电气安全规范。

3.避免液体溢出或喷溅到液位计上，以防止损坏或影响测量结果。

技术原理超声波物位计安装于容器上部，在电子单元的控制下，探头向被测物体发射一束超声波脉冲。

声波被物体表面反射，部分反射回波由探头接收并转换为电信号。

从超声波发射到被重新被接收，其时间与探头至被测物体的距离成正比。

电子单元检测该时间，并根据已知的声速计算出被测距离。

通过减法运算就可得出物位值。

技术问答1．超声波物位计适于什么样的应用环境？通常应用于温度在150℃以下、压力在5Bar（5kg/cm2）以下的场所进行液位或料位的测量。

2．对于密闭容器内的挥发性的液体的液位测量，应注意那些事项？应注意两点：a容器内气体声速可能与空气中的声速不同，如液位计不能对声速进行修正，则会出现较大误差；b挥发性的液体会在超声波液位计探头表面凝结，阻挡声波的收发，要求液位计具有可变功率控制功能。

我公司产品能够满足以上要求，并有大量的实践应用。

3．超声波物位计可以测量原煤仓、煤粉仓的料位吗？原煤的料位测量是可行的，有足够的应用经验和成功实例；煤粉仓的料位测量使用超声波方式目前并不理想。

4．对于液面剧烈波动的液体，如何使用超声波液位计进行液位测量？有三种可行的办法：a选用具有自动功率控制功能的超声波液位计b选用更大量程的超声波液位计c在液体中加入塑料管，测量塑料管内液位5．两线制超声波物位计与三线制超声波物位计有和不同？两线制超声波物位计其供电（DC24v）与信号输出（DC4-20mA）共用一个回路，仅使用两条线即可，为标准的变送器形式，不足之处是发射功率微弱，不适合液面有较大波动的液位测量和料位测量，当液体有较大挥发性时，测量效果有时也不理想。

三线制超声波物位计实际上为四线制，其供电（DC24v）与信号输出（DC4-20mA）回路分离，各使用两条线，当它们负端共地相连时，通常使用三条线即可。

其优势是发射功率较大，适合对各种条件的液位和料位进行测量，效果理想。

超声波物位计当用于液位测量时常称为：超声波液位计当用于料位测量时常称为：超声波料位计产品展示技术特点一体式超声波物位计—基本型首要说明：HLU4HLU8型为直流24V 供电LCD 液晶显示（-25o C ～60o C ）环境温度-45o C ～75o C HLU4E HLU8E 型为直流24V 供电LED 数码管显示环境温度-45o C ～75o C HLU4A HLU8A 型为交流220V 供电LCD 液晶显示环境温度-25o C ～60o C基本型◆三线制接线，声波发射强劲，测量稳定可靠◆低盲区，高灵敏度◆智能信号处理技术，适应各种工况◆独到的自动功率控制，自动增益控制◆过压过流保护，雷电保护◆光电隔离的4-20mA 电流输出◆失效保护，电流输出22mA◆允许较大电流通过的双继电器用于泵控制或报警◆带有LCD 或LED 的大显示窗，便于调试和观察◆声速可调整，测量更准确◆全塑料外壳（IP68），耐酸碱，适应恶劣环境◆灵活的支架或法兰安装◆可选的直流DC24V 或交流AC220V 供电形式HLU4HLU8拓展型HLU6HLU12大量程HLU20HLU30外形尺寸用于支架安装的过孔位置一体式超声波物位计—拓展型首要说明：HLU6HLU12型为直流24V供电LCD液晶显示（-25o C～60o C）环境温度-45o C～75o CHLU6E HLU12E型为直流24V供电LED数码管显示环境温度-45o C～75o CHLU6A HLU12A型为交流220V供电LCD液晶显示环境温度-25o～60o C外形尺寸用于支架安装的过孔位置一体式超声波物位计—大量程首要说明：HLU20HLU30型为直流24V供电LCD液晶显示（-25o C～60o C）环境温度-45o C～75o C HLU20E HLU30E型为直流24V供电LED数码管显示环境温度-45o C～75o C HLU20A HLU30A型为交流220V供电LCD液晶显示环境温度-25o C～60o C分体式超声波物位计USS—BD3型量程：3米盲区：0．25米供电：DC24v USS—BA3型量程：3米盲区：0．25米供电：AC220v USS—BD6型量程：6米盲区：0.30米供电：DC24v USS—BA6型量程：6米盲区：0．30米供电：AC220vUSS—BD20型量程：20米盲区：0．60米供电：DC24V USS—BA20型量程：20米盲区：O ．60米供电：AC220V USS—BD30型量程：30米盲区：0．80米供电：DC24V USS—BA30型量程：30米盲区：0．80米供电；AC220VUSS—BDlO 型量程：10米盲区：0.40米供电：DC24V USS—BAlO 型量程：10米盲区：0.40米供电：AC220V。

常用参数及意义E： 4.2 瞬时回波距离；此时表示被测物到传感器表面的空间距离为4.2m；若为省略号时表示没有接收到回波信号S： 1.11 表示信号的幅度为1.11v；最大值为2.5VGn：37.6%对应回波所处距离的增益N： 1.9% 干扰噪声值T： 23.2℃传感器表面温度Normal：回波信号能被正确识别调试窗口右面参数及意义1.Dist：当前料位所在空距。

2.C-Dist：发出脉冲后被确认为有效的空距。

3.E-Dist：仪表输出空距。

4.Size：当前有效回波幅度值。

5.Gain：当前增益值。

6.Recov：储备增益当前启动值。

7.Noise：当前噪音值。

8.Temp: 当前仪表感知的环境温度值。

9.Confirm：当前确认次数。

10.Hold：当前保持时间。

11.WinFw：窗口前端所处位置。

12.WinBk：窗口后端所处位置。

电脑上物位计调试步骤：一．进入调试软件1. 双击GosHawk软件，弹出GosHawk的工作界面；2. 点击View按键后，选择点击Options，待弹出Properties对话框，然后关闭该对话框；3. 接上步，点击GosHawk工作界面中的Connect按键，待出现Info参数表后，可以点击Diag进入回波动态画面。

4. 点击Setup，从中选择需要设定的菜单目录进行如下二、三、四各步骤的操作（二三四几步的调试同样适用于在仪表上手动调试）。

二．快速设定（即Quick Set）1.设定高物位（即Hi Level）低物位（即Lo Level）注意：高物位要大于盲区值（仪表盲区请参看使用说明书第12页）2.选择测量介质（即Application）；3.设定进料速度（即Fill Rate）出料速度（即Empty Rate），要求是按照最大的进出料速度设定（出厂设定值能够满足许多工矿的应用）。

4.进出料阻尼参数（即Damp Fill与Damp Empty），在设定进出料速度时，软件通过计算，已经将该参数设定好，但可以根据具体情况将该参数增大或减小。

超声波液位计说明书本说明书适用三线制或4线制、二线制由于盘装式和壁挂式已经停产，使用时可以参考本说明书一，用户自检：A,仪表正确通上合格的电源，按移位键（即左键）找出L（L是探头到反射面的距离），垂直对准空旷的墙面作为超声波的反射面(假设是水面），观察L的数字，显示L的数字和实际距离相等说明测量功能正常. (首先要先熟悉有关距离L和液位H的关系图见附件）.说明:1,由于仪表有严格的数据过滤和确认过程,数字变化可能会比您移动仪表的速度慢一些,属于正常现象。

（有特殊要求请您在订货时说明）2，在检验的过程中应该注意：L（max）≤测量距离能力, L(min）≥仪表的盲区C.3,一般情况下，仪表量程d+盲区C＝仪表最大测量距离能力L（max).4，量程是和输出电流P有关的参数，和其他无关.B，把超声波的发射口对向空旷的天空，一分钟以内仪表应该显示FFFF，也可以取一块干燥的毛巾重叠数层堵住换能器的发射口,从原理上说仪表此时没有回波收到,同样仪表会显示FFFF。

说明您的仪表抗干扰性能不错.C，按移位键找出P（仪表应该输出的电流值）,用电流表直接测量输出电流应该和P值相当.经过以上3个项目的检验,用户可以放心的使用了。

二，连续按移位键可以依次查看仪表的以下参数参数：P—XXXX 当前应该输出的电流（mA）h—XXXX 最后一次所设定的“当前液位"值（m）.h-该参数没有实际意义. 该数对应菜单01C-XXXX 仪表盲区（cm)，盲区固有d—XXXX 仪表量程(m）该数对应菜单02d只和输出电流有关,和其他无关.H当前液（物）位m-XXXX 或L(距离m）XXXX对于三线制超声波液位计用户菜单中编号为07的是工作模式转换。

对于二线制超声波液位计用户菜单中编号为04的是工作模式转换。

工作模式设置为1。

0000时是测量距离模式，设置为0。

000是测量当前液位模式。

按上升键仪器直接显示“当前液位”H 或距离L.按SET键仪器直接显示P.三，如何进入用户菜单：1，先按住上升键(中间键）不放开，然后再按一下SET，显示屏出现-XXXX—密码界面(其中有一位在闪烁).2,交替使用移位键和上升键,使界面改为—1234-(用户密码）,连续按SET键就进入用户设定01….。

智能型超声波液位计用户手册量程： 0-20米仪表工作电压： 24VDC,AC220V温馨提示：安装调试前,请仔细阅读用户手册超声波液位计……………………………………………………………………保修政策：●用户在维修时请出示保修卡;在保修期内因正常使用出现的故障,可凭保修卡享受规定的免费保修;●保修期限：本公司产品保修期由验收日期起算十二个月内;以下情况不在免费保修范围内：●产品或其部件已超出免费保修期;●因使用环境不符合产品使用要求而导致的硬件故障;●因不良的电源环境或异物进入设备所引起的故障或损坏;●由于未能按使用操作手册上所写的使用方法和注意事项进行操作而造成的故障;●由于不可抵抗力如：雷电、水火灾等自然因素而造成的故障;擅自拆机修理或越权改装或滥用造成的故障或损坏;限制说明：●请用户妥善保存保修卡作为保修凭证,遗失不补;本保修卡解释权限归本公司所有,本公司有权对本卡内容进行修改,恕不事先通知;7超声波液位计目录1概述 (1)2 技术指标 (1)3仪表安装 (2)仪表外形尺寸 (2)仪表接线 (2)安装参数含义 (3)仪表安装原则 (3)安装注意事项 (4)4仪表调试 (4)键盘说明 (4)参数的设置 (4)4.2.1 液位标定 (4)20mA设置 (5)4.2.3探头高度 (5)4.2.4显示模式设置 (5)4.4.7 P--Multi菜单 (6)超声波液位计保修卡回执 (7)超声波液位计1、概述衷心感谢您选购本公司超声波液位计本仪表包含多项专利技术,具有安全、清洁、精度高、寿命长、稳定可靠、安装维护方便等特点,适用酸、碱、盐、防腐、高温等各种领域;本仪表可通过4~20mA或RS485Modbus协议或其他定制协议连接到显示表或各种DCS系统中,为工业的自动化运行,提供实时的液位数据;本仪表具有如下特点：●电路设计从电源部分起就选用高质量的电源模块,元器件选择进口高稳定可靠的器件,完全可以替代同类型国外进口仪表;●专利的声波智能技术软件可进行智能化回波分析,无需任何调试及其它的特殊步骤,此技术具有动态思维、动态分析的功能;●我公司拥有的声波智能专利技术,使仪表的精度大大提高,液位精度达到％,能够抗各种干扰波;●本仪表是一种非接触式仪表,不跟液体直接接触,因此故障率低;仪表提供多种安装方式,用户完全可以通过本手册进行仪表标定;●仪表的所有输入、输出线均具有防雷、防短路的保护功能;2、技术指标测量范围：0～20m根据实测量程选定盲区：0.25m～0.6m测距精度：%标准条件测距分辨率：1mm压力：常压仪表显示：自带LCD显示液位或空间距离模拟输出：4～20mA数字输出：RS485、Modbus协议或定制协议供电电压：DC24V/AC220V,防雷装置内置环境温度：－20℃～＋60℃防护等级：IP651超声波液位计4.4.7 P--Multi菜单P--Multi菜单出厂时已设置好,一般不用更改；除非现场情况非常恶劣,也要在厂家指导下设置;6超声波液位计字改为实际液位值如,按OK键确认,再按SET设置菜单,此时液晶第一行显示“――――”第二行显示“”,表示仪表正在进行液位标定此时不能移动仪表、不能断电;当液晶第一行显示“”时,表示仪表液位标定完毕;4. 4-20mA设置在仪表正常工作时按SET参数设置菜单,按▲键选择4～20mA数字即为20mA对应液位,按OK键进行设置;4.探头高度TH可以显示探头高度,可查看探头高度是否符合现场情况,也可用于液位标定;直接按照现场情况更改探头高度值;4.2.4继电器参数设置可以选择“&”、“|”、“N”、“∧”四种符号;更改时点OK键使所需修改符号闪动,点▲键或▼键选择所需符号,数字修改同前;符号含义：<：小于符号>：大于符号&：与,表示两个条件都需满足；| ：或,表示满足两个条件之一即可；N：只有前一个条件,后一个不显示；∧：前一条件为继电器吸合条件一般用于开泵,后一条件为继电器打开条件一般用于停泵,主要用于排水井和进水井控制;此菜单改显示模式,共有3种显示模式可供选择：.5显示模式设置DispMode1．LEVEL：显示液位2．AIRH：显示距离3．AIRHT：显示距离和温度按▲键选择所需模式然后按OK键确认;5超声波液位计3、仪表安装仪表外形尺寸探头尺寸会根据仪表量程的不同而有所改变,若有不同会预先告知安装方法：开敞环境下一般采用支架安装方式,用仪表自带法兰固定;池或罐在安装位置上割一个略大于探头直径60mm的圆孔,将仪表放入,然后将法兰自下而上旋紧;安装必须保证仪表的探头面与被测液面水平;仪表接线如下：电源：220V AC或DC24V,订货时告知；输出信号：4～20mA；RS－485：A B;两路继电器分别：SPDT1 为第一路, SPDT2为第二路;2超声波液位计安装参数含义如上图所示,仪表的探头发波打到液位后反射回探头,探头接收到后计算发波到收波的时间,得到测量距离L,仪表安装高度TH减去测量距离L将得到当前液位H;仪表量程指仪表能够测量的距离,安装高度TH应小于量程;仪表盲区指仪表在探头附近无法测量的区域,最高液位与探头间距应大于盲区,例盲区为0.3m,则液位与探头间距必须大于0.3m;探头发波是个扩散过程,即有方向角,安装的时候要注意,否则可能打到池壁的凸起物或渠道边沿;仪表安装原则1探头发射面到最低液位的距离,应小于选购仪表的量程;2探头发射面到最高液位的距离,应大于选购仪表的盲区;3探头的发射面应该与液体表面保持平行;4探头的安装位置应尽量避开正下方进、出料口等液面剧烈波动的位置;5若池壁或罐壁不光滑,仪表安装位置需离开池壁或罐壁0.5m以上;6若探头发射面到最高液位的距离小于选购仪表的盲区,需加装延伸管,延伸管管径大于120mm,长度0.35m～0.50m,垂直安装,内壁光滑,罐上开孔应大于延伸管内径;或者将管子通至罐底,管径大于80mm,管底留孔保持延伸管内液面与罐内等高;3超声波液位计安装注意事项1仪表在室外安装建议加装遮阳板以延长仪表使用寿命;2电线、电缆保护管,要注意密封防止积水;3仪表虽然自身带有防雷器件,但仪表在多雷地区使用时,建议在仪表的进出线端另外安装专用的防雷装置;4仪表在特别炎热、寒冷的地方使用,即周围环境温度有可能超出仪表的工作要求时,建议在液位仪周围加设防高、低温装置;4、仪表调试键盘说明SET单键;按SET进入菜单,在设置时按SET取消设置,设置完毕后,按SET键退出菜单;▲：上翻键和数字键;在菜单中,该键作为菜单的上翻键用,在更改数据时,该键做加法键用;▼：下翻键;在菜单中,该键作为菜单的下翻键用,在更改数据时,该键做减法键用;OK：确认键;选择菜单或更改数据数据时的移位键;参数设置.1液位标定LEVEL仪表安装完毕、上电后,液晶上会显示液位数值,而该数据往往与实际液位不符,故需要液位标定;液位标定步骤如下：按SET进入参数设置菜单;LEVEL为液位标定菜单,按OK键进行液位标定,用▼键移位和▲键数字更改将数4。

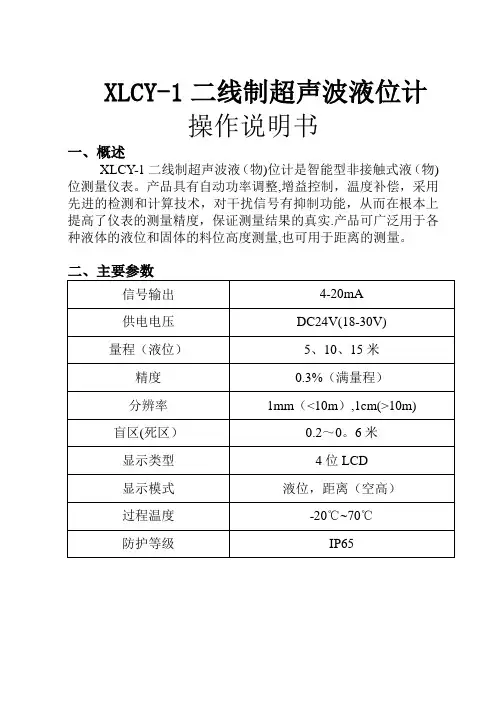

XLCY-1二线制超声波液位计操作说明书一、概述XLCY-1二线制超声波液（物）位计是智能型非接触式液（物）位测量仪表。

产品具有自动功率调整，增益控制，温度补偿，采用先进的检测和计算技术，对干扰信号有抑制功能，从而在根本上提高了仪表的测量精度，保证测量结果的真实。

产品可广泛用于各种液体的液位和固体的料位高度测量，也可用于距离的测量。

三、操作说明<一>LCD显示信息1.主显示界面：给仪表通电后，经过仪表启动过程，仪表正常工作后就进入主显示界面，主显示界面有以下2种显示方式（液位和距离）注：主显示界面由用户参数DIST(0)LEVEL(1)中设的值决定。

（详见参数说明）2、用户参数界面(各代码的说明、参数意义)PASS 密码输入（输入3456进入参数设定）MAX_DIST 空距:设成探头底面到液位值为0位置的距离FULL 满度：20mA电流设定点。

BLANKING 测量盲区：盲区即探头下表面到测量液（物）面最小距离，在这一区间内仪表无法正常工作，一般取值30CM~60CM之间。

REAT 测量数据的变化率：测量数据的变化率控制，该值显示每次测量后最大允许的测量值变化量，一般测液位时设定为10~30mm。

设定为00mm时仪表转换至物(料)位模式。

DIST(0)LEVEL(1) 显示内容：显示距离与液位的切换，设定为“00”时显示距离，设定为“01”时显示液位,设成“02”，“03”为工厂调试模式，实际现场使用时不建议在此模式下。

COM_ID 滤波次数：该参数只有当RATE(测量数据变化率)设成00mm,即仪表在物(料)位模式下时才有效，该参数值越大则信号滤波能力越强，但同时也会降低仪表的响应速度，所以一般取值为3-5之间。

<二>按键定义更换显示内容：处于主显示界面时，按此键进入密码界面，处于用户参数界面时，按此键切换到下一个参数界面。

需要输入密码或修改参数时，按此键即进入设定状态，此时被修改的位会闪烁，再按此键，闪动位数字加‘1’变化。

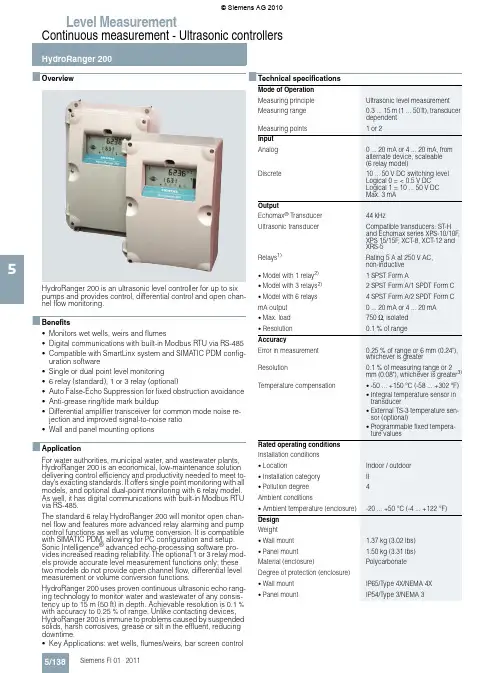

Level MeasurementContinuous measurement - Ultrasonic controllers5■OverviewHydroRanger 200 is an ultrasonic level controller for up to sixpumps and provides control, differential control and open chan-nel flow monitoring.■Benefits•Monitors wet wells, weirs and flumes•Digital communications with built-in Modbus RTU via RS-485•Compatible with SmartLinx system and SIMATIC PDM config-uration software•Single or dual point level monitoring•6 relay (standard), 1 or 3 relay (optional)•Auto False-Echo Suppression for fixed obstruction avoidance•Anti-grease ring/tide mark buildup•Differential amplifier transceiver for common mode noise re-jection and improved signal-to-noise ratio•Wall and panel mounting options■ApplicationFor water authorities, municipal water, and wastewater plants,HydroRanger 200 is an economical, low-maintenance solutiondelivering control efficiency and productivity needed to meet to-day’s exacting standards. It offers single point monitoring with allmodels, and optional dual-point monitoring with 6 relay model.As well, it has digital communications with built-in Modbus RTUvia RS-485.The standard 6 relay HydroRanger 200 will monitor open chan-nel flow and features more advanced relay alarming and pumpcontrol functions as well as volume conversion. It is compatiblewith SIMATIC PDM, allowing for PC configuration and setup.Sonic Intelligence® advanced echo-processing software pro-vides increased reading reliability. The optional 1 or 3 relay mod-els provide accurate level measurement functions only; thesetwo models do not provide open channel flow, differential levelmeasurement or volume conversion functions.HydroRanger 200 uses proven continuous ultrasonic echo rang-ing technology to monitor water and wastewater of any consis-tency up to 15 m (50 ft) in depth. Achievable resolution is 0.1%with accuracy to 0.25% of range. Unlike contacting devices,HydroRanger 200 is immune to problems caused by suspendedsolids, harsh corrosives, grease or silt in the effluent, reducingdowntime.•Key Applications: wet wells, flumes/weirs, bar screen control■Technical specificationsMode of OperationMeasuring principle Ultrasonic level measurementMeasuring range0.3...15 m (1...50 ft), transducerdependentMeasuring points 1 or 2InputAnalog 0...20 mA or 4...20 mA, fromalternate device, scaleable(6 relay model)Discrete 10...50 V DC switching levelLogical 0 = < 0.5 V DCLogical 1 = 10...50 V DCMax. 3 mAOutputEchomax® Transducer 44 kHzUltrasonic transducer Compatible transducers: ST-Hand Echomax series XPS-10/10F,XPS 15/15F, XCT-8, XCT-12 andXRS-5Relays1)Rating 5 A at 250 V AC,non-inductive•Model with 1 relay2) 1 SPST Form A•Model with 3 relays2) 2 SPST Form A/1 SPDT Form C•Model with 6 relays 4 SPST Form A/2 SPDT Form CmA output 0...20 mA or 4...20 mA•Max. load 750 Ω, isolated•Resolution 0.1% of rangeAccuracyError in measurement 0.25% of range or 6 mm (0.24"),whichever is greaterResolution0.1% of measuring range or 2mm (0.08"), whichever is greater3)Temperature compensation•-50...+150 °C (-58...+302 °F)•Integral temperature sensor intransducer•External TS-3 temperature sen-sor (optional)•Programmable fixed tempera-ture valuesRated operating conditionsInstallation conditions•Location Indoor / outdoor•Installation category II•Pollution degree4Ambient conditions•Ambient temperature (enclosure)-20...+50 °C (-4...+122 °F)DesignWeight•Wall mount 1.37 kg (3.02 lbs)•Panel mount 1.50 kg (3.31 lbs)Material (enclosure)PolycarbonateDegree of protection (enclosure)•Wall mount IP65/Type 4X/NEMA 4X•Panel mount IP54/Type 3/NEMA 3Level MeasurementContinuous measurement - Ultrasonic controllers51)All relays certified for use with equipment that fails in a state at or under the rated maximums of the relays2)This model is level control only; no open channel flow, differential level or volume conversion functions3)Program range is defined as the empty distance to the face of the trans-ducer plus any range extension4)Maximum power consumption is listed 5)EMC performance available upon requestCable•Transducer and mA output signal2-core copper conductor, twisted, shielded, 300 Vrms, 0.82 mm² (18 AWG), Belden ® 8760 or equivalent is acceptable •Max. separation between trans-ducer and transceiver 365 m (1200 ft)Displays and controls 100 x 40 mm (4 x 1.5") multi-block LCD with backlighting ProgrammingProgramming using handheld programmer or via PC with SIMATIC PDM softwarePower supply 4)AC version 100...230 V AC ±15%, 50/60 Hz, 36 VA (17 W)DC version12...30 V DC (20 W)Certificates and approvals•CE, C-TICK 5)•Lloyd’s Register of Shipping •ABS Type Approval •FM, CSA US/C , UL listed•CSA US/C Class I, Div. 2, Groups A, B, C and D, Class II, Div. 2, Groups F and G, Class III (wall mount only)•MCERTS Class 1 approved for Open Channel FlowCommunication•RS-232 with Modbus RTU or ASCII via RJ-11 connector •RS-485 with Modbus RTU or ASCII via terminal blocks•Optional: SmartLinx ® cards for -PROFIBUS DP -DeviceNet TM-Allen-Bradley ® Remote I/OLevel MeasurementContinuous level measurement - Ultrasonic controllers5L) Subject to export regulations AL: N, ECCN: 3A991X ®Modbus is a registered trademark of Schneider Electric.®Belden is a registered trademark of Belden Wire and Cable Company.®Allen-Bradley is a registered trademark of Rockwell Automation.TMDeviceNet is a trademark of Open DeviceNet Vendor Association (ODVA)C) Subject to export regulations AL: N, ECCN: EAR99Selection and Ordering dataOrder No.Siemens HydroRanger 200Ultrasonic level controller for up to six pumps thatprovides control, differential control and open channel flow monitoring. The HydroRanger 200 is also available as a level measurement controller only. Select option from model code below.L)7M L 5034-77777MountingWall mount, standard enclosure1Wall mount, 4 entries, 4 M20 cable glands included 2Panel mount 1)1)Available with approval option 1 only3Power supply 100...230 V AC A 12...30 V DCB Number of measurement points Single point model, 6 relays A Dual point model, 6 relaysB Single point model, level only, 1 relay 2)2)This model is level control only; no open channel flow, differential level, or volume conversion functionsC Single point model, level only, 3 relays 2)DCommunication (SmartLinx)Without module0SmartLinx ® Allen-Bradley ® Remote I/O module 1SmartLinx PROFIBUS DP module2SmartLinx DeviceNet TM moduleSee SmartLinx product page 5/310 for more infor-mation.3ApprovalsGeneral Purpose CE, FM, CSA US/C , UL listed, C-TICK 1CSA Class I, Div. 2, Groups A, B, C and D; Class II, Div 2, Groups F and G; Class III (for wall mount applications only)2Selection and Ordering dataOrder codeFurther designsPlease add "-Z " to Order No. and specify Order code(s).Stainless steel tag [69 x 50 mm (2.71 x 1.97")]: Measuring-point number/identification (max. 16 characters) specify in plain textY15Operating InstructionsOrder No.EnglishC)7ML1998-5FC03FrenchC)7ML1998-5FC11GermanNote: The Operating Instructions should be ordered as a separate item on the order.This device is shipped with the Siemens Milltronics manual CD containing the complete ATEX Quick Start and Operating Instructions library.C)7ML1998-5FC32Other Operating InstructionsSmartLinx Allen-Bradley Remote I/O, English C)7ML1998-1AP03SmartLinx PROFIBUS DP , EnglishC)7ML1998-1AQ03SmartLinx PROFIBUS DP , German C)7ML1998-1AQ33SmartLinx PROFIBUS DP , FrenchC)7ML1998-1AQ12SmartLinx DeviceNet, EnglishNote: The appropriate SmartLinx Operating Instruc-tions should be ordered as a separate line on the order.C)7ML1998-1BH02AccessoriesHandheld programmer7ML1830-2AK Tag, stainless steel, 12 x 45 mm (0.47 x 1.77"), one text line, suitable for enclosure7ML1930-1ACSITRANS RD100 Remote display - see Chapter 8SITRANS RD200 Remote display - see Chapter 8SITRANS RD500 Remote display - see Chapter 8Spare partsPower Supply Board (100...230 V AC)C)7ML1830-1MD Power Supply Board (12...30 V DC)C)7ML1830-1ME Display BoardC)7ML1830-1MFLevel MeasurementContinuous level measurement - Ultrasonic controllers5L)Subject to export regulations AL: N, ECCN: 3A991X ®Modbus is a registered trademark of Schneider Electric.®Belden is a registered trademark of Belden Wire and Cable Company.®Allen-Bradley is a registered trademark of Rockwell Automation.TMDeviceNet is a trademark of Open DeviceNet Vendor Association (ODVA)C) Subject to export regulations AL: N, ECCN: EAR99Selection and Ordering dataOrder No.Milltronics HydroRanger 200Ultrasonic level controller for up to six pumps thatprovides control, differential control and open channel flow monitoring. The HydroRanger 200 is also available as a level measurement controller only. Select option from model code below.L)7M L 1034-77777MountingWall mount, standard enclosure1Wall mount, 4 entries, 4 M20 cable glands included 2Panel mount 1)1)Available with approval option 1 only3Power supply 100...230 V AC A 12...30 V DCB Communication (SmartLinx)Without moduleA SmartLinx ® Allen-Bradley ® Remote I/O moduleB SmartLinx PROFIBUS DP moduleC SmartLinx DeviceNet TM moduleSee SmartLinx product page 5/310 for more infor-mation.DApprovalsGeneral Purpose CE, FM, CSA US/C , UL listed, C-TICK1CSA Class I, Div. 2, Groups A, B, C and D; Class II, Div 2, Groups F and G; Class III (for wall mount applications only)2Number of measurement points Single point model, 6 relays 1Dual point model, 6 relays2Single point model, level only, 1 relay 2)2)This model is level control only; no open channel flow, differential level, or volume conversion functions3Single point model, level only, 3 relays 2)4Selection and Ordering data Order codeFurther designsPlease add "-Z " to Order No. and specify Order code(s).Stainless steel tag [69 x 50 mm (2.71 x 1.97")]: Measuring-point number/identification (max. 16 characters) specify in plain text Y15Operating Instructions Order No.English C)7ML1998-1FC05FrenchC)7ML1998-1FC14GermanNote: The Operating Instructions should be ordered as a separate item on the order.This device is shipped with the Siemens Milltronics manual CD containing the complete ATEX Quick Start and Operating Instructions library.C)7ML1998-1FC34Other Operating InstructionsSmartLinx Allen-Bradley Remote I/O, English C)7ML1998-1AP03SmartLinx PROFIBUS DP , EnglishC)7ML1998-1AQ03SmartLinx PROFIBUS DP , German C)7ML1998-1AQ33SmartLinx PROFIBUS DP , FrenchC)7ML1998-1AQ12SmartLinx DeviceNet, EnglishNote: The appropriate SmartLinx Operating Instruc-tions should be ordered as a separate line on the order.C)7ML1998-1BH02AccessoriesHandheld programmer7ML1830-2AM Tag, stainless steel, 12 x 45 mm (0.47 x 1.77"), one text line, suitable for enclosure7ML1930-1ACSITRANS RD100 Remote display - see Chapter 8SITRANS RD200 Remote display - see Chapter 8SITRANS RD500 Remote display - see Chapter 8Spare partsPower Supply Board (100...230 V AC)C)7ML1830-1MD Power Supply Board (12...30 V DC)C)7ML1830-1ME Display BoardC)7ML1830-1MFLevel MeasurementContinuous level measurement - Ultrasonic controllers5/1425■Dimensional drawingsHydroRanger 200, dimensions in mm (inch)■SchematicsHydroRanger 200 connections。
