VB控件Mscomm控件与PLC进行RS485(Modbus)通讯源码

VB与PLC通信程序（欧姆龙PLC）关于VB的MSCOMM控件可参考相关资料。

通信程序摘要如下：（1）初始化程序mport=2 ’选择COM2Mscomm1.Settings=”9600,N,8,2”’设置通信参数Mscomm1.Inputlen=0 ’读入接收缓冲区全部字符Mscomm1.OutbufferSize=256 ’设置发送缓冲区大小Mscomm1.InbufferSize=512 ’设置接收缓冲区大小Mscomm1.PortOpen=True ’打开COM2（2）发送命令程序比如读取节点号03的PLC中IR000到IR009的内容，并放到tag1字符串变量中，此时有：Dim Command, node, begin, number as stringDim Answerlen as integernode=”03”’节点号Command=”RR”’命令为读IR区begin=”0000”’从IR000开始number=10 ’读取长度Answerlen=51 ’计算接收字符串长度进行命令发送和接收应答处理：Dim FCS, I as integerDim s ,f as strings=”@”+node+Commad+begin+numberFCS=0For i=1 to Len(s)FCS=FCS xor Asc(Mid$(s,i,1) ) ’帧校验码FCSNext if=Hex$(FCS)If Len(f)=1 Then f=”0”+fCommfrm.MSComm1.Output=s + f + ”*” + CHR$(13) ’命令帧发送DoDummy=DoEvents()Loop Untill Commfrm.MSComm1.InbufferCount >= Answerlen ’等待应答帧Do tag1= Commfrm.MSComm1.InputLoop Untill Commfrm.MSComm1.InbufferCount=0 ’读完应答帧上述程序具有相当的通用性，对于其它设备不同的只是各自的数据帧格式，因而只需做相应少量修改即可。

VB6.0下用MSComm控件实现串口通信MSComm控件通过串行端口传输和接收数据，为应用程序提供串行通讯功能，以下先对其属性进行详细的说明后再举一个例子进行说明：1基本属性CommPortO mPort[=value]Object为MSComm控件，value为整数值，标志端口号。

说明：该属性设置并返回通讯端口号，value的值可以设为1-16间的任意数(默认为1)。

在打开端口之前必须先设置CommPort属性，当端口不存在时，如果用PortOpen属性打开它，MSComm控件会产生错误68(即设备无效的错误)。

SettingsObjiect.Setting[=value]Object为MSComm控件，value为字符串类型，表示通讯端口的设置值。

说明：本属性用来设置并返回端口的波特率、奇偶校验位、数据位和停止位参数。

当端口打开时，如果指定的value参数非法，则MSComm控件产生380号(非法属性值)错误。

有效的value参数值由四个设置值组成，有如下格式：“BBBB,P,D,S”，其中BBBB为波特率，P为奇偶校验，D为数据位数，S为停止位数。

Value的默认值为：“9600,N,8,1”，下面给出合法的波特率、奇偶校验位、数据位和停止位参数：波特率：110，300，600，1200，2400，4800，9600(默认)，14400，19200，28800，38400，56000，57600，115200，128000，256000。

奇偶校验值：E(偶校验，Even)、M(标记，Mark)、N(默认，Default，None)、O(奇校验，Odd)、S(空格，Space)。

数据位值：4，5，6，7，8(默认)，9。

停止位值：1(默认)，1.5，2。

PortOpenO bject.PortOpen[=value]Object为MSComm控件。

Value为布尔类型，表明通讯端口的状态。

Private Sub MSComm1_OnComm()Select Case mEventCase comEvReceive'此处添加处理接收的代码End SelectEnd Sub'发送主代码frmMain.MSComm1.Output = bytSendByte在使用MSComm控件时需注意接收是以ASCII码或二进制码详细可参阅“人名邮电出版社”的“VISUAL BASIC 串口通讯实例导航”一书。

按你提供的C2C7FAE1看为16进制数,其10进制值为-1027081503,如何处理成-99.99要看下位机是如何约定数据的来定.Text1 = &HC2C7FAE1 或Text1 = VAL(&HC2C7FAE1)一般上下位机对数字值传递通常以16位二进制数字传递,而小数点不传递,仅乘一定倍率来实现.同时16位二进制数字按两个8位(ASCII码值)输送,上位机通过程序代码处理成10进制数.串口传送数据实质是传送ASCII码，如是8位二进制数据，其ASCII码值（10进制）为0-255。

用二进制表示为00000000 - 1111111116进制表示为00 - FF传送数据大于255，则用16位二进制（即2字节ASCII码组成）。

10进制范围-32768到+32767。

如有小数，则应由上下位机约定，不进行发送。

串口通信中数制转换必须相当重视。

以上是以二进制方式收发数据。

也可直接以ASCII码的文本方式发送数据，而字节量大。

如何实现串口数据采集，如何分析这些数据？MSCOMM控件在VB6的企业版中有，需通过部件添加方式加载。

Private Sub MSComm_OnComm()Dim bytInput() As ByteDim intInputLen As IntegerSelect Case mEventCase comEvReceiveIf blnReceiveFlag ThenIf Not frmMain.ctrMSComm.PortOpen ThenmPort = intPortfrmMain.ctrMSComm.Settings = strSetfrmMain.ctrMSComm.PortOpen = TrueEnd If'此处添加处理接收的代码frmMain.ctrMSComm.InputMode = comInputModeText '按ASCII 接收intInputLen = frmMain.ctrMSComm.InBufferCountReDim bytInput(intInputLen)bytInput = frmMain.ctrMSComm.InputText1 = bytInputText2 = Text1jscd = Len(Text1)If Left(Text1, 1) <> Chr(27) Or jscd > 25 Then 'bel3.BackColor = vbRedbel3.ForeColor = vbWhitebel3.Caption = "接收信号出错!"ElseIf Left(Text2, 1) = Chr(27) And Mid(Text2, 25, 1) = Chr(13) Thenbel3.BackColor = vbGreenbel3.ForeColor = vbBlackbel3.Caption = "接收信号正常!"If Left(Text2, 6) = Chr(27) & "R0032" And jscd = 25 ThenIf Val(fa2) >= 0 And Len(fa2) = 4 Thenfa2 = "0" & Mid(fa2, 2, 3)End IffrmMain.txtSend = Chr(27) & fa0 & fa1 & "9999" & zhenkong & fa2 & fa3 & fa4 & Chr(13)lenTxtSend = Len(txtSend)bel8.Caption = txtSendbel11.Caption = lenTxtSendIf lenTxtSend = 24 ThenCall commFasongElsebel3.BackColor = vbRedbel3.ForeColor = vbWhitebel3.Caption = "发送信号出错!"End IfblL1 = Mid$(Text2, 19, 2)If blL1 = "01" Thenrecord_jmm(0) = Val(Mid$(Text2, 21, 4)) / 10 '制品1温度ElseIf blL1 = "02" Thenrecord_jmm(1) = Val(Mid$(Text2, 21, 4)) / 10 '制品2温度ElseIf blL1 = "03" Thenrecord_jmm(2) = Val(Mid$(Text2, 21, 4)) / 10 '制品3温度ElseIf blL1 = "04" Thenrecord_jmm(3) = Val(Mid$(Text2, 21, 4)) / 10 '制品4温度ElseIf blL1 = "05" Thenrecord_jmm(4) = Val(Mid$(Text2, 21, 4)) / 10 '制品5温度ElseIf blL1 = "06" Thenrecord_jmm(5) = Val(Mid$(Text2, 21, 4)) / 10 '制品6温度End Ifrecord_jm(0) = Val(record_jmm(0))record_jm(1) = Val(record_jmm(1))record_jm(2) = Val(record_jmm(2))record_jm(3) = Val(record_jmm(3))record_jm(4) = Val(record_jmm(4))record_jm(5) = Val(record_jmm(5))blL = Mid$(Text2, 7, 6)Call Hex_bin '输出口状态鉴别blLg = Mid$(Text2, 13, 6)Call hex_bin1 '输出口故障状态鉴别txtSend = ""ElsetxtSend = ""End IfEnd IfIf Not blnAutoSendFlag And Not blnReceiveFlag ThenfrmMain.ctrMSComm.PortOpen = FalseEnd IfEnd IfEnd SelectEnd Sub以上是一段MSCOMM的ONCOMM事件代码,接收的数据按上下位机约定取出赋值于全局变量,在其它窗体进行数据记录(写入数据库).至于数据分析确如一楼说的可以海阔天空,通过数据控件及SQL语句来完成任务.以下提供MSDN参考：OnComm 常数常数值描述comEvSend 1 发送事件。

的文件材料的收集、整理、移交工作；二要对施工单位文件材料的形成情况进行质量检查把关，按照监理规程要求，在控制节点进行审核、签署，发现问题及时提出整改。

建设单位：全面负责立项文件、建设用地征地拆迁文件、勘察、测绘、设计文件，工程招投标文件、开工审批文件、财务文件的形成和归档。

为确保项目竣工验收，建议前期组织人员调研项目档案验收程序，明确重点验收范围，编制档案验收文件汇总目录，分项落实到部门和相关人员，负责完整、准确形成档案资料和及时归档。

5结论是否可以与越来越复杂的建井条件挂钩：在复杂条件下，为便于开展工程评价，并为后继工程提供借鉴，对档案管理的要求在提高，原有的档案管理模式不能满足这一要求，在项目档案管理出现管理难度大，形成难，归档难，案卷整理组巻难的问题。

因此，建议在在矿井工程建设各方中增设档案管理人员，分施工单位、监理单位、建设单位三个层面进行控制归档。

个人简介孙洪章（1963～），男，高级工程师，1986年毕业于阜新矿业学院，现在兖煤菏泽能化有限公司从事矿建工作。

（收稿日期：2008-9-19）用VB编写RS-485数据采集程序昆明理工大学国土资源工程学院张明旭黄德镛现场总线和智能仪表的出现标志着工业控制领域进入了网络时代，迅速成为了工业控制的主流。

目前国际上正在使用的现场总线名目繁多，如PROFIBUS、INTERBUS、CAN总线，但是其系统造价相对较高，不太适用于中小型系统的应用。

而RS485串行通信总线以构造简单、技术成熟、造价低廉、便于维护等特点广泛应用于工业控制、仪器、仪表、机电一体化产品等诸多领域。

尤其在数据通信、计算机网络以及工业分布式控制系统中，经常需要采用串行通信来实现远程信息交换。

但是为了对控制串行网络远程采集数据，依然需要为串行通讯网络和智能仪表编写数据采集程序。

本文就简单介绍一个适应RS-485串行网络的数据采集程序。

1RS-485简述电子工业协会EIA于1983年制订并发布RS-485标准，并经TIA-通讯工业协会修订后命名为TIA/EIA-485-A，习惯地称之为RS-485。

vb中怎样用mscomm控件实现串口通信本问分两部分均来自第一部分jessezappy（晶晶)================================================================================== If MSComm1.PortOpen Then MSComm1.PortOpen = FalsemPort = 1 '假定是用COM1口' 设定传输速率等，可依照您的需求更改MSComm1.Settings = "9600,N,8,1"MSComm1.PortOpen = True'---------初始化Modem-------------MSComm1.Output = "ATZ"MSComm1.Output = "AT&F"MSComm1.Output = "ATE0"MSComm1.Output = "ATM1"MSComm1.Output = "ATQ0"MSComm1.Output = "ATV0"'--------------------------拨号-------------MSComm1.Output ="ATDT163" '拨163'---------------------------接通后MSComm1.Output ="SDFJDKSJLKFA" '发送字符串'---------------------Private Sub MSComm1_OnComm() '用串口事件捕捉数据..If MSComm1.InBufferCount Then' 通讯埠中假如有资料的话, 则读取进来InStringB = InStringB & MSComm1.Input' 如果资料中有Chr(13) 和Chr(10) 的话, 则显示出来If InStr(InStringB, vbCrLf) Theninstring = instring & InStringBAddText Text3, InStringB, FalseInStringB = ""End IfEnd IfEND SUB'-------------------------挂断--------MSComm1.PortOpen = False '这个挂断方法不能适用所有MODEM,我正在研究...通用办法================================================================================================第二部分:===========================================================================最后借你一篇文章看,作者不是我,里面的不一定都对..'-----------------------------------------------------------VB Mscomm控件应用江苏戚墅堰机车车辆厂设计处(213011) 李秉璋--------------------------------------------------------------------------------Visual Basic 6.0(以下简称VB) 是一种功能强大、简单易学的程序设计语言。

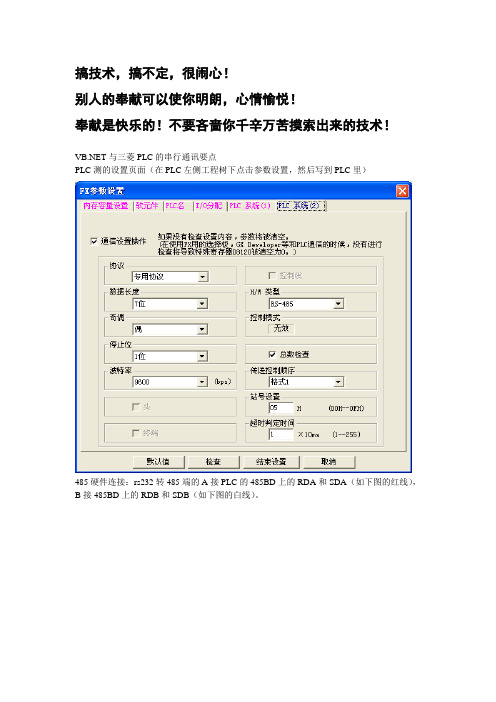

搞技术，搞不定，很闹心！别人的奉献可以使你明朗，心情愉悦！奉献是快乐的！不要吝啬你千辛万苦摸索出来的技术！与三菱PLC的串行通讯要点PLC测的设置页面（在PLC左侧工程树下点击参数设置，然后写到PLC里）485硬件连接：rs232转485端的A接PLC的485BD上的RDA和SDA（如下图的红线），B接485BD上的RDB和SDB（如下图的白线）。
