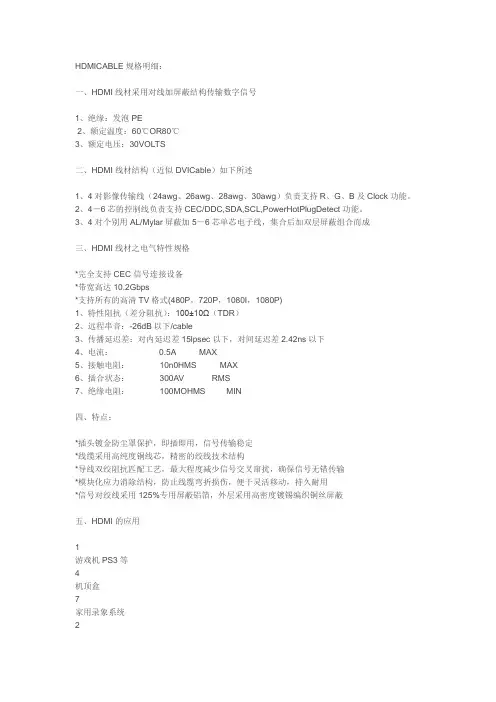

HDMICABLE规格明细：一、HDMI线材采用对线加屏蔽结构传输数字信号1、绝缘：发泡PE2、额定温度：60℃OR80℃3、额定电压：30VOLTS二、HDMI线材结构（近似DVICable）如下所述1、4对影像传输线（24awg、26awg、28awg、30awg）负责支持R、G、B及Clock功能。
2、4－6芯的控制线负责支持CEC/DDC,SDA,SCL,PowerHotPlugDetect功能。
3、4对个别用AL/Mylar屏蔽加5－6芯单芯电子线，集合后加双层屏蔽组合而成三、HDMI线材之电气特性规格*完全支持CEC信号连接设备*带宽高达10.2Gbps*支持所有的高清TV格式(480P，720P，1080I，1080P)1、特性阻抗（差分阻抗）：100±10Ω（TDR）2、远程串音：-26dB以下/cable3、传播延迟差：对内延迟差15lpsec以下，对间延迟差2.42ns以下4、电流： 0.5A MAX5、接触电阻： 10n0HMS MAX6、插合状态： 300AV RMS7、绝缘电阻： 100MOHMS MIN四、特点：*插头镀金防尘罩保护，即插即用，信号传输稳定*线缆采用高纯度铜线芯，精密的绞线技术结构*导线双绞阻抗匹配工艺，最大程度减少信号交叉窜扰，确保信号无错传输*模块化应力消除结构，防止线缆弯折损伤，便于灵活移动，持久耐用*信号对绞线采用125%专用屏蔽铝箔，外层采用高密度镀锡编织铜丝屏蔽五、HDMI的应用1游戏机PS3等4机顶盒7家用录象系统2高清数字电视5DVD播放器/复读机8人造卫星系统3液晶显示器6音频/视频接收装置9音响设备只要配备了HDMI接口，均可以享受高清数字化....六、HDMI线材主要的规格1、4P*30#+1P*30#+5C*30#+AB/UL20276HDMIOD:5.5mm2、4P*28#+1P*28#+5C*28#+AB/UL20276HDMIOD:7.3mm3、4P*26#+1P*26#+5C*26#+AB/UL20276HDMIOD:8.0mm4、4P*24#+1P*24#+5C*24#+AB/UL20276HDMIOD:10.0mm。
创亿欣电子有限公司TRONIXIN ELECTRONICS CO.LTDHdmi c type SeriesConnectorProduct SpecificationDOC. No.:SP-HDMI CM CONN-00Rev.:APage:1/ 7Approved/Date Checked/Date Written/DateTom2012.11.15Rokie2012.11.15Kenn.lin2012.11.15Product SpecificationFor HDMI C Type Series ConnectorRev. ECR# Description Written/Date Checked/Date Approved/Date X1 N/A NEW Kenn.lin 11.15 Rokie 11.15 Sady 11/15创亿欣电子有限公司TRONIXIN ELECTRONICS CO.LTDHdmi c type SeriesConnectorProduct SpecificationSP-HDMI CM CONN-00 A 2/ 7Approved/Date Checked/Date Written/DateTom2012.11.15Rokie2012.11.15Kenn.lin2012.11.151.0 Scope :It applies to all products which specified the application of this standard. But, when there is an item which isn't based on this standard, it mentions to the product drawing about the item. The entry of this product drawing in the case has priority over more than this standard..2.0 Test Condition:Unless other wise specified elsewhere, the following characteristics shall be defined:3.1 Temperature range : +15℃ to +35℃3.2 Humidity range: 45% to 75%;3.3 Atmospheric Pressure : 86kPa to 106 kPa (860 to 1060 mber)But, it supposes that it has only a temperature and atmospheric pressure and that it is permitted to make a standard condition.3.0 Rating :3.1 Voltage: AC 40V[R.M.S]3.2 Current: 0.5A MAX/1 contact3.3 Rated temperature:storage : -40~60℃operating : -25~+85℃normal: +20℃4.0 Test Methods and Requirements:4.1 Examination of product:Item Test Description Test Methods Requirement4.1.1 Structure, dimensionand appearance EIA 364-18Shall be confirmed with eyes inaccordance with each drawing.Shall be confirmed by using propermeasuring instruments.1, The structure, the dimension, thematerial of the main components,and the surface finishing shall bespecified in the attached drawings.2, There shall be no scratches,cracks, stains or warps that aredetrimental to the function or theappearance of the connector创亿欣电子有限公司TRONIXIN ELECTRONICS CO.LTDHdmi c type SeriesConnectorProduct SpecificationSP-HDMI CM CONN-00 A 3/ 7Approved/Date Checked/Date Written/DateTom2012.11.15Rokie2012.11.15Kenn.lin2012.11.154.2 Electrical Performance:Item Test Description Test Methods Requirement4.2.1 Low Level ContactResistance EIA-RS-364-06BMate connectors：Measure by open circuit,20V maximum, 10m A.Contact: Initial Value 10m ohm Max.(Excluding conductor resistance)After Test, Change from Initial Value 30m ohm Max.EIA-RS-364-06BMate connectors：Measure by open circuit,5V maximum, 10m A.Shell: Change from Initial Value 50mohm Max.4.2.2 Insulation Resistance EIA –RS-364-21CUnmated connectors, apply 500V DCbetween adjacent terminal or ground;100 MΩ minimum. (unmated)EIA –RS-364-21CUnmated connectors, apply 150V DCbetween adjacent terminal or ground;10 MΩ minimum. (mated)4.2.3 DielectricWithstanding Voltage EIA-RS-364-20CUnmated connector, apply 500V AC(R.M.S) for 1 minute between adjacentterminal or ground.No damage.EIA-RS-364-20CUnmated connector, apply 300V AC(R.M.S) for 1 minute between adjacentterminal or ground.TRONIXIN ELECTRONICS CO.LTD Product Specification Tom2012.11.15Rokie2012.11.15Kenn.lin2012.11.154.3 Mechanical Performance:Item Test Description Test Methods Requirement4.3.1 Durability EIA-RS-364-09AMate and unmate samples for 5000cycles at maximum rate of 100±50cycles per hour. Contact resistance:Contact: Delta 30 mohm Max. Shell: Delta 50 mohm Max.4.3.2 Mating Force &Unmating Force. EIA-RS-364-13The force shall be measured with theplug at rate of 25±3 mm/minute. Thistest shall be made in a direction alongthe axis of both the socket and the plug.After 4 times, mating force andunmating force shall be measure.1, Mating Force:45N Max;2, Unmating Force:7N Min and 25 N Max.4.3.3 Vibration EIA-RS-364-28Amplitude: 1.52mm P-P or 147m/s2(15G)Sweep time: 50~2000-50Hz in 20minutes.Duration: 12times in each X.Y.Z axes.(total of 36 times)Electrical load: DC 100 mA currentshall be flowed during the test. 1, Appearance no damageno evidence2, Contact resistance Contact: delta 30 mohm Max; Shell: delta 50 mohm Max. 3, Discontinuity:1usec Max.TRONIXIN ELECTRONICS CO.LTD Product Specification Tom2012.11.15Rokie2012.11.15Kenn.lin2012.11.154.4 Environmental Performance:Item Test Description Test Methods Requirement4.4.1 Solderability MIL-STD-202F, Method 208After 5~10 seconds flux deep.Subject connector lead to solder bath at245℃ ± 5℃ for 5 ± 0.5 seconds. 1, Appearance: No evidence of physical damage.2, More than 95% of the solderable area shall be covered with solder.4.4.2 Humidity EIA-RS-364-31 AMated and unmated each connectorand perform the test as follows.Temperature: +25 to +85℃Relative Humidity: 80 to 95%;Duration: 4 cycles (96hours);Upon completion of the test,specimens shall be conditioned atambient room conditions for 24 hours,after which the specified measurementsshall be performed. 1, No evidence of physical damage. 2, Contact resistance:contact: change from initial value 30m ohm Max.shell: change from initial value 50 m ohm Max.EIA-RS-364-31 AMated and unmated each connector and perform the test as follows. Temperature: +25 to +85℃Relative Humidity: 80 to 95%; Duration: 4 cycles (96hours);Upon completion of the test, specimens shall be conditioned at ambient room conditions for 24 hours, after which the specified measurements shall be performed. 1, No evidence of physical damage. 2, Conform to item of dielectric withstanding voltage and insulation resistance.4.4.3 Salt Spray EIA-RS-364-26The connector specimen are testingwith the 5% salt water (NaCl ), 6.5~7.2PH, for 48hours of salt spray test. 1, Appearance no damage;2, Contact resistance: Contact: delta 30m ohm max; Shell: delta 50m ohm max.TRONIXIN ELECTRONICS CO.LTD Product Specification Tom2012.11.15Rokie2012.11.15Kenn.lin2012.11.154.4 Environmental Performance: (Continued)Item Test Description Test Methods Requirement4.4.4 Resistance tosoldering heat MIL-STD-202F, Method 210A, TestCondition B.The connector shall be testedresistance.To soldering heat in the followingconditions. (Refer fig.1)No evidence of physical damage.4.4.5 Temperature life(heat) MIL-STD-1344A, Method 1005.1The specimens shall be subjected toa temperature of 105℃ for 250 hours,and then placed in ambient temperaturefor more than 2 hours.1, No evidence of physical damage.2, Insulation resistance: 100M ohmMin. (Finally)4.4.6 Temperature life(cold) MIL-STD-1344A, Method 1005.1The specimens shall be subjected toa temperature of -40℃ for 250 hours,and then placed in ambient temperaturefor more than 2 hours.1, No evidence of physical damage.2, Insulation resistance: 100M ohmMin. (Finally)TRONIXIN ELECTRONICS CO.LTD Product Specification Tom2012.11.15Rokie2012.11.15Kenn.lin2012.11.155.0 Test Sequence:Test Group (a) Sample GroupsTest Item Test Description A B C D E F G H I J K L 4.1.1 Examination of product 1,3 1,5 1,3 1,3 1,3 1,5 1,5 1,3 1,5 1,54.2.1 Low Level Contact Resistance 2,4 2,44.2.2 Insulation Resistance 2,4 2,4 2,44.2.3 Dielectric Withstanding Voltage 24.3.1 Durability 34.3.2 Mating Force & unmating force 24.3.3 Vibration 24.4.1 Sorderability 24.4.2 Humidity 34.4.3 Salt Spray 34.4.4 Resistance to Soldering heat 24.4.5 Temperature Life ( heat) 34.4.6 Temperature Life ( cold) 3Number of Test Samples (Minimum) 5 5 5 5 5 5 5 5 5 5Note:a. S amples shall be prepare in accordance with applicable manufacture’s instructions and shal l be selected at random from current production.b. T he numbers in the table indicate sequence in which tests are performed.c. All the tests shall be performed in the sequence, indicated by the number in the columns.。
前言：玩4K的同学都知道，HDMI接口是视频传输最常用的接口，但是这个接口却有好几个版本HDMI1.4、HDMI2.0、HDMI2.0a、HDMI2.0b等等，每个都有一些差异。
下面就来知识大普及。
截止目前最全的资料了。
HDMI接口又叫高清晰度多媒体接口（英文：High Definition Multimedia Interface，HDMI），这是一种数字化视频/音频接口技术，是适合影像传输的专用型数字化接口，其可同时传送音频和影像信号，且无需在信号传送前进行数/模或者模/数转换。
简单来说，HDMI接口就是一种用来传输影像和声音信号的接口，内容制造设备通过HDMI就可以将影像和声音以极高的效率传输到观影设备上。
这类接口在智能电视、机顶盒、投影仪等设备中比较常见，其接口呈倒梯形，较偏平。
如下图：HDMI的进化史其实最早出现在传输领域的技术是DVI而非DHMI，DVI接口的出现在当时也被广泛用于输出领域，但是随着伴随着数字高清影音技术的发展，DVI接口也开始逐渐暴露出种种问题，甚至在一定程度上成为数字影像技术进步的瓶颈。
因此，无论是IT厂商，平板电视制造商，还是好莱坞的众多出版商，都迫切需要一种更好的能满足未来高清视频行业发展的接口技术，也正是基于这些原因，才促使了HDMI标准的诞生。
HDMI 1.0最早的HDMI 1.0版本于2002年12月推出，它的最大特点就是整合了音频流的数字接口，与当时PC界面中很流行的DVI接口相比，它更先进，更方便。
HDMI 1.0版本支持从DVD到蓝光格式的视频流，而且具备CEC（consumer electronics control）功能，也就是在应用中，可以在所有连接设备间形成一种共通的联络，对设备组具备更方便的控制。
HDMI 1.12004年5月，HDMI 1.1版本面试。
新增对DVD音频的支持。
HDMI 1.2HDMI1.2版本于2005年8月推出，很大程度上解决了HDMI 1.1支持的分辨率较低、同电脑设备兼容性较差等问题。
