SPECIFICATION技术规格书Project:项目:Model:型号:KH-CCFJ400JWQty.:数量:1 SET/VESSELHull No.:船体号：Classification: 船级社: CCSFlag: 挂旗：Ship’s Owner: 船东: Deputy: 代表：Shipyard: 采购方: Deputy: 代表：Designer: 设计方: Deputy: 代表：Supply: 供货方：Deputy: 代表：Section A Technical Specification for Marine GensetA部分船用发电机组的技术规格Classification:船级社CCSAt Following Condition: 机组使用条件：In accordance with ISO 3046 reference conditions. 依据 ISO3046 标准Air Intake Temperature进气温度︒C 45Sea Water Temperature海水温度︒C 32Barometer Pressure大气压kPa 100Relative Humidity相对湿度% 60Transversal Inclination横倾22.5°Longitudinal Inclination纵倾10°Transversal Sway横摇22.5°Longitudinal Sway纵摇10°Genset can be normally operated under wet air,salt fog,oil fog and mildew fog, vibration and dash of condition. 可在潮湿空气、盐雾、霉菌的环境及正常营运所产生的振动和冲击下正常工作。
Power Deration: Operation at elevated temperature for sustained operating above 45 ℃,derate 2% per 11℃。

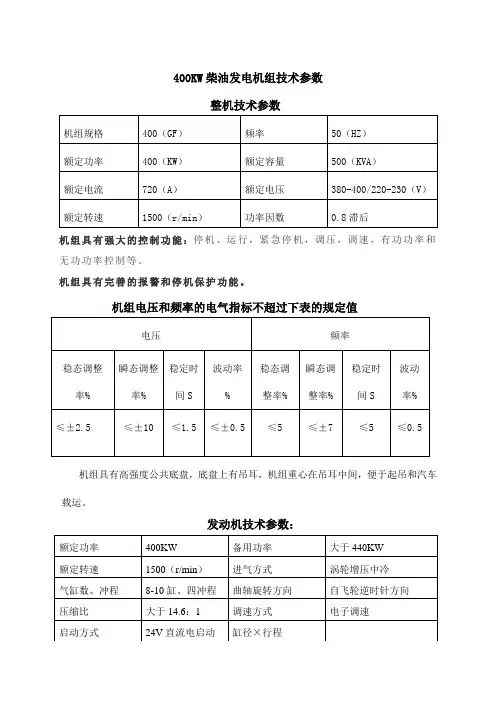

功率修正：机组可以在环境温度至45℃时没有功率修正；当温度再上升，每上升11℃功率下降2％Performance of Generator Set机组的性能参数Genset Type 机组型号KH-CCFJ400JW Prime Power Output 机组的额定功率kW 400 Genset Quantity 机组数量 1 Set/Vessel Rated Voltage 额定电压V 400 Rated Frequency 额定频率Hz 50 Rated Current 额定电流 A 720 Power Factor 功率因素0.8 Phase 相数3/3 Rated Speed 转速r/min 1500 Overload 过载能力％110Momentary Frequency Variation 瞬态频率调整率±10%0-100%Em’cy Load -0Frequency Variation in Steady State稳态频率调整率1％Recovery Time 恢复时间Second秒≤5Momentary Voltage Variation瞬态电压调整率≥-15%, ≤+20%Voltage Regulation in Steady State稳态电压调整率≤2.5 % Voltage Variation in Steady State稳态电压波动率±1%Recovery Time 恢复时间Second秒≤1.5Range of Voltage Regulation at Unload: 空载调压范围：95%∽105% of rated voltage 额定电压的95%∽105%Overload Capacity: 过载能力：机组具有每12小时在110%额定功率下连续运行一小时的过载能力。
10% overload allowed during 1 hour each 12 running hours.Parallel Running: 并车性能：发电机可以与主发电机短时并车进行不间断负载转移。
Generator set can be paralleled running with main generator set for load transfer continuously.Starting Capability: 启动性能：Genset can automatic starting reliably, at elevated temperature≥0℃, without pre-heating of Lub.& Cooling water.在室温不低于0℃时，机油、冷却水无预热的条件下应能可靠启动。
Configuration of Drive Engine原动机的参数General Engine Data 原动机的数据玉柴Drive Engine Type 型号YC6TD600L-C20 Rated Speed 额定转速r/min 1500 - No. of Cylinder 缸数- 6- No. of Cycle 冲程数 4- Configuration 形式In-line 直立- Aspiration 吸气方式Turbocharged 增压- Bore 缸径mm 152- Stroke 冲程mm 180 - Displacement 排量liter 19.59 - Compression Ratio 压缩比- 14:1 Performance Data 运行参数General Data 一般参数-Revolution Direction -旋转方向Counter clockwise viewed to flywheel 面向飞轮，飞轮逆时针旋转Exhaust System 排气系统- Max. Exhaust Back Pressure最大容许排气背压kPa 10 Air Intake System 进气系统- Air restrict With Clean Air Filter 干净空滤器mmH2O4Cooling System 冷却系统- Coolant Specification.冷却水规格- Coolant Capacity（Engine only）冷却水容量(仅发动机) 50-50 Ethylene Glycol/Water + Adequate concentration of DCA4 50％的水加50％的防冻液加适量的DCA4溶液Liter16.8- Thermostat operation range节温器温度调节范围℃82-95Lubrication System 机油系统- Oil Capacity 油盘容量/高低位liter 12.3 – 14.2- Total Lube System Capacity – Sump Plus Filters滑油总容量liter 16.3 - Lub Oil Model 机油型号SAE 15W40 grade CE or CF4 Fuel System 燃油系统Governor Type 调速器类型GAC Electronic Governor GAC 电子调速器- Max. Inlet Restriction at PT Pump最大容许泵前的进口阻力Dirty Filter脏滤器Clean Filter清洁滤器kPa 814- Max. fuel pump flow燃油泵最大流量L/h 127- Recommended Fuel 推荐的燃油ISO 8217-DMA OR China Fuel Type 0# or -10# - Brake specific fuel consumption( bsac) at rated power 燃油耗( + 5% tolerance as per ISO 3046 with fuel havingLHV of 42,780KJ/kg and weighting 850 g/litre )g/kW.h 214 (100% Load)Starting System（启动系统）Starting motor 启动马达24VDC ELECTRIC STARTER & SPRING STARTER 24VDC 电启动马达和弹簧储能启动马达Main Alternator Model发电机的型号TFXW-H-400-4Maker制造商兰电Configuration of Main Alternator 发电机的结构Marine (船用)Brushless(无刷) Air cooling (空气冷却)Technical Data of Main Alternator发电机的技术参数- Rated Capacity 额定容量kVA / kW 500/400 - P.F. 功率因素0.8- Rated Voltage 额定电压V 400- Rated Frequency 额定频率Hz 50- Insulation System 绝缘等级Class H - Temperature rise 温升等级Class H - Enclosure Class 防护等级IP23- Phases/Wires 相数/线数3/3- Pole 极数 4- Efciencies 效率% 91.2Section B Scope of SupplyB部分供货范围MARINE GENERATING SET, CONSISTING OF PER UNIT:每台船用机组包括如下供货范围:1. G - DRIVE ENGINE WITH FOLLOWING EQUIPMENT:原动机配备如下的附件：1.1 AIR SYSTEM 空气系统1.1.1AIR CLEANER AND AIR INLET RESTRICTION INDICATOR 空气滤器及空滤指示器1.1.2TURBOCHARER 增压器1.1.3CRANKCASE VENT LINE WITH HOSE 曲轴箱呼吸器及透气软管1.2 COOLING SYSTEM 冷却系统1.2.1 FRESH WATER PUMP 淡水泵1.2.3 THERMOSTAT , FOR FRESH WATER 冷却淡水节温器1.2.4 COOLING FAN 膨胀水箱（带水位开关）1.2.5 RADIATOR 散热器1.2.6 COOLANT PRE-HEATER 淡水加热器 220ACV 1000W1.3 LUB OIL SYSTEM 滑油系统1.3.1 OIL PUMP 机油泵1.3.2 OIL FILTER 滑油滤器1.3.3 OIL COOLER 滑油冷却器1.4 FUEL OIL SYSTEM 燃油系统1.4.1 FUEL FILTER 燃油滤器1.4.2 HIGH PRESSURE FUEL PUMP 高压油泵1.4.3 GAC GOVERNOR GAC调速器1.4.4 DUAL SKIN HIGH PRESSURE PIPE WITH LEAKAGE ALARM DEVICE双层高压油管带泄漏报警装置1.4.5 FLEXIBLE HOSE, FUEL INLET & OUTLET. LOOSE 柴油进出口软管，散供1.5 EXHAUST SYSTEM 排气系统1.5.1 EXHAUST ELBOW 排气弯管1.5.2 EXHAUST FLEXIBLE SECTION WITH COUNTER FLANGE, AS LOOSE排气波纹管带配对法兰, 散件供应1.6 STARTING SYSTEM 启动系统(安装在柴油机上)1.6.1 24V DC ELECTRICAL STARTING MOTOR 直流24V电启动马达1.6.2 STARTING BATTERY 启动电瓶（普通免维电瓶120AH, 24V）1.6.3 BATTERY BOX 电瓶箱1.6.4 CHANGING ALTERNATOR 充电机（安装在柴油机上）1.6.5 FLOAT CHARGER 浮充电装置（安装在控制屏内）2. ALTERNATOR 发电机:2.1 AVR 电压自动调节器 (MX341)2.2 SPACE HEATER 防冷凝加热器 220VAC2.3 ONE POTENTIALMETER FOR VOLTAGE ADJUST, AS LOOSE 一个手动调压电位器，散供2.4 CABLE GLAND 电缆填料函 (数量和规格在认可图中确认)3. LOCAL CONTROL PANEL机旁控制控制屏3.1 ANALOGUE DISPLAY 模拟量显示内容3.1.1 LUB. OIL PRESSURE 滑油压力3.1.2 LUB. OIL TEMPERATURE. 滑油温度3.1.3 COOLING WATER TEMPERATURE 冷却水温度3.1.4 SPEED 转速3.1.6 POWER VOLTAGE 电源电压3.1.6 RUNNING HOUR METER 运行小时计3.2 PUSHBUTTON AND SWITCH 按钮和开关3.2.1 START/STOP BUTTON 启动/ 停车按钮3.2.2 IDLE/RATED SWITCH 怠速/额定开关3.2.3 EMERGENCY STOP BUTTON 紧急停车按钮3.2.4 ANSWER/RESET BUTTON 应答/ 复位按钮3.2.5 BUZZER 蜂鸣器3.3 ALARM DESCRIPTION 报警内容：3.3.1 LUB. OIL PRESSURE LOW ALARM 滑油压力低报警3.3.2 COOLING WATER TEMPERATURE HIGH ALARM 冷却水温高报警3.3.3 OVERSPEED SHUTDOWN 超速停机3.3.4 LUB. OIL TEMPERATURE HIGH ALARM 滑油温度高报警3.3.5 STARTING FAILURE ALARM 启动失败报警3.3.6 VOLTAGE LOW ALARM 电源电压低报警3.3.7 FUEL LEAKING ALARM 燃油泄漏报警3.5.8 BATTERY VOLTAGE LOW ALARM 电瓶电压低报警3.3.9 COMMON ALARM 公共报警3.3.10 LOW LEVEL ALARM OF FRESH WATER 淡水液位低报警4. GENSET CONSTRUCTION: 发电机组的构成4.1 STRONG COMMON BASE公共底座4.2 ENGINE AND ALTERNATOR FLEXIBLE MOUNTING WITH ISOLATORS发动机和发电机用减震垫弹性安装4.3 RIGID CONNECTION BETWEEN GENSET AND SHIP’S RAIL发电机组和船体刚性安装4.4 PAINT OF GENSET ACCORDING TO MAKER’S STANDARD机组油漆颜色按照供货厂家标准5 FILES AND DOCUMENTS 文件资料5.1在合同签订两周内供货方向设计方、船厂提供下列认可图6套/批船（中英文）+2CD(AUTO-CAD)，工作图6套/批船（中英文）+2CD，完工图6套/艘（英文）+2CD。
