ANSYS二次开发及在斜拉桥成桥恒载索力中检算王章彪【摘要】提出采用ANSYS提供的二次开发技术进行桥梁问题求解,并将其成功地应用到确定斜拉桥成桥恒载索力中,为今后ANSYS在桥梁工程中的广泛应用奠定了良好的基础,同时也为今后研制和开发大型桥梁分析软件提供了一条新的途径.【期刊名称】《山西建筑》【年(卷),期】2010(036)007【总页数】2页(P288-289)【关键词】ANSYS;二次开发技术;恒载索力;斜拉桥【作者】王章彪【作者单位】邯郸市交通局监理中心,河北,邯郸,056000【正文语种】中文【中图分类】U448.27ANSYS是世界上著名的大型有限元分析软件,包括热、流体、电磁和结构等诸多模块,具有完备、后处理功能,强大的求解器以及多种方便的二次开发技术,被广泛用于核工业、铁道、石油、航空航天、机械制造、能源、汽车交通、国防、电子、土木工程等一般工业及科学研究中。
然而,通用软件不免在某些专业领域中有所欠缺,如该软件还不具备直接求解桥梁问题的能力。
这些不足势必会阻碍该软件的推广和使用。
因此,实现其在桥梁工程中的二次开发与应用是十分迫切的。
针对上述问题,本文提出采用ANSYS提供的二次开发技术进行桥梁问题求解,并将其成功地应用到确定斜拉桥成桥恒载索力检算中,本文利用ANSYS二次开发技术开发斜拉桥成桥状态恒载索力检算程序,并为以后其他斜拉桥的分析计算提供了方便,为以后类似问题的ANSYS开发提供一些思路。
1 ANSYS的二次开发技术1.1 用户程序界面设计技术ANSYS为用户进行程序界面设计提供了一种专言即UIDL(User Interface Design Language)。
UIDL中程序化的语言,它允许用户改变ANSYS的图户界面(GUI)中的一些组项。
UIDL提供了一种用户灵活使用、按个人喜好来组织设计ANSYS用户界面的强有力工具,它在ANSYS的命令中架设其他用户程序与ANSYS之间的桥梁方面起到不可低估的作用。

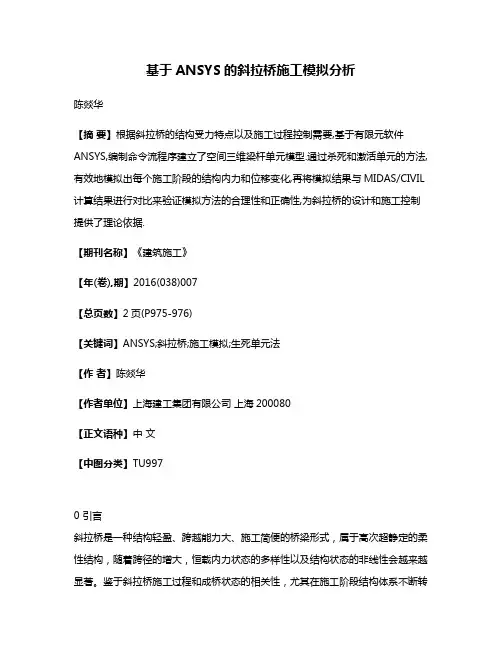

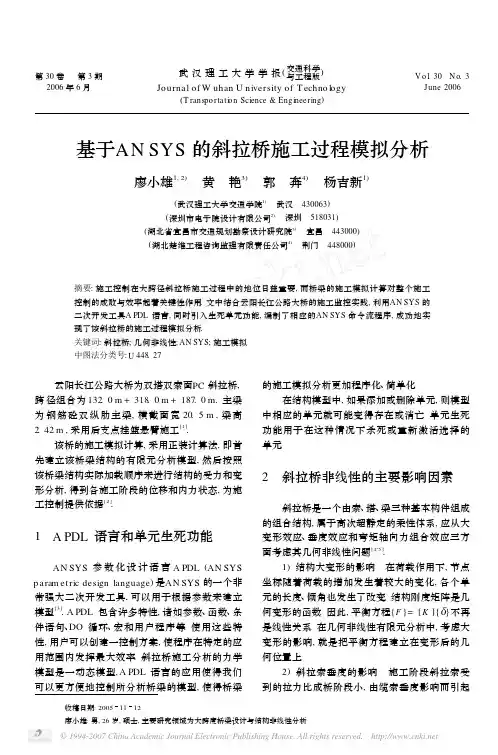

基于ANSYS的斜拉桥施工模拟分析陈燚华【摘要】根据斜拉桥的结构受力特点以及施工过程控制需要,基于有限元软件ANSYS,编制命令流程序建立了空间三维梁杆单元模型.通过杀死和激活单元的方法,有效地模拟出每个施工阶段的结构内力和位移变化,再将模拟结果与MIDAS/CIVIL 计算结果进行对比来验证模拟方法的合理性和正确性,为斜拉桥的设计和施工控制提供了理论依据.【期刊名称】《建筑施工》【年(卷),期】2016(038)007【总页数】2页(P975-976)【关键词】ANSYS;斜拉桥;施工模拟;生死单元法【作者】陈燚华【作者单位】上海建工集团有限公司上海200080【正文语种】中文【中图分类】TU9970 引言斜拉桥是一种结构轻盈、跨越能力大、施工简便的桥梁形式，属于高次超静定的柔性结构，随着跨径的增大，恒载内力状态的多样性以及结构状态的非线性会越来越显著。
鉴于斜拉桥施工过程和成桥状态的相关性，尤其在施工阶段结构体系不断转换的过程中，结构的内力和位移变化更加复杂，因此模拟分析斜拉桥的施工过程与控制成为了目前研究领域的热点研究课题[1]。
在学习和总结前人研究工作的基础上，运用有限元软件ANSYS参数化设计语言（ANSYS Parametric Design Language，简称APDL）建立空间三维梁杆单元计算模型，对某斜拉桥施工过程进行模拟，并与有限元软件MIDAS/CIVIL计算结果[2]进行对比，用以校正模拟结果的合理性和准确性。
1 斜拉桥施工过程模拟1.1 基本原理斜拉桥作为高次超静定结构，其结构计算是比较复杂的。
鉴于斜拉索是斜拉桥的主要承重构件，斜拉索索力可以看作是作用在主梁或主塔上的集中力，把主梁或主塔单独取出，可以看作有多个集中力作用的连续梁或悬臂梁，由此可以找出斜拉索索力与主梁内力之间的关系[3]。
首先假定定义二者之间的关系为如式（1）所示。
式中：F——斜拉桥主梁或主塔的内力矩阵；T——多个斜拉索的索力矩阵；D——索力与主梁内力之间的关系矩阵。

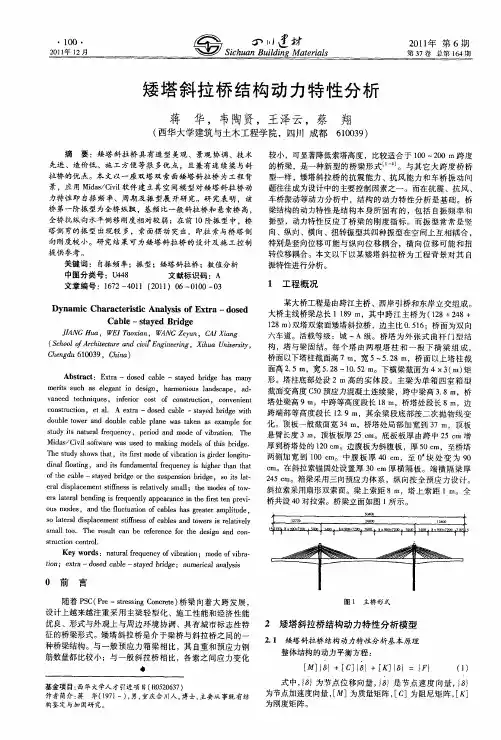

基于Midas对矮塔斜拉桥的有限元建模分析【摘要】矮塔斜拉桥之所以被广泛应用、快速发展源于其合理的结构体系，结构受力清晰、明确，具有经济、美观、施工方便、适用跨径灵活多变等优点。
本文以某市矮塔斜拉桥为案例进行有限元建模分析，通过这个过程去了解斜拉桥的施工方法和流程，为今后类似桥梁工程设计施工提供借鉴。
1、某市矮塔斜拉桥主要情况该桥位于某市高速公路，桥梁结构形式采用双塔三跨预应力混凝土单索面，设计荷载为公路-I级，桥面横坡为双向2.0%，主桥宽度25.50米[2*10.72（行车道）+3.00米（中间带）+2*0.5（防撞栏）]，5cm沥青砼磨耗层+ 10cm厚的水泥砼桥面铺装。
2、桥跨布置2.1主梁尺寸：跨径组合为100m+180m+100m，即边跨跨径100m，主跨跨径180m，塔根部无索区长度34m，与主跨径比值为0.188，跨中无索区长度48m，与主跨径比值为0.267，边跨无索区长度取34m，与边跨跨径比值为0.34。
2.2索塔尺寸：截面采用矩形，横桥向为2.2m，纵桥向由有索区段4.5m渐变为塔底的8.0m，塔高26m。
2.3斜拉索布置：采用单索面双排索布置，取梁上索距为4m，塔上索距为1.2m。
全桥共36对斜拉索，编号从索塔根部至跨中（从里到外）分别为C1～C9，拉索倾角为19.21～21.51°。
3、主要结构设计施工要点3.1、主梁：主梁采用变高度单箱三室截面，斜腹板，顶板宽25.5m，顶板悬臂长度4.00m。
3.2、顶板厚度：顶板厚度为30cm，悬臂板端部厚30cm，根部板厚40cm。
3.3底板厚度：底板板厚由跨中40cm变厚至支点处140cm，边腹板厚为60cm，中腹板板厚为50cm。
3.4、腹板厚度：边腹板厚为60cm，中腹板板厚为50cm。
3.5、中室和边室横隔板厚度分别为30cm和30cm。
端横梁的厚度150cm。
3.6、主梁节段划分：主梁零号块长度为10m，悬臂施工标准节段长度分为3.5m、3、3.2、2.5和19×4.00m几种，全桥共设3个合龙段，其长度为2.00和1.6米，悬臂施工的节段最大重量为4500kN，边跨现浇段长度8m。

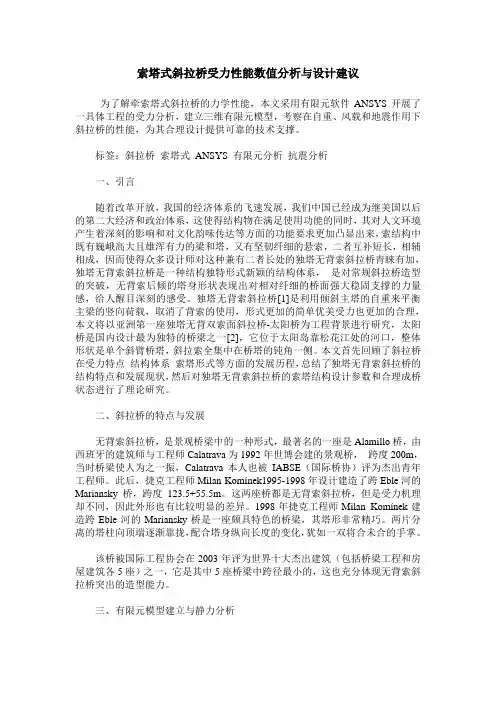

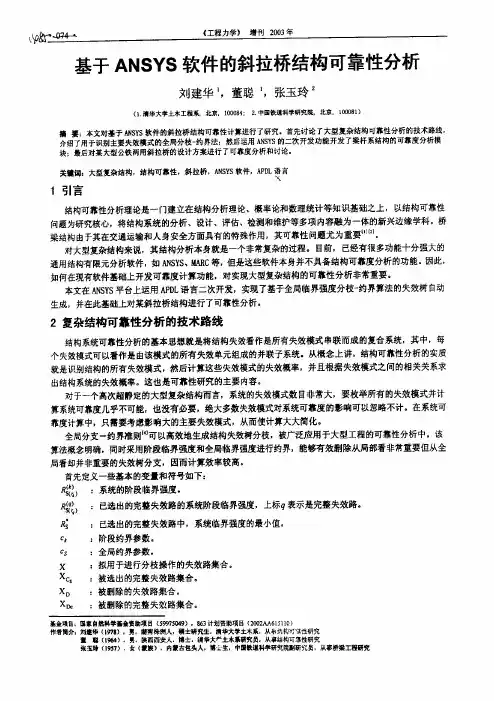

索塔式斜拉桥受力性能数值分析与设计建议为了解牵索塔式斜拉桥的力学性能，本文采用有限元软件ANSYS开展了一具体工程的受力分析，建立三维有限元模型，考察在自重、风载和地震作用下斜拉桥的性能，为其合理设计提供可靠的技术支撑。
标签：斜拉桥索塔式ANSYS 有限元分析抗震分析一、引言随着改革开放，我国的经济体系的飞速发展，我们中国已经成为继美国以后的第二大经济和政治体系，这使得结构物在满足使用功能的同时，其对人文环境产生着深刻的影响和对文化韵味传达等方面的功能要求更加凸显出来，索结构中既有巍峨高大且雄浑有力的梁和塔，又有坚韧纤细的悬索，二者互补短长，相辅相成，因而使得众多设计师对这种兼有二者长处的独塔无背索斜拉桥青睐有加，独塔无背索斜拉桥是一种结构独特形式新颖的结构体系，是对常规斜拉桥造型的突破，无背索后倾的塔身形状表现出对相对纤细的桥面强大稳固支撑的力量感，给人醒目深刻的感受。
独塔无背索斜拉桥[1]是利用倾斜主塔的自重来平衡主梁的竖向荷载，取消了背索的使用，形式更加的简单优美受力也更加的合理，本文将以亚洲第一座独塔无背双索面斜拉桥-太阳桥为工程背景进行研究，太阳桥是国内设计最为独特的桥梁之一[2]，它位于太阳岛靠松花江处的河口，整体形状是单个斜臂桥塔，斜拉索全集中在桥塔的钝角一侧。
本文首先回顾了斜拉桥在受力特点结构体系索塔形式等方面的发展历程，总结了独塔无背索斜拉桥的结构特点和发展现状，然后对独塔无背索斜拉桥的索塔结构设计参数和合理成桥状态进行了理论研究。
二、斜拉桥的特点与发展无背索斜拉桥，是景观桥梁中的一种形式，最著名的一座是Alamillo桥，由西班牙的建筑师与工程师Calatrava为1992年世博会建的景观桥，跨度200m，当时桥梁使人为之一振，Calatrava本人也被IABSE（国际桥协）评为杰出青年工程师。
此后，捷克工程师Milan Komínek1995-1998年设计建造了跨Eble河的Mariansky桥，跨度123.5+55.5m。

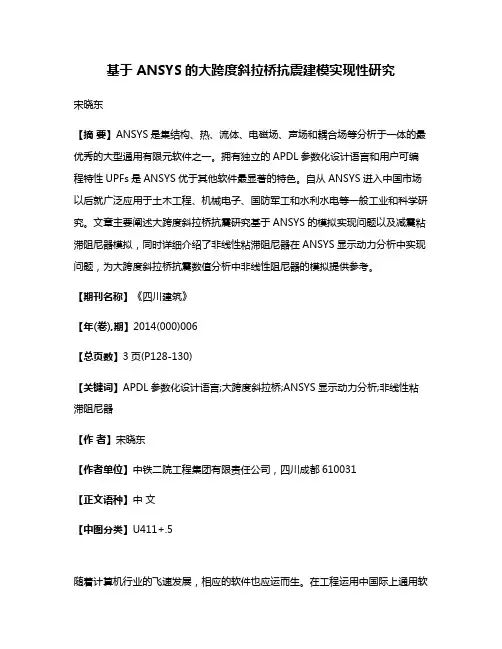

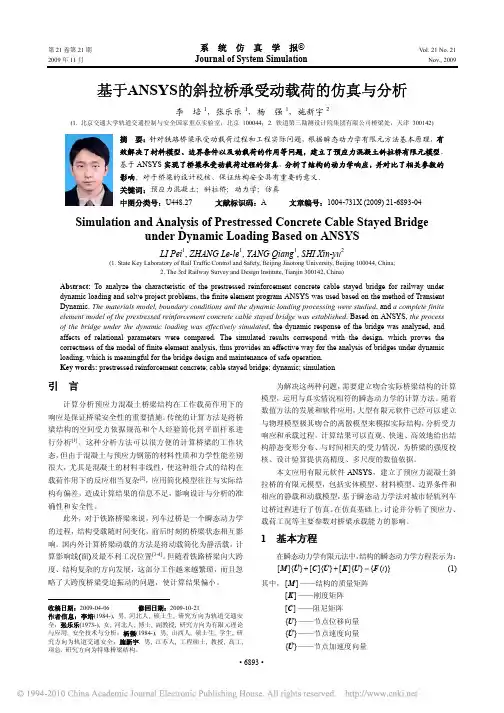

基于 ANSYS的大跨度斜拉桥抗震建模实现性研究宋晓东【摘要】ANSYS是集结构、热、流体、电磁场、声场和耦合场等分析于一体的最优秀的大型通用有限元软件之一。
拥有独立的APDL参数化设计语言和用户可编程特性UPFs是ANSYS优于其他软件最显著的特色。
自从ANSYS进入中国市场以后就广泛应用于土木工程、机械电子、国防军工和水利水电等一般工业和科学研究。
文章主要阐述大跨度斜拉桥抗震研究基于ANSYS的模拟实现问题以及减震粘滞阻尼器模拟，同时详细介绍了非线性粘滞阻尼器在ANSYS显示动力分析中实现问题，为大跨度斜拉桥抗震数值分析中非线性阻尼器的模拟提供参考。
【期刊名称】《四川建筑》【年(卷),期】2014(000)006【总页数】3页(P128-130)【关键词】APDL参数化设计语言;大跨度斜拉桥;ANSYS显示动力分析;非线性粘滞阻尼器【作者】宋晓东【作者单位】中铁二院工程集团有限责任公司，四川成都610031【正文语种】中文【中图分类】U411+.5随着计算机行业的飞速发展，相应的软件也应运而生。
在工程运用中国际上通用软件有几十种，其中常用的软件有：ANSYS、Abaqus、ADINA、SAP2000和NASTRAN等。
ANSYS是集结构、热、流体、电磁场、声场和耦合场等分析于一体的最优秀的大型通用有限元软件之一。
通过40年的发展，ANSYS已经被全球工业界所接受，同时成为土木工程、水利工程、航空航天和能源等领域的主流分析软件[1-3]。
一般情况下，大跨度斜拉桥结构系统的几何结构相当复杂，受到各种荷载(地震荷载、风荷载、车辆荷载等)也相当多，理论分析往往难于进行。
通过ANSYS数值模拟方法对大跨度斜拉桥进行抗震分析，可以得出结构关键部位在地震动作用的动力响应及其变化规律。
为大跨度斜拉桥的抗震设计提供理论依据和支持。
1 大跨度斜拉桥建模单元选择及介绍1.1 ANSYS模拟大跨度斜拉桥常用单元桥塔和主梁单元：beam4、beam44、beam188拉索单元：link8、link10质量单元： mass21阻尼器及弹簧单元：conbin14、conbin391.2 大跨度斜拉桥常用单元介绍[4]单元beam4：每个单元连接I节点和 J节点，I、J节点的连线方向为单元X轴方向，K节点为beam4单元的方向控制点(图1)。
目录一．文件名及前处理模式 (2)二．截面的建立 (2)1.主梁截面 (2)2.桥塔截面 (30)三．定义单元属性 (31)四．建立主要节点和单元 (32)1.主梁节点和单元 (32)2.桥塔节点和单元 (39)3.斜拉索节点和单元 (40)4.鱼刺骨模型模拟斜拉索与主梁连接 (41)五．加载与求解 (43)1.施加边界条件 (43)2.施加自重和公路一级荷载 (43)六．动力特性 (43)1.前十阶模态自振频率 (43)2.前五阶振型图 (44)一．文件名及前处理模式定义工作文件名与工作标题，并进入前处理模式(PREP7)：/FILNAME,BRIDGE,1 !定义工作文件名/TITLE,ZHANG HAO NAN’S HOMEWORK !定义工作标题/REPLOT !重新显示/PREP7 !进入PREP7处理器二．截面的建立1.主梁截面根据本桥图纸，截面一共有32个，其中包括截面纵向变化与横向变化，为简化模型，减小工作量，选取其中11个截面作为分析对象，可以大致上反应桥梁的形态，从左到右选取图纸中的截面：截面1：左边跨直线段截面截面8：4号墩墩顶截面截面11：截面第一次横向变化(39M—43M)起始截面截面14：截面第一次横向变化(39M—43M)结束截面截面16：主跨跨中截面截面22：截面第二次横向变化(43M—45M)起始截面截面24：截面第二次横向变化(43M—45M)结束截面截面25：5号墩墩顶截面截面27：截面第二次横向变化(45M—39M)起始截面截面31：截面第二次横向变化(45M—39M)结束截面截面32：6号墩墩顶截面由于截面形式复杂，而变截面需要前后两端的拓扑一致，即两端的形状，线与线的关系必须一致，两端截面的节点能一一对应，不使用辅助软件的条件下，必须对这些截面在输入时进行划分，取单元形状为四边形，方向为逆时针，并定义梁截面为MESH(自定义截面)，截面偏移为梁节点偏移至横截面圆点。
