Honeywell1900条码扫描枪是一款二维扫描枪，Honeywell1900的图象传感器设计是专为条码扫描而研发的，对于条形码标签的扫描拥有好的阅读性能和可靠性。

以下是一些Honeywell1900扫码枪常见问题和设置方法，包括出厂设置和后缀设置等。

Honeywell 1900常见后缀设置
1、设置回车、制表、删除后缀
当您需要添加回车、制表，您可以用扫描枪直接扫描“添加回车符后缀”、“添加制表符后缀”；若您不需要后缀时，您可以用扫描枪直接扫描“删除后缀”。

2、恢复出厂设置
当您因某些原因需要设备恢复出厂设置时，您可以用扫描枪直接扫描“标准产品默认设置”进行设置。

3、波特率设置
当您的设备使用的是串口线时，这时您需要设置串口波特率。

您可以用扫描枪扫描以下对应波特率条码来进行设置。

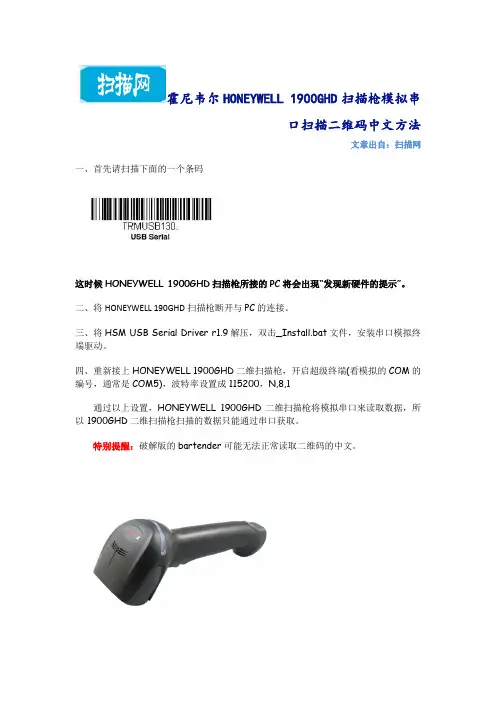

霍尼韦尔HONEYWELL 1900GHD扫描枪模拟串
口扫描二维码中文方法
文章出自：扫描网一、首先请扫描下面的一个条码
这时候HONEYWELL 1900GHD扫描枪所接的PC将会出现“发现新硬件的提示”。

二、将HONEYWELL 190GHD扫描枪断开与PC的连接。

三、将HSM USB Serial Driver r1.9解压，双击_Install.bat文件，安装串口模拟终端驱动。

四、重新接上HONEYWELL 1900GHD二维扫描枪，开启超级终端(看模拟的COM的编号，通常是COM5)，波特率设置成115200，N,8,1
通过以上设置，HONEYWELL 1900GHD二维扫描枪将模拟串口来读取数据，所以 1900GHD二维扫描枪扫描的数据只能通过串口获取。

特别提醒：破解版的bartender可能无法正常读取二维码的中文。
