TechnicalApplication GuidePhilips is now introducing a new line of connected LED lighting products with EasySmart technology. Philips InstantFit LED T8 with EasySmart technology is compatible with verified1 electronic ballasts. It is the easiest way to replace fluorescent lamps with connected LED lamps without rewiring the fixture. It is true plug and play. The lamp offers standard ZigBee based connectivity that easily interoperates with various control devices. Compared with a non-connected LED solution, EasySmart technology realizes more energy savings by enabling advanced control options.Product FeaturesBallast Compatibility•Innovative driver design that enables a “plug-and-play” LED solution•Compatible with verified1 electronic ballast•Quick and easy installationConnectivity•ZigBee based wireless interface•Reliable and secure wireless communication, nominal range 40 feet•Up to 50 lamps in one network•Easy commissioning and (re-)configuration from the floorControl Functionality•Automatic on/off and dimming based on occupancy detection and daylight variation•Personal dimming and scene setting with Zigbee wireless switch•High-end trimming to help save energy and extend lamp lifeEnergy Savings•Energy savings of 50% or more* when used with advanced control such as dimming, occupancy sensing and daylight harvesting.•DLC listed.User comfort•Uniform light output with advanced optical design.•Personal light setting to enhance user comfort and productivity•Typical CRI 82Reliability•Reliable operation between -20°C and +45°C ambient temperature.•Tested to B50 L70 requirement. Lamps are rated for 50,000 hours.•200,000 switching cycles.Safety•Over voltage and over temperature protection.•Complies with relevant UL and CSA safety requirements.•Shatterproof polycarbonate (PC) material.Environment•No Mercury.•Low Carbon Footprint.System OverviewCommunication between lamps, switch and sensors is ZigBee based.To facilitate the installation, Philips provides an IR tool as accessory. Your control device manufacturer will provide a tool (ie: mobile app) to commission the sensor and switch.* Philips InstantFit LED T8 with EasySmart technology uses ZigBee protocol to communicate with each other and 3rd party control devices.* IR programming tool communicates with individual lamp via infrared.* 50% energy savings compared to an F32T8 when dimmed at least 30% for 10% of the time product is on.ApplicationsSpectral Power DistributionPhotometric Diagrams1 x TLED 14W 3000K 160D 9290012811 1 x 2000 lm1 x TLED 14W 3500K 160D 9290012812 1 x 2000 lm1 x TLED 14W 4000K 160D 9290012813 1 x 2100 lm1 x TLED 14W 5000K 160D 9290012814 1 x 2100 lmLifetime and Lumen MaintenancePhilips InstantFit LED T8 with EasySmart technology has a lifetime of 50,000 hours. This is defined as the number of hours when 50% of a large group of identical lamps drops below 70% of its initial lumens.Lifetime and DimmingDimming can help extend lifetime (ie: dimming 30% can extend lifetime by 9,000 hours)Lifetime and Failure RateLifetime vs. Failure rate @T a 25°C Lifetime vs. Failure Rate vs. T caseTemperatureOperating Temperature T operating min -20°C max +45°C Storage Temperature T storage min -40°C max +65°C Maximum case temperature of tube atT case+37°CT amb=25°CDimensionsDimensions (mm)Product A1 A2 A3 D1D2 14T8/481198.11205.21212.325.627.8Technical Specs and Order information*test based on reference instant-start ballastPlease visit /EasySmart for latest information on ballast compatibility.Product DescriptionBare Lamp Watts* Average System Watts* Standby Power* Initial Lumens Lifetime (hrs) Cap Base Length (in) Bulb Type CCTRF RangeProduct number14T8/48-3000 IF 10/1 EasySmart 14W 16.5W <0.5W 2000lm 50,000 G13 48 T8 3000K 40ft 929001281104 14T8/48-3500 IF 10/1 EasySmart 14W 16.5W <0.5W 2000lm 50,000 G13 48 T8 3500K 40ft 929001281204 14T8/48-4000 IF 10/1 EasySmart 14W 16.5W <0.5W 2100lm 50,000 G13 48 T8 4000K 40ft 929001281304 14T8/48-5000 IF 10/1 EasySmart14W16.5W<0.5W2100lm50,000G1348T85000K40ft929001281404AccessoriesOrdering Code Product Number Product Description473504 929001390604 EasySmart IR Programming Tool 10/1Control CompatibilityPhilips InstantFit LED T8 with EasySmart technology now works with:Product DescriptionBrand Model ID/OrderCodeLeviton DLDNK-01W Intellect Decora Lumina RF 1-Button multi-function BLE keypad with room controller and LED feedbackfunctionality, 120-277VAC, 50/60Hz, WhiteLeviton DLDNK-02W Intellect Decora Lumina RF 2-Button multi-function BLE keypad with room controller and LED feedbackfunctionality, 120-277VAC, 50/60Hz, WhiteLeviton DLDNK-04W Intellect Decora Lumina RF 4-Button multi-function BLE keypad with room controller and LED feedbackfunctionality, 120-277VAC, 50/60Hz, WhiteLeviton DLDNK-08W Intellect Decora Lumina RF 8-Button multi-function BLE keypad with room controller and LED feedbackfunctionality, 120-277VAC, 50/60Hz, WhiteLeviton ZSC04-IxW Lumina RF PIR Occupancy Sensor, 450 sq ftLeviton ZSC15-IxW Lumina RF PIR Occupancy Sensor, 1,500 sq ftLeviton LURPC-00W Lumina RF Wireless PhotocellLeviton FREE Neuron AppProduct must be used with compatible control devices. Please visit /EasySmart for latest information on control compatibility.Approbation & CertificatesPhilips InstantFit LED T8 with EasySmart technology strictly follows applicable legislation and standard. The product complies with UL, CSA, NSF and RoHS.Product is DLC qualified:Philips is a member of ZigBee Alliance. Product is ZigBee certified.Application Notes•Product is dimmable by wireless control•Suitable for damp locations•Reliable operation between -20°C to + 45°C ambient temperature•Suitable to replace T8 fluorescent lamps that operate on instant-start ballasts. Please refer to /EasySmart for latest ballast compatibility list.•Require use of shunted lamp holders•Not intended for use in emergency luminaires•Not compatible with luminaires that use a remote starter•Modifications to the product void the limited warranty. For warranty information, please see /warranties•You are required to read and understand the Quick Installation Guide and all warnings, cautions and other materials related to installation published at: /EasySmart before commencing installation work.Footnotes1 Verified as compatible by Philips. Visit /EasySmart for latest ballast compatibility guide.。

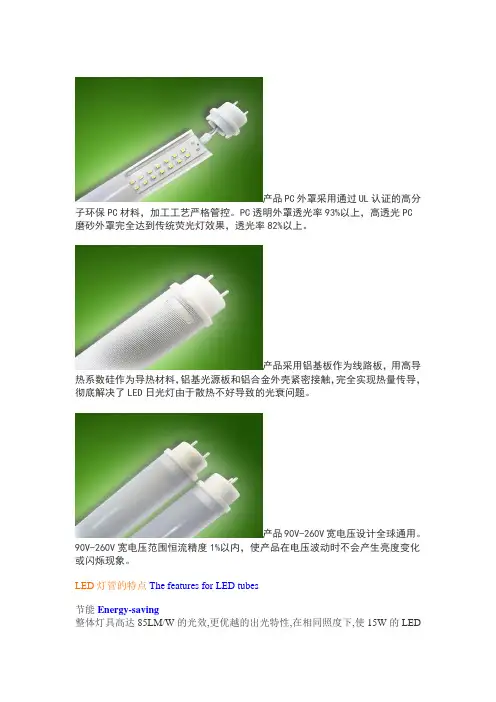

产品PC外罩采用通过UL认证的高分子环保PC材料，加工工艺严格管控。
PC透明外罩透光率93%以上，高透光PC磨砂外罩完全达到传统荧光灯效果，透光率82%以上。
产品采用铝基板作为线路板，用高导热系数硅作为导热材料，铝基光源板和铝合金外壳紧密接触，完全实现热量传导，彻底解决了LED日光灯由于散热不好导致的光衰问题。
产品90V-260V宽电压设计全球通用。
90V-260V宽电压范围恒流精度1%以内，使产品在电压波动时不会产生亮度变化或闪烁现象。
LED灯管的特点The features for LED tubes节能Energy-saving整体灯具高达85LM/W的光效,更优越的出光特性,在相同照度下,使15W的LED日光灯相当于36W传统日光灯,省电60%以上.The light efficiency for the LED tubes is above 85lm/W ,and on the condition of the same illumilation intensity , the 15W LED tube is equivalent to 36W traditional fluorescent tubes ,and the Energy- saving is above 60% .寿命长Long life-SpanLED日光灯采用低衰减光源,使用寿命为普通日光灯管的10倍以上,更适合用于难以更换的场合.The light source for the LED tubes is of low chip-attenuation , and its life-span is 10 times longer than traditional fluorescent tubes , more suitable for the place where is difficult to replace the light sets .光利用率高High light efficiency因为光源角度小于180度，装入灯具后所发出的光能充分利用,减少光损，灯具效率可达80%以上.As the beam angle for the light source is below 180 degree , and the light source can be best utilized once LEDs are set , wich can reduce the ligh lost much , and the light efficiency can reach above 81%.绿色环保Eco-Friendly传统日光灯中含有水银,泄漏会危害人体,而LED日光灯不含任何有害物质,对环境起到保护作用,被公认为二十一世纪的绿色照明产品.As traditional fluorescent tubes contain Mercury , and which is every harmful once any leakiness occurred , however, LED tubes do not contain any harmful materials, and will not cuase pollution to environment , so,the LED ligths is recognised as the green lighting products in 21st century .安全可靠Safe & Reliable无噪音,不含紫外线,光源无频闪,保护眼睛,不易使眼睛疲劳,确保使用的舒适与健康.No noise , no Ultraviolet , no stroboscopic light , eye-protection , not easy to cause eye-fatigue , and can assure the comfort & health during the couse of using .维护费用少 Less MaintenanceLED日光灯寿命长,维护费用低.Due to the long life-span of LED tubes , so , the maintainance will be reduced much .电利用率高 High Power efficiencyLED日光灯PF达0.9以上,达到切实的节能减排要求.The power factor is above 0.9 , which already reach the requirement forenergy-saving & emission-reduction .LED日光灯管优势The advantages for LED tubes散热铝槽采用铝挤出成型, 经过阳极氧化等加工工艺处理,加上科学的散热结构设计，有效解决灯管散热难的问题，大大提高LED使用寿命。
