三号线变频器FC300的使用2012年6月24日三号线变频器FC300的使用 (1)一、安装 (3)1、变频器的安装 (3)2、电气安装图 (4)3、最终设置与测试 (4)4、维修注意事项 (5)二、编程 (6)1、本地控制面板上编程 (6)2、FC 300软件对话 (7)三、常见问题的解决 (8)1、警告/报警信息 (8)2、常见报警故障 (8)3、Live zero error（断线故障） (9)一、安装1、变频器的安装1. 使用附件包中的螺钉和垫圈将去耦板固定到FC 300的底部。
2. 将电动机电缆连接到端子96 (U)、97 (V)、98 (W) 上。
3. 使用附件包中的螺钉连接去耦板上的接地线（端子99）。
4. 将端子96 (U)、97 (V)、98 (W) 和电动机电缆插入标有MOTOR（电动机）的端子。
5. 使用附件包中的螺钉和垫圈将屏蔽电缆固定到去耦板上。
2、电气安装图注：控制电缆必须带有屏蔽/铠装。
3、最终设置与测试要对设置进行测试并且确保FC 300 运行，请执行以下步骤。
步骤1. 找到电动机铭牌。
步骤2. 在该列表中输入电动机铭牌数据。
1. 电动机功率[kW] 参数1-202. 电动机电压参数1-223. 电动机频率参数1-234. 电动机电流参数1-245. 电动机额定转速参数1-25步骤3. 启动自动电动机调整，AMA建议运行AMA 以确保获得最佳性能。
AMA 会测量来自图表（相当于电动机模型）的数据。
1. 启动FC 300，并激活AMA 参数1-29。
2. 选择是运行完整的还是精简的AMA。
如果安装了LC 滤波器，则只能运行精简的AMA。
3. 按[OK]（确认）键。
显示器显示"Press hand to start"（按手动键开始）。
4. 按[Hand on]（手动）键。
位于显示器底部的进度条表明是否正在运行AMA。
步骤4. 设置速度极限和加减速时间根据需要设置速度和加减速时间极限。

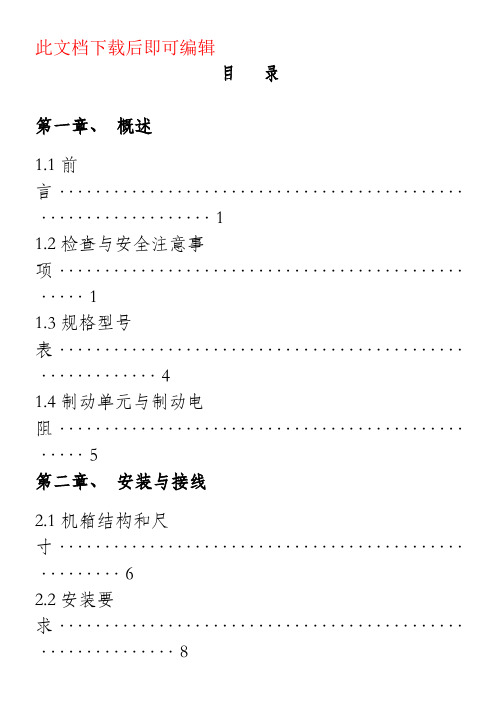

此文档下载后即可编辑目录第一章、概述1.1前言 (1)1.2检查与安全注意事项 (1)1.3规格型号表 (4)1.4制动单元与制动电阻 (5)第二章、安装与接线2.1机箱结构和尺寸 (6)2.2安装要求 (8)2.3接线要求 (8)2.4接线说明 (9)第三章、运行操作3.1操作面板 (13)3.2操作键盘说明 (13)3.3显示内容说明 (14)3.4参数修改方法 (14)3.5试运行 (15)第四章、功能参数一览表 (16)附表1 多段速一、二、三通断状态与频率的对应关系表 (36)附表1 加减速时间选择一、二通断状态与加减速时间的对应关系表 (36)第五章、故障处理方法5.1维护检查注意事项 (37)5.2定期检查专案 (37)5.3故障信息及故障排除 (37)5.4故障及分析 (39)5.5常见异常现象及对策 (41)第六章、品质承诺 (43)第一章概述1.1前言FC300系列变频器是针对各种专用场合而精心设计的一款多功能高性能产品。
调试参数简单实用，只须一键设置便可改为您需要的专用机型，再加上参数拷贝功能，使您在使用本变频器时变得异常的简单。
使用之前请务必熟读此说明书，便于您更好的使用此变频器，阅读后请妥善保管，对以后的维护,保护及其他使用场合有很好的帮助。
如在使用过程中存在着无法解决的问题，请您随时与本公司联系。
为了您的安全，请务必由合格的专业电机工程人员安装调试及修改参数。
本手册中有请您配合，使变频器使用更加安全。
1.2检查与安全注意事项FC300系列变频器在出厂之前已经过测试和品质检验，在购买之后。
拆箱之前请检查产品包装是否因运输不慎而造成损失，产品的规格和型号，是否与定购机种相符，如有问题请与本公司联系。
1.2.1 拆箱后检查1 内含本机使用说明书一本，保修卡及合格证一张。
2检测变频器侧面的铭牌，以确定在您手上的产品是您说定购的产品。
变频器铭牌说明变频器型号说明：1.2.2安全注意事项成严重的后果，请遵循两个等级的注意事项，它们对我们的个人安全都很重要1.2.3搬运和放置注意事项送电前●所选用电源电压必须与变频器输入电压规格相同。

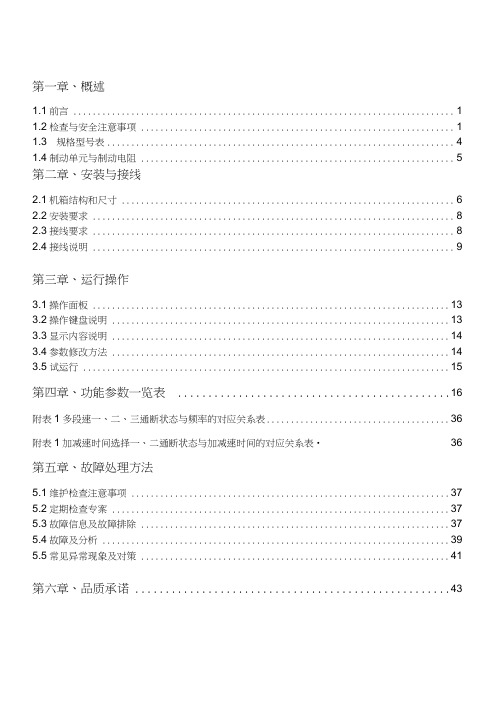

第一章、概述1.1前言 (1)1.2检查与安全注意事项 (1)1.3 规格型号表 (4)1.4制动单元与制动电阻 (5)第二章、安装与接线2.1机箱结构和尺寸 (6)2.2安装要求 (8)2.3接线要求 (8)2.4接线说明 (9)第三章、运行操作3.1操作面板 (13)3.2操作键盘说明 (13)3.3显示内容说明 (14)3.4参数修改方法 (14)3.5试运行 (15)第四章、功能参数一览表 (16)附表1多段速一、二、三通断状态与频率的对应关系表 (36)附表1加减速时间选择一、二通断状态与加减速时间的对应关系表•36第五章、故障处理方法5.1维护检查注意事项 (37)5.2定期检查专案 (37)5.3故障信息及故障排除 (37)5.4故障及分析 (39)5.5常见异常现象及对策 (41)第六章、品质承诺 (43)1.1前言FC300 系列变频器是针对各种专用场合而精心设计的一款多功能高性能产品。
调 试参数简单实用，只须一键设置便可改为您需要的专用机型，再加上参数拷贝功能， 使您在使用本变频器时变得异常的简单。
使用之前请务必熟读此说明书，便于您更好 的使用此变频器，阅读后请妥善保管，对以后的维护，保护及其他使用场合有很好的帮 助。
如在使用过程中存在着无法解决的问题，请您随时与本公司联系。
为了您的安全，请务必由合格的专业电机工程人员安装调试及修改参数。
本手册中有 I 危险I 应意等符号提醒您在搬运、安装、运转、检查变频器时的安全防范事项，请您配合，使变 频器使用更加安全。
1.2检查与安全注意事项FC300系列变频器在出厂之前已经过测试和品质检验，在购买之后。
拆箱之前请检 查产品包装是否因运输不慎而造成损失，产品的规格和型号，是否与定购机种相符， 如有问题请与本公司联系。
1.2.1拆箱后检查1内含本机使用说明书一本，保修卡及合格证一张。
2检测变频器侧面的铭牌，以确定在您手上的产品是您说定购的产品。
参数设置单泵恒压供水参数设置一、单泵恒压供水变频器出厂已经设置为恒压供水专用，如果出现了参数混乱，可将P087设置为102，恢复出厂值。
出厂值按1.0Mpa的压力表配置，此时操作面板可直观准确的显示水压。
若使用1.6MP压力表，请将参数P113设置为1600；若使用2.5MP压力表，请将参数P113设置为2500。
不修改P113也可以正常工作，只是操作面板显示的水压不直观。
根据实际情况，用户可调整以下参数：P023：最低输出频率（25.0Hz）P124：睡眠延时（10.0S）P117、P118：可调节反应速度。
出厂前更改：1，控制端子的10V输出变更为5V。
2，P087=102，恢复出厂值。
二、单泵恒压供水参数设置举例假设采用1.5Mpa的压力表，连接到变频器的10V 、AVI、COM端子。
目标压力是0.8Mpa。
由于远传压力表的阻值比较小（约400欧左右），10V端子的输出电压会有所下降。
假设用万用表测量，10V降低到了8V。
P023（最低输出频率）：20.0Hz。
低于20.0Hz水泵停止运行。
P112（运行模式）：1。
操作面板▲、▼设定目标值，AVI端子接压力表；P113（PID最大目标值）：1500。
表示1.500MpaP115（PID最大目标值对应反馈量）：80。
8V/10V=80%，即压力表反馈为8V时，实际压力为1.5Mpa。
P121（PID相关参数）：0003。
操作面板的压力显示3位小数，以增加直观性。
P122（PID目标值）：800。
可通过操作面板▲、▼直接修改。
P124（睡眠延时）：10.0。
当频率降低到20.0Hz时，延迟10秒后水泵停机。
其它三、其它P117、P118：可调节反应速度。
注1：批量用户，有两种方式可减少繁琐的参数设定。
1：在变频器软件中预存参数；2：使用操作面板的拷贝功能。
注2：若电机出现震荡现象，可以调整之间电压参数P078 中间电压 1/3电机额定频率对应的输出电压。
VLT®AutomationDrive FC 300 操作說明書目錄目錄1 如何閱讀操作說明書3認證4符號4縮寫52 安全說明及一般警告7高電壓7避免意外啟動8FC 300的安全停機8安全停機安裝，僅限 - FC 302 (且 FC 301 的機架大小為 A1)10IT 主電源103 如何安裝11機械安裝14電氣安裝16主電源連接與接地17馬達連接20保險絲23電氣安裝、控制端子27連接範例28電氣安裝，控制電纜線30開關 S201、S202 和 S80132其他連接35機械煞車控制35馬達熱保護35如何將電腦連接到變頻器36FC 300 PC 軟體364 如何進行程式設定37圖形化與與數值化 LCP37如何在圖形化 LCP 上進行程式設定37如何在數值化 LCP 操作控制器上進行程式設定38快速設定表單40基本設定參數43參數清單615 一般規格896 疑難排解95警告/警報訊息95索引1021 如何閱讀操作說明書VLT®AutomationDrive FC 300 操作說明書1VLT®AutomationDrive FC 300 操作說明書 1 如何閱讀操作說明書1如何閱讀操作說明書1VLT AutomationDrive操作說明書軟體版本：5.0x這些操作說明書適用於所有使用 5.0x 軟體版本的 VLT AutomationDrive 變頻器。
軟體版本號碼可以從參數 15-43 軟體版本上取得。
1.1.1如何閱讀操作說明書VLT AutomationDrive 可提供高效能的電氣馬達轉軸效能。
要正確使用，請仔細閱讀本手冊。
錯誤操作變頻器可能導致變頻器或相關設備操作異常、減低壽命或造成其他故障。
本操作說明書將協助您開始使用、安裝、進行程式設定和解決 VLT AutomationDrive.的問題。
VLT AutomationDrive 包含兩種轉軸效能等級。
